NANO CFS KIT

The nano CFS kit arrives inside a small box that just has a sticker at the front with the name of the product.

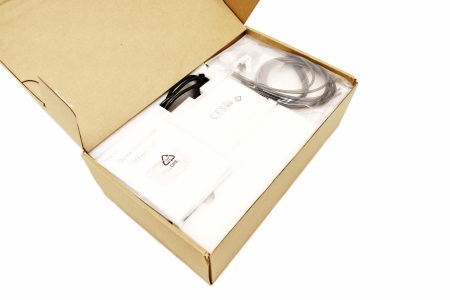

Everything is nicely packed between three pieces of foam.

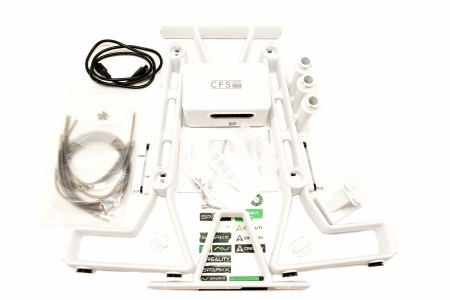

The nano CFS kit consists of 14 pieces and as expected we also get the CFS connection cable along with several PTFE tubes.

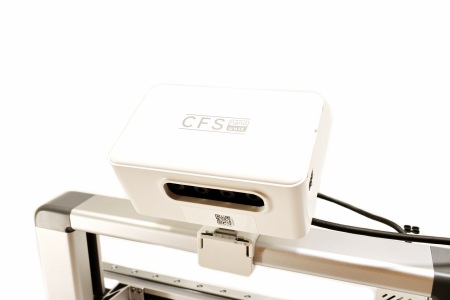

I started installation by mounting the main unit on top on the SPARKX i7 AI (where the filament holder was).

Next were the rear filament feet mounts.

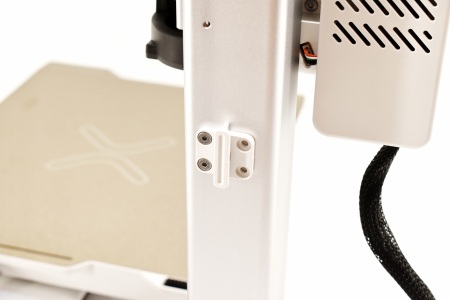

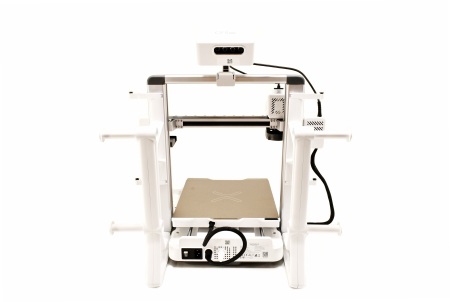

After that you will need to attach the filament holders onto the feet and attach the feet onto the printer (tool-less slide mechanism).

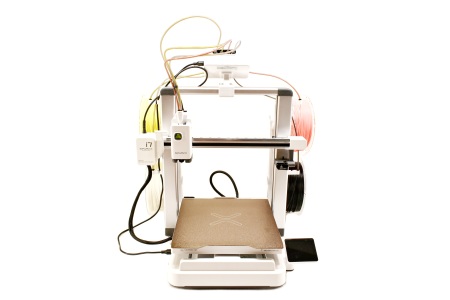

Of course, you will need to attach the PTFE tubes (long tubes for the 1/4 filament positions, short for the 2/3) and place the filaments as seen above.

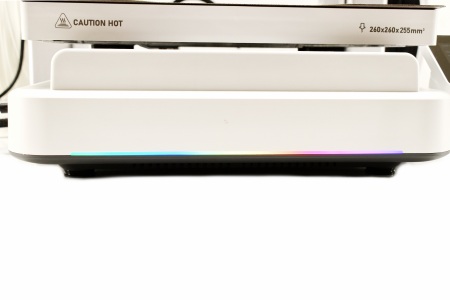

Also worth pointing out is that unlike other models the RGB LED bar is not placed at the front of the hotbed but at the lower end of the base.
