ASSEMBLY

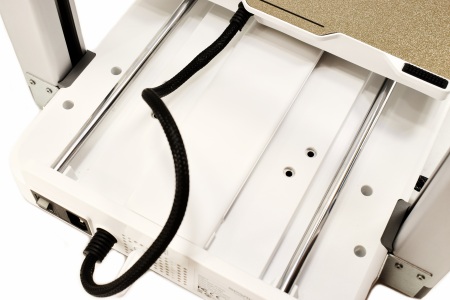

Attaching both pieces of the SPARKX i7 AI is very easy, just pass the bottom through the top as seen above.

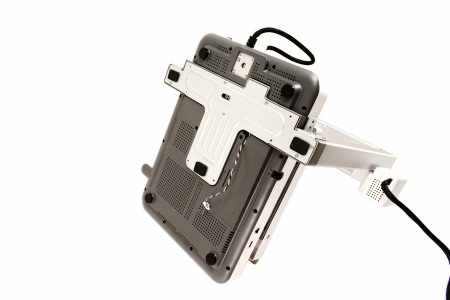

Next you will need to use the 10 large screws in the bundle to secure both pieces.

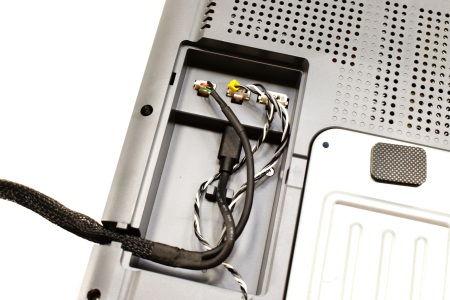

After that you will need to route and attach all cables in the compartment underneath.

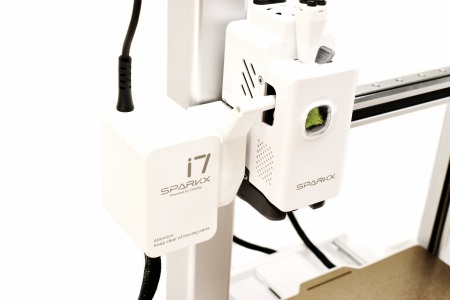

Forgot to mention that this piece on the left acts as an stop mechanism.

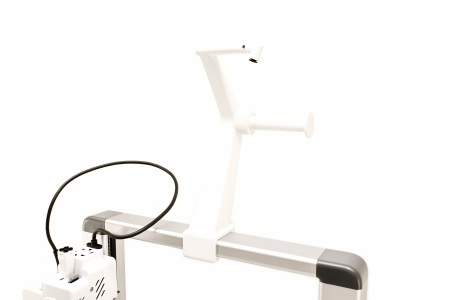

Last step is to mount the 2-piece spool holder at the top.

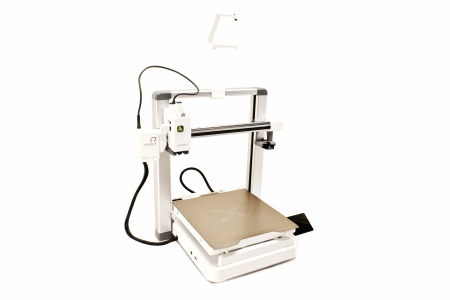

For people who've bought the standalone SPARKX i7 AI this is the end result.
