ASSEMBLY

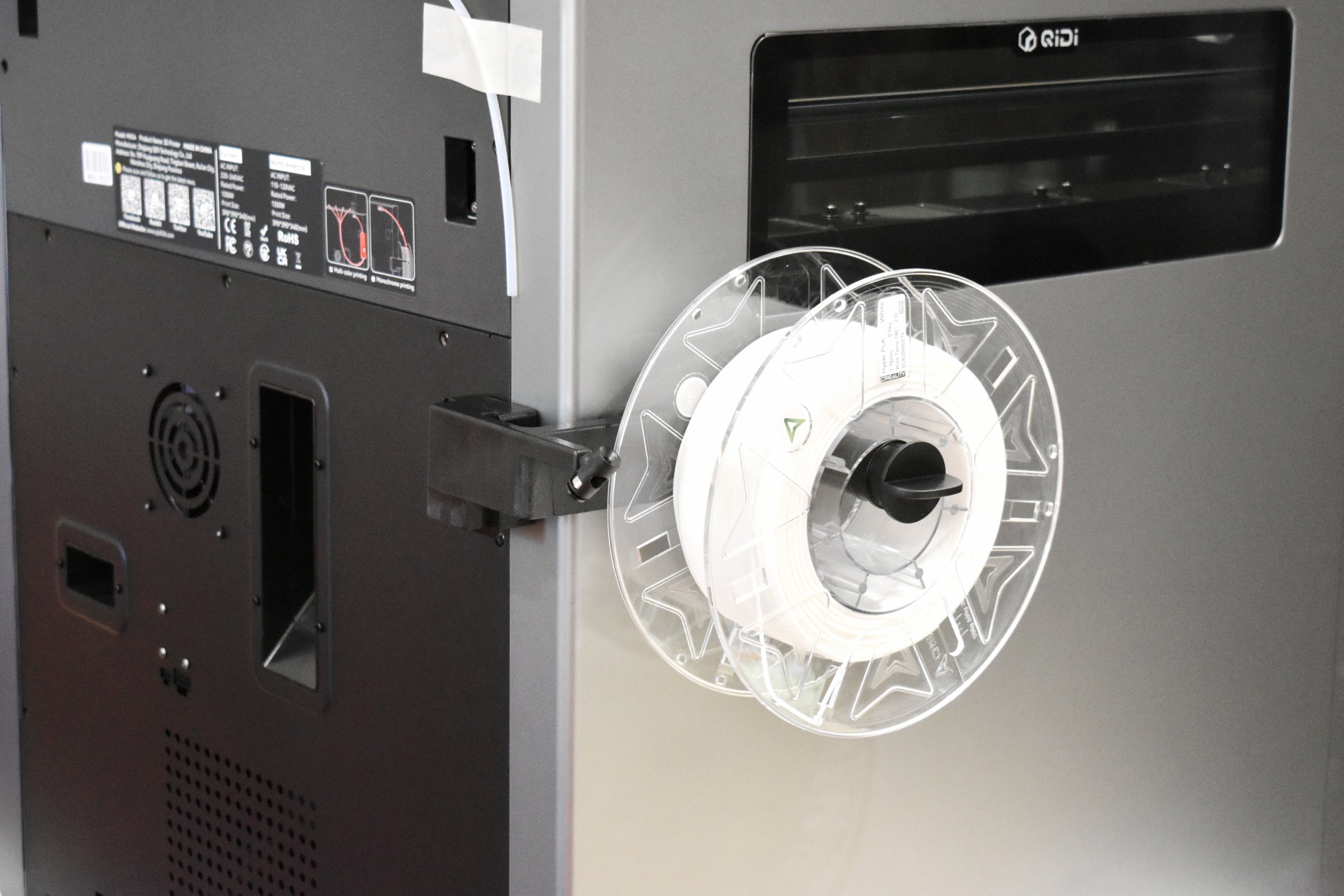

Even though the Max 4 Combo is a 3D printer bundle people will get for the multi-color box showing how the spool holder looks when mounted is a must.

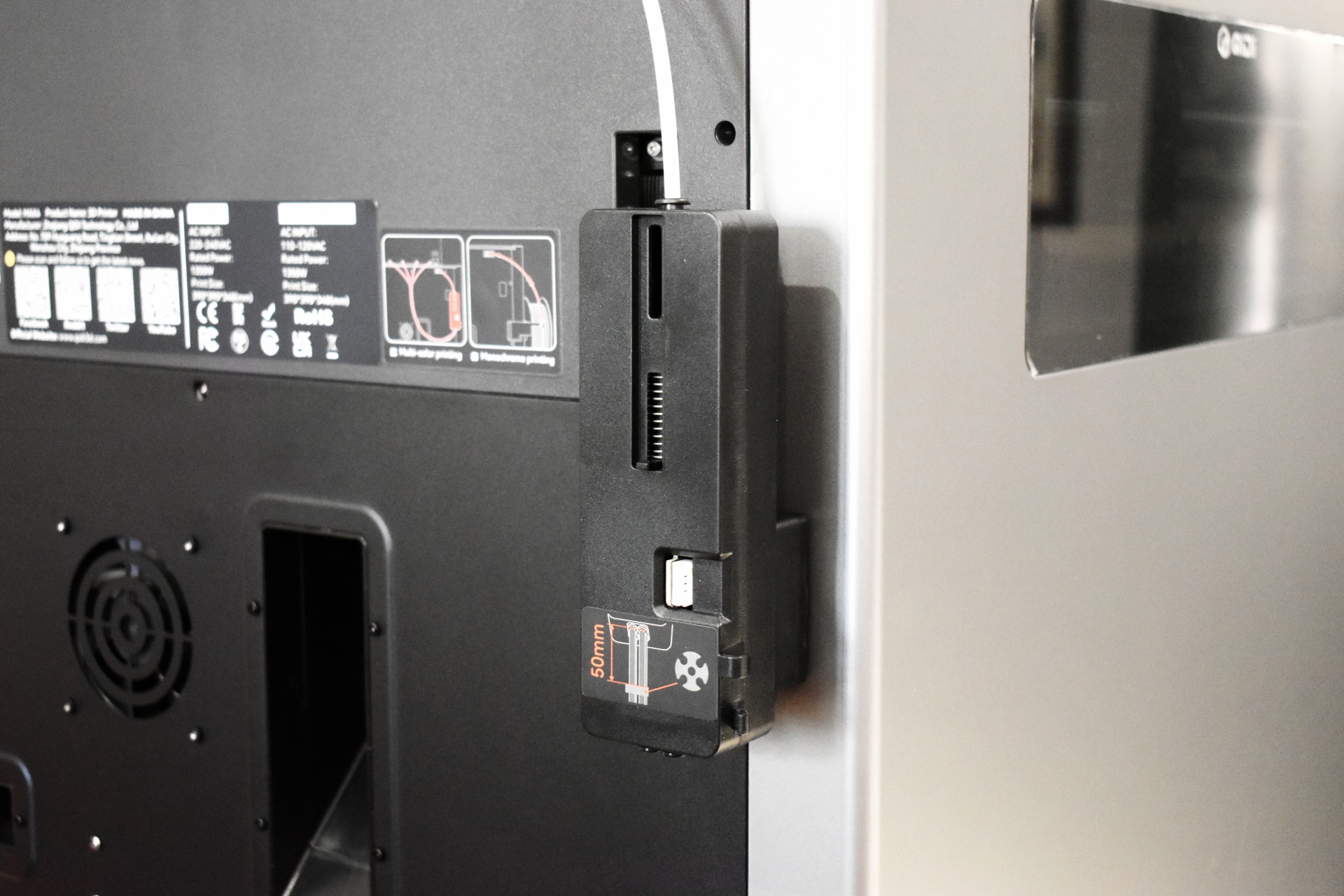

To use the QIDI box you will need to attach the multi-color spool hub in the holder mount as seen above.

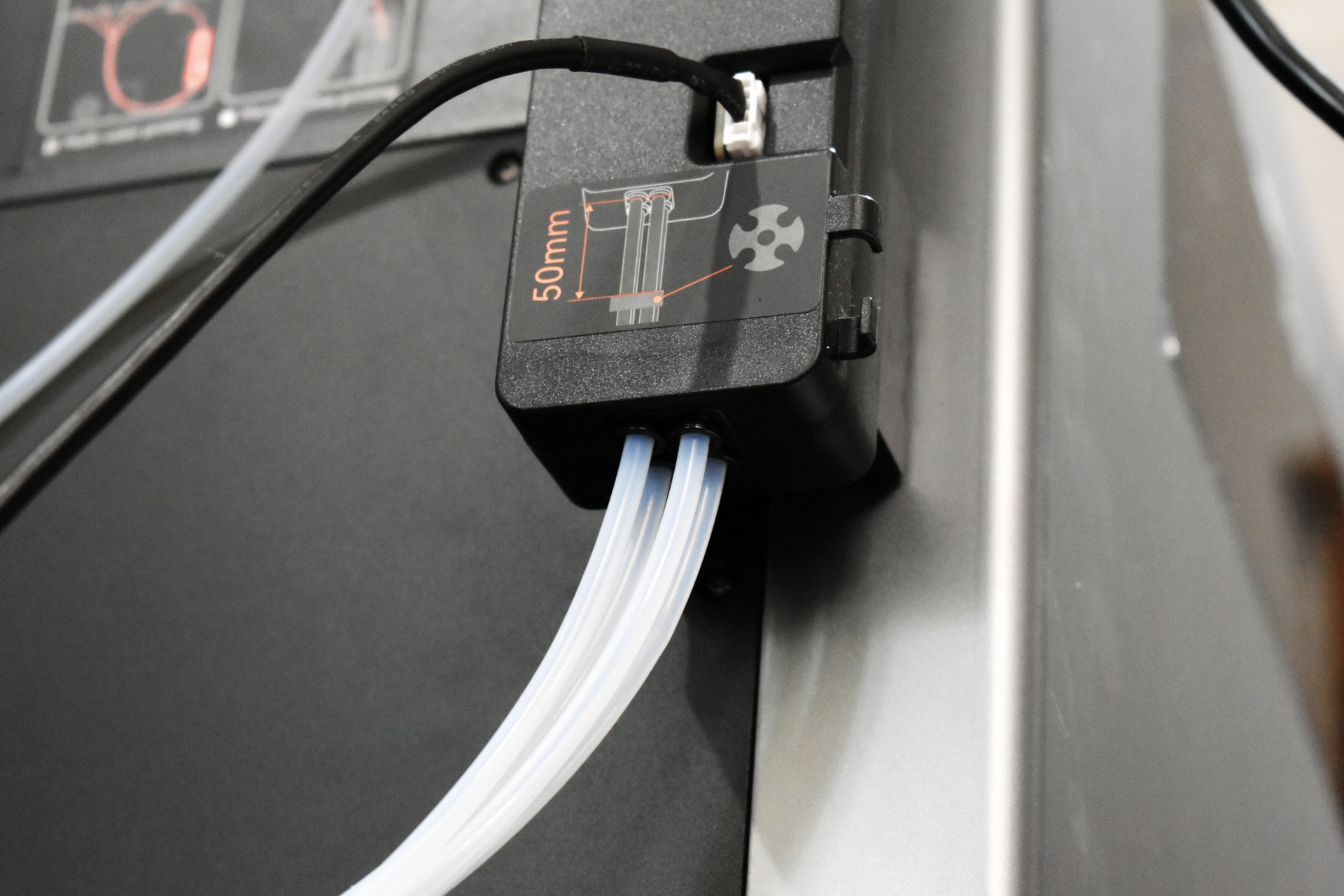

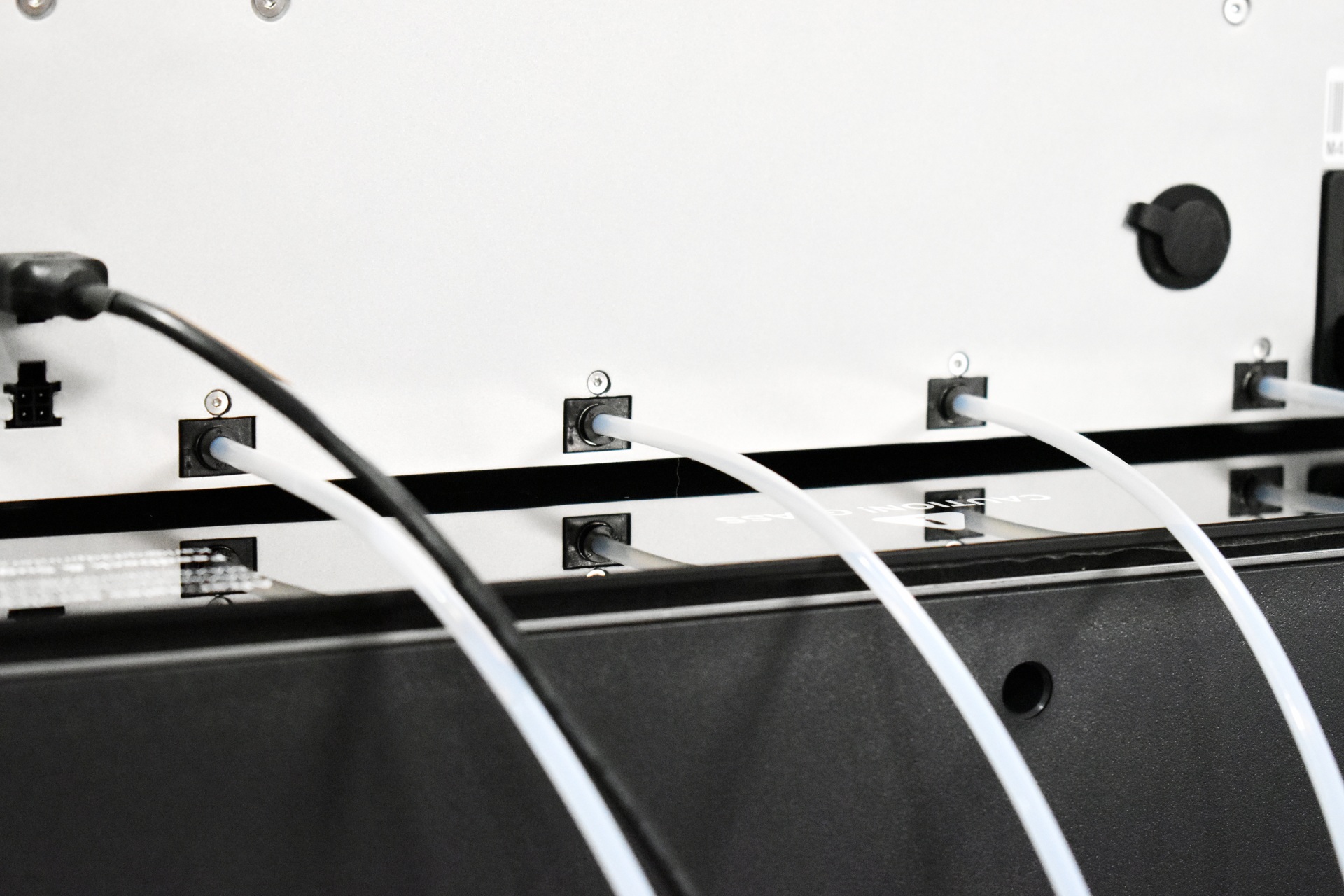

Then you will have to connect the spool hub to the QIDI box via 4 PTFE tubes as seen above.

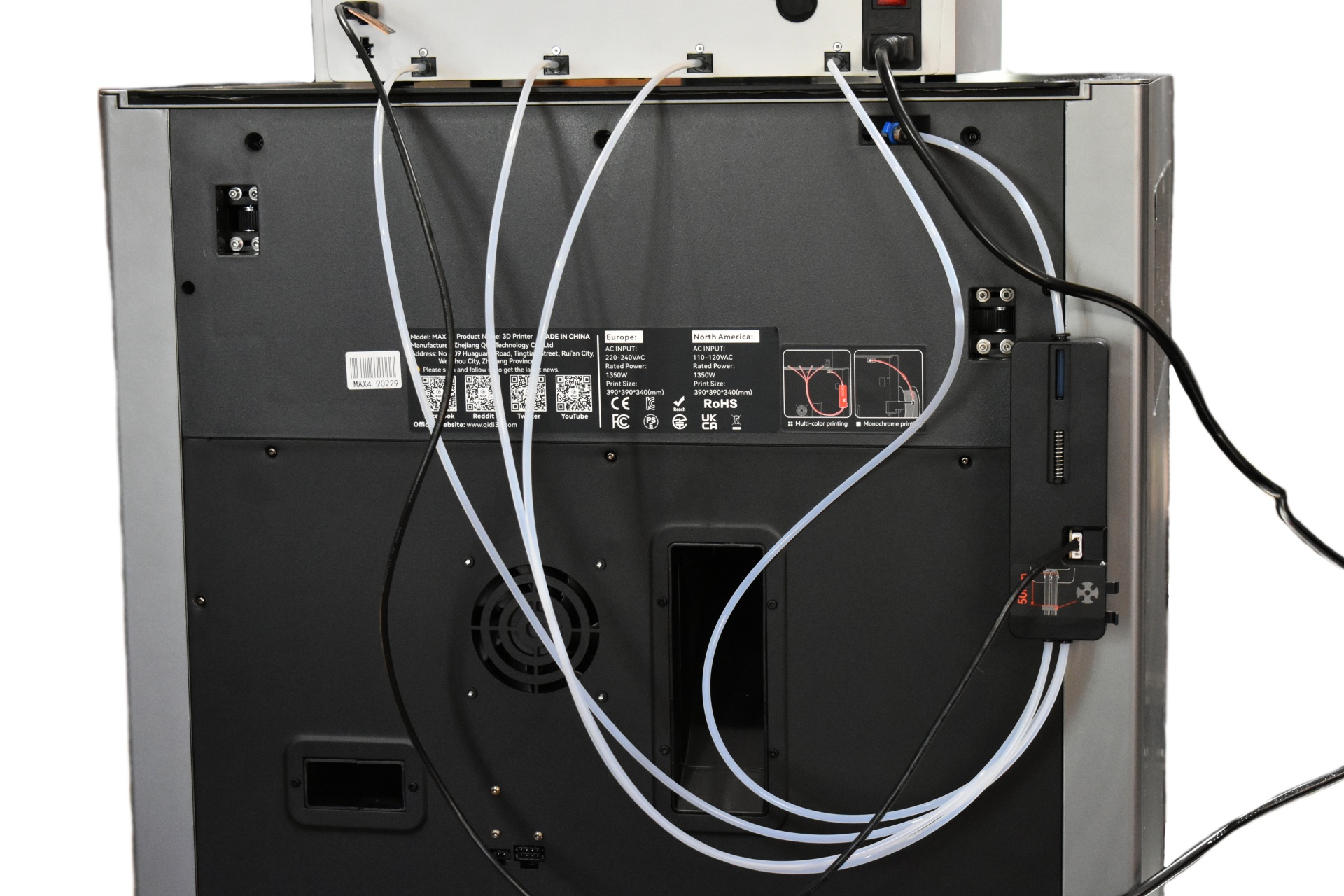

This is how the Max 4 Combo looks with the PTFE and power cables attached (signal cables still not attached).

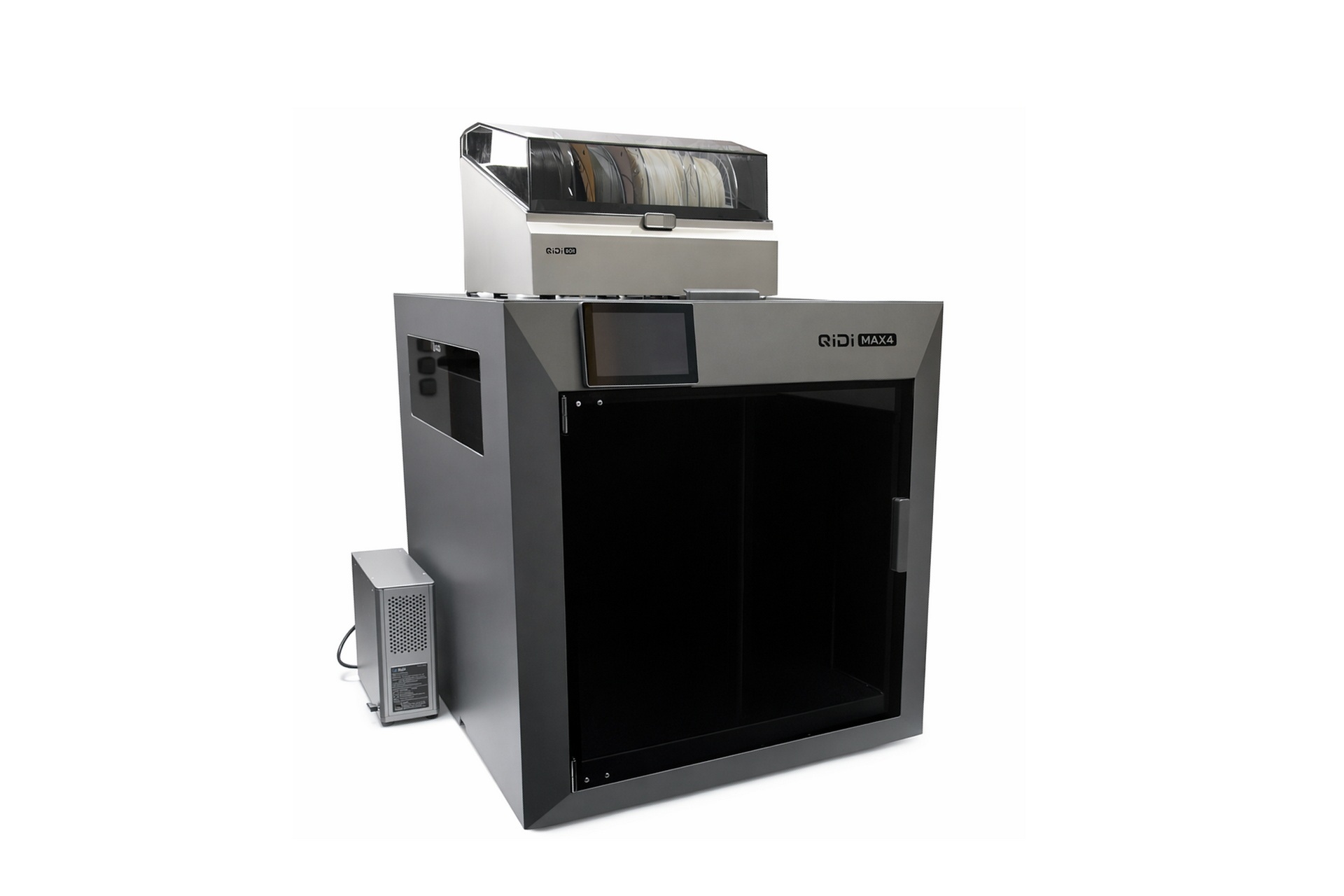

With the QIDI box and Polar Cooler attached to the Max 4 everything is ready to go.
