THE QIDI MAX 4 COMBO

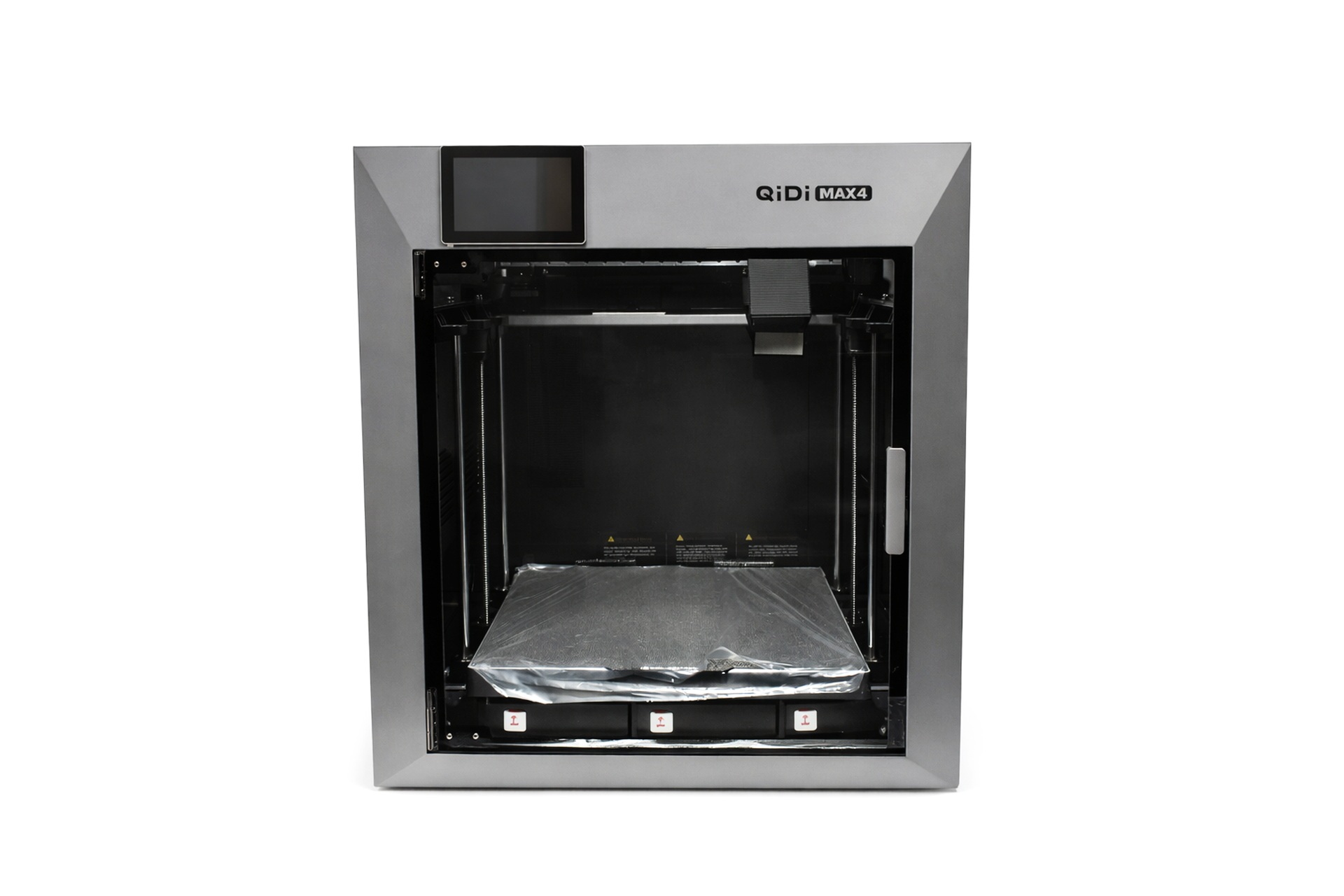

The 49.5kg heavy MAX 4 is a large 3D printer measuring 612mm in height, 558mm in depth and 578mm in width.

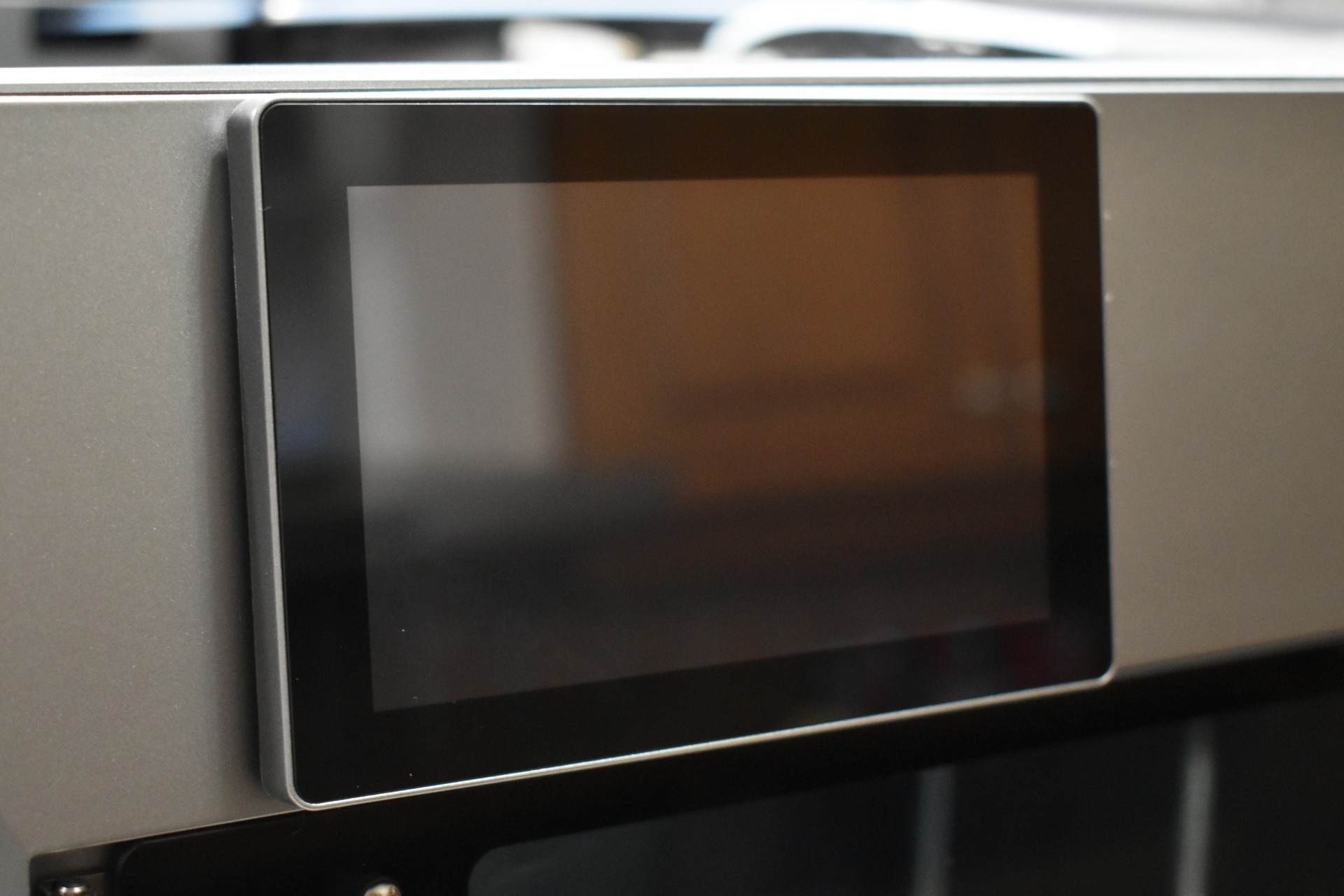

The 5-inch 800x480p touch screen located on the top left of the printer also features a tilt mechanism allowing the end user to slightly change its angle.

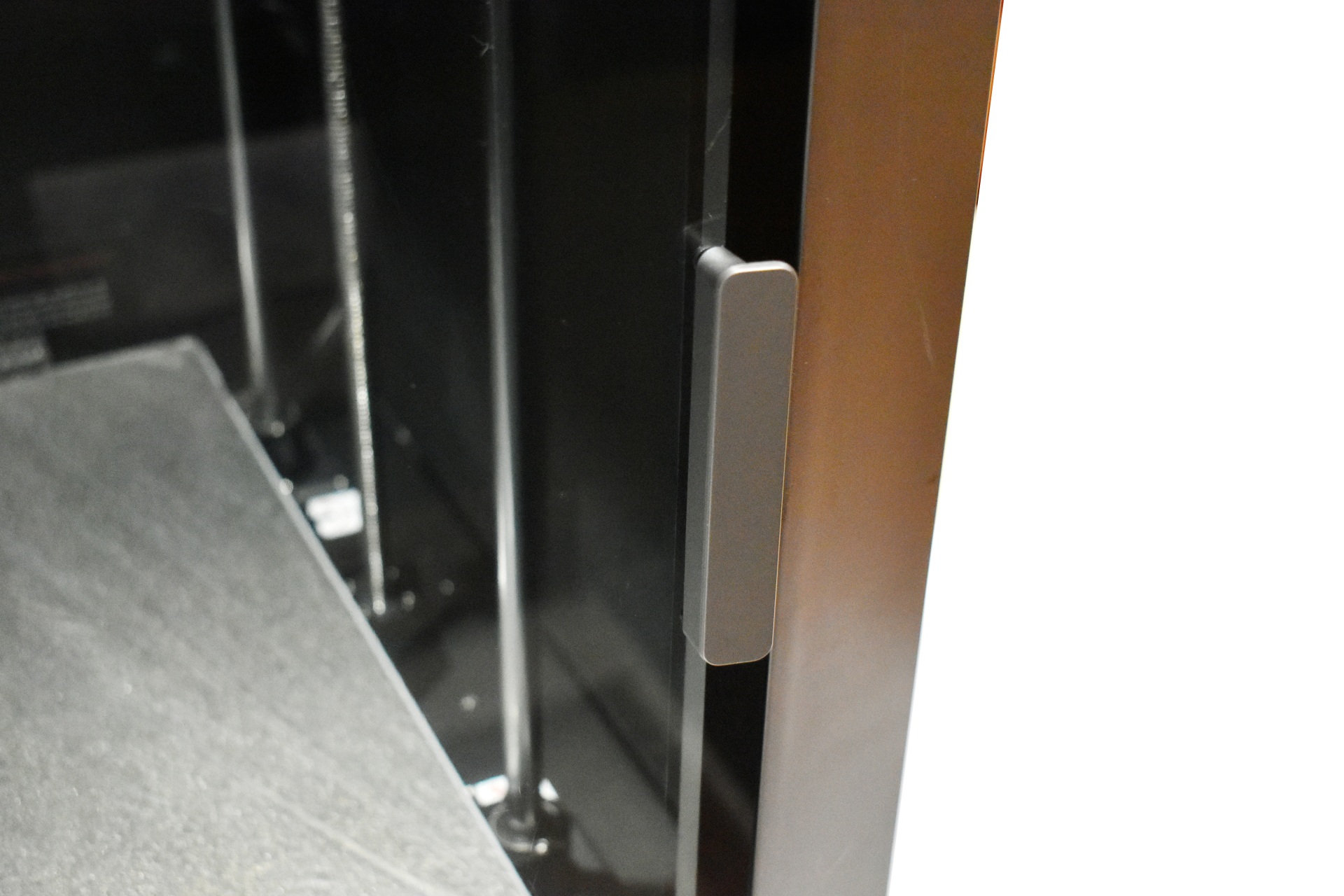

Unlike with previous models the door handle now comes pre-attached.

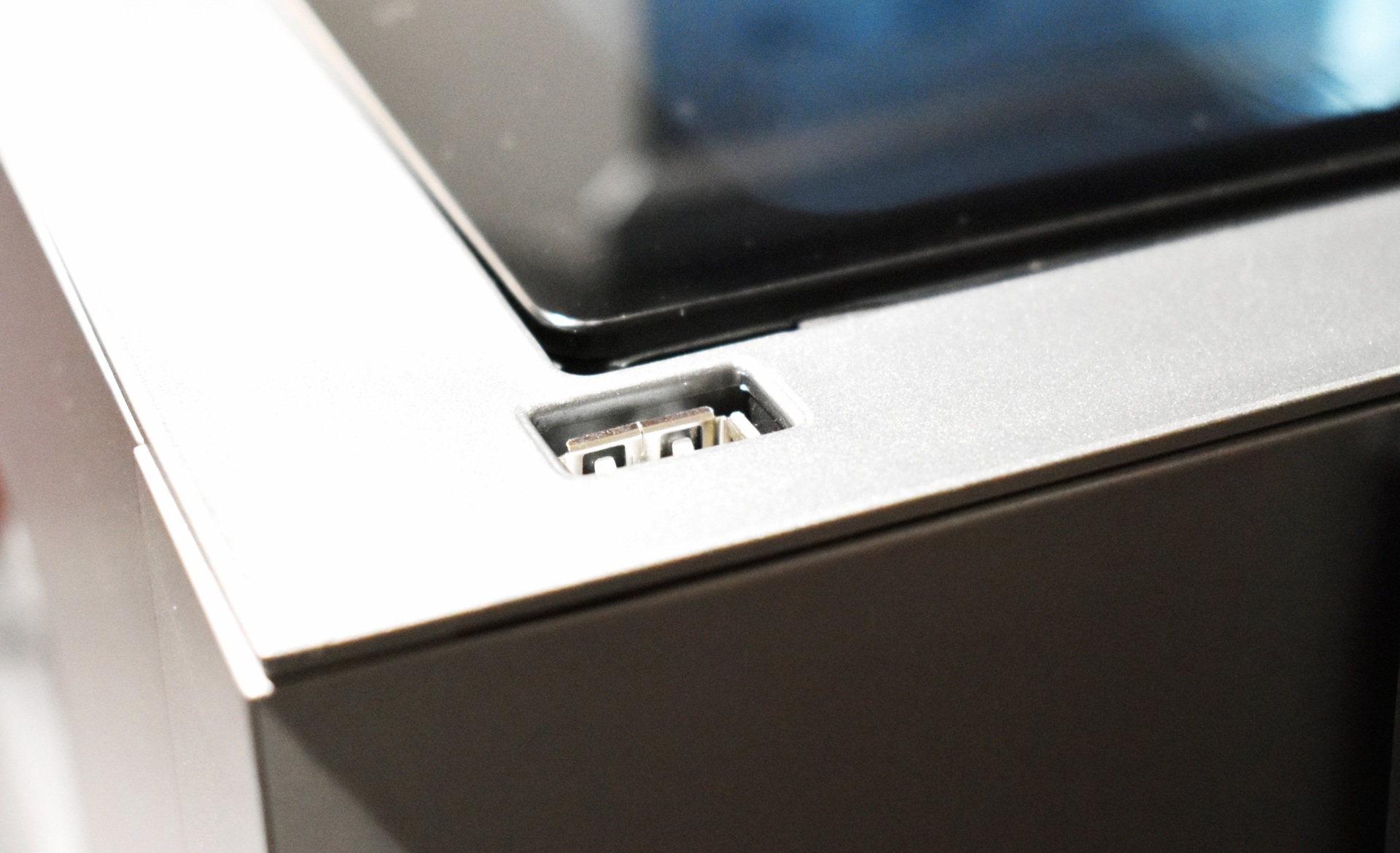

A USB-A port is located on top of the printer.

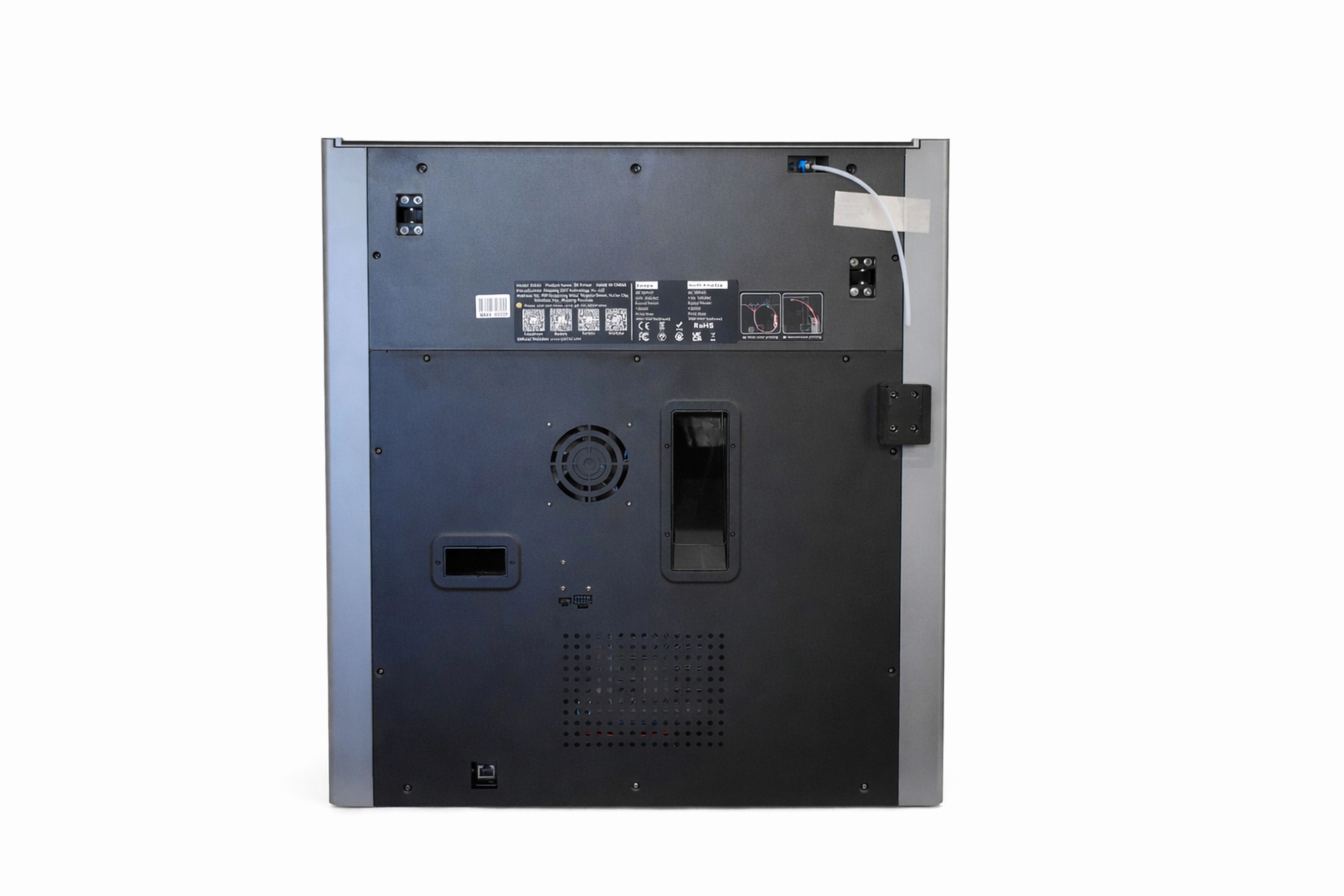

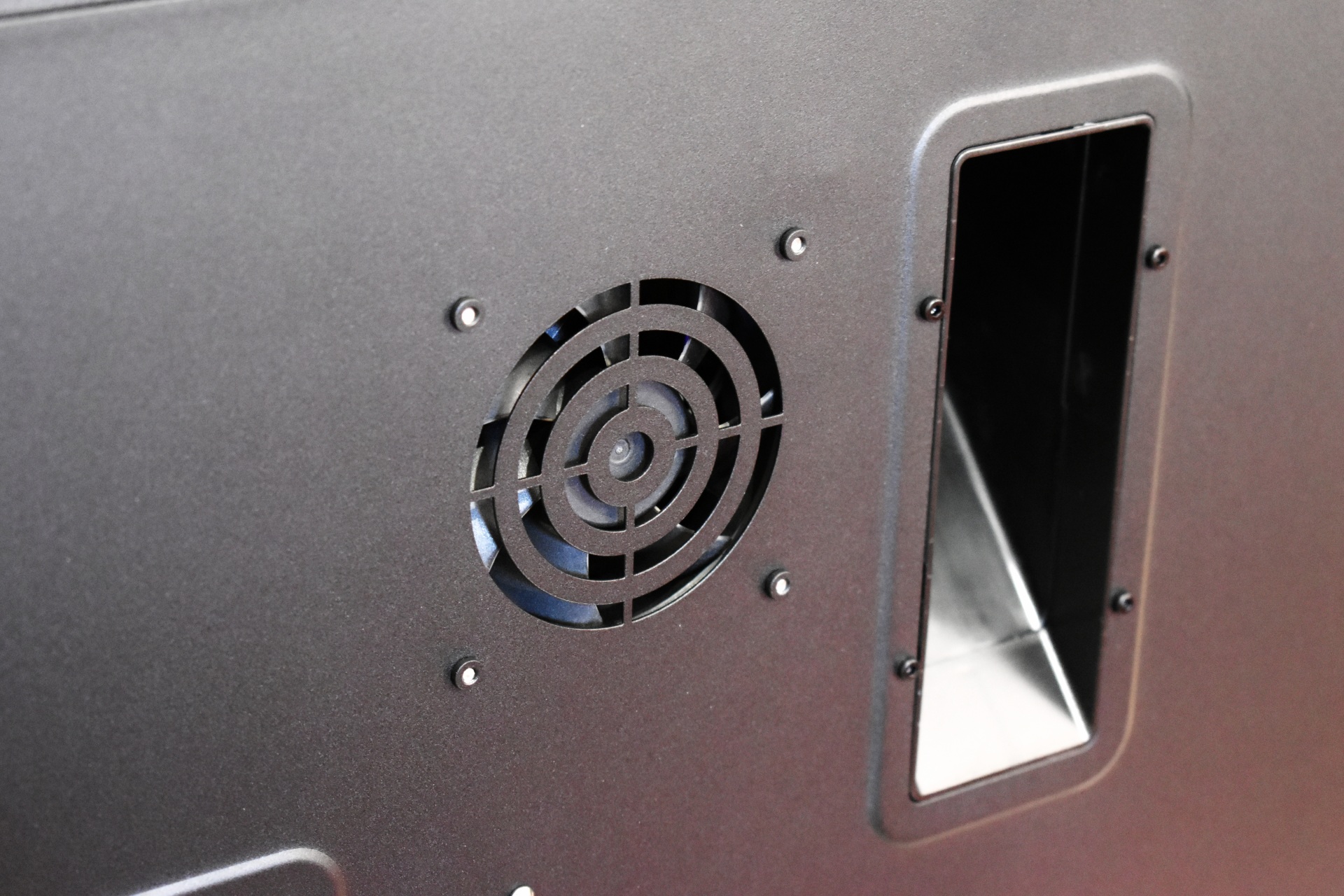

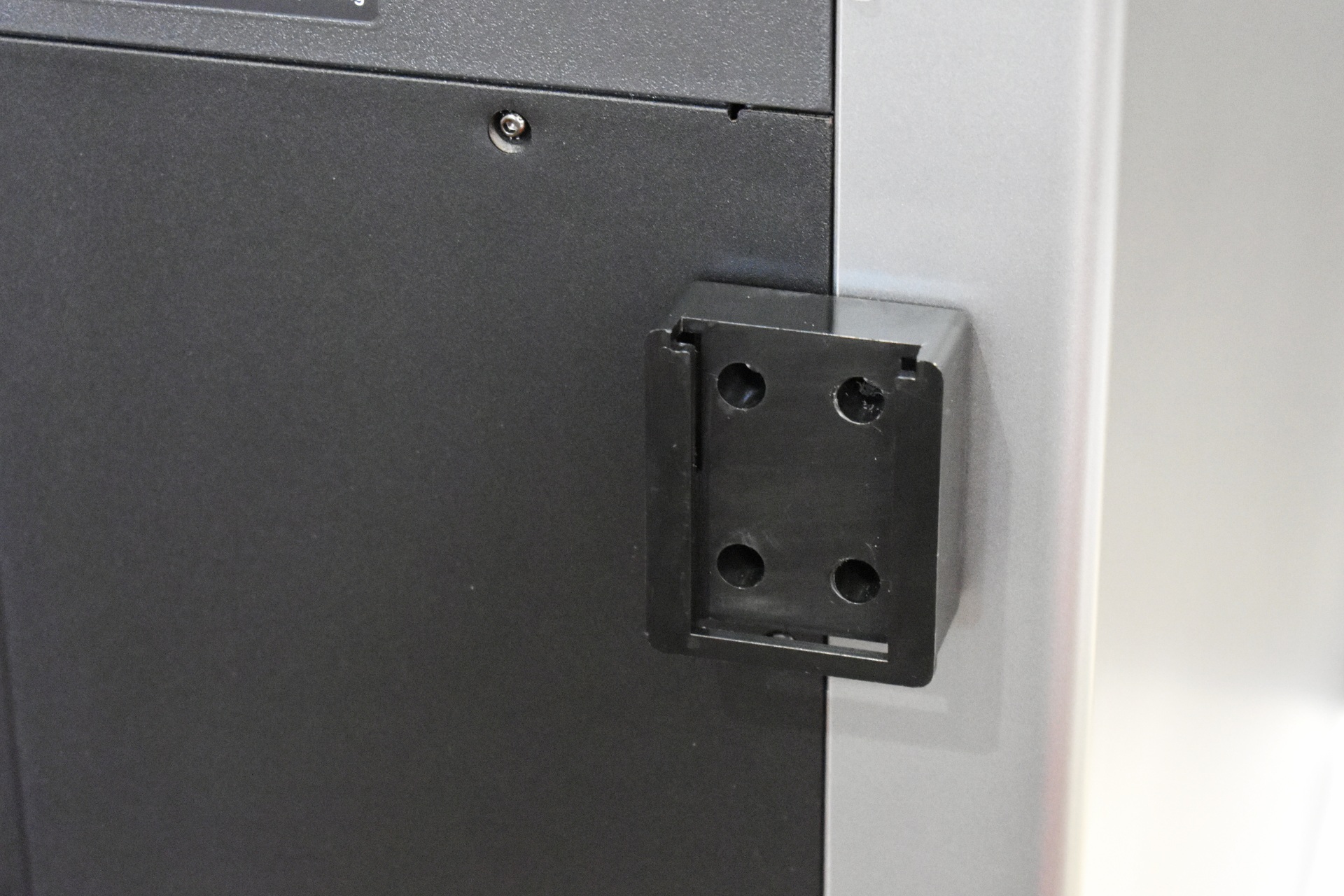

Turning the Max 4 3D printer around we see an intake fan, filament spool holder mount, RJ45 port, signal cable ports, and the filament exit.

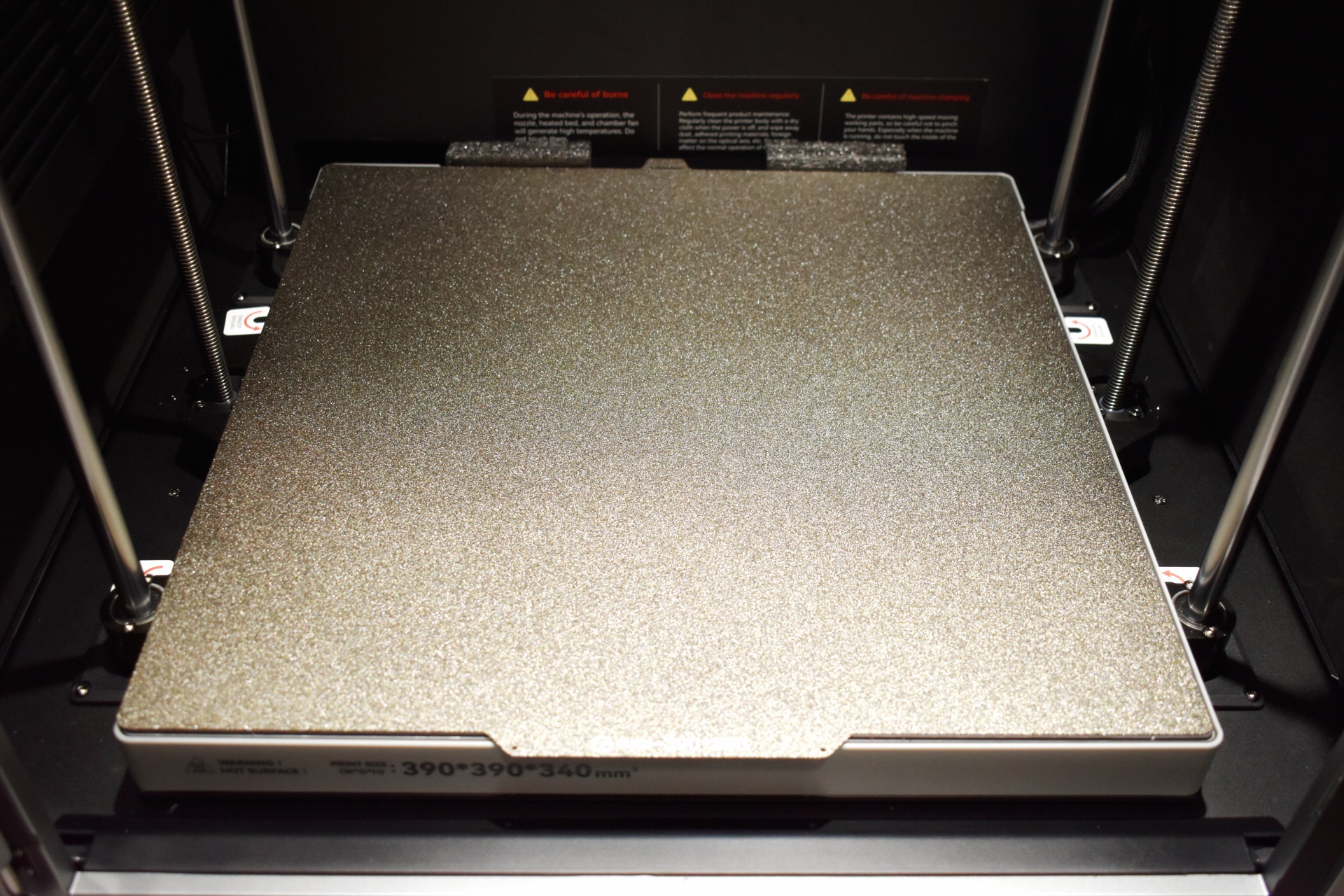

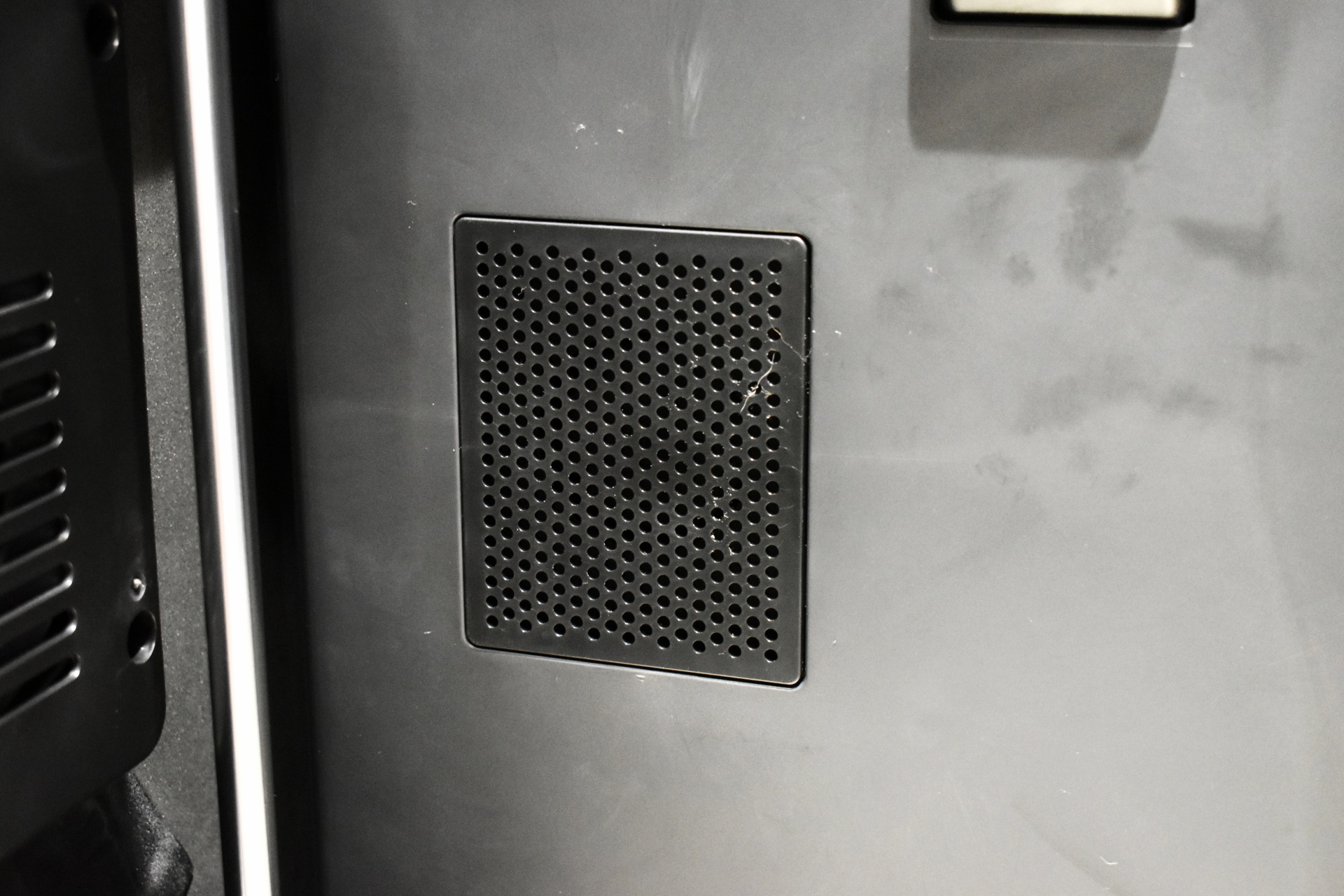

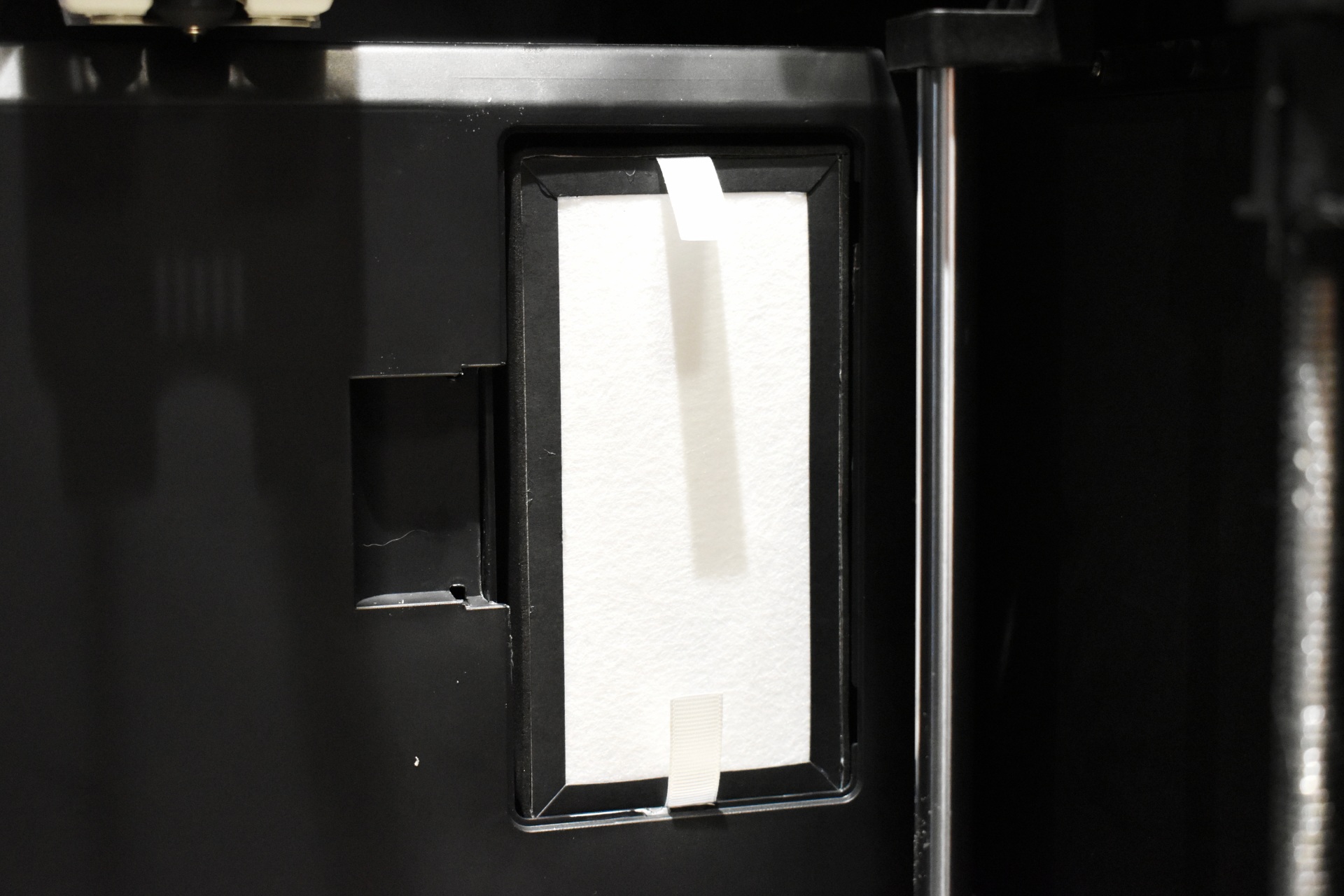

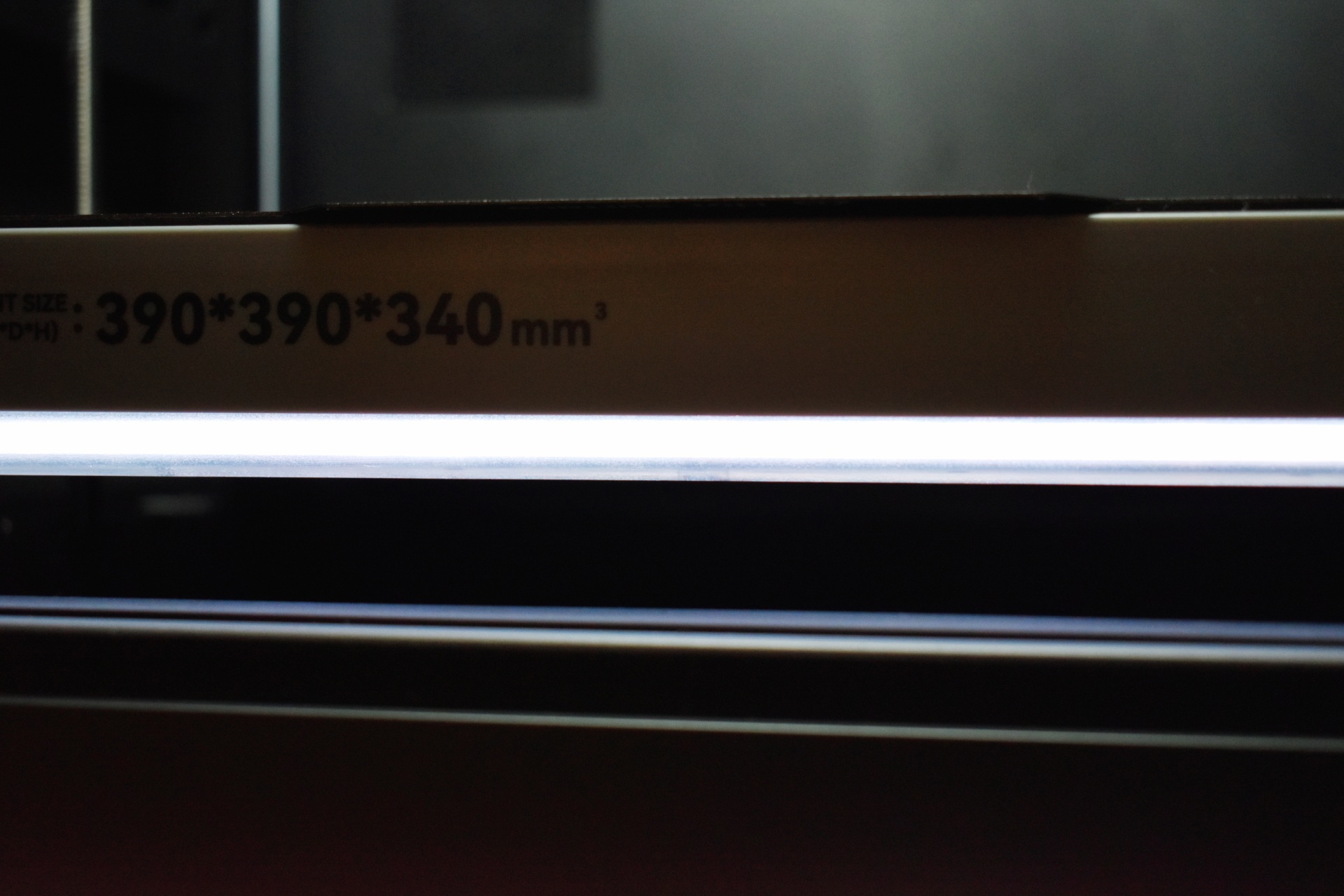

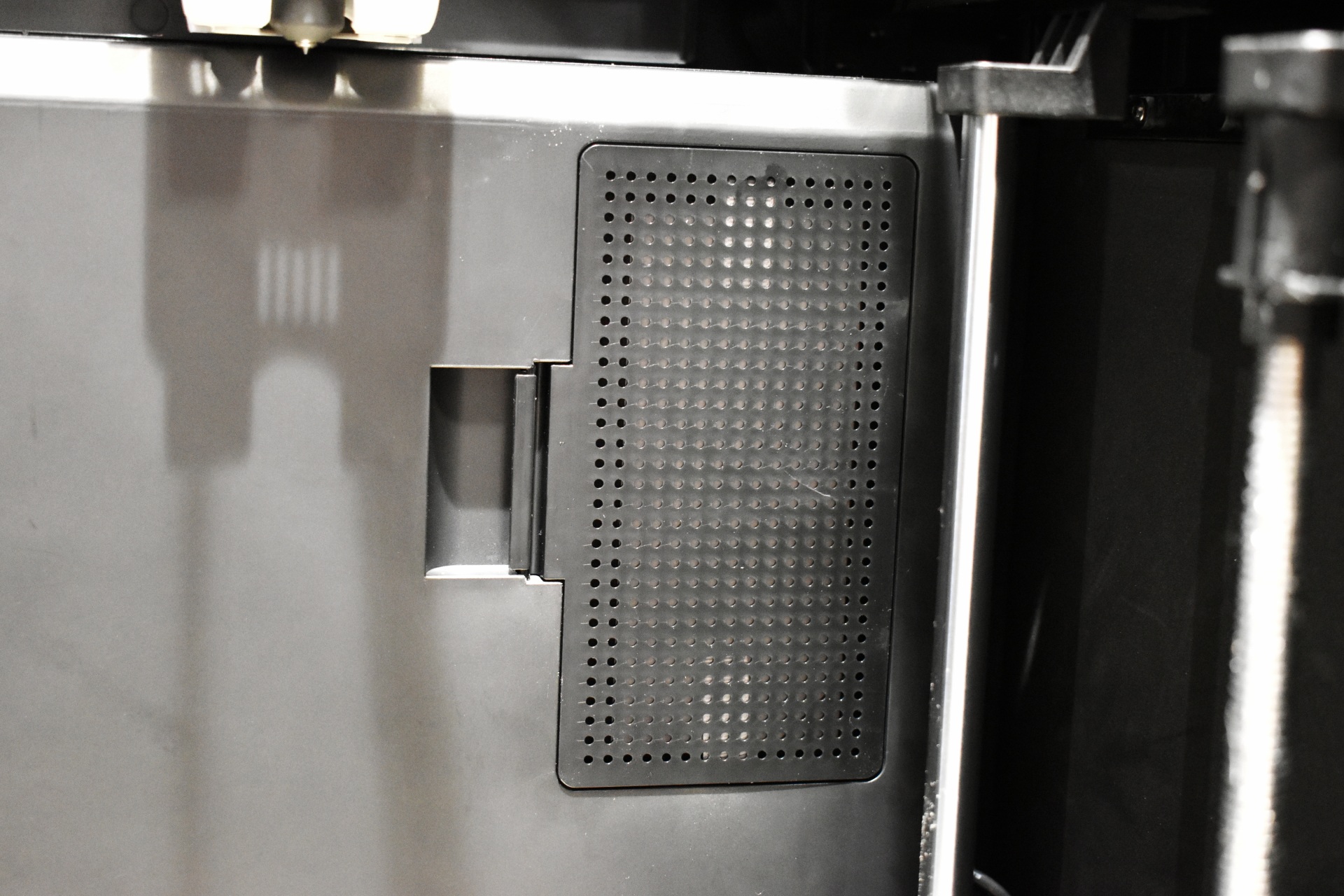

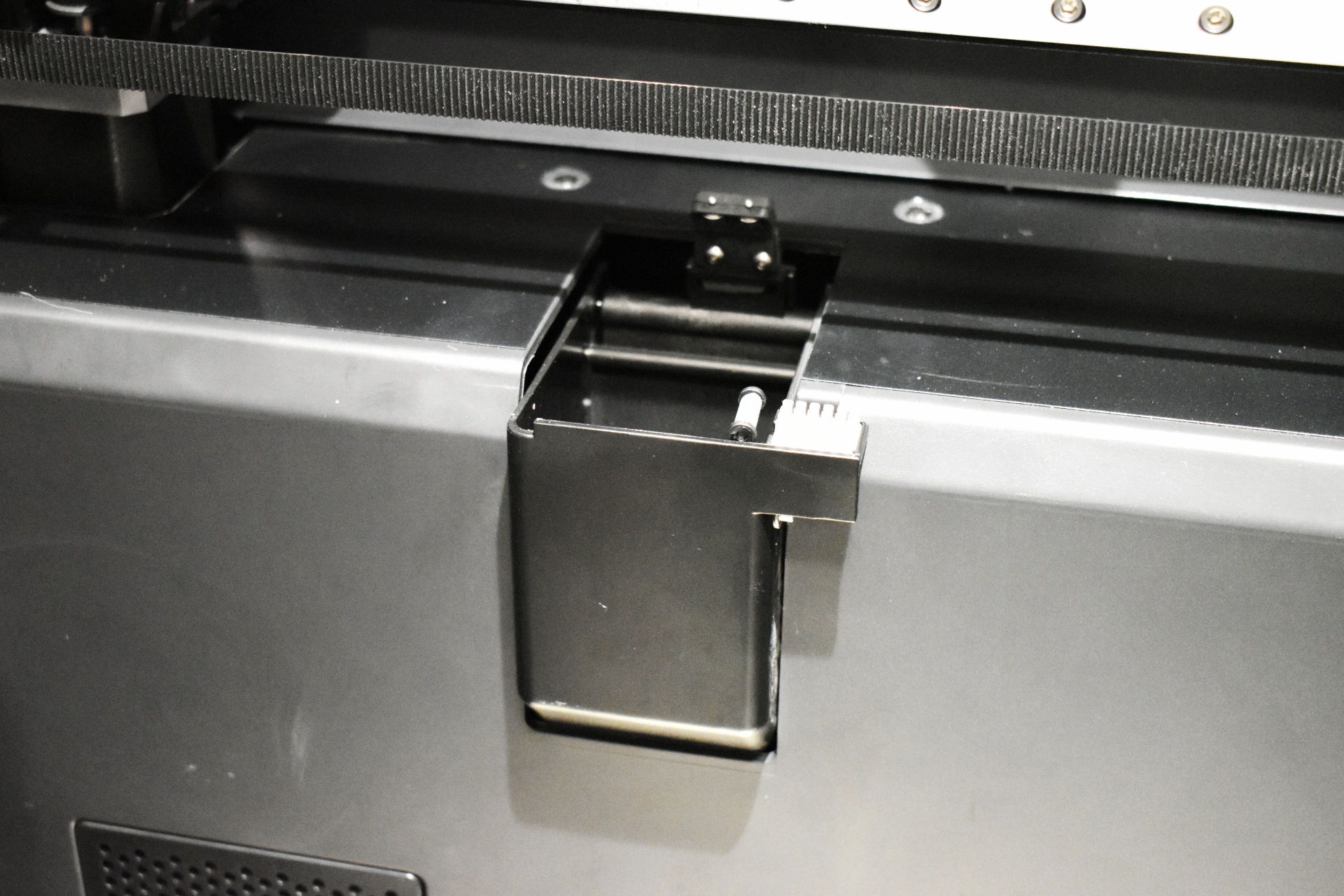

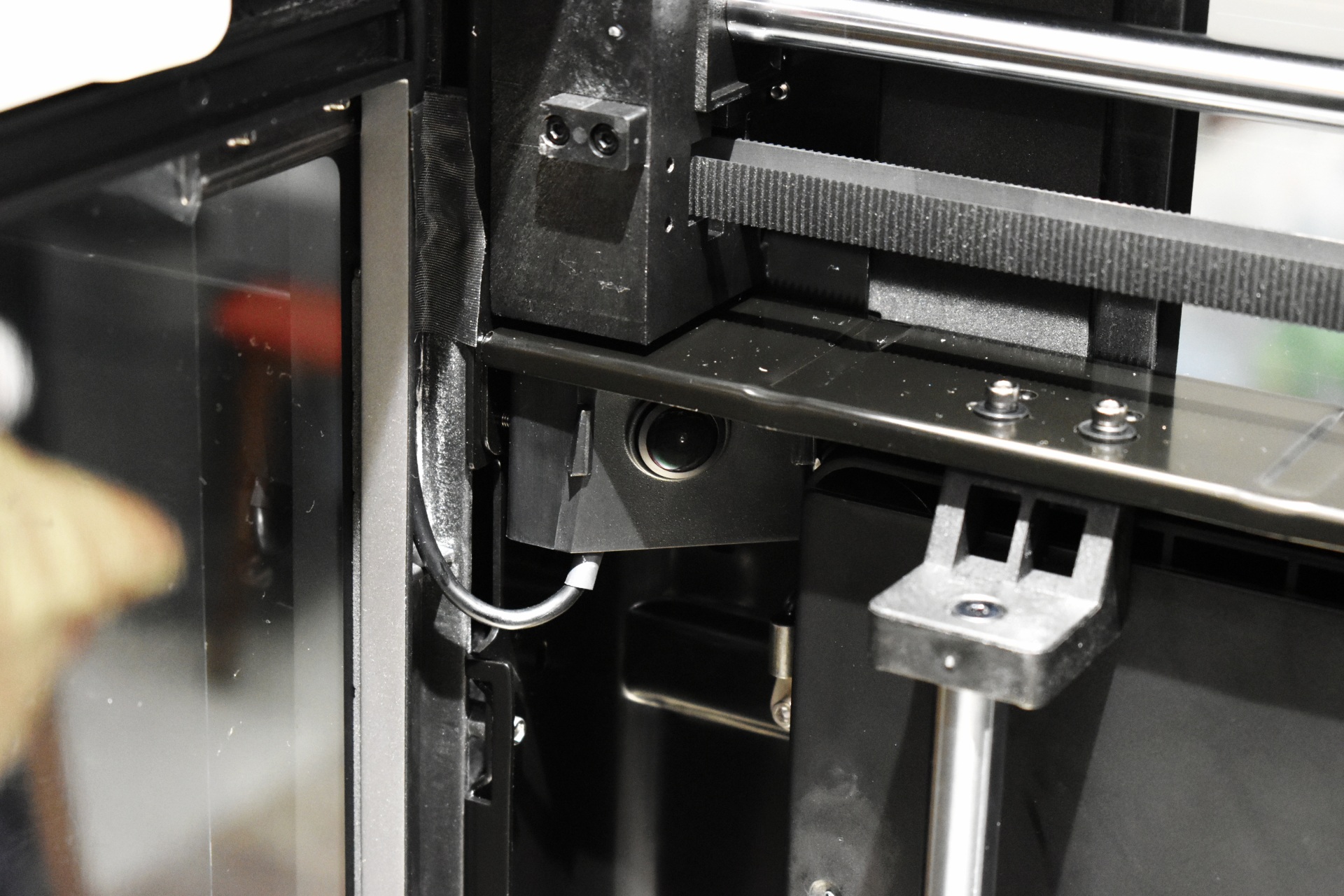

Taking a look inside we see the Dual-Sided textured PEI plate (390x390x340mm print size), LED activity bar, AI 1080p camera, filament residue cleaner, air-purifier compartment and the heater.

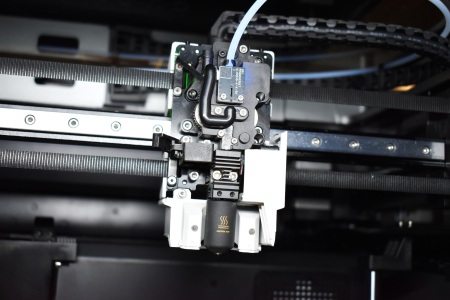

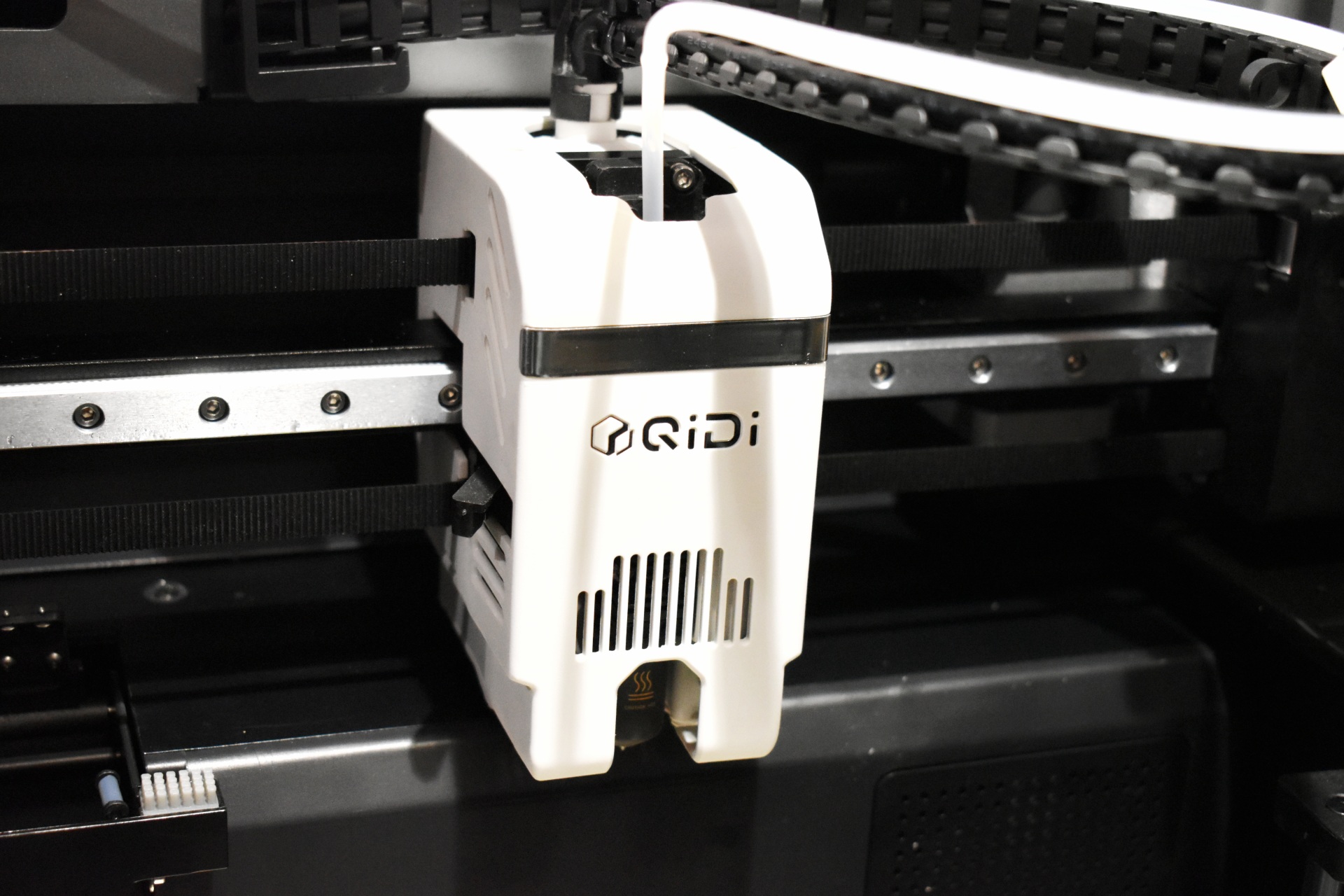

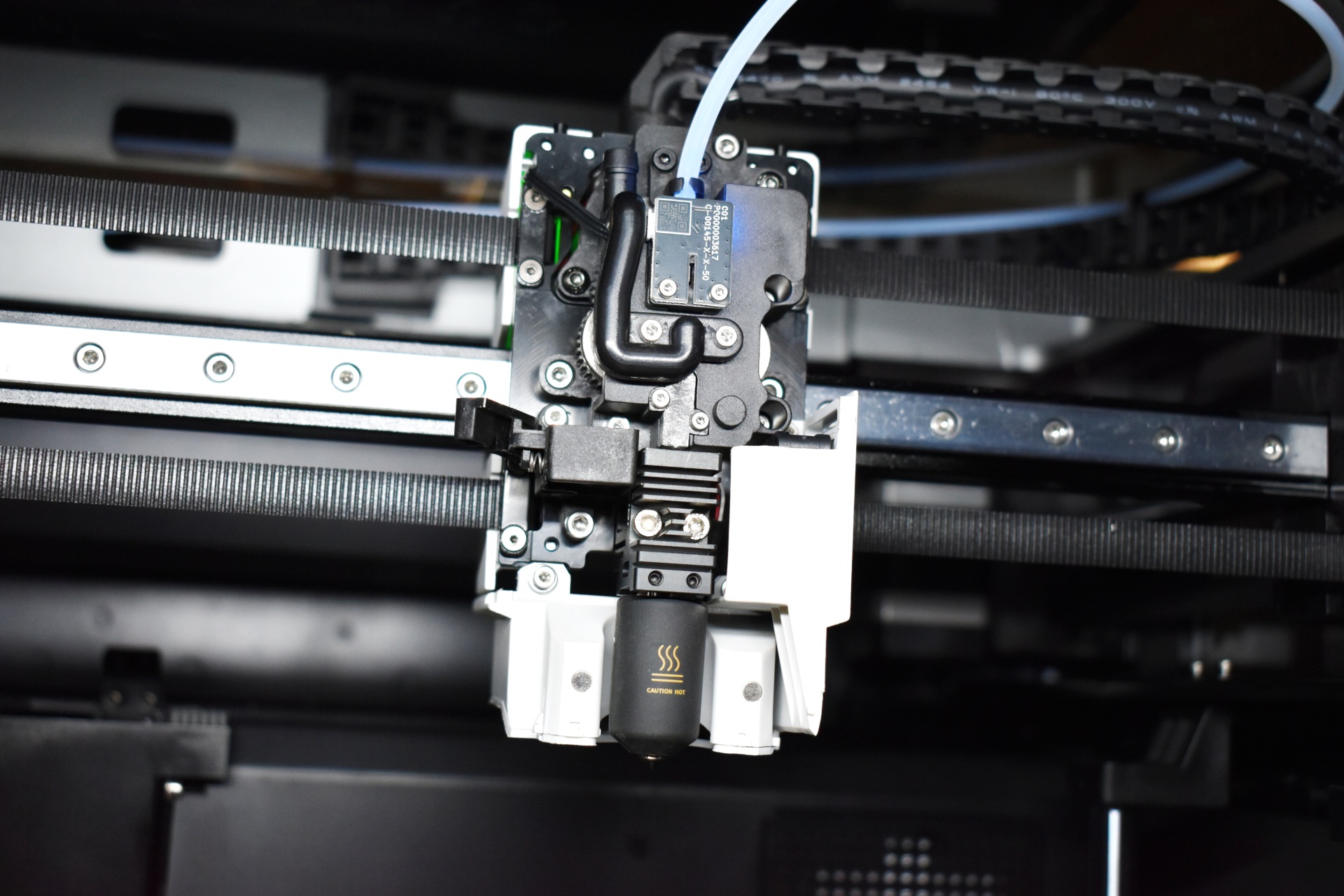

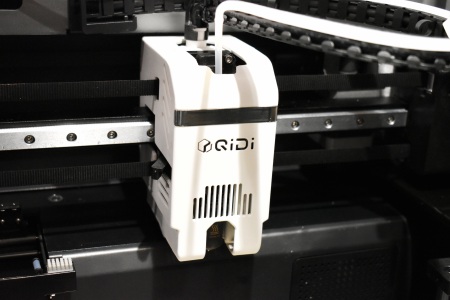

The direct drive extruder features a built-in run out sensor and a cold air tube intake (to cool the extruder and filament) and as you can all see is very easy to take apart.

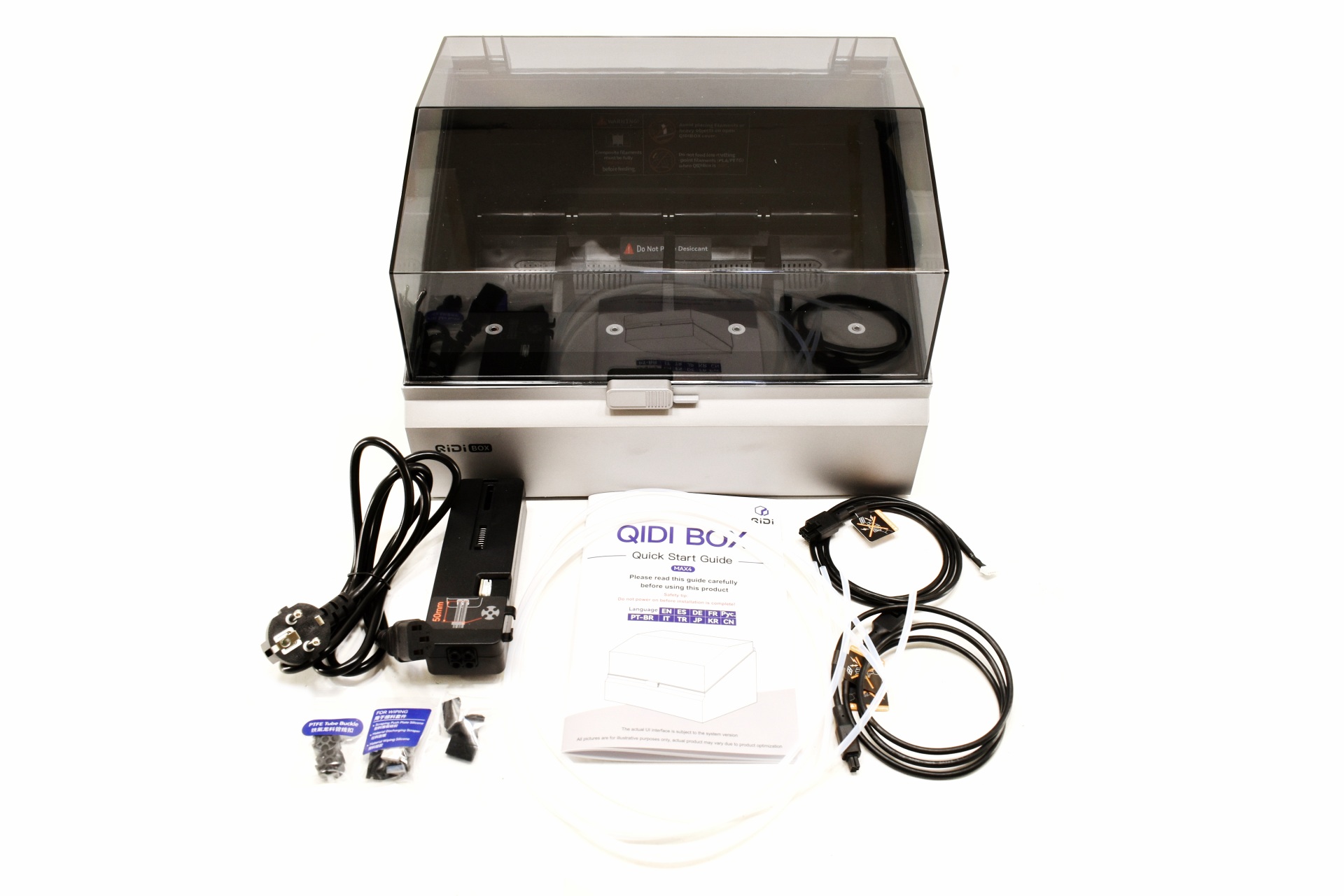

QIDI bundles their box with its power cable, multi-color spool hub, five PTFE tubes, two signal cables, two PTFE tube buckles and the quick start guide.





The QIDI box measures 357mm in width, 300mm in depth and 234mm in height.

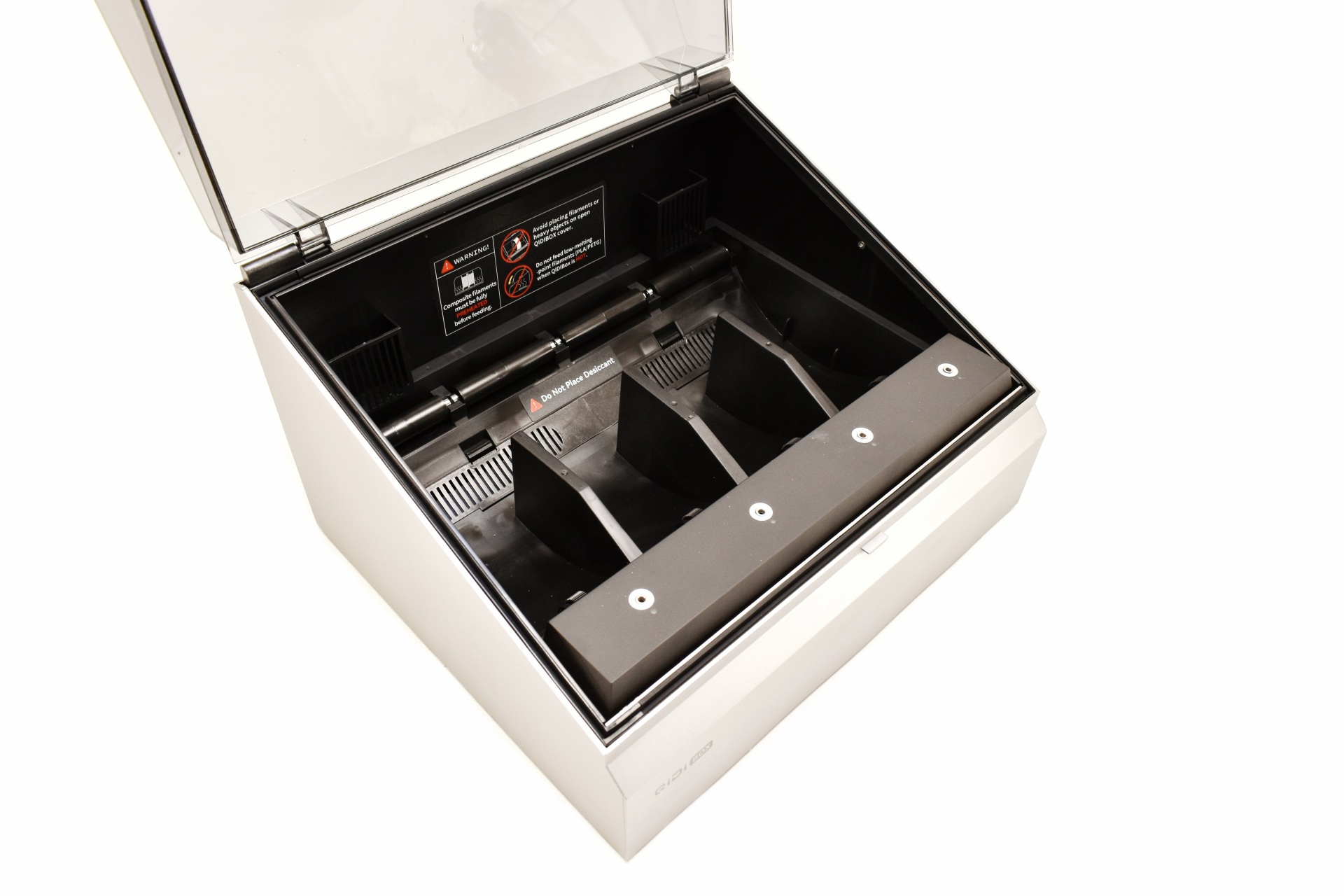

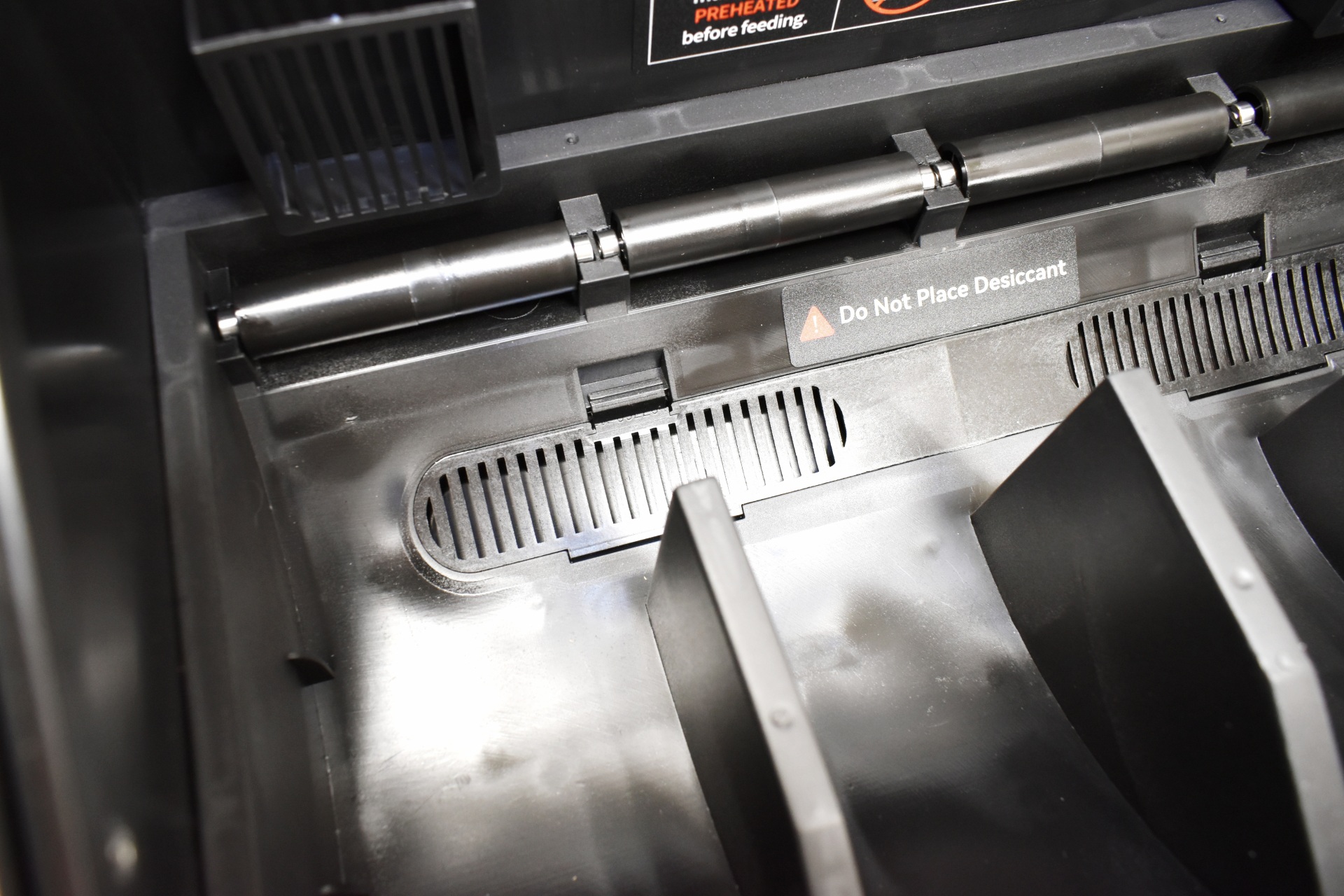

Inside the QIDI box has 4 compartments and a 65°C drying heater.

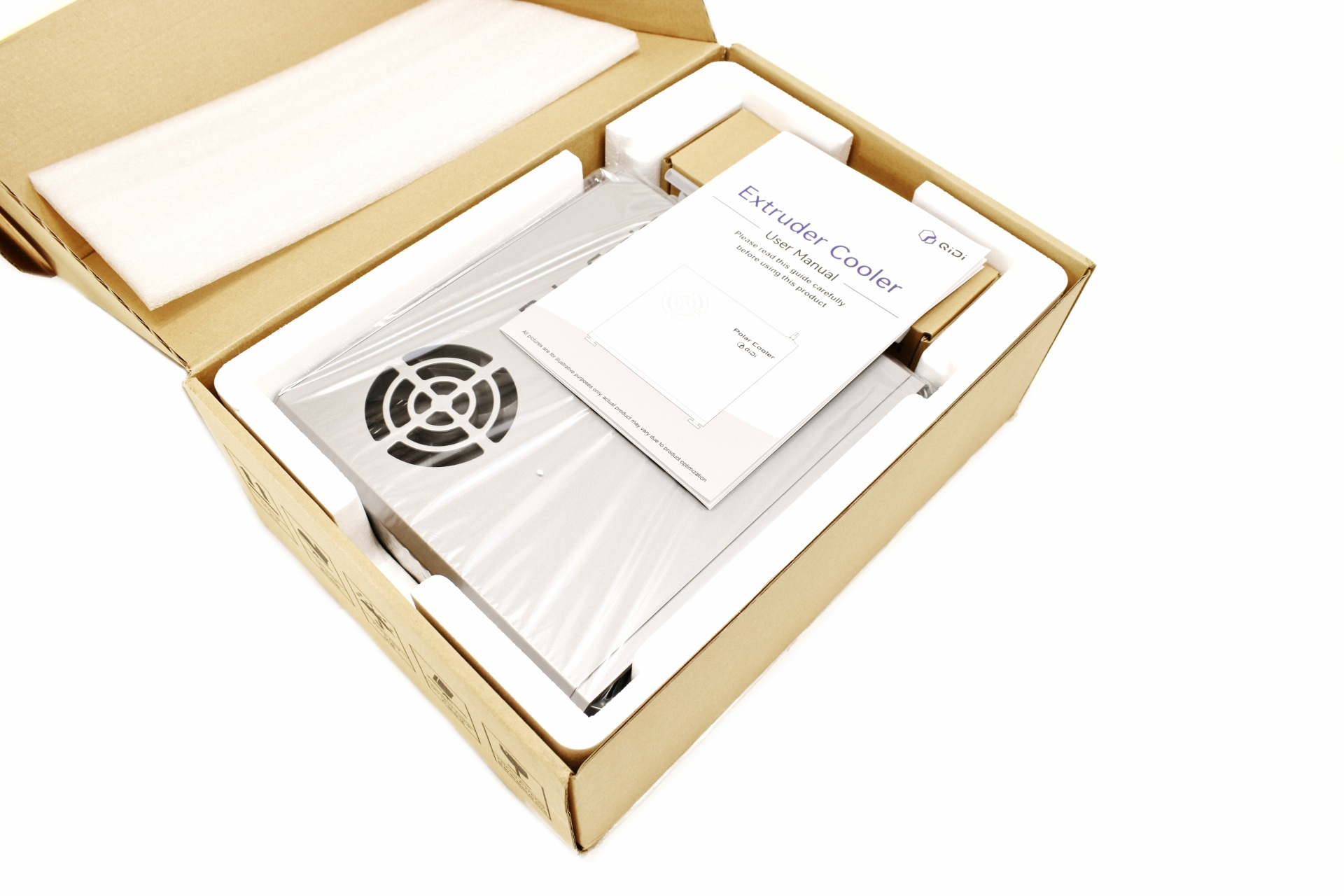

The Polar Cooler arrived in its own box secured by several pieces of foam.

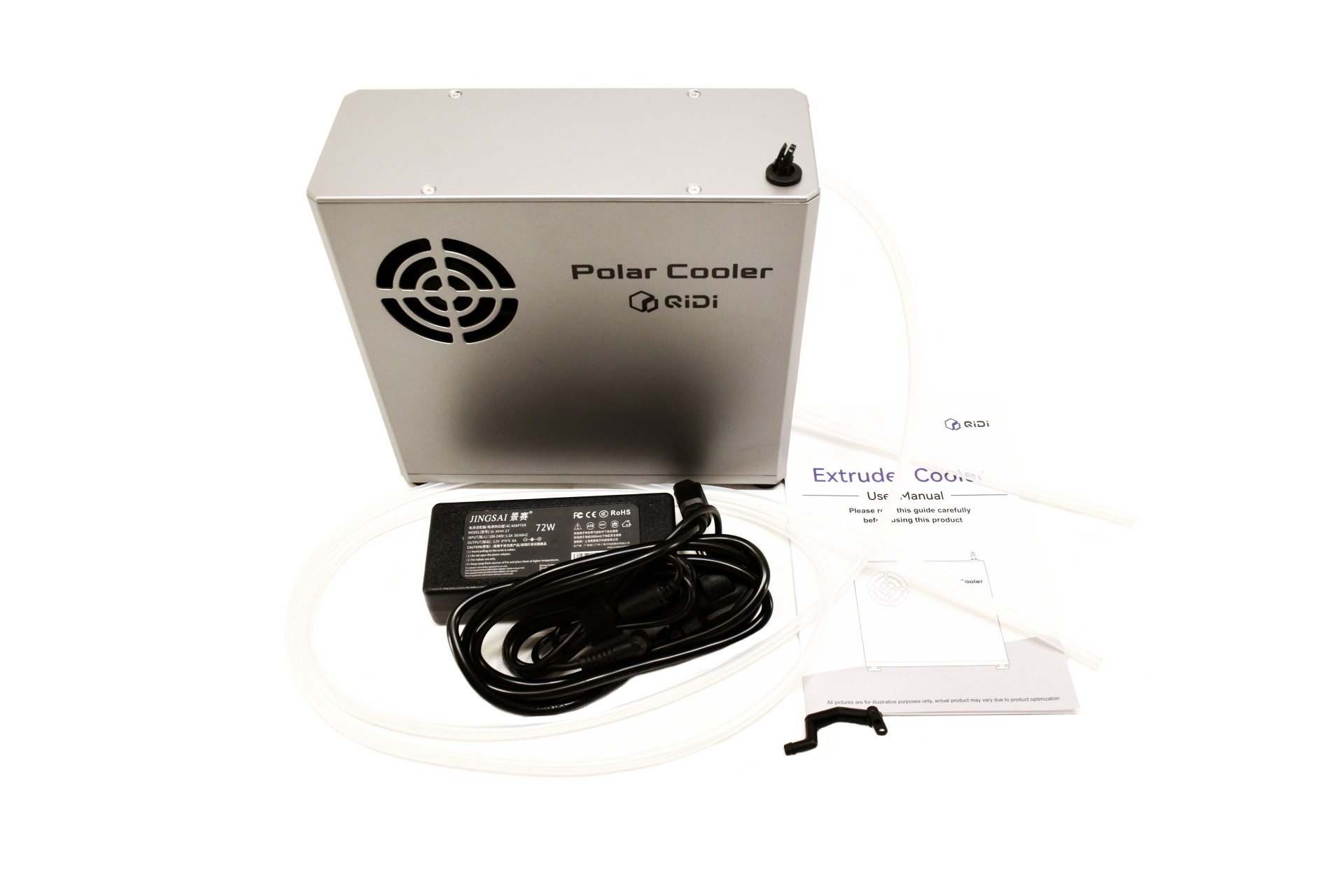

Contained inside the box is the Polar Cooler, power adapter with power cord, air intake pipe, and the user manual.

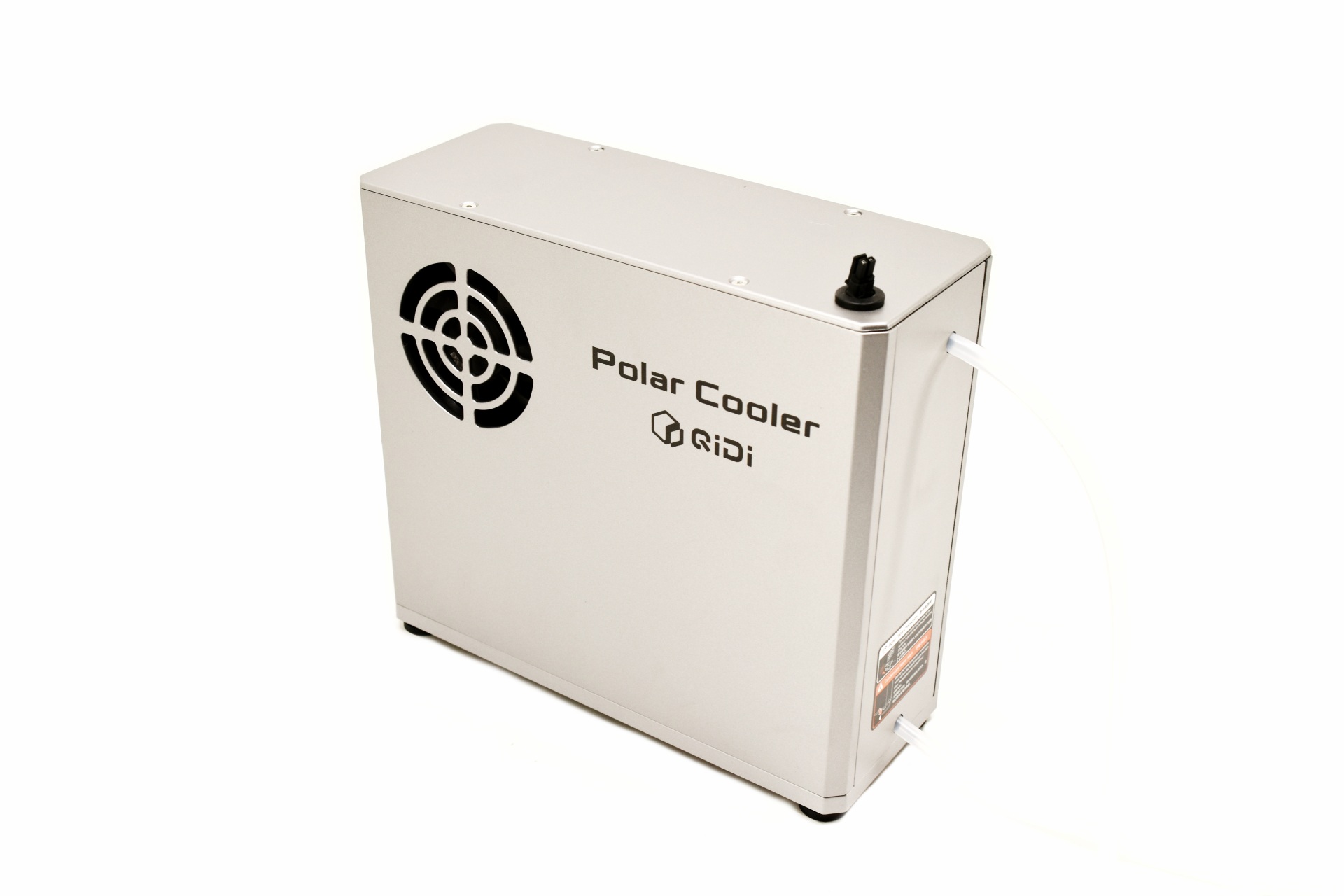

In terms of size the Polar Cooler weighs 2.5kg and measures 234mm in length, 92mm in width and 214mm in height.

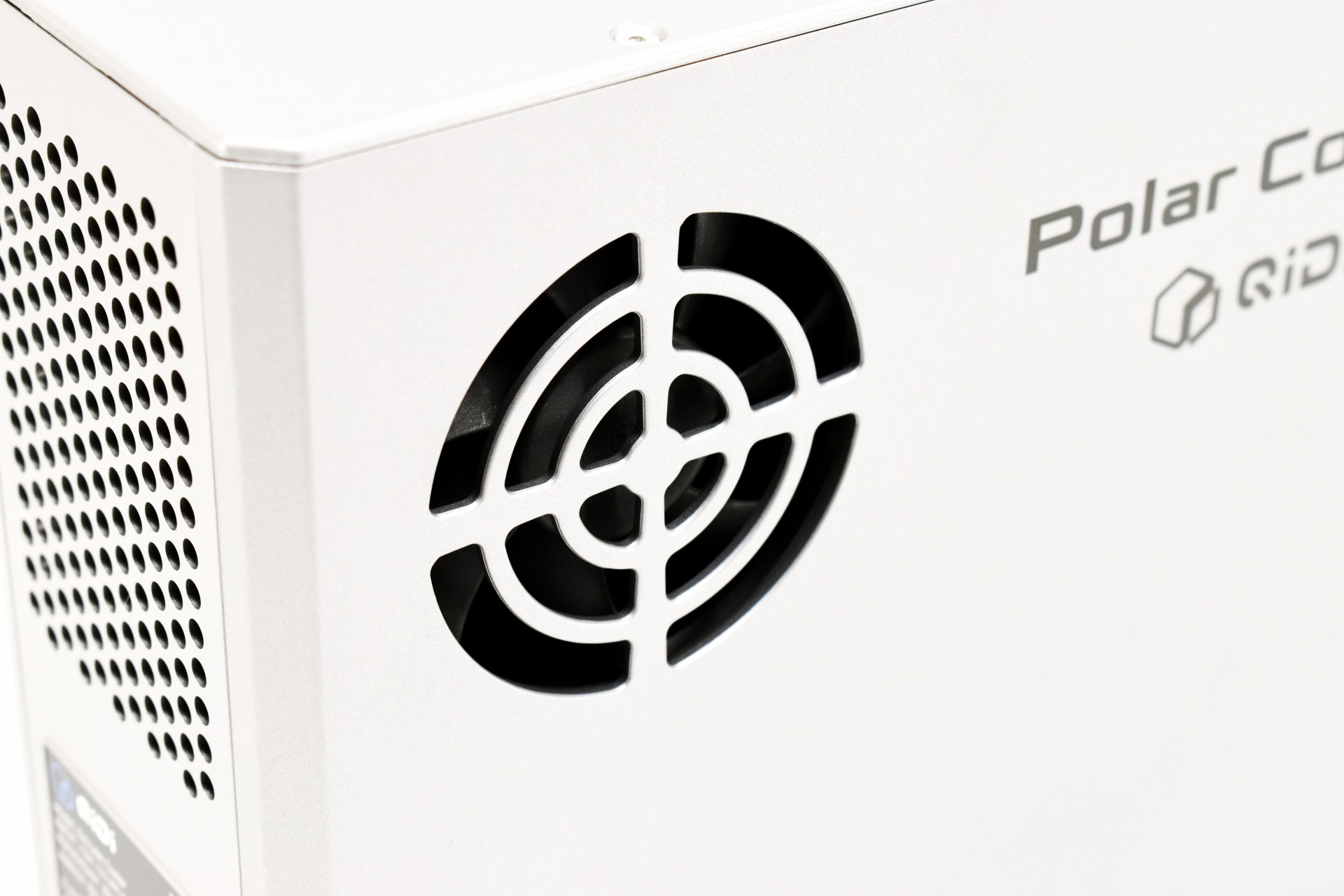

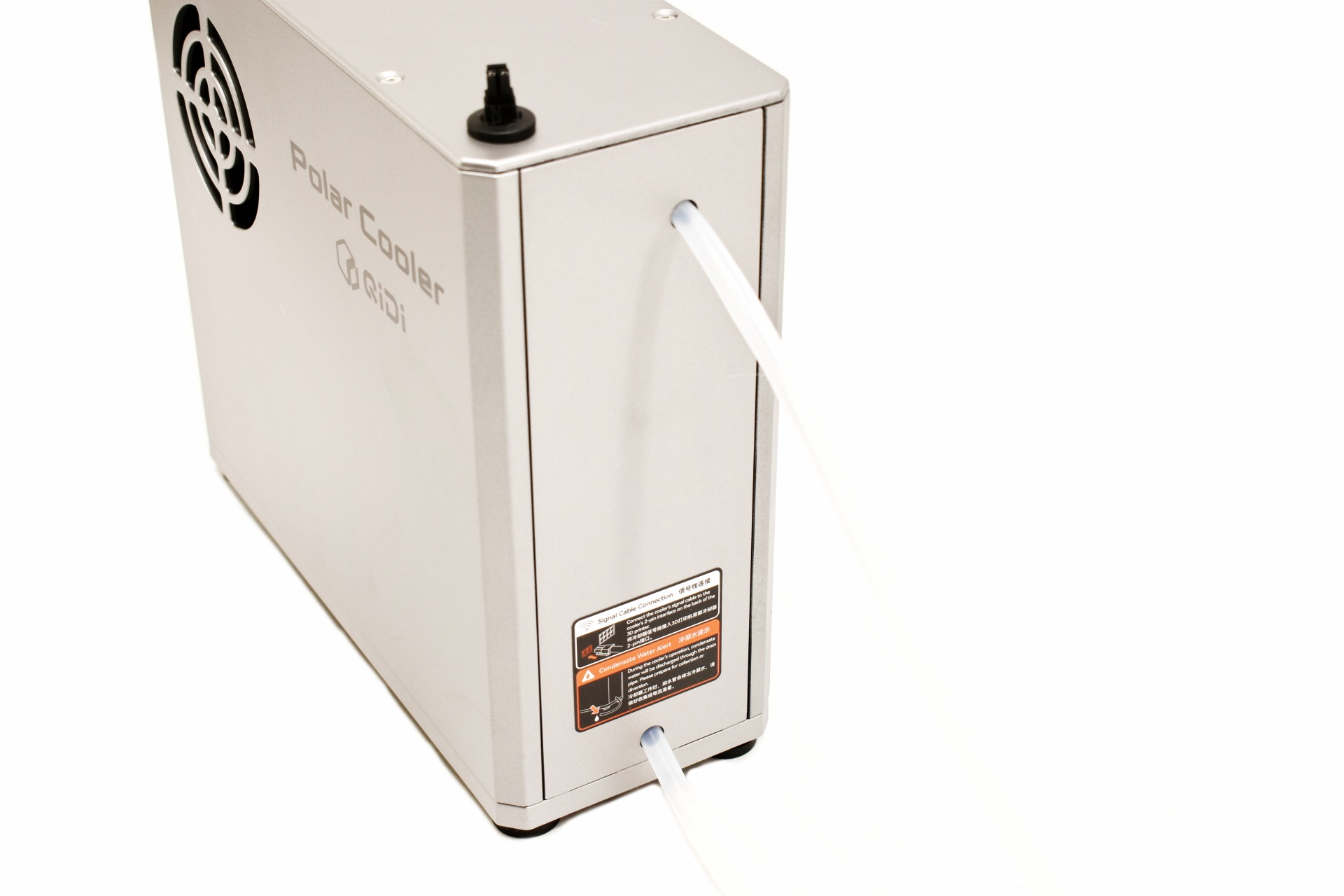

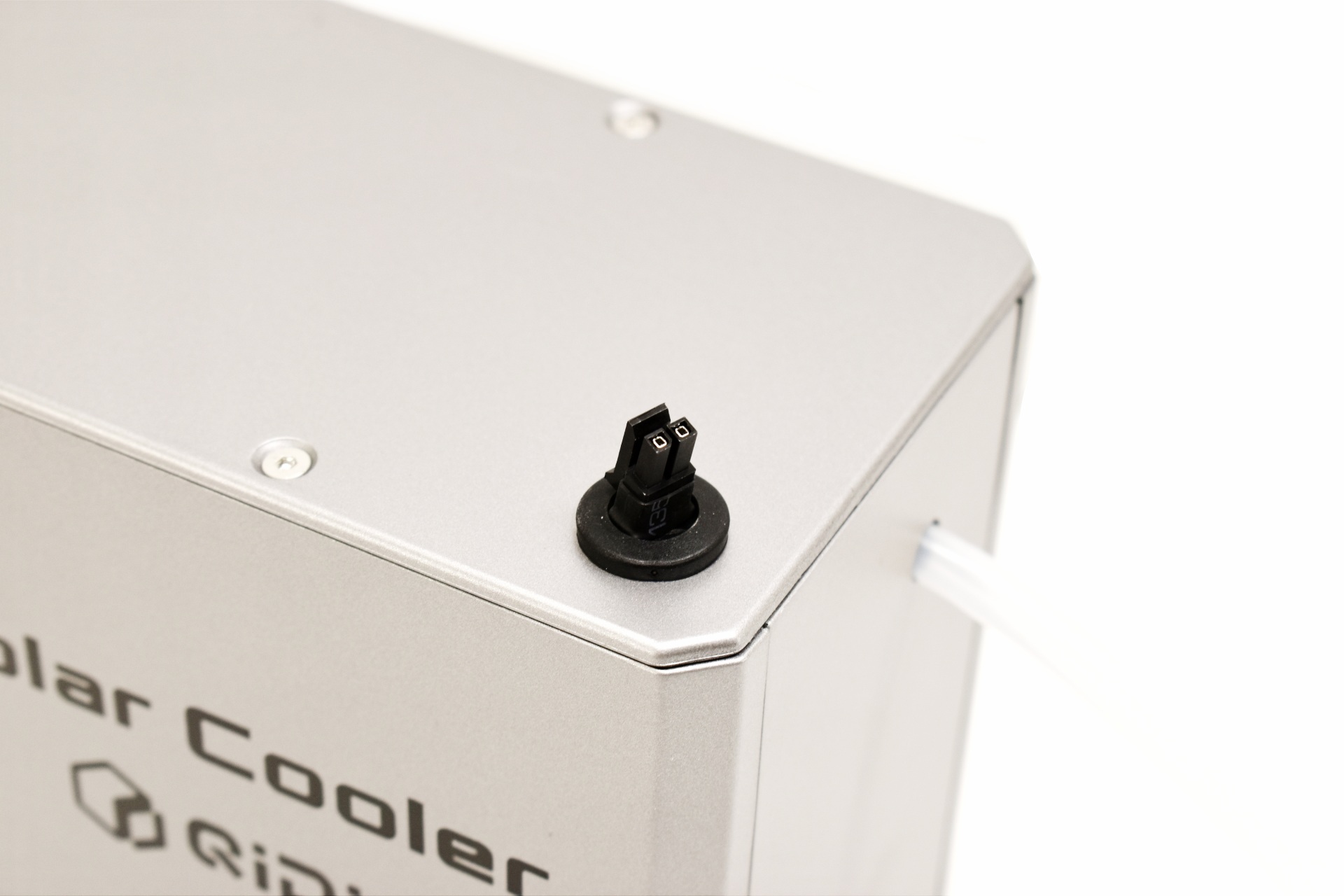

The Polar Cooler has a cooling fan on the left side, two tubes going out from the front and a signal cable that expands/retracts on top.
