THE AS5304T INTERIOR

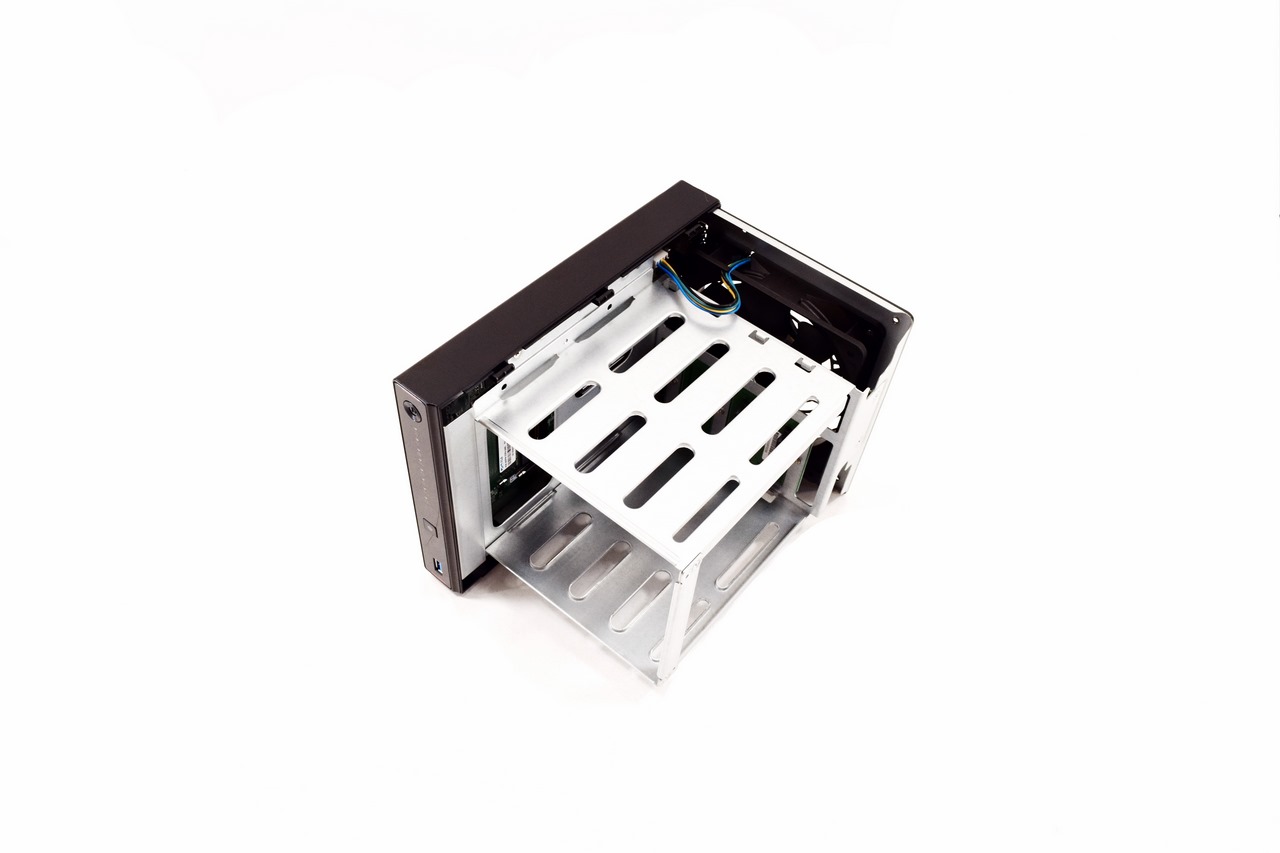

As expected, although the exterior of the AS5304T is made out of plastic the interior frame is made out of aluminum.

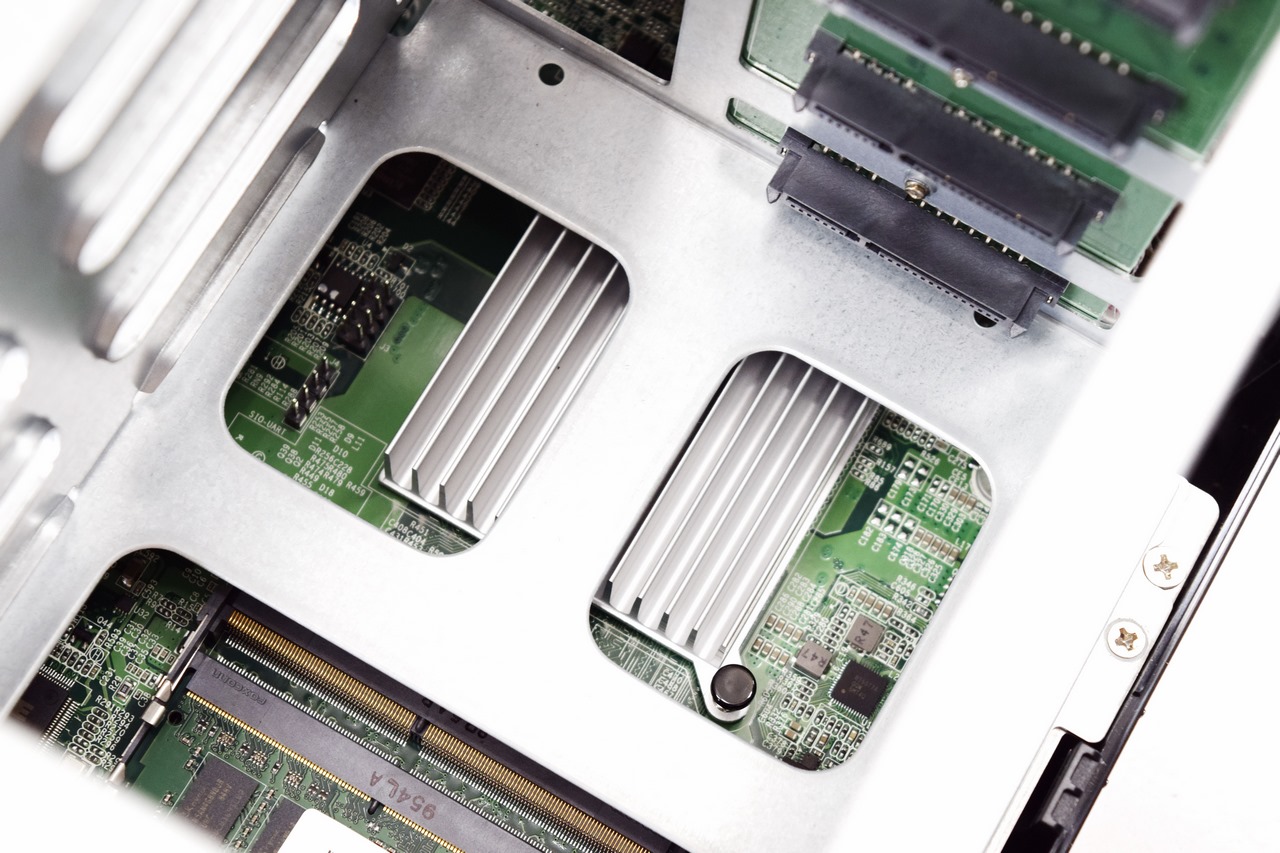

The quad-core intel Celeron J4105 CPU is located beneath a large aluminum heatspreader.

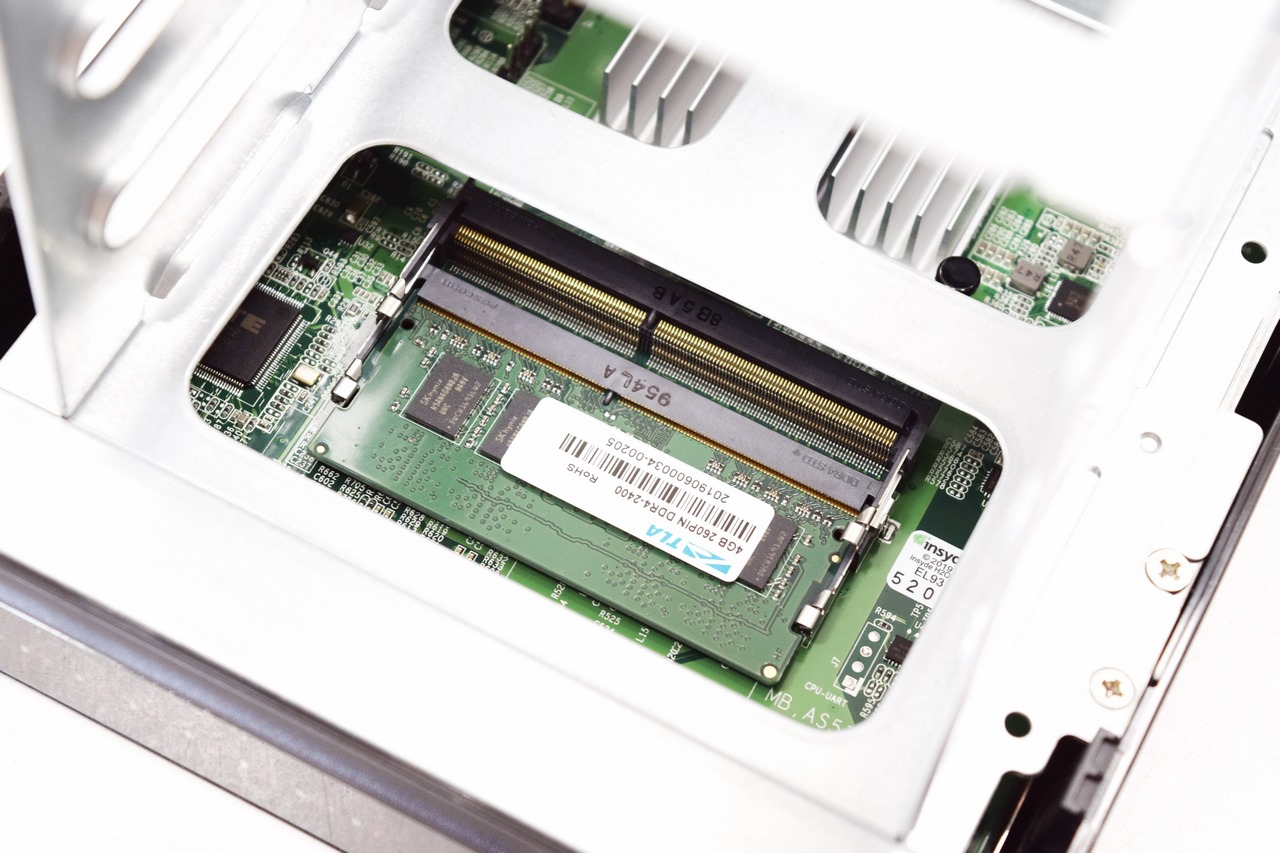

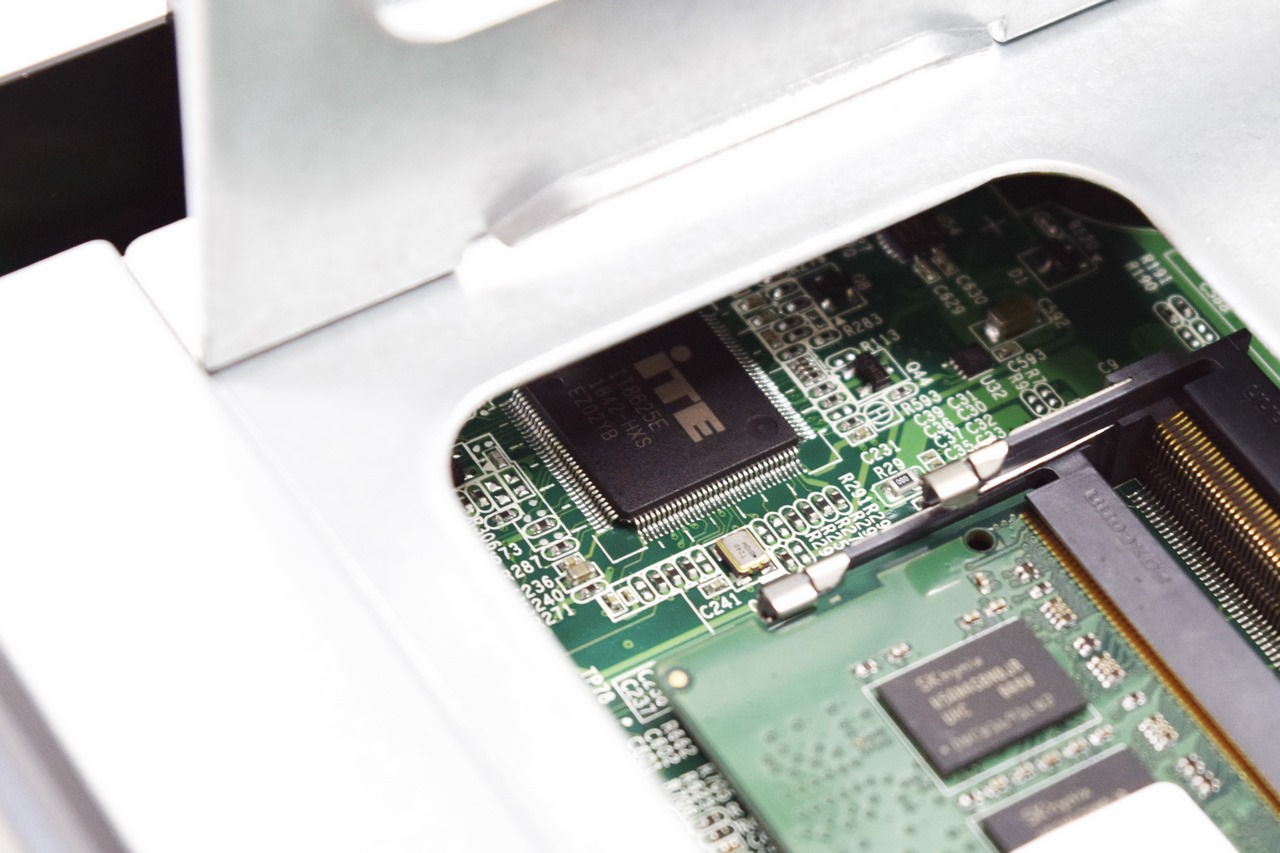

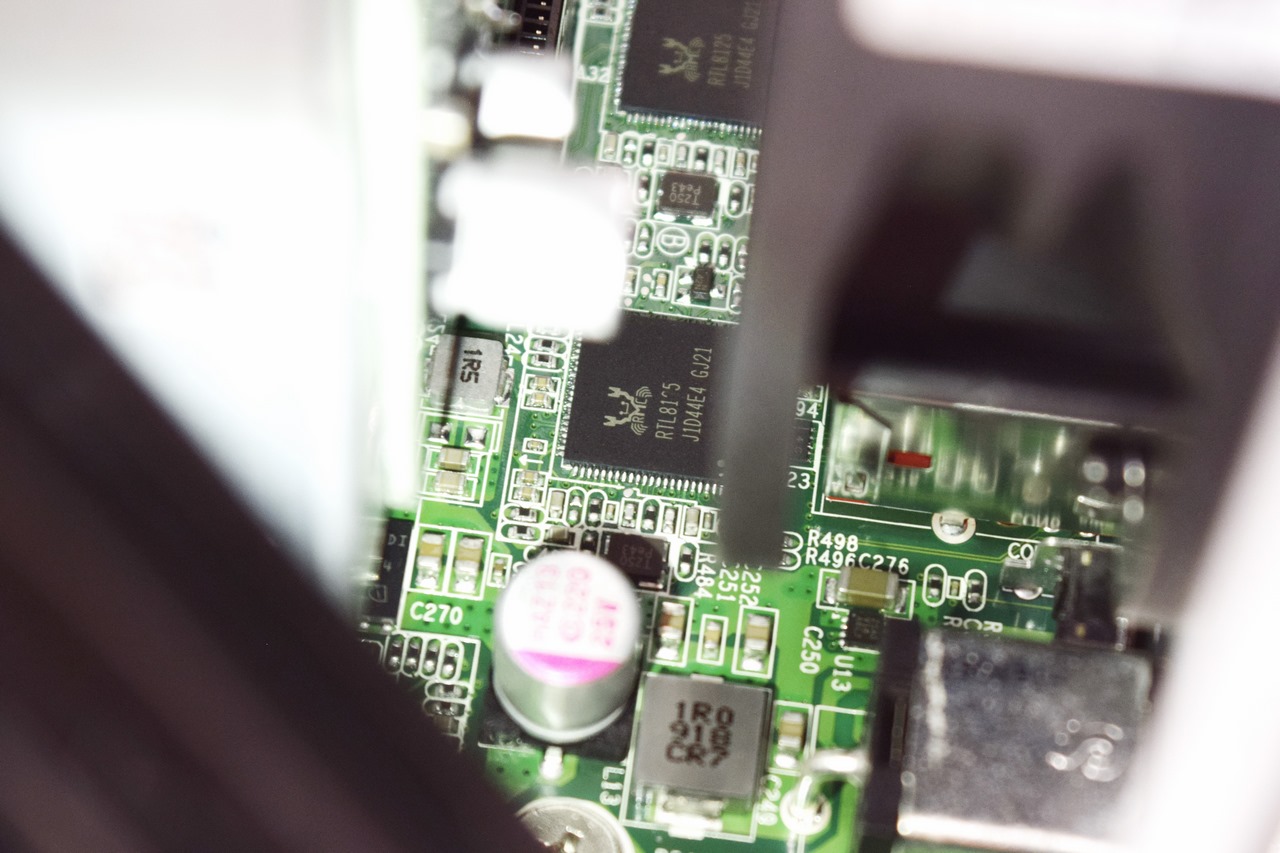

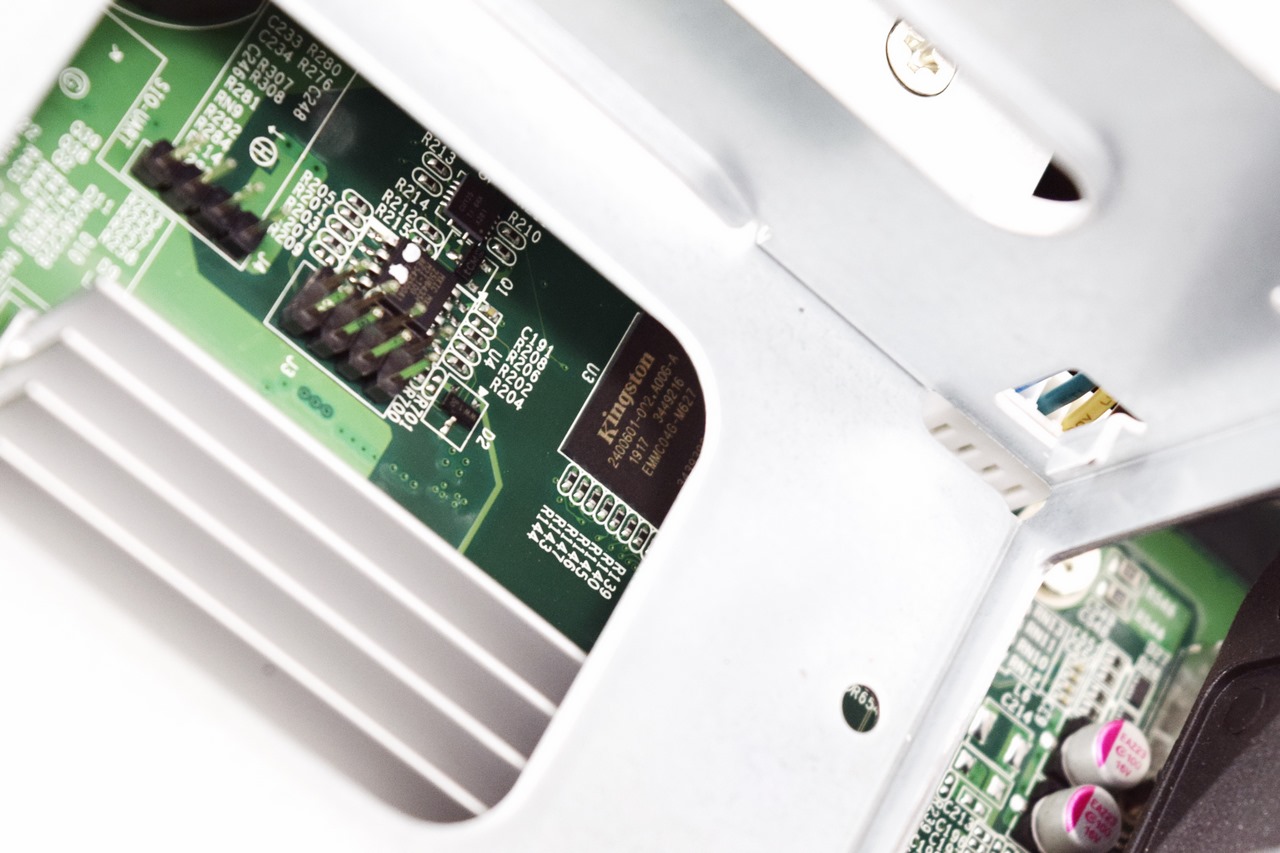

Inside the unit we also find the ITE IT8625E controller (used for system monitoring and fan control), two SO-DIMM slots (one is already used by a 4GB DDR4-2400 module by TLA), two RTL8125 2.5G chips and the 4GB eMMC flash memory module by Kingston.

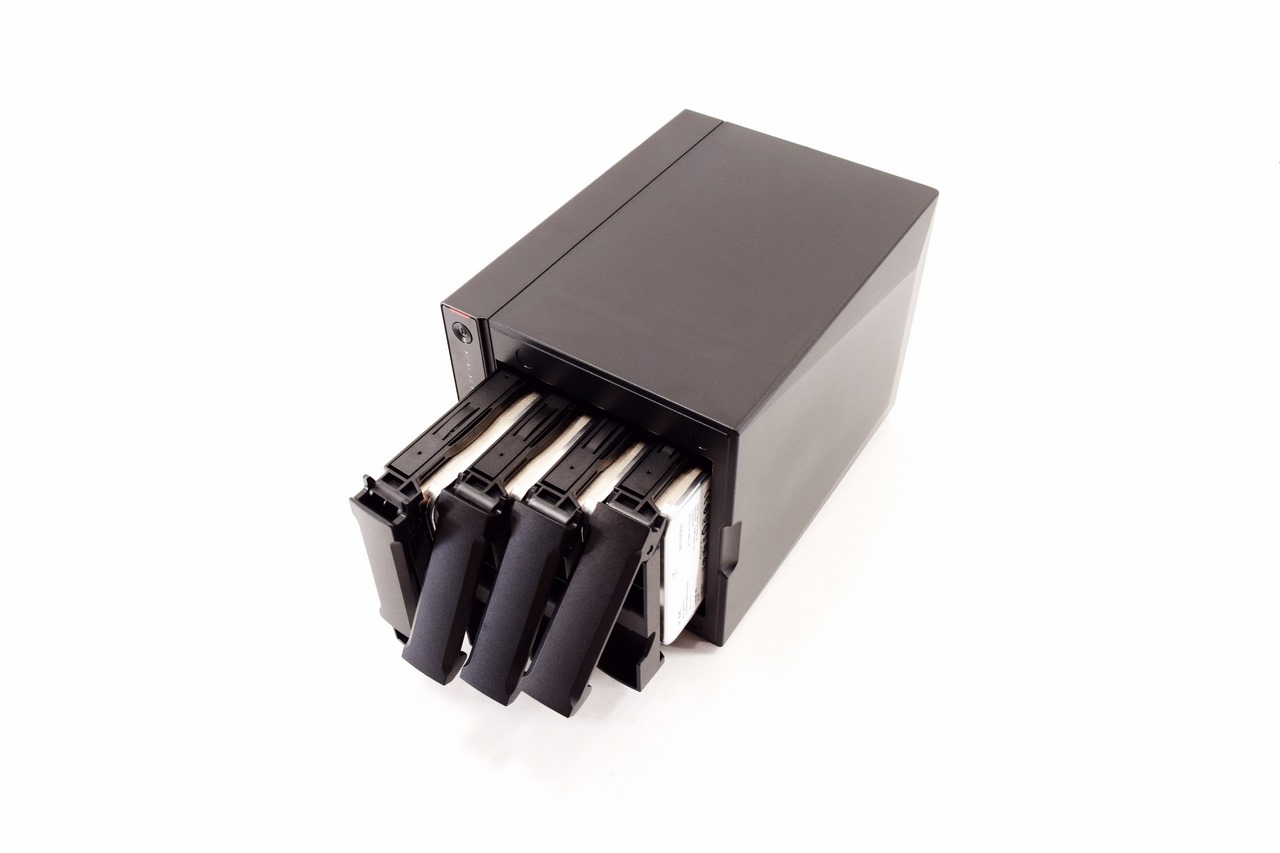

With 4 of our Seagate IronWolf 12TB SATA III drives mounted we're ready to start our tests.
