THE LIGHT LOOP IO LCD 360mm

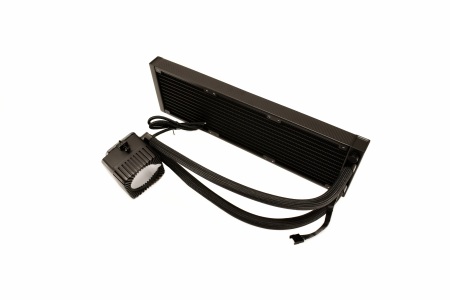

AIO design hasn't change a lot over the years but the pump/waterblock/LCD combo of the Light Loop IO LCD certainly stands out.

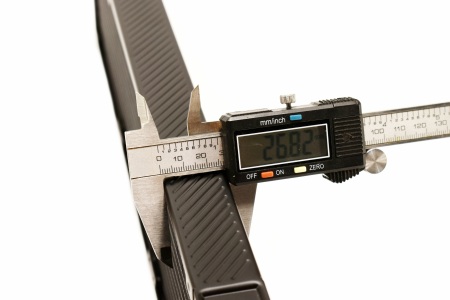

The radiator without the fans mounted measures 27mm in thickness.

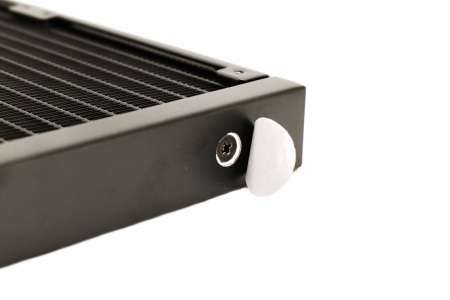

As expected, the fill port is located at the front of the AIO and is covered by a black sticker.

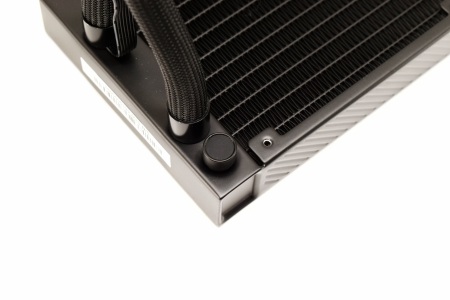

There's still an empty port right next to the base of the tubes which however is never meant to be used.

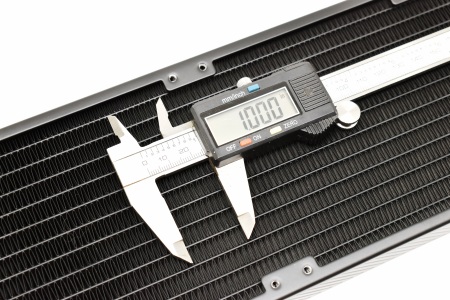

This aluminum radiator has an FPI (fins per inch) count of 19.

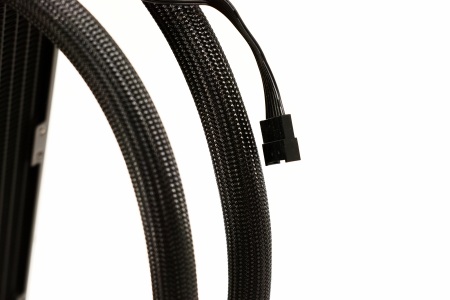

Along with the 400mm long sleeved tubes we also see a power cable running through one of them (for the daisy chained fans).

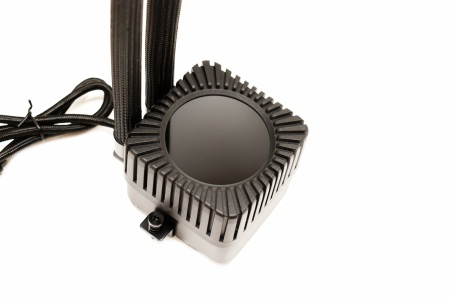

The 2.1-inch IPS display also has several ARGB LEDs surrounding it.

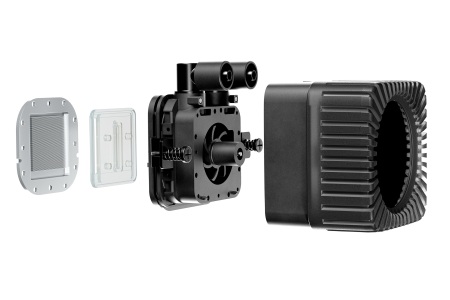

Here you can see an exposed view of the pump/waterblock/display combo (marketing material).

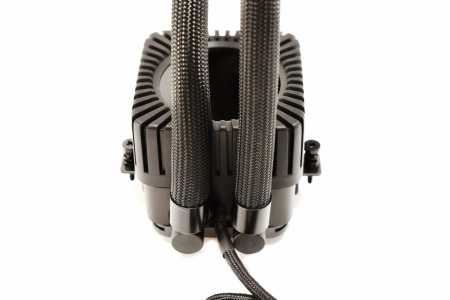

As always, the tubes can rotate from the base of the pump up to around 90 degrees.

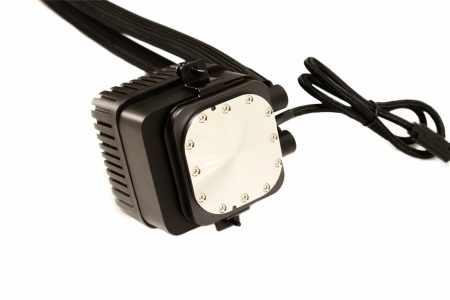

The copper waterblock is nickel plated as seen above.

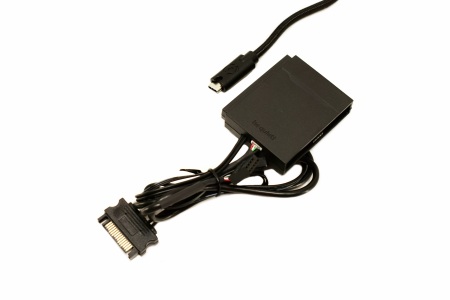

Instead of having 3 cables (ARGB header, 4pin fan header and SATA power) running from the pump be quiet! ships the Light Loop IO series with the IO controller which connects only via a USB-C cable (you still need to plug those cables to your motherboard however).

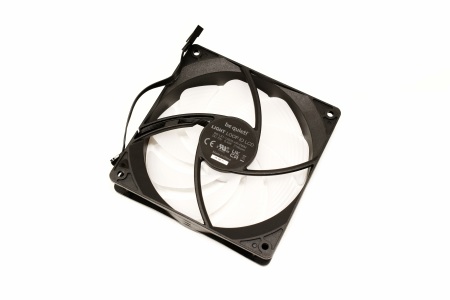

Each Light Wings LX 120mm fan has a total of 16 ARGB LEDs and can spin up to 2100RPM to produce up to 61.8CFM of airflow and up to 2.51mmH2O of air pressure with just 30.9dBA of noise.

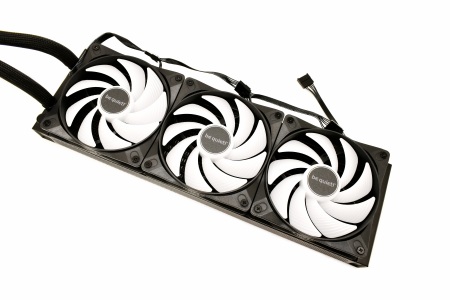

With the Light Wings LX 120mm ARGB fans installed radiator thickness increases to 52mm.
