THE FIRECUDA 530R WITH HEATSINK 2TB

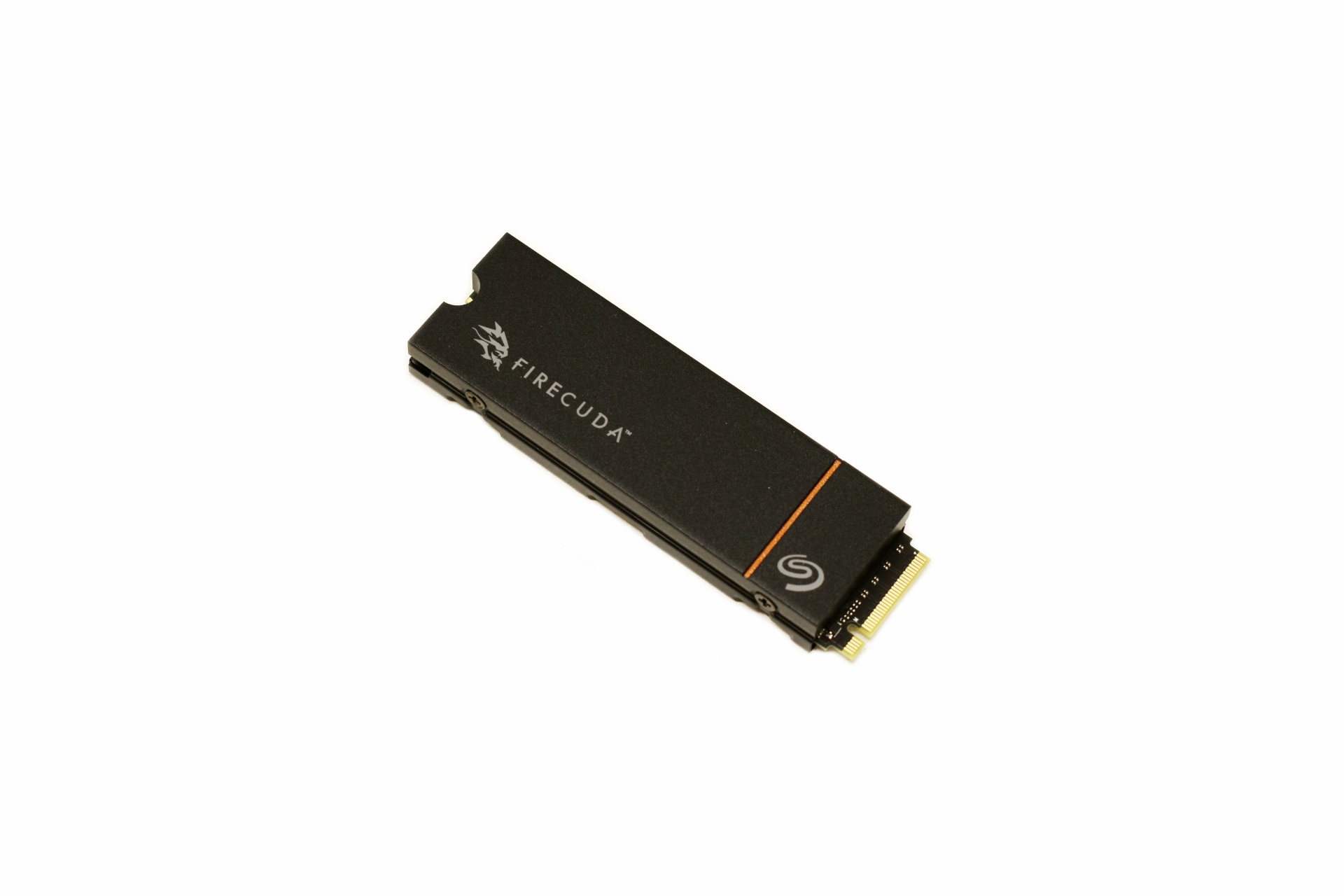

The FireCuda 530R Heatsink edition measures 80.85mm in length, 24.22mm in width and 11.10mm in thickness.

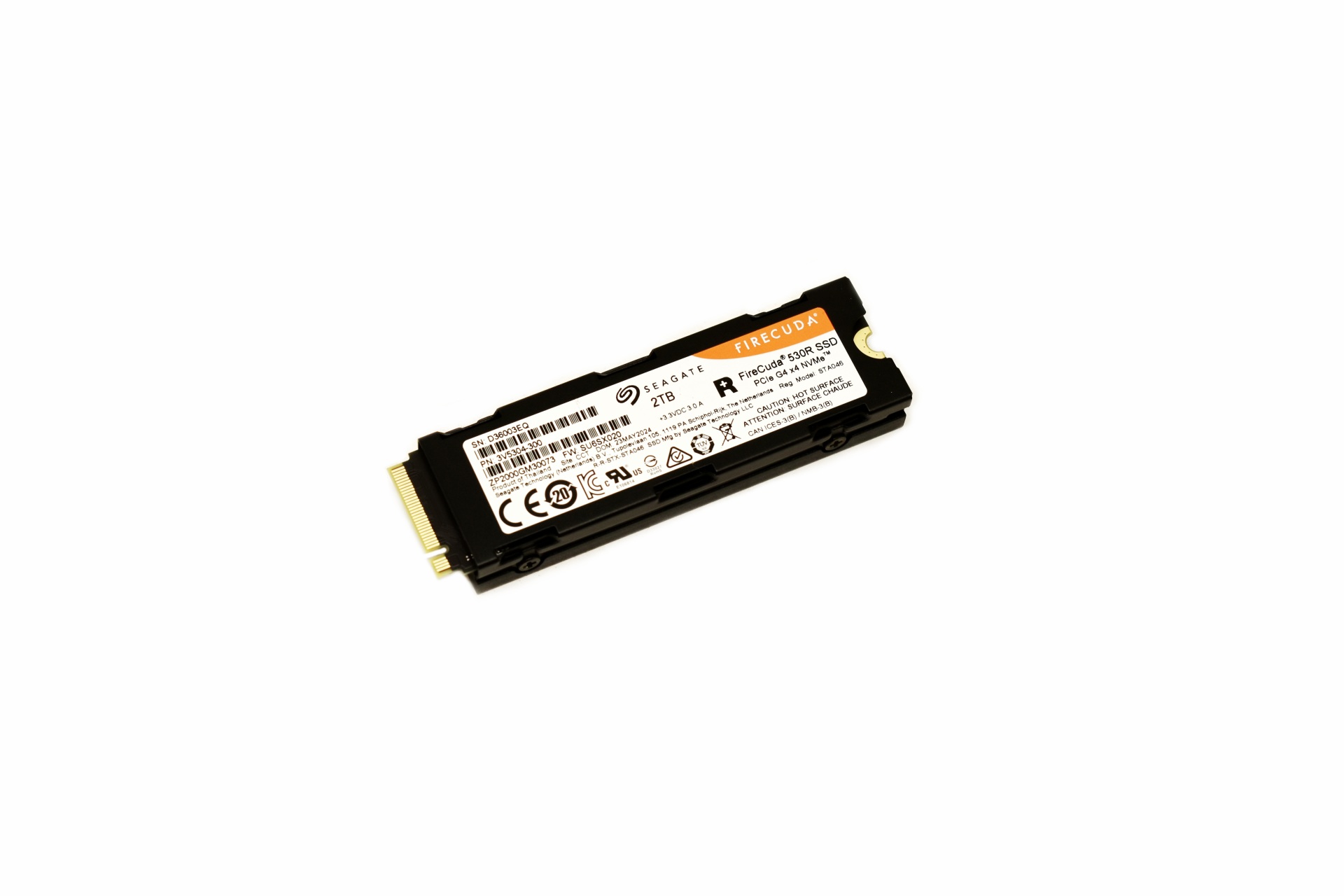

A sticker with the serial number and barcodes along with other details is placed at the base of the heatsink.

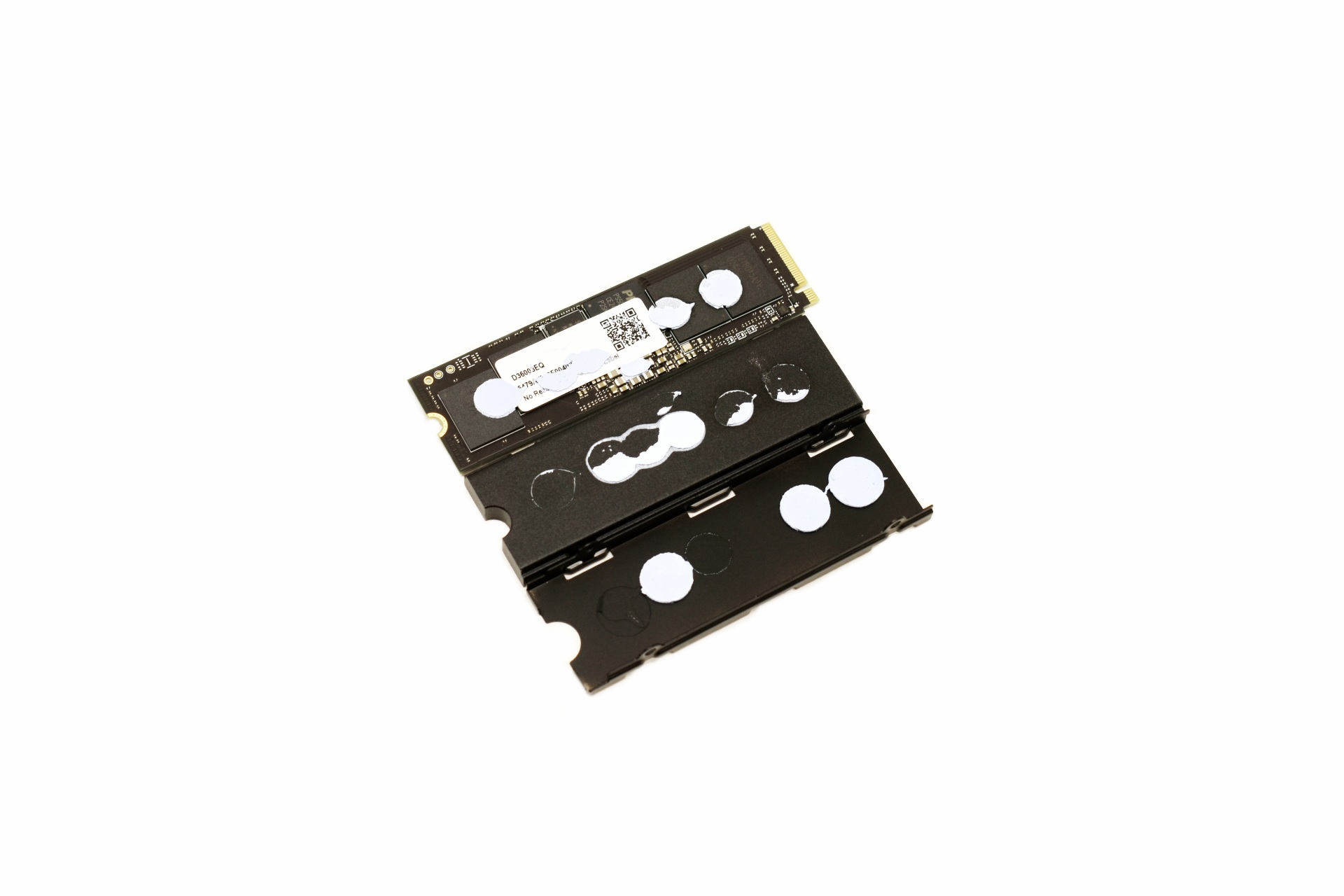

The heatsink is held in place with 4 screws so it's easy to remove.

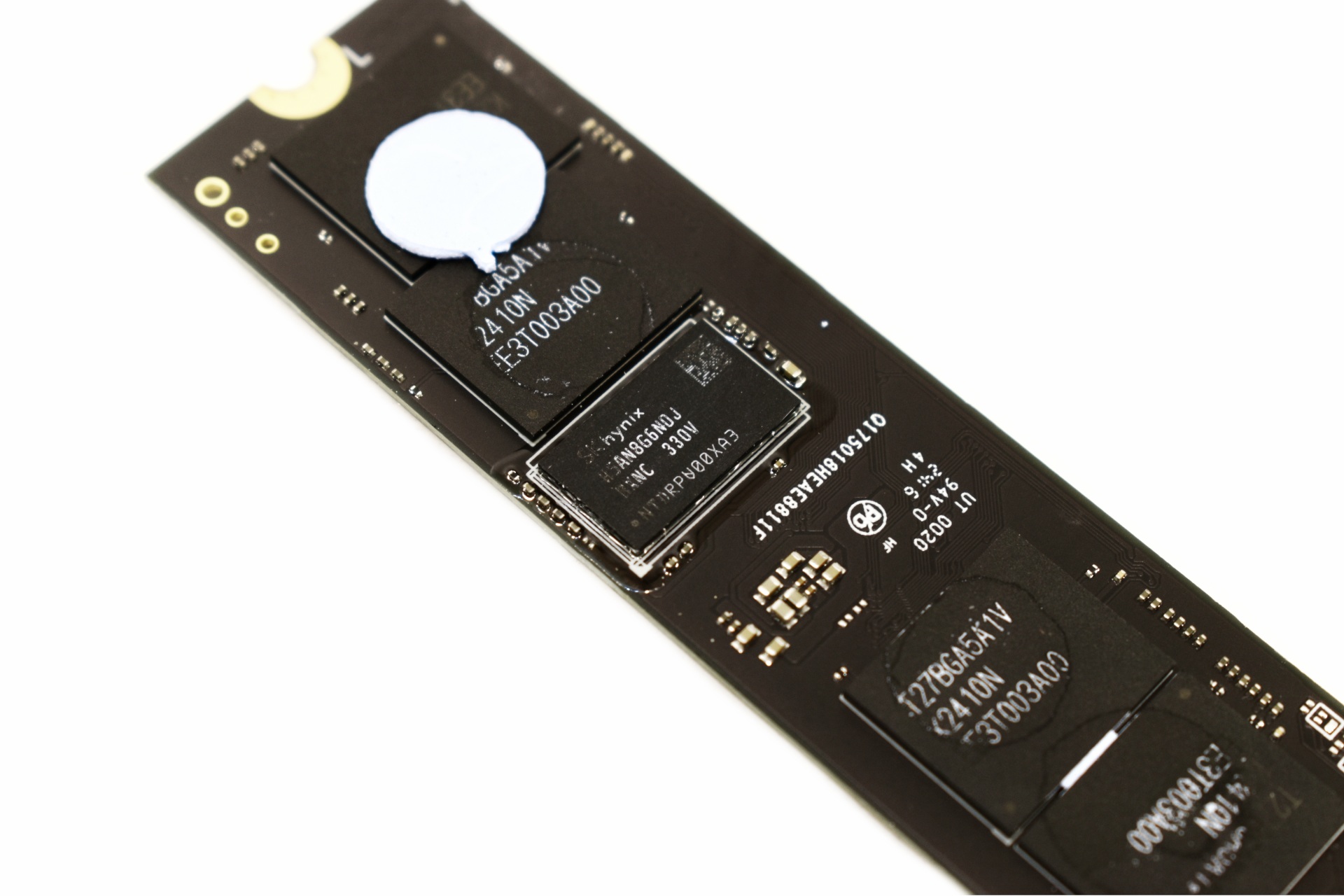

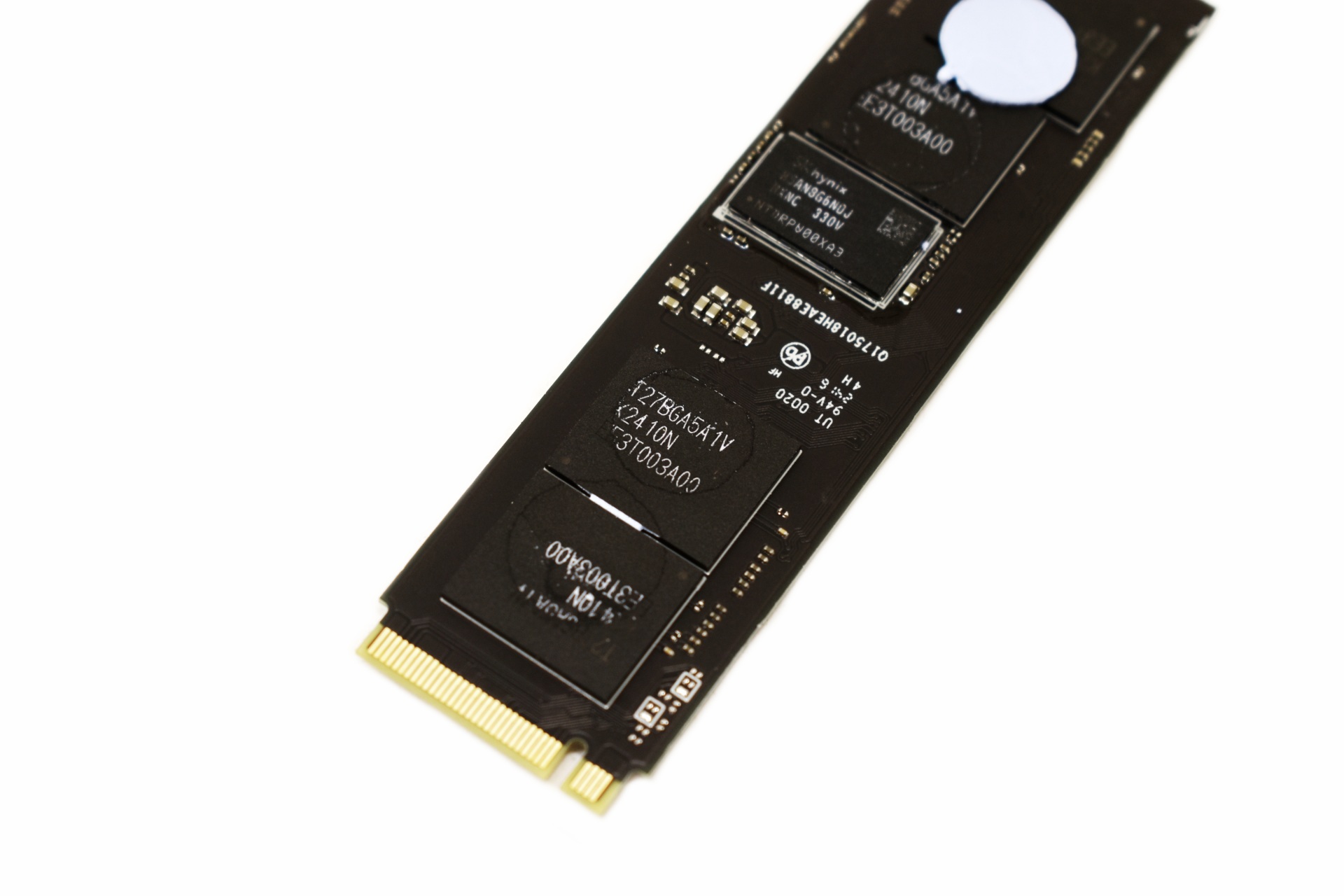

On the top side we find a 1GB DRAM module by SK Hynix and four Kioxia 162-layer 3D TLC NAND flash modules.

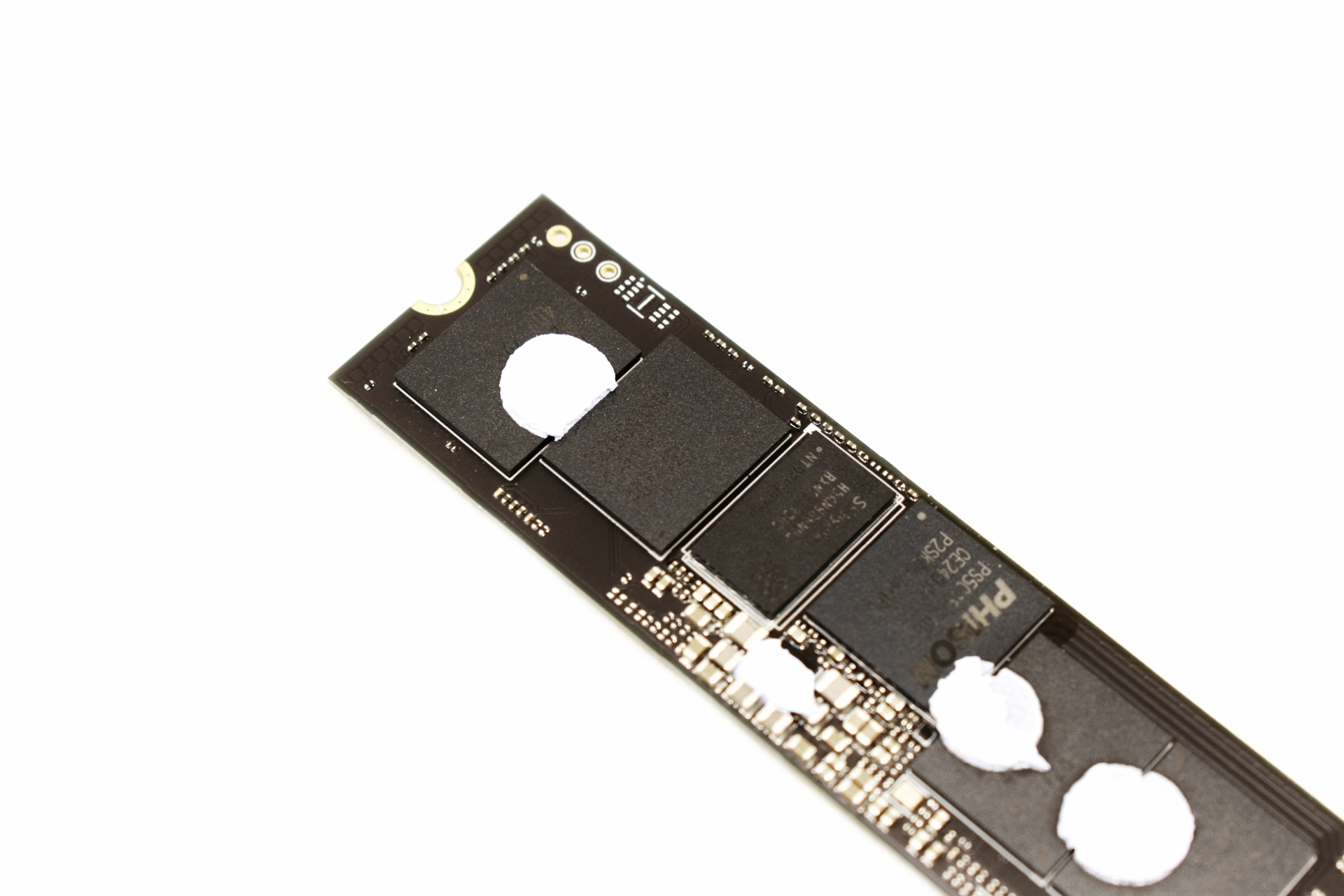

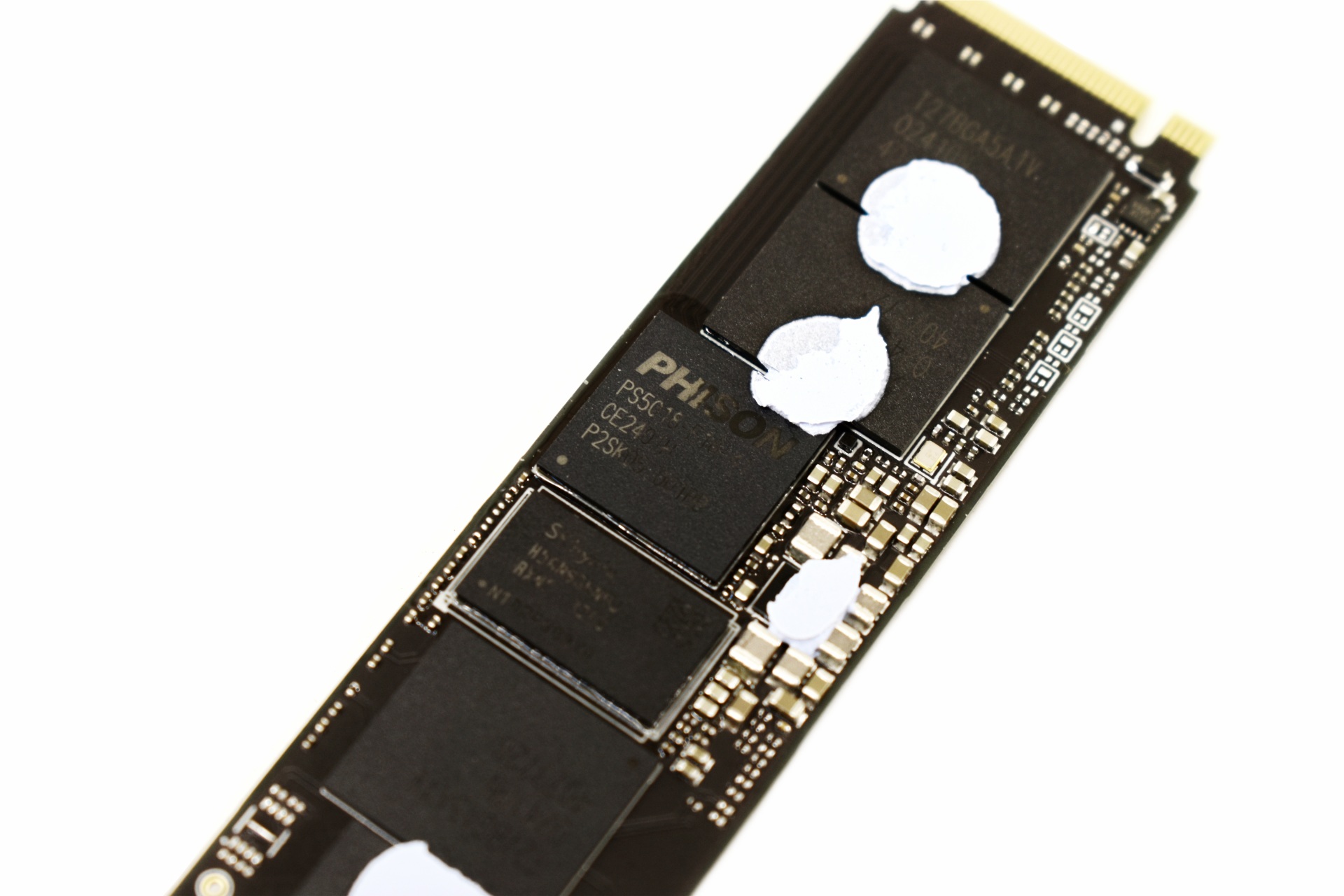

Moving to the other side we find the PS5018-E18 NAND flash controller by Phison, 1GB DRAM module by SK hynix and 4 Kioxia 162-layer 3D TLC NAND flash modules.
