THE C850 INTERIOR

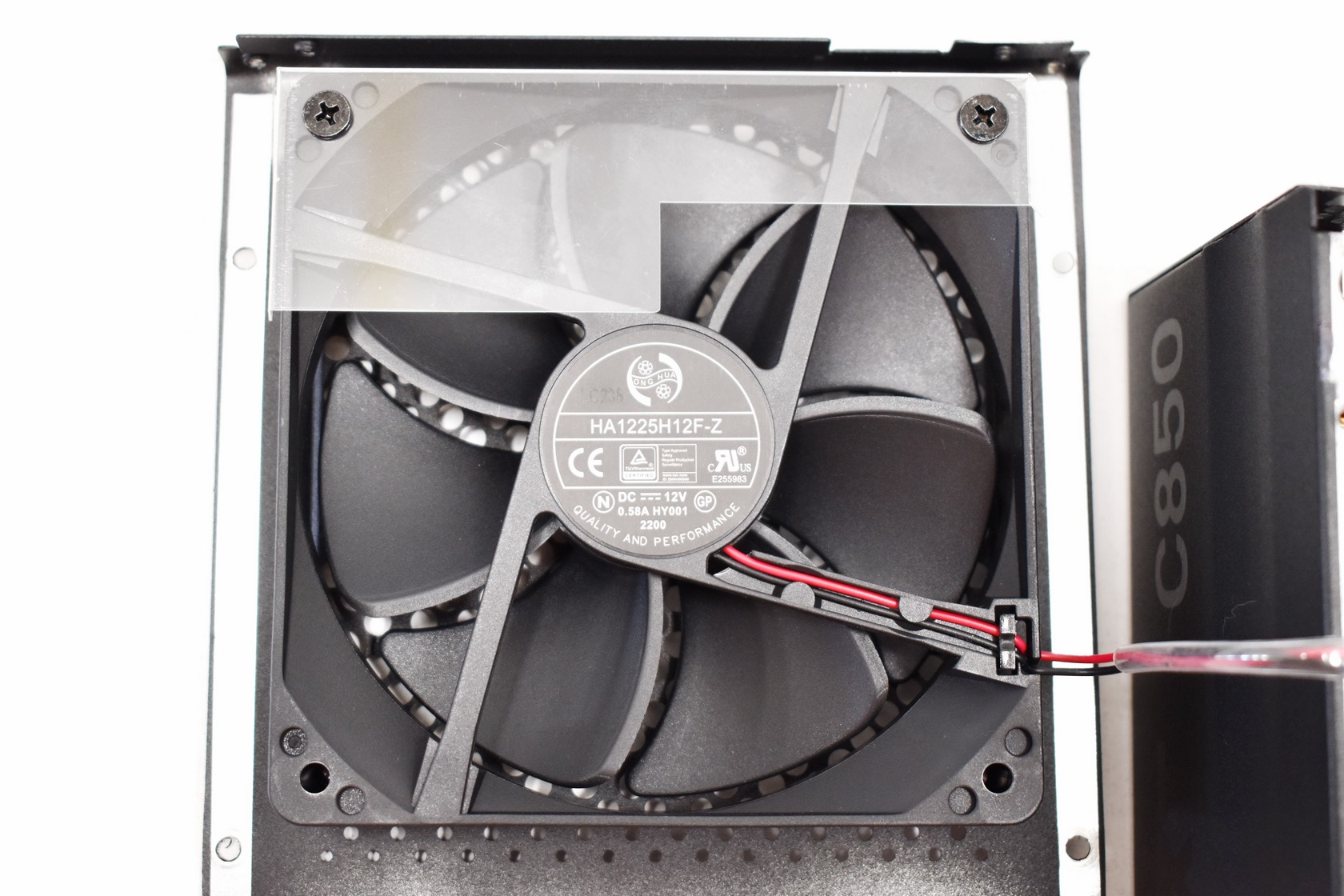

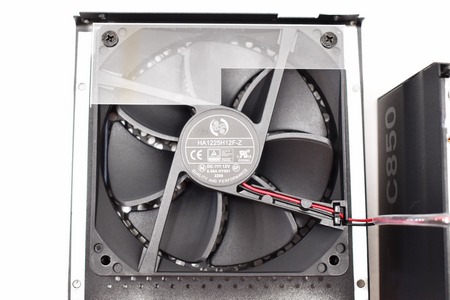

The 120mm fan used is manufactured by Hong Hua Electronics and can reach speeds of up to 2200RPM to produce airflow levels of up to 73.9CFM with up to 32.4dBA of noise.

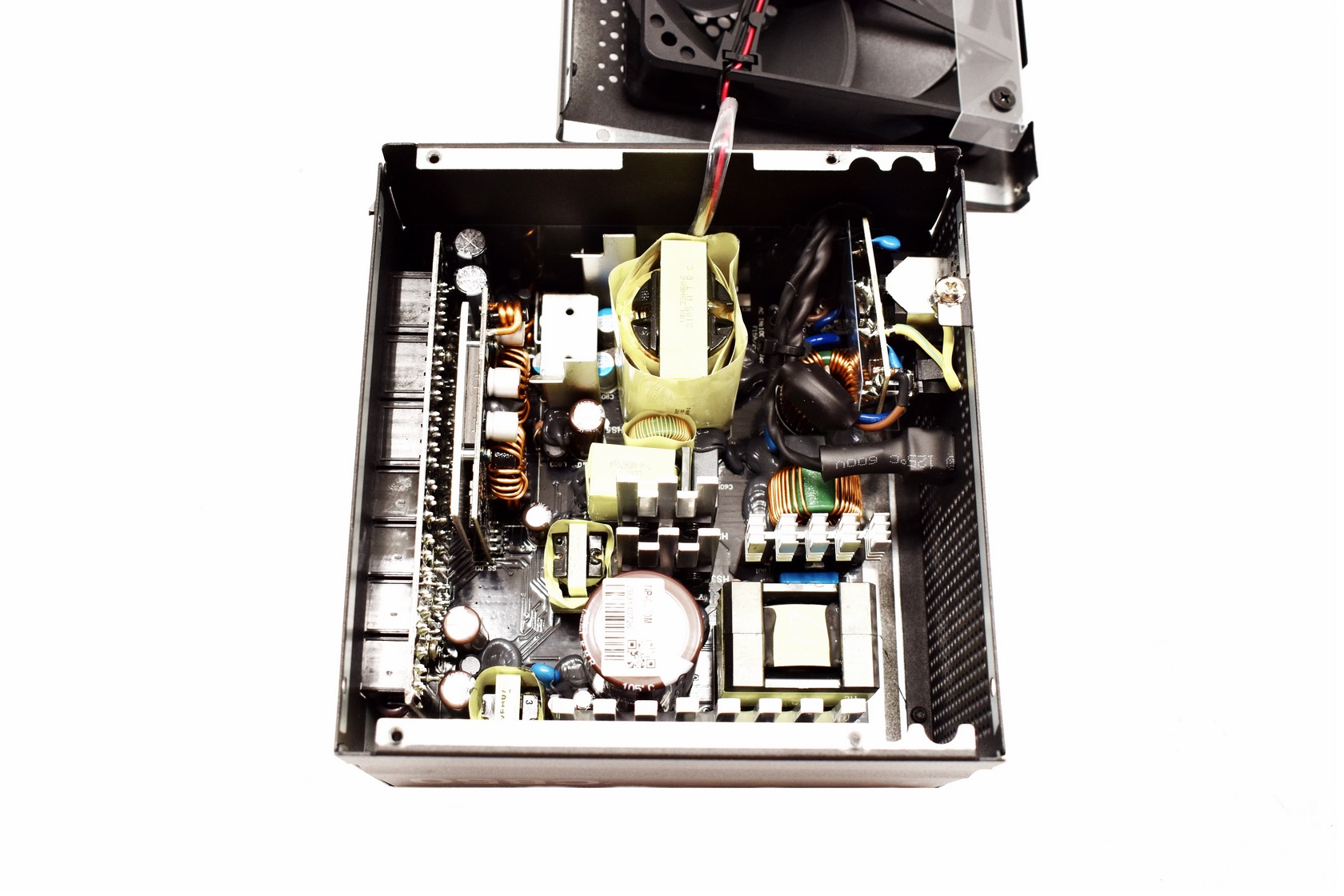

Judging by the design of the platform this unit is probably manufactured by Seasonic.

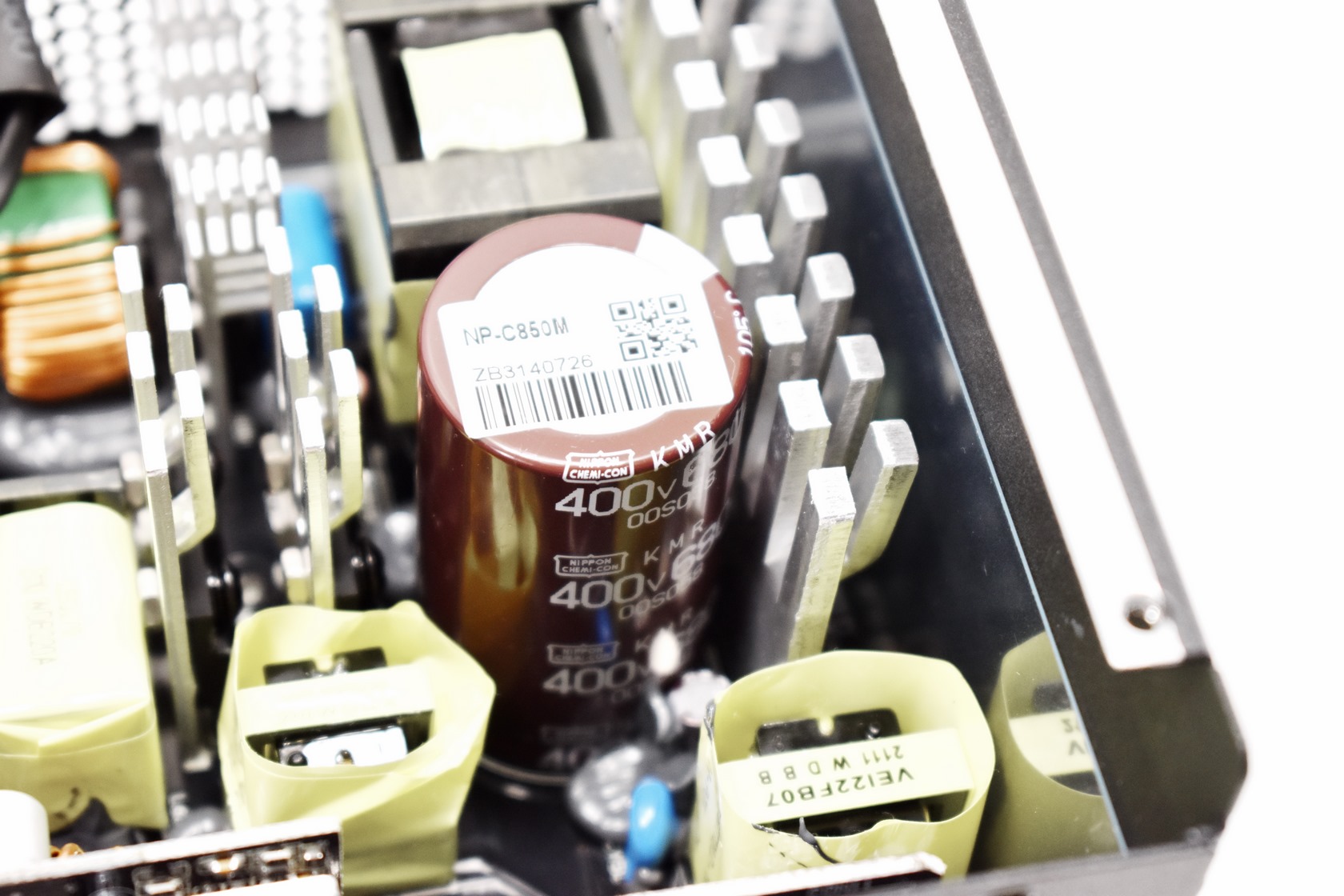

The primary capacitor is manufactured by the Japanese Nippon Chemi-Con and is certified for use up to 105 degrees Celsius.

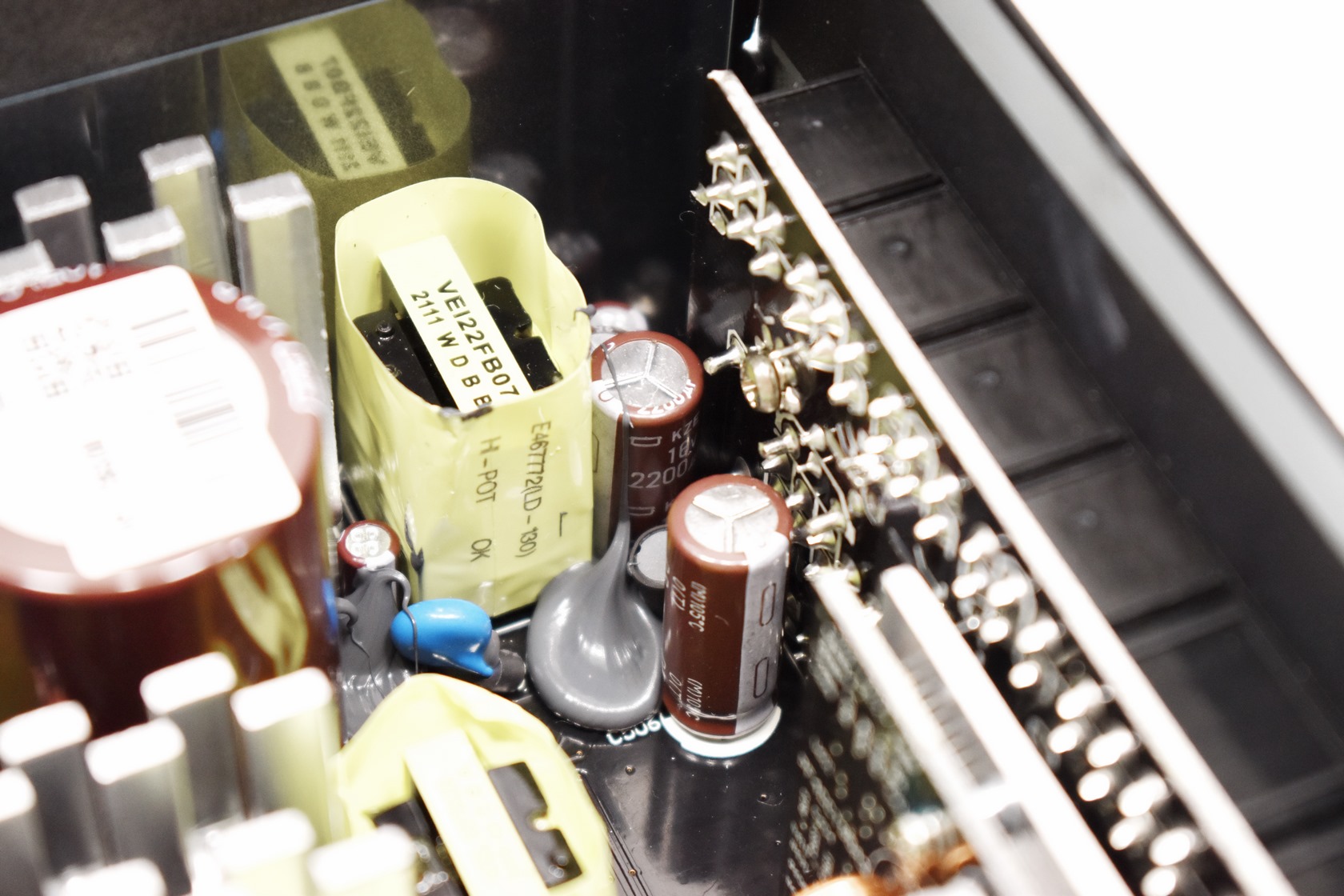

Secondary capacitors are manufactured by United Chemi-Con and are also certified for use up to 105 degrees Celsius.
