THE C850 EXTERIOR

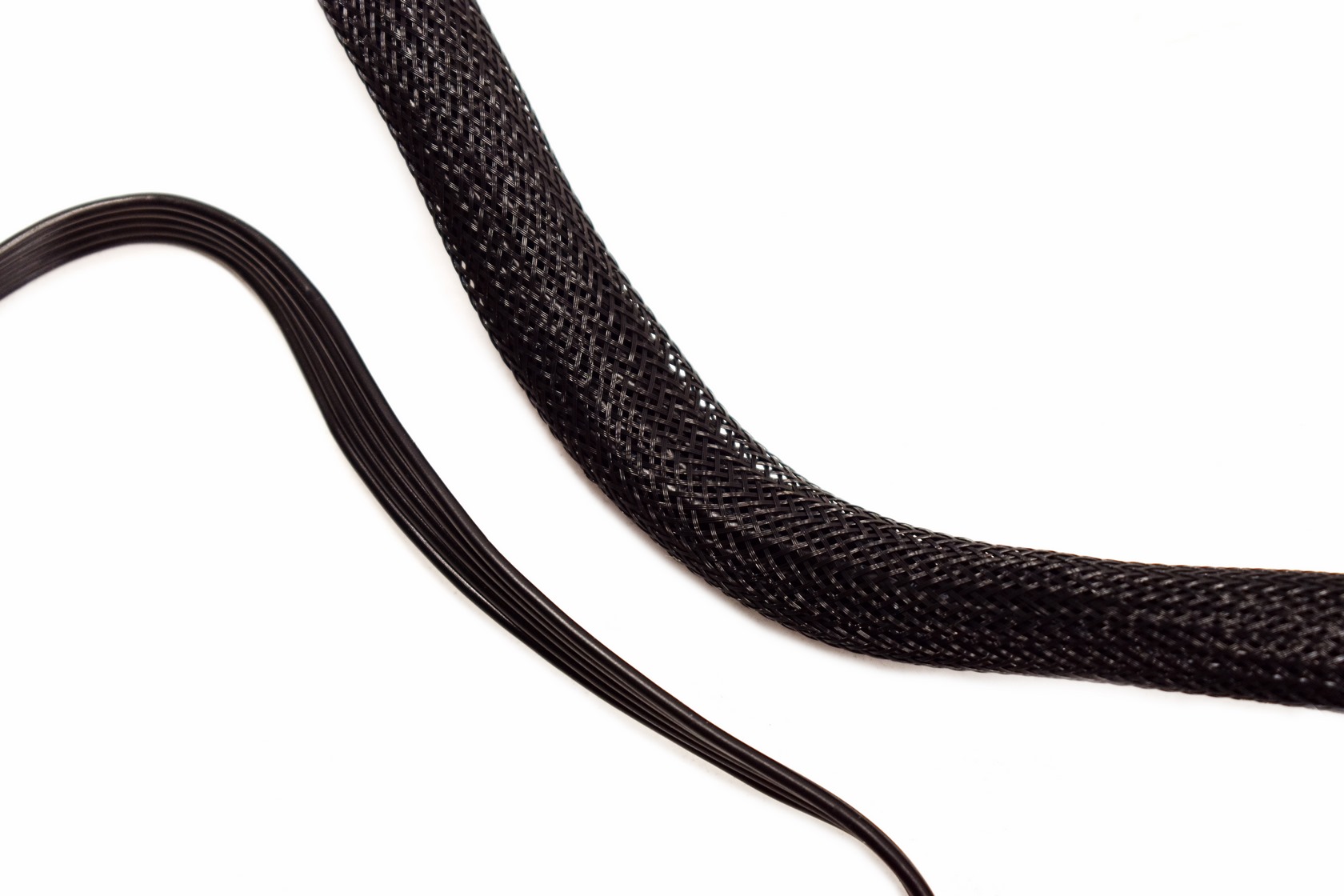

For both the motherboard (24pin) and PCIe power cables NZXT used sleeved ones while for everything else they used flat low profile ones.

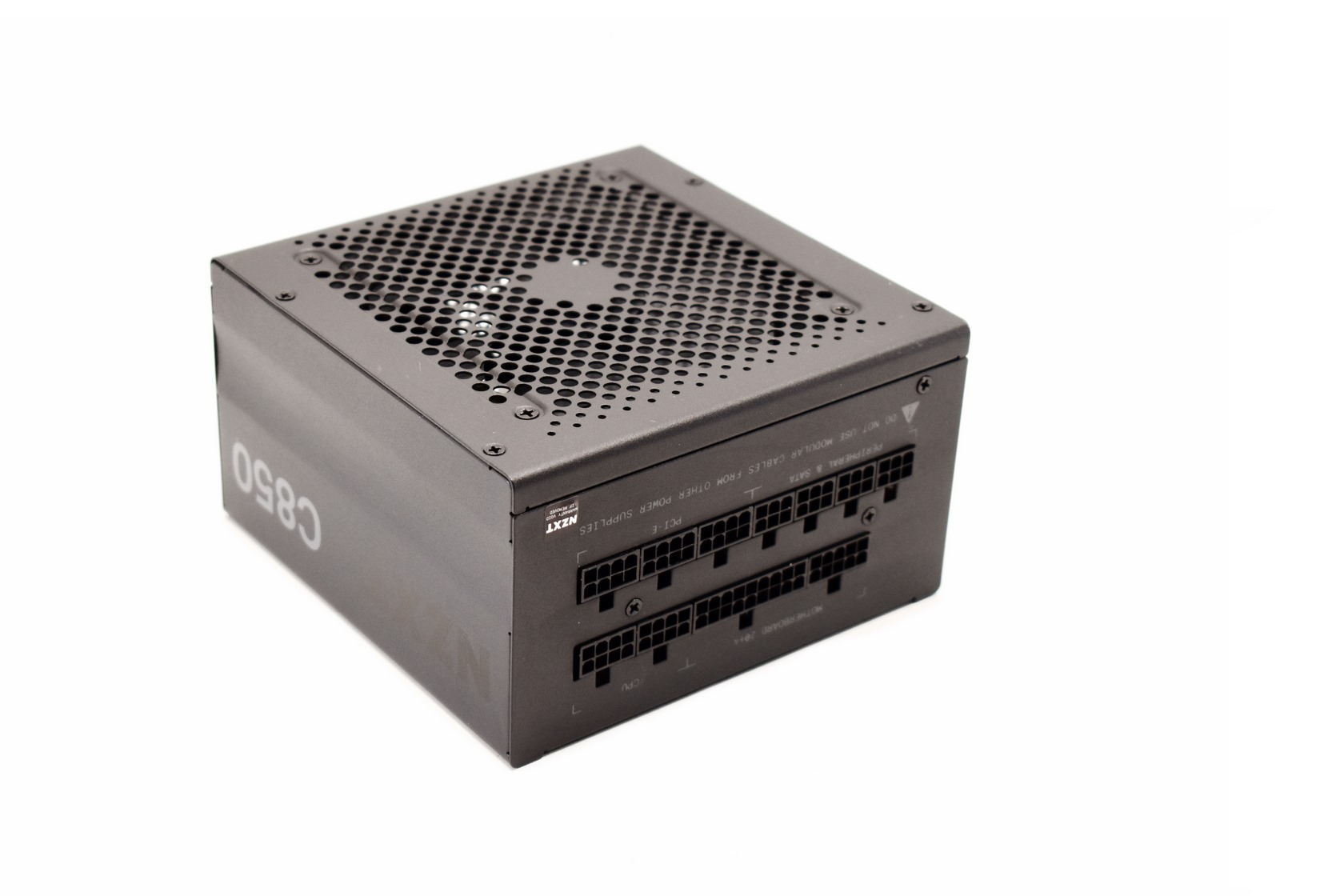

The C850 is a fully modular model that measures 150mm in width, 150mm in length and 86mm in height.

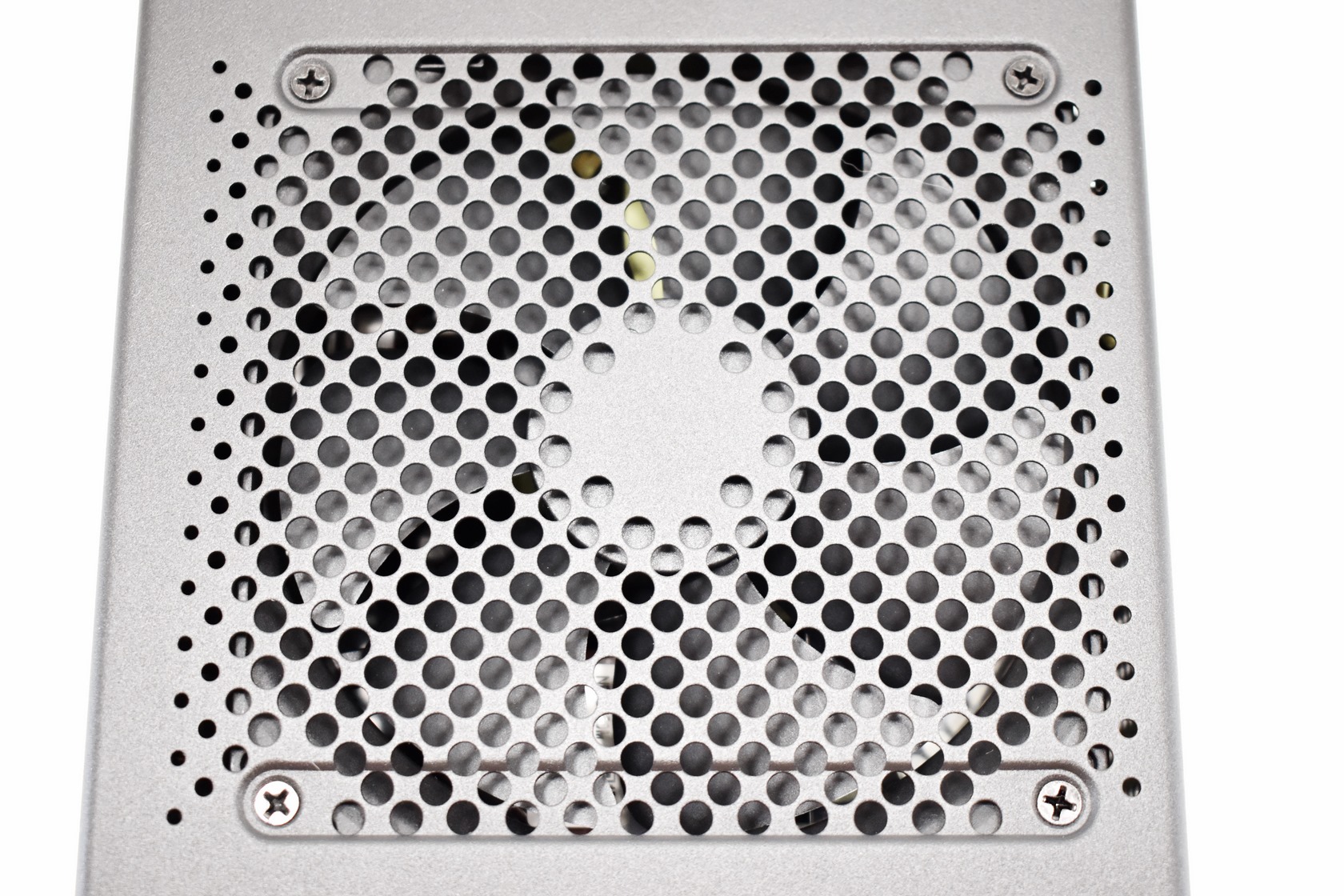

A 120mm FDB (fluid dynamic bearing) fan is placed at the top beneath a regular grill.

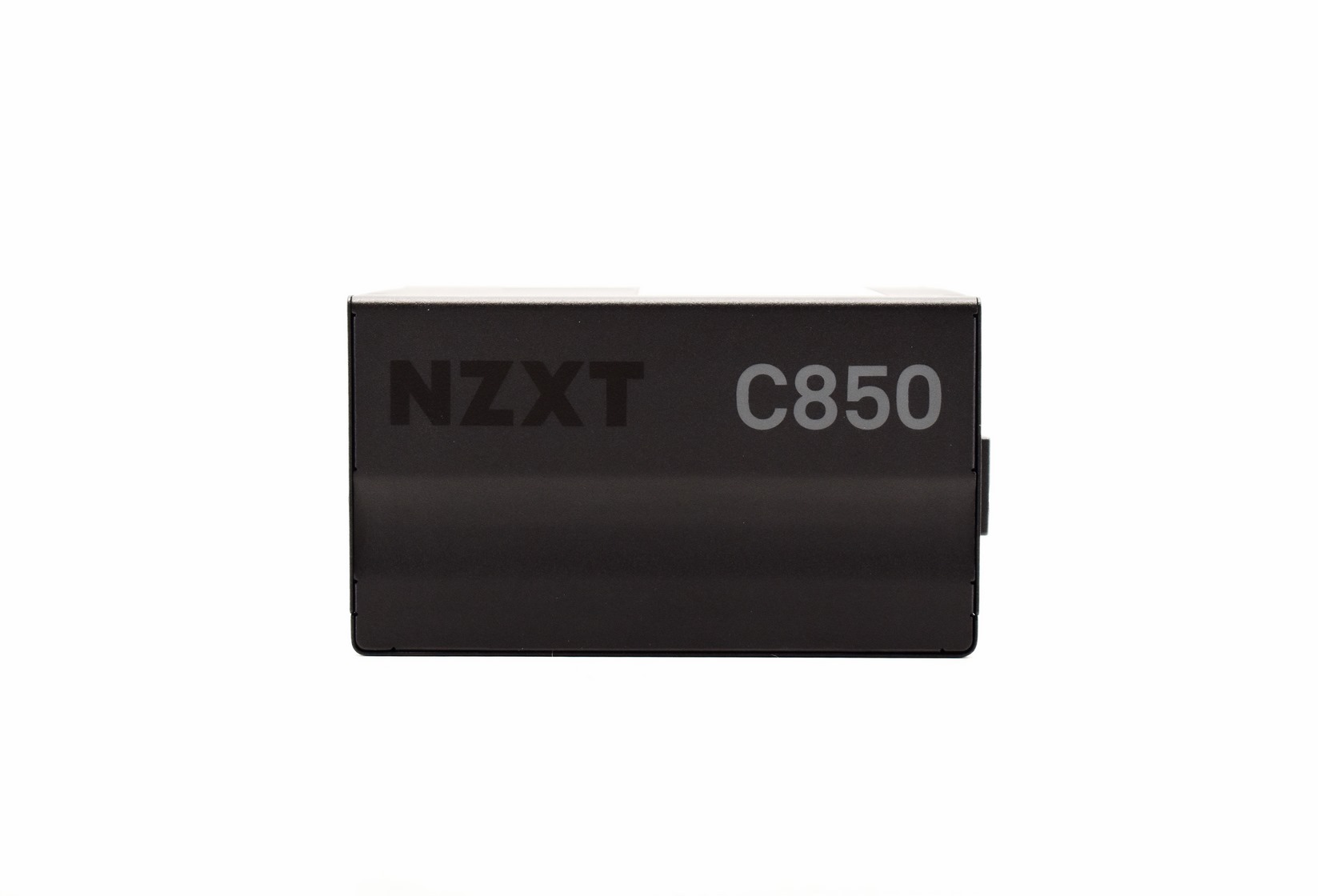

Both the company and model names are printed on both sides of the enclosure.

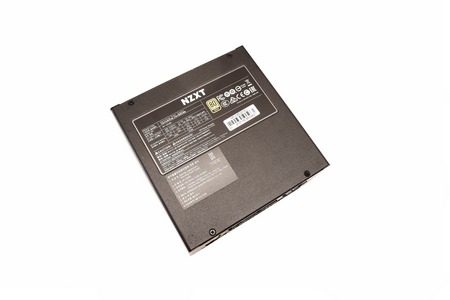

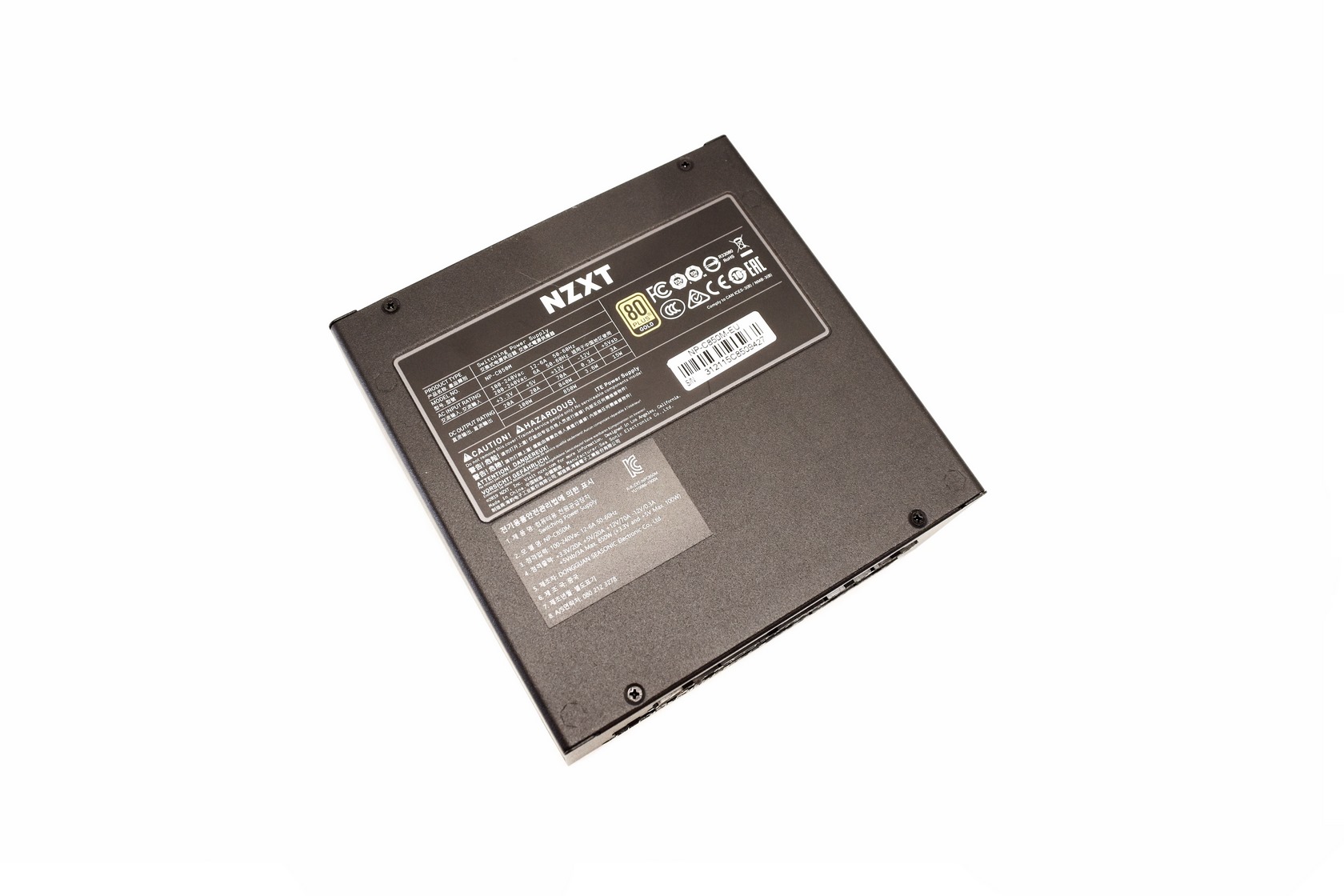

Turning the PSU over we find a large sticker containing the electrical specifications table.

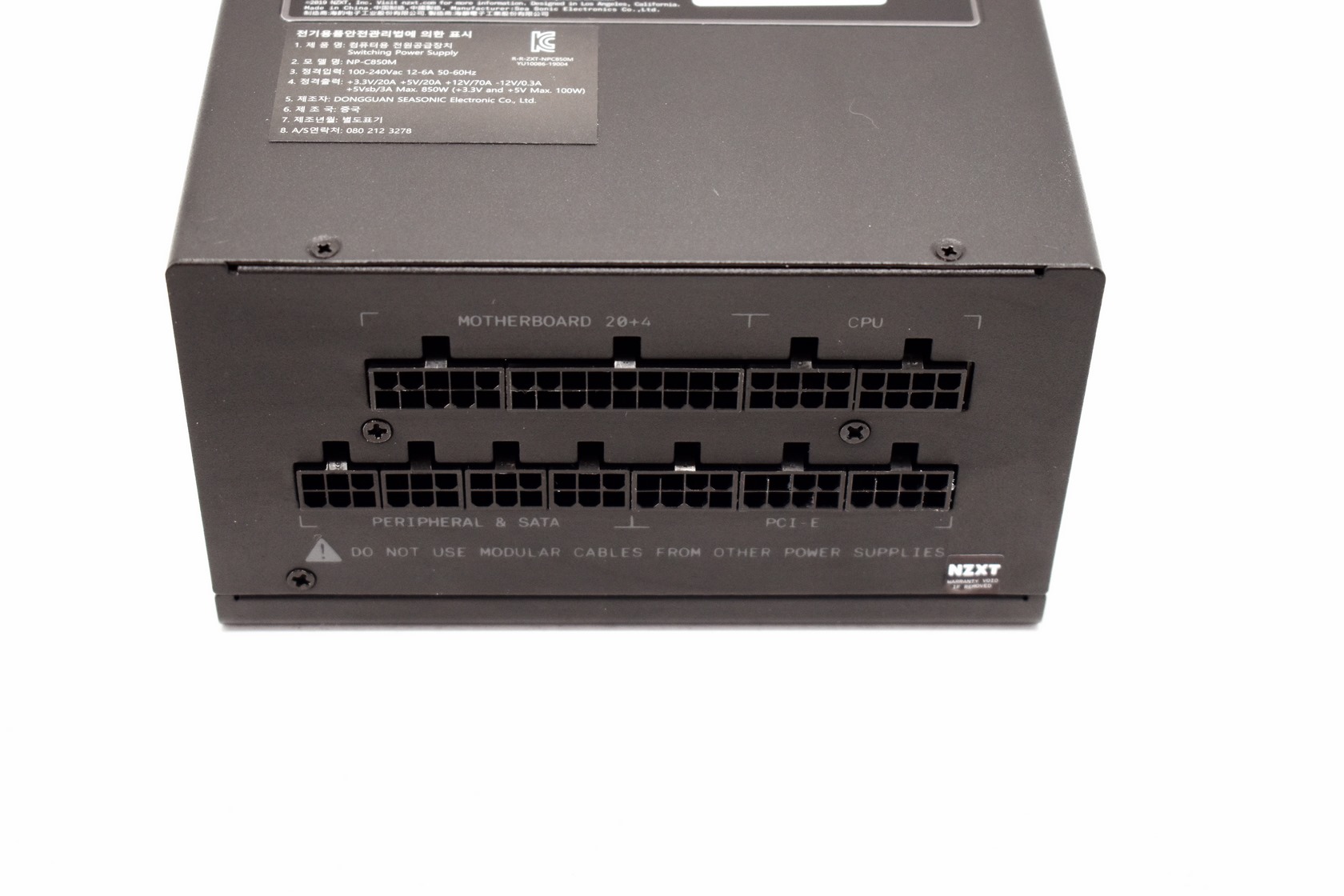

All 11 modular connectors are tagged and different in size/shape.

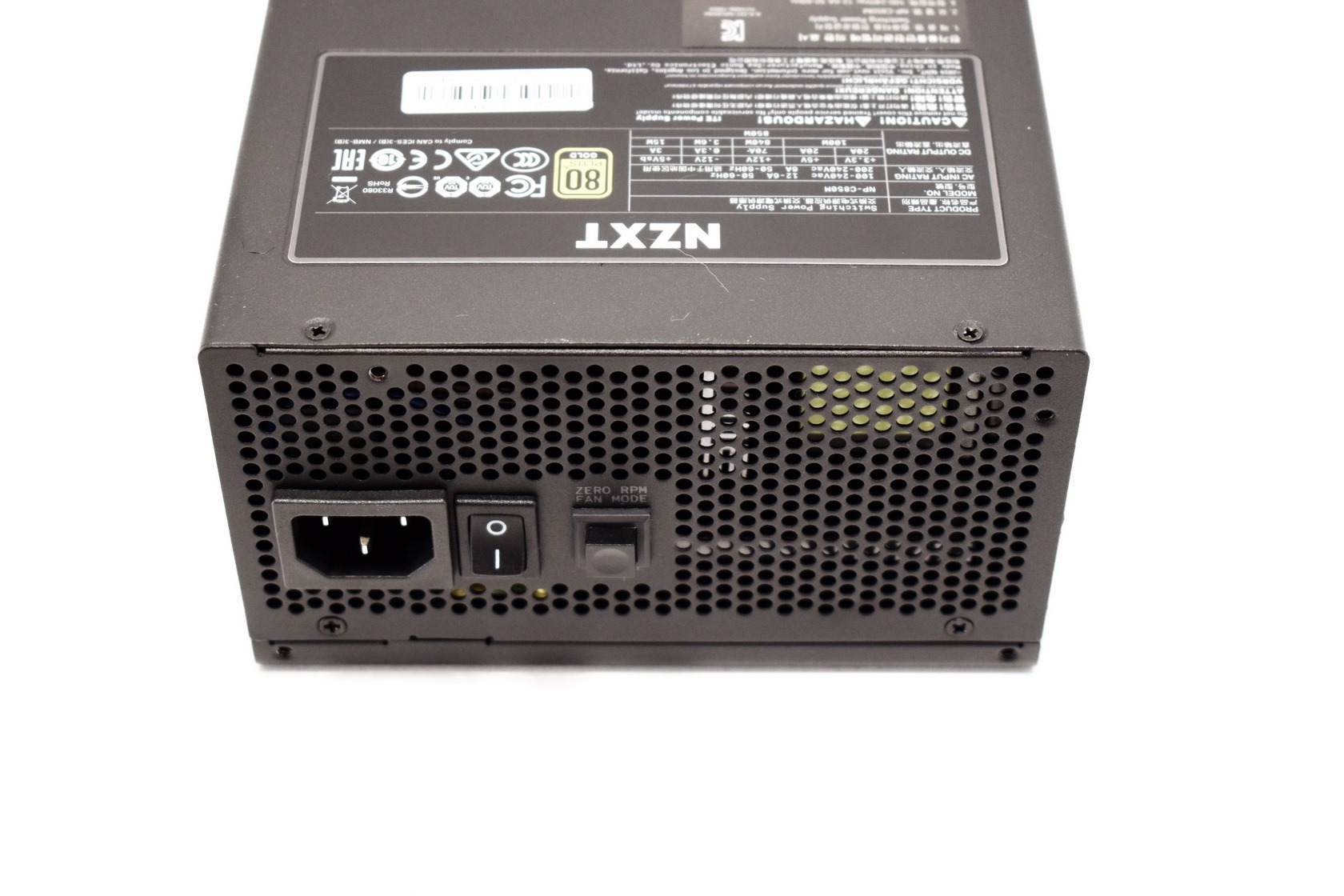

At the rear we find the typical honeycomb perforation, power on/off switch, zero fan button and the power port.
