THE BIG CHUNGUS V2 UNIT EDITION INTERIOR

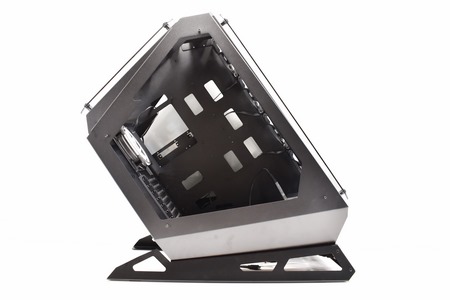

Interior space may not be remarkable but with room for E-ATX motherboards it should be plenty for the majority of systems.

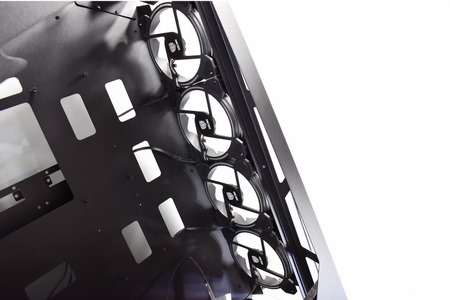

The four 120mm ARGB fans at the front can be combined with an 360mm radiator (even some 480mm radiators should fit here).

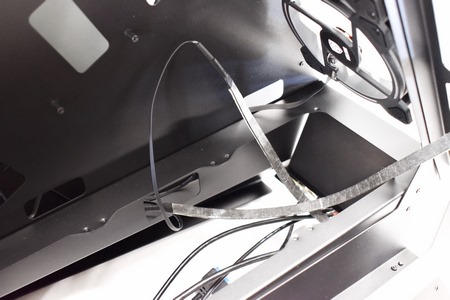

Taking a look at the base from the interior we again see the mounting area for either three 120mm fans or a 360mm radiator and of course the fallen ARGB LED strips.

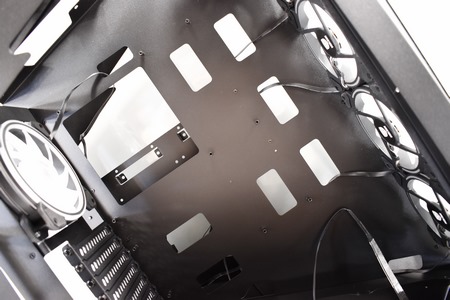

There are 7 cut-outs on the motherboard tray aside the large CPU cut-out.

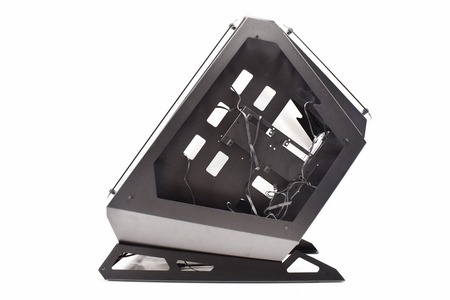

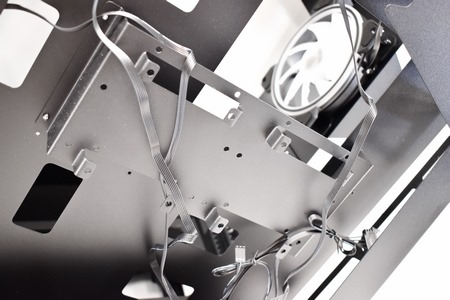

Turning the Big Chungus V2 Unit Edition around we find drive tray on which you can put either 4x2.5" or 2x2.5/3.5" and 2x2.5" drives.

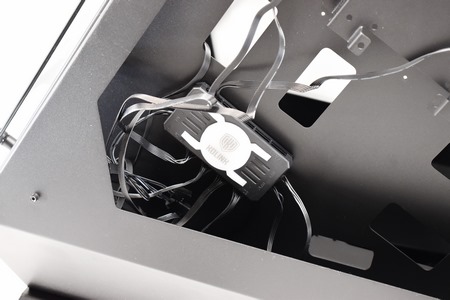

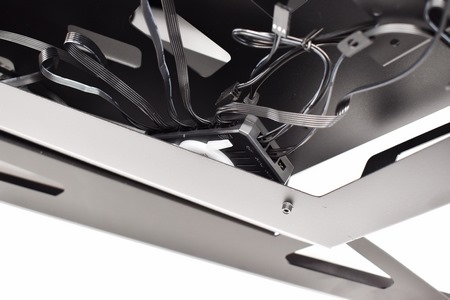

Further down we find the 10-port ARGB hub which just like the ARGB LED strips has also fallen off.





Of course, this isn't something a double sided tape (or silicon/glue) couldn't fix.

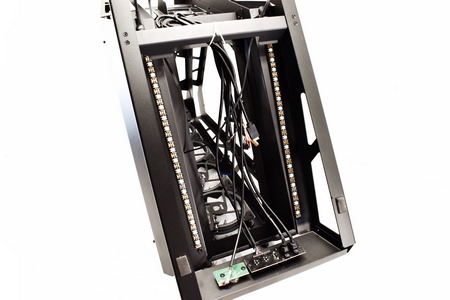

Likewise with the ARGB LED strips which i attached on the base of the enclosure with silicon.
