THE BIG CHUNGUS V2 UNIT EDITION EXTERIOR

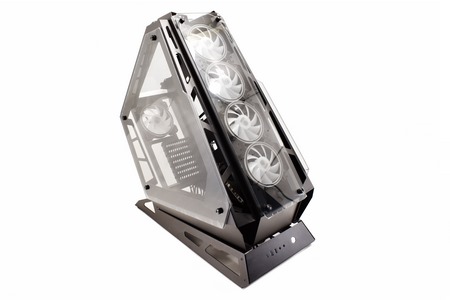

Standing 668mm tall, 651mm deep and 336mm wide the 16Kg heavy Big Chungus V2 Unit Edition is a large open air/frame mid-tower.

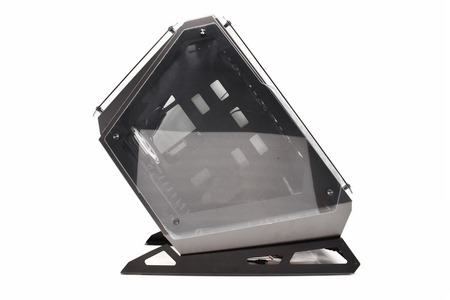

The left side panel is made out of tempered glass and held in place via 4 thumbscrews.





Another piece of tempered glass is placed at the front of the Big Chungus V2 Unit Edition.

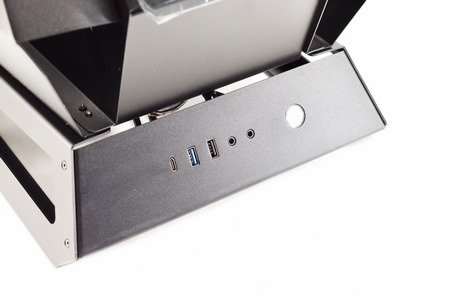

The I/O is located at the lower front and includes a USB-C port, USB 3.2 port, USB 2.0 port, headphones and microphone 3.5mm plugs and the on/off button and LED.

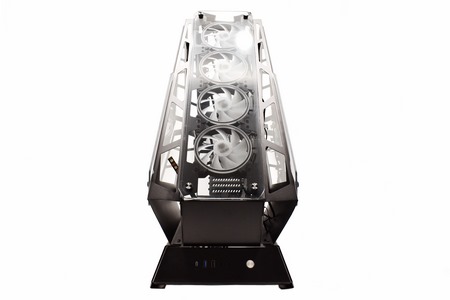

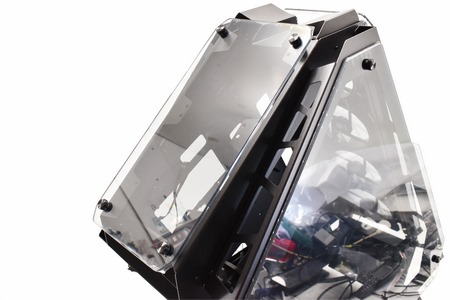

Moving at the top we find a 3rd tempered glass panel right beneath which you can mount either two 120mm fans or a single 240mm radiator.

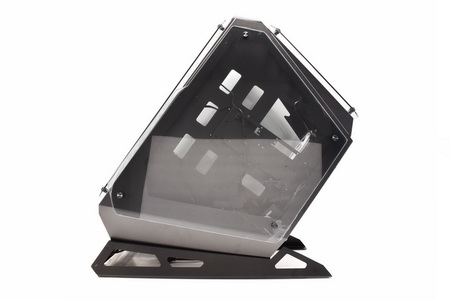

Even the right side panel is made out of tempered glass.

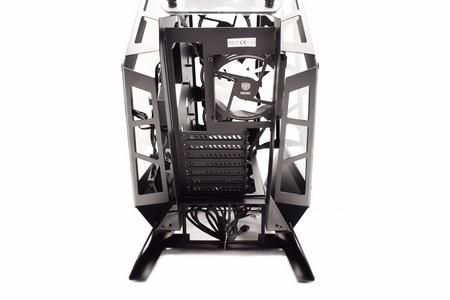

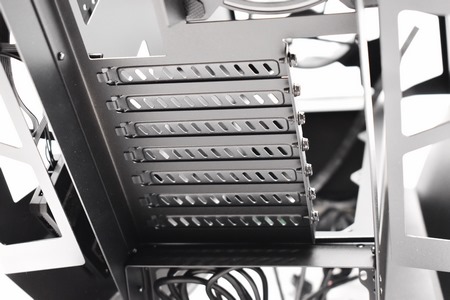

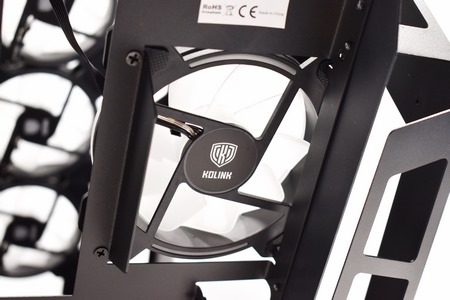

At the rear of the Big Chungus V2 Unit Edition we find another 120mm ARGB fan, 7 PCI expansion slots and the PSU area.

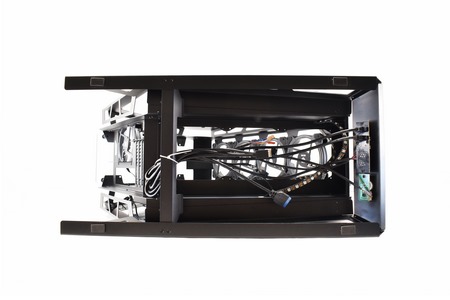

Turning the case over we see the I/O cables, the mounting area for three 120mm fans or an 360mm radiator and the 2 ARGB LED strips which have clearly fallen off.
