THE H710I EXTERIOR

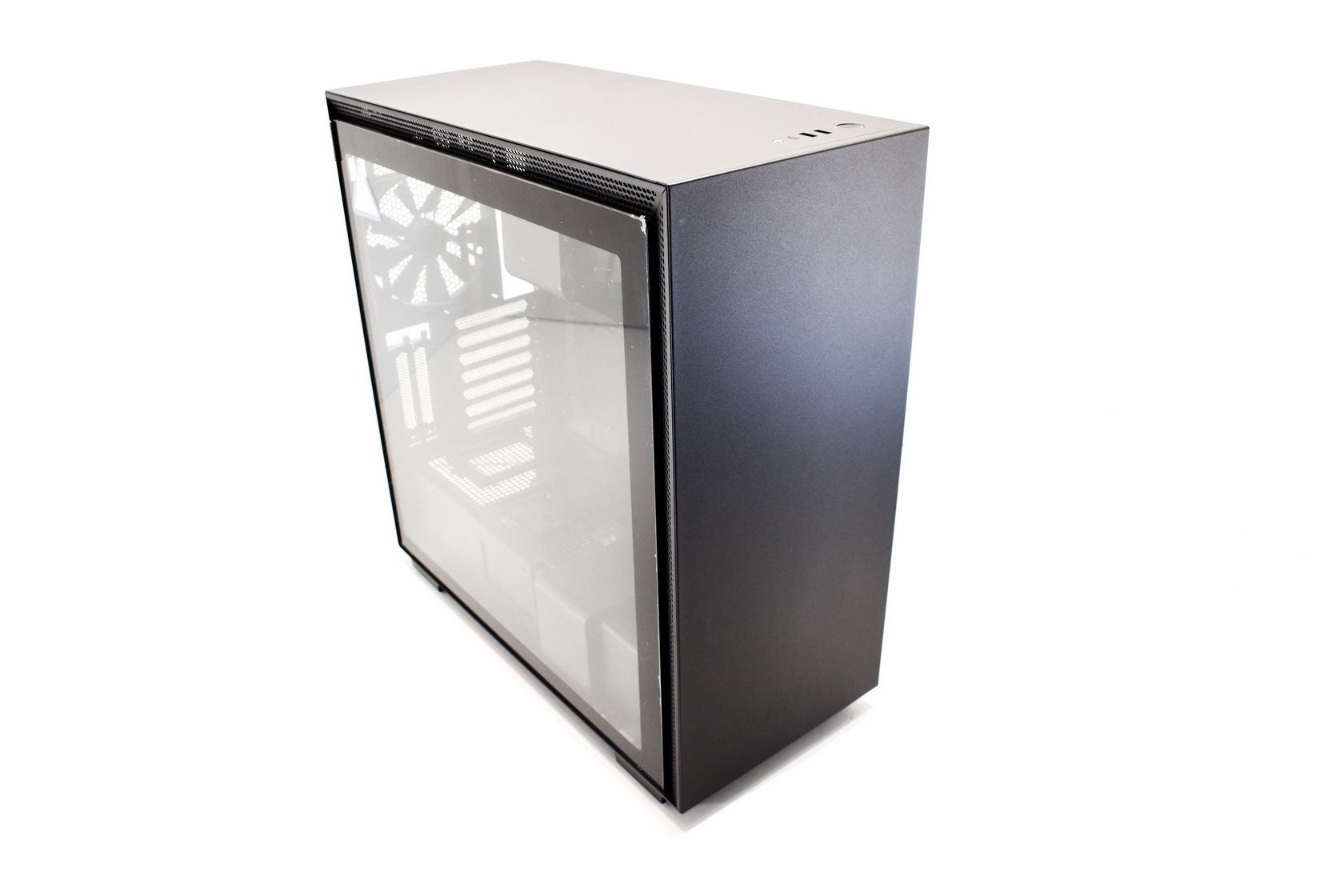

Measuring 516mm in height, 494mm in depth and 230mm in width the H710i is a rather large mid-tower PC case.

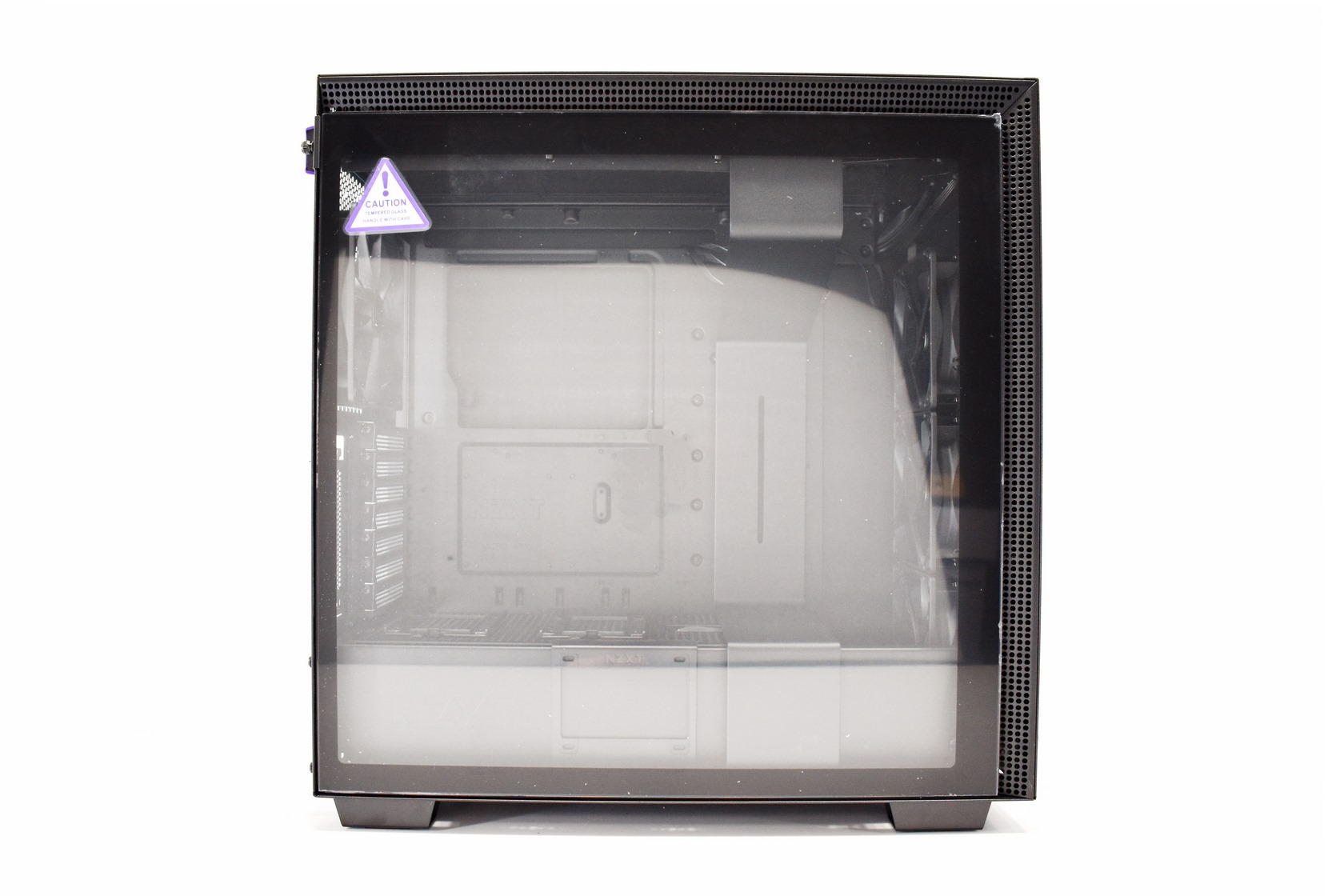

The entire left side panel is made out of tempered glass and is held in place with a single thumbscrew.

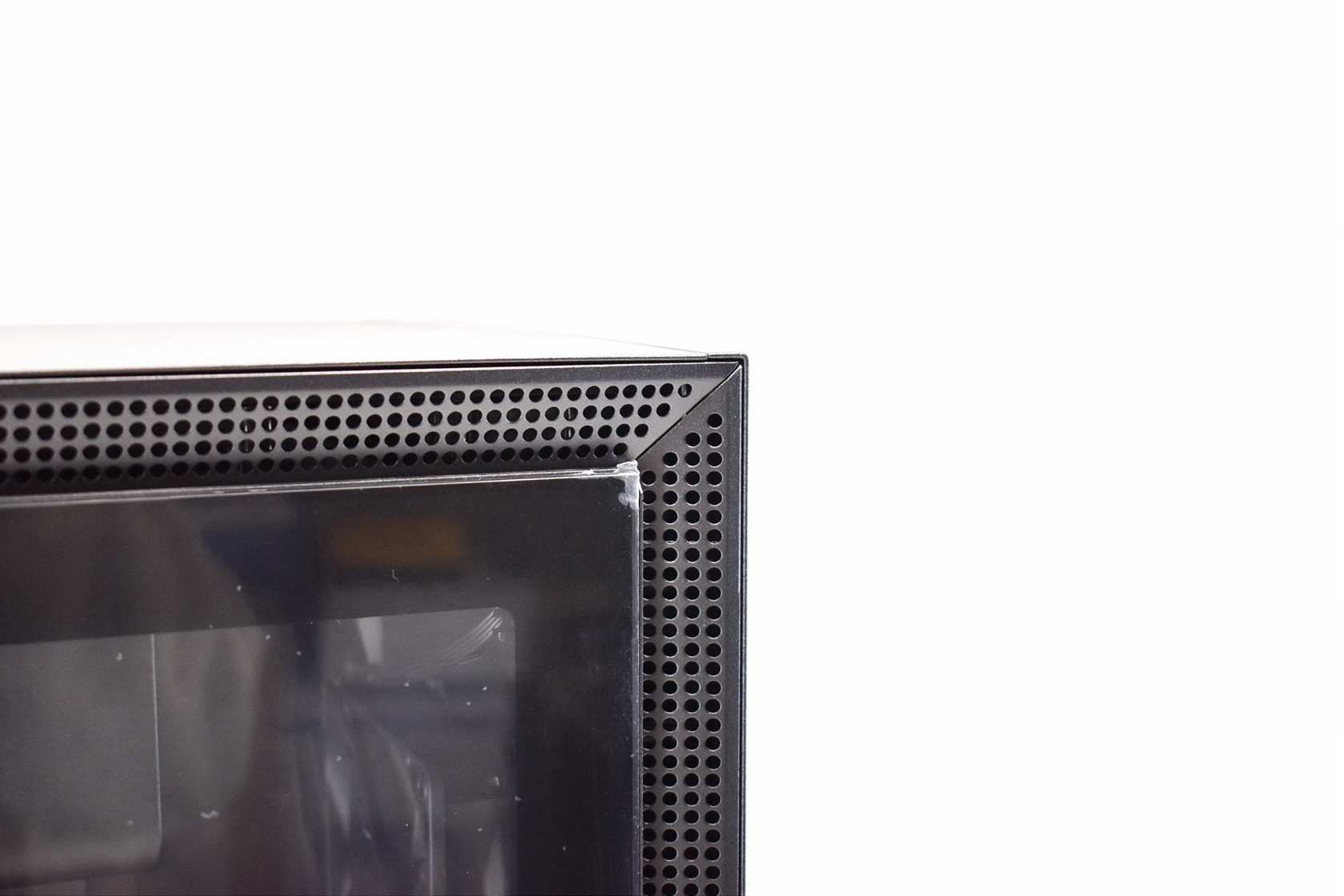

As you can all see the top and front area around the left side panel is perforated so air can reach the fans inside.

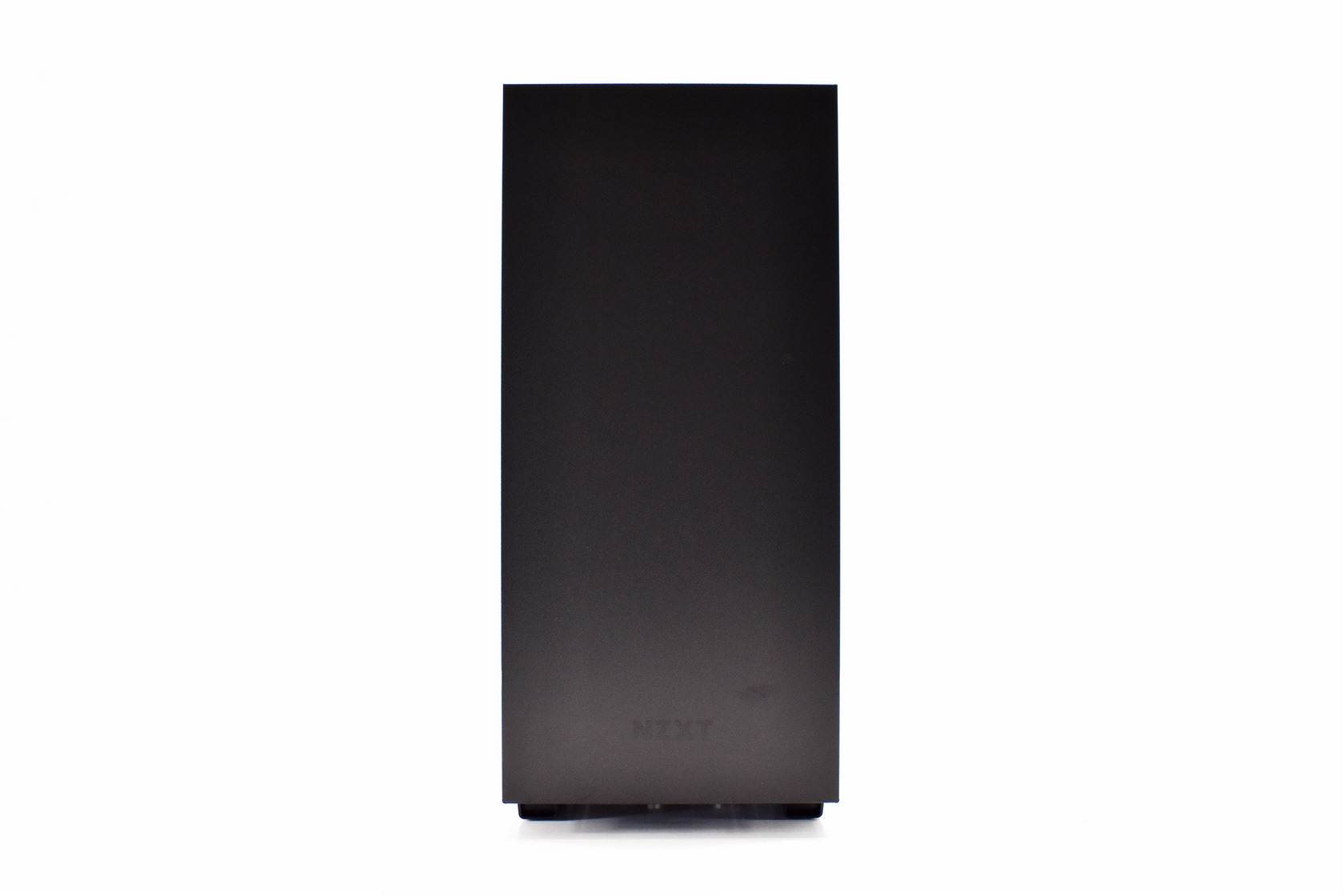

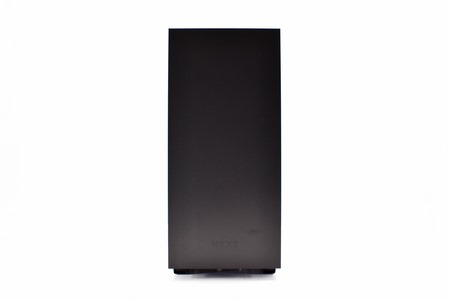

The fascia is made out of SGCC Steel and has the company logo at the base.

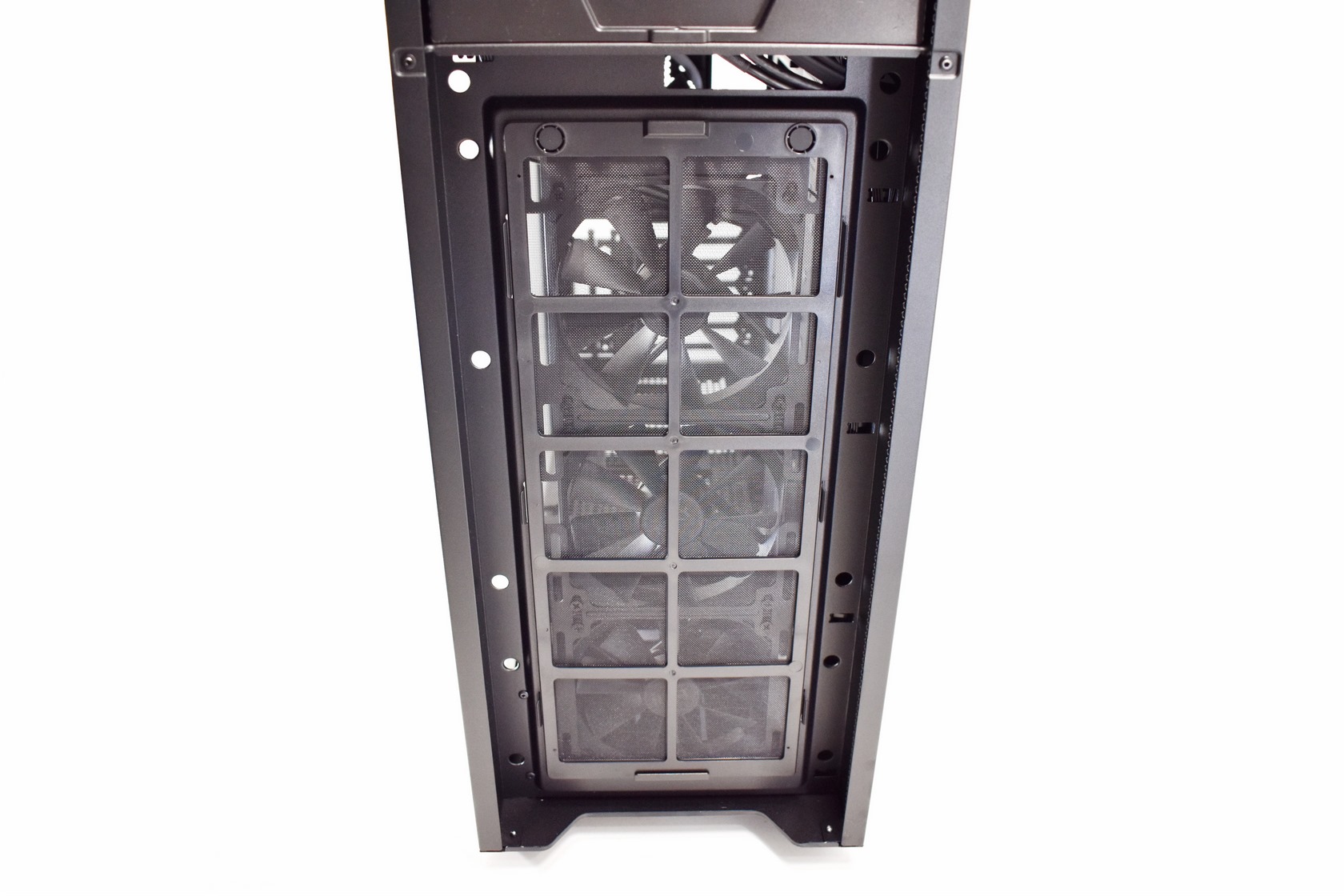

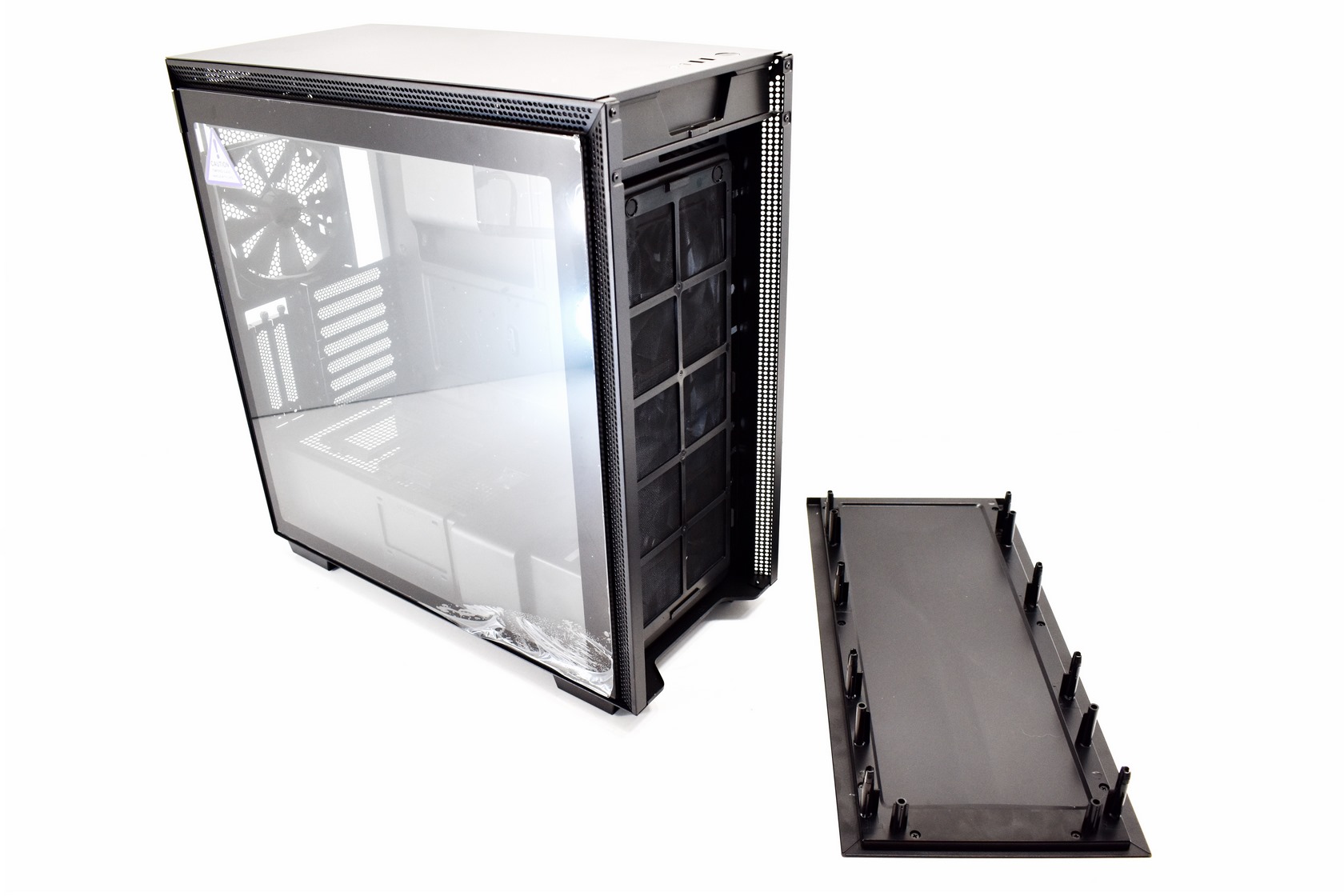

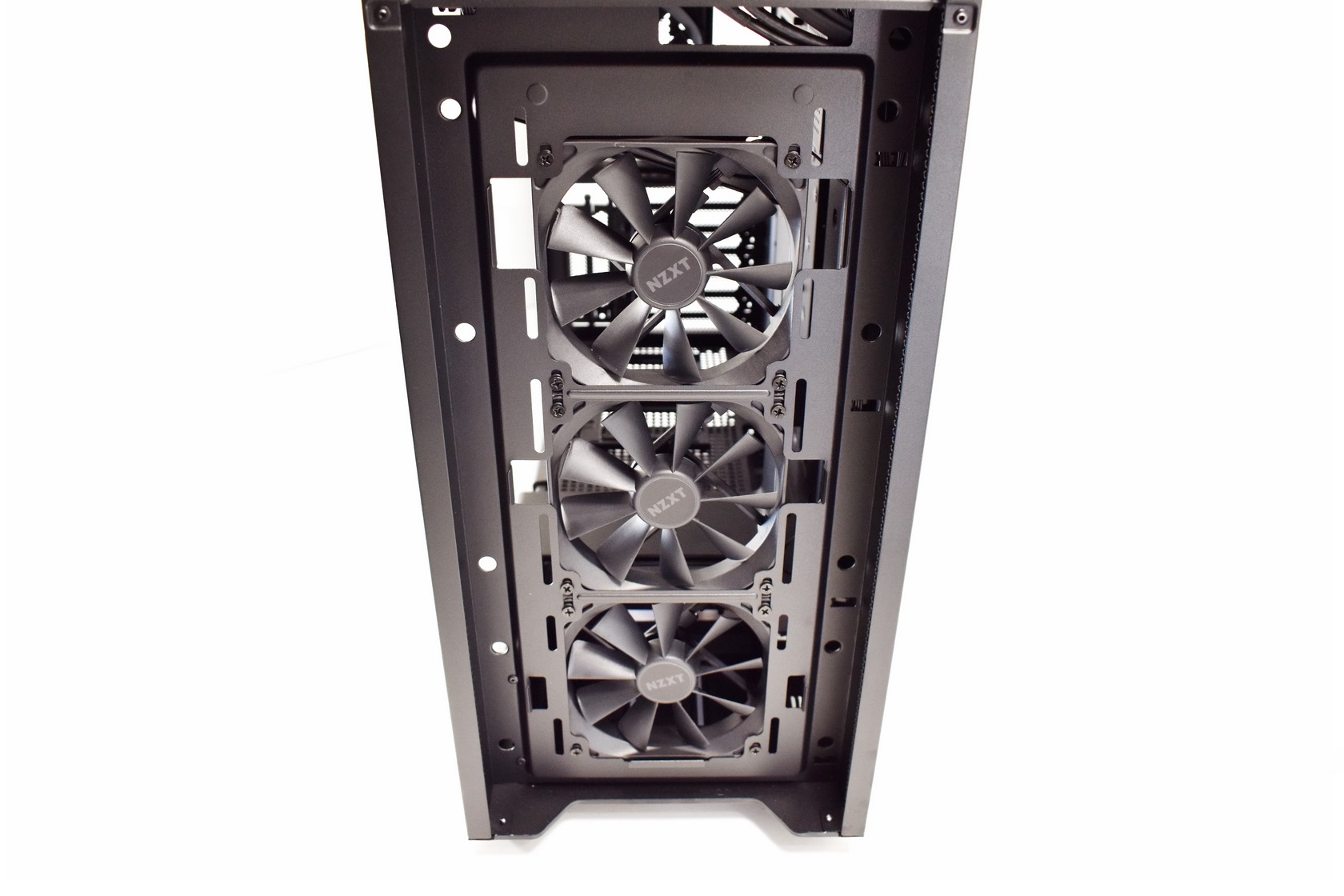

You can remove the fascia by pulling it to access the front air-filter and the 3 AER F120 fans (1200RPM/50.42CFM/28dBA).

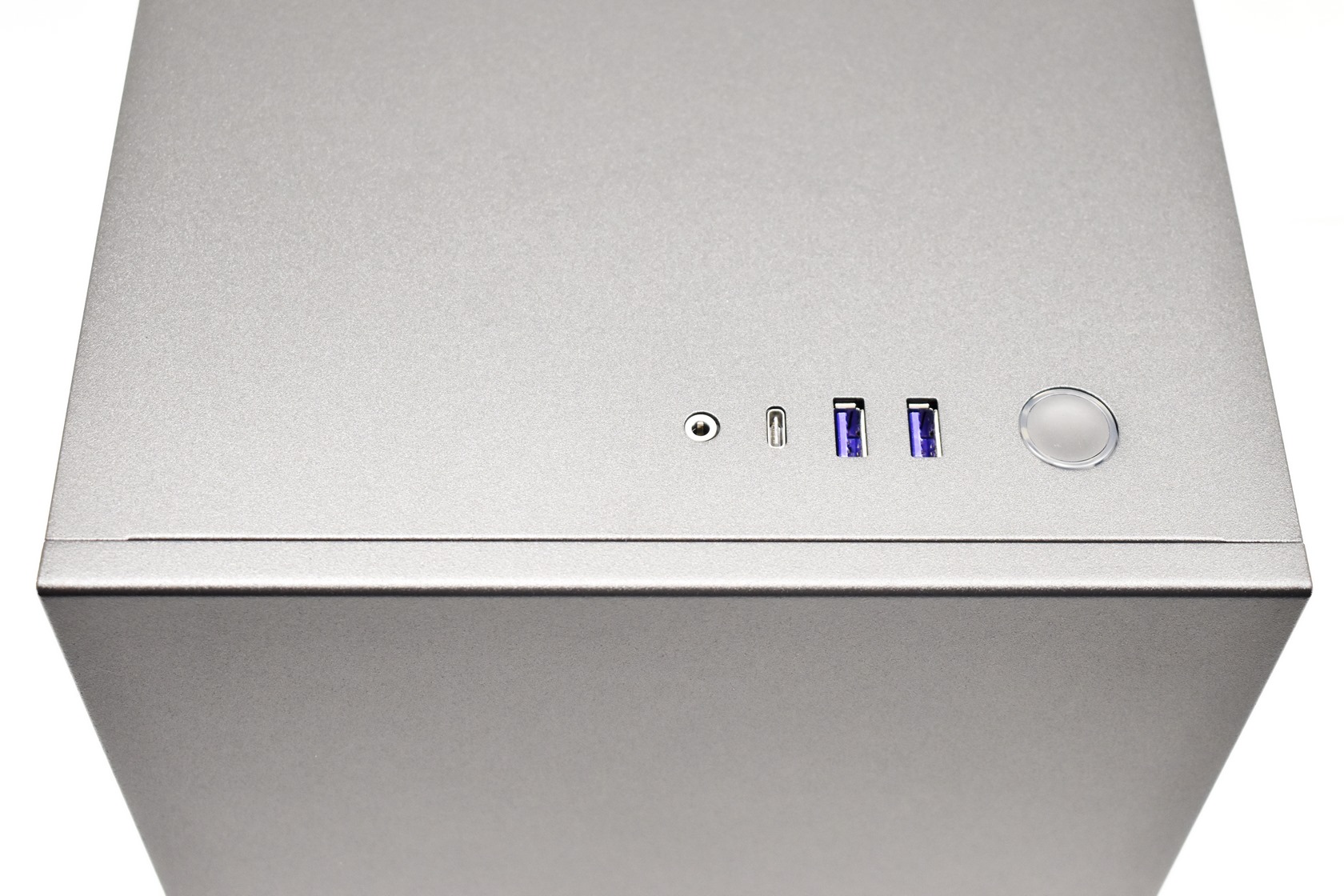

As expected, the I/O is located at the top and includes two USB 3.2 ports, USB-C 3.2 Gen 2 port, 3.5mm port and the on/off power button (ring LED).

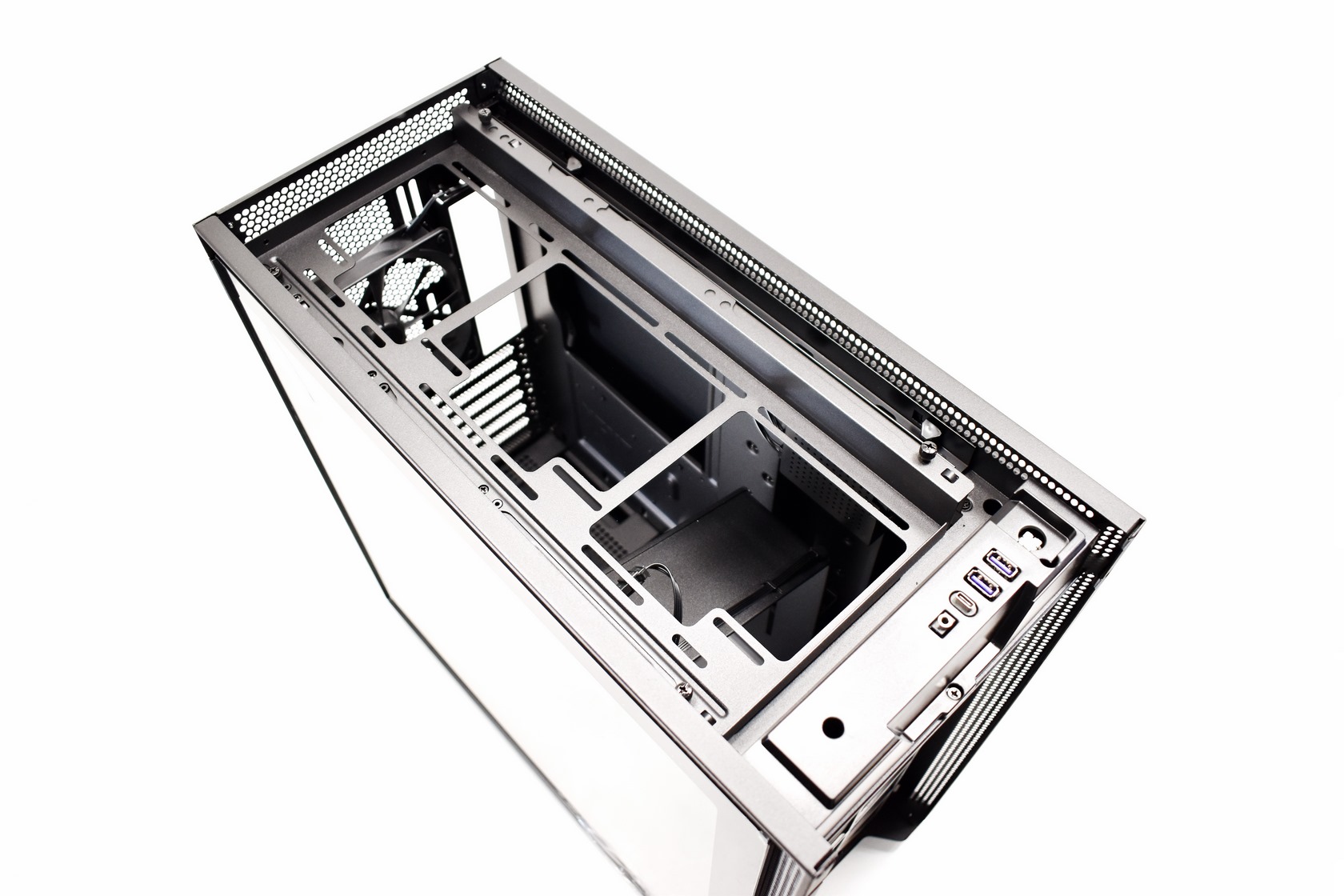

Just like the front you can also remove the top to access the removable fan/radiator bracket (here you can install either 3x120mm (360mm radiator) or 2x140mm fans (280mm radiator).

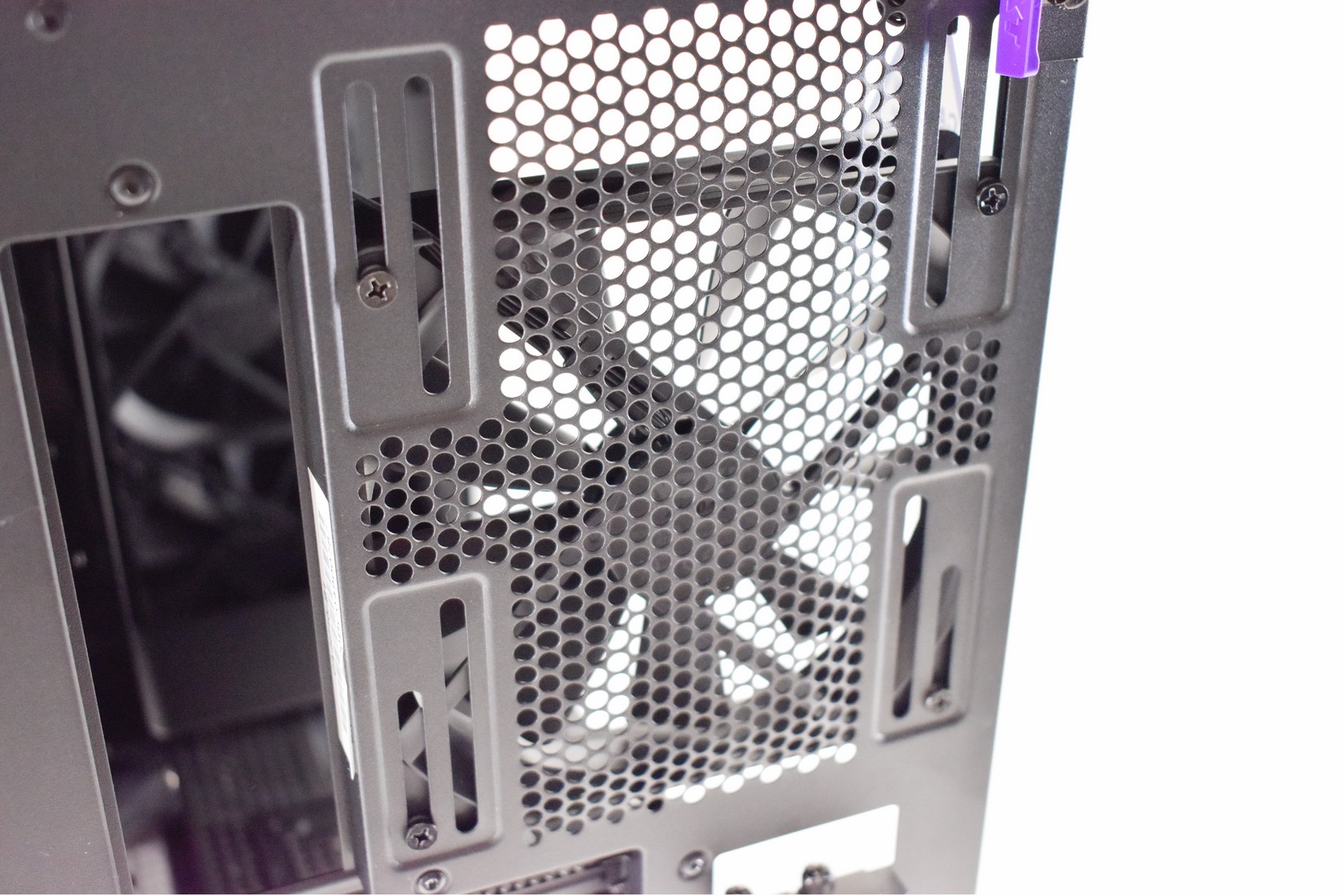

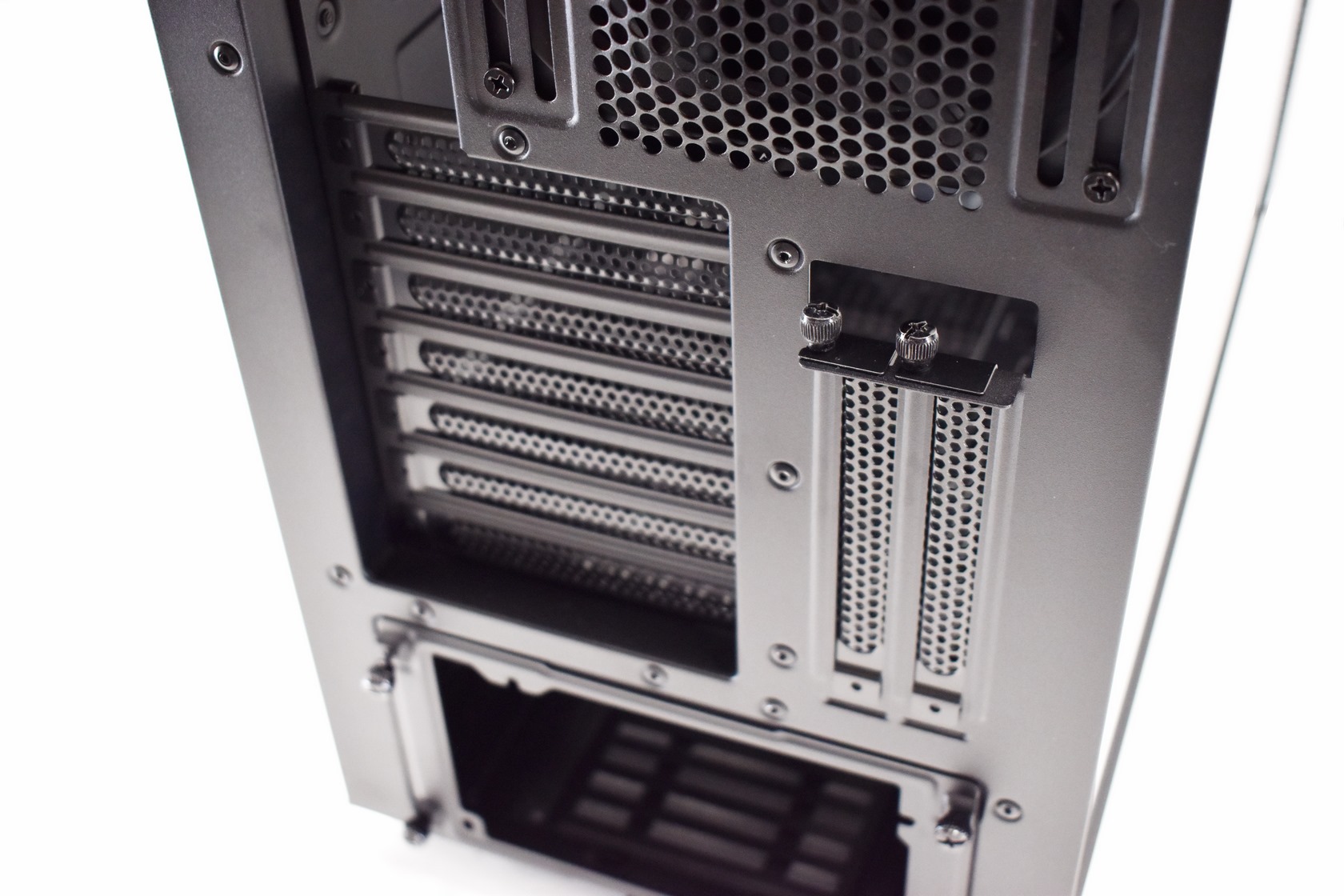

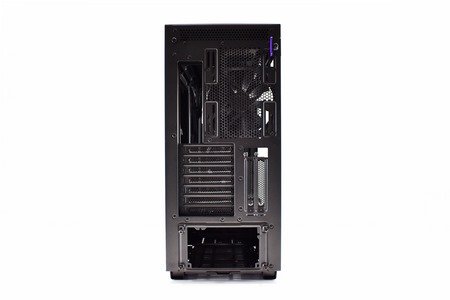

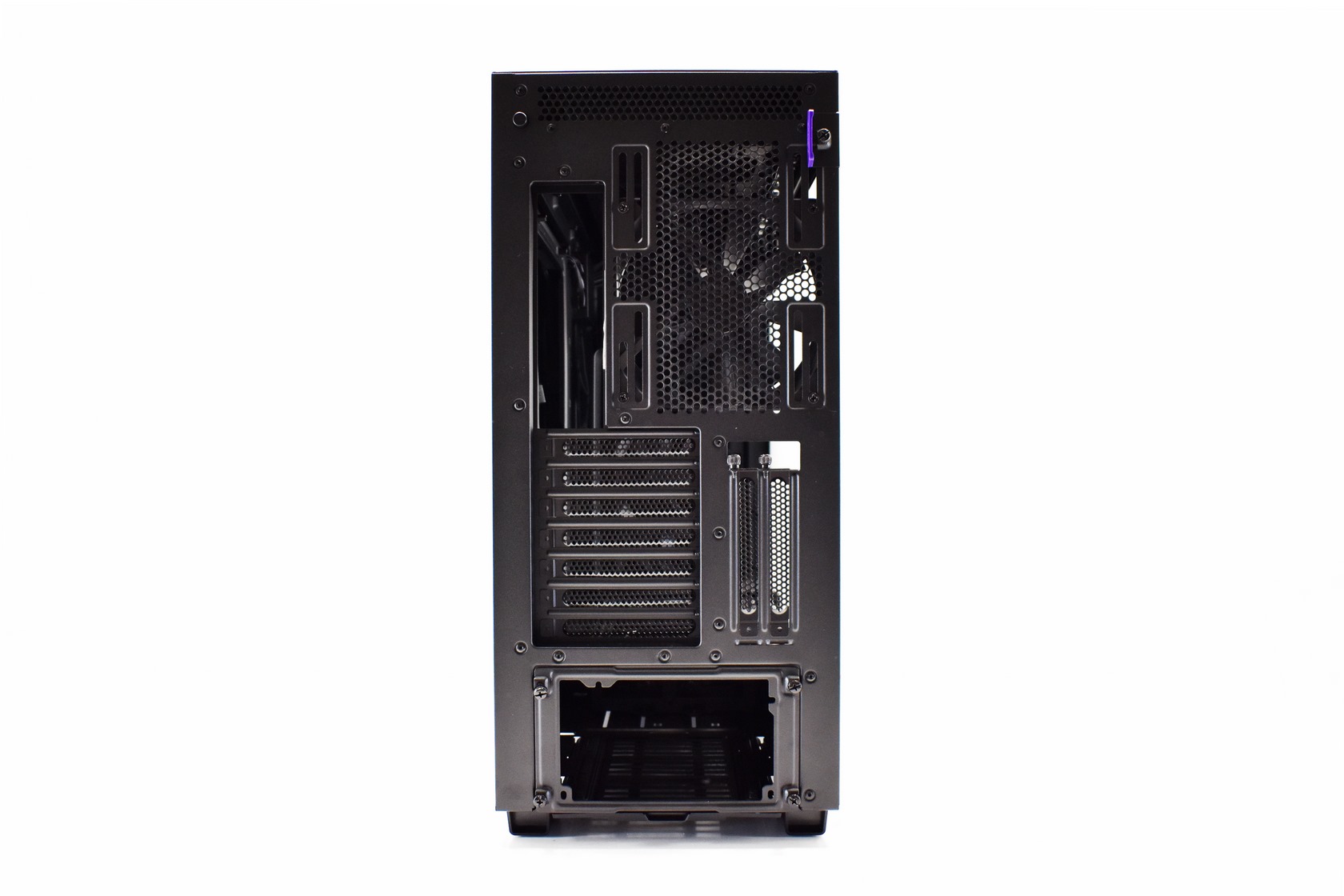

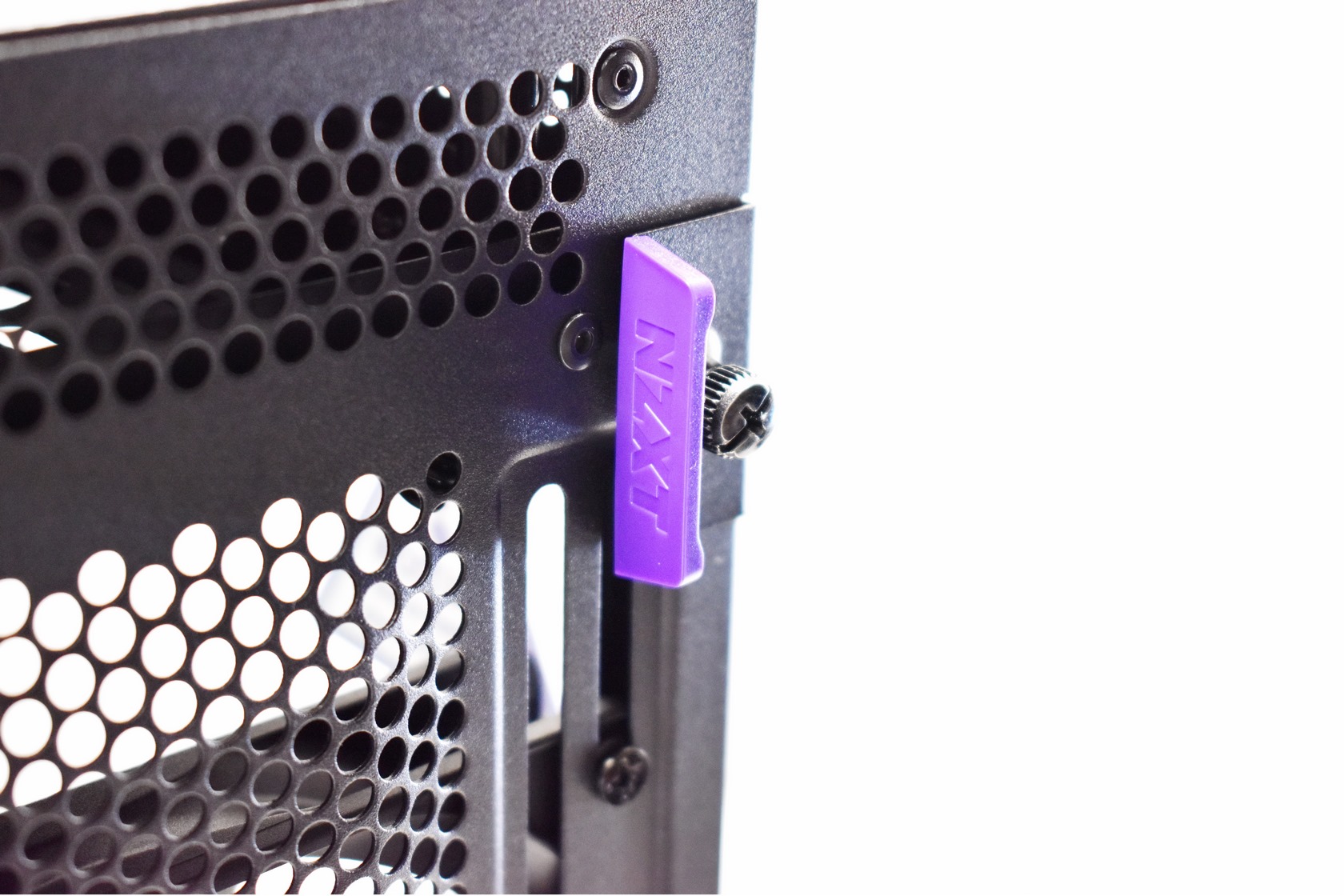

Turning the H710i around we see a small piece of plastic with the company name (attached onto the thumbscrew area of the left side panel), an AER F140 fan (1000RPM/68.95CFM/29dBA), 9 PCI expansion slots (7 horizontal + 2 vertical) and the PSU area.

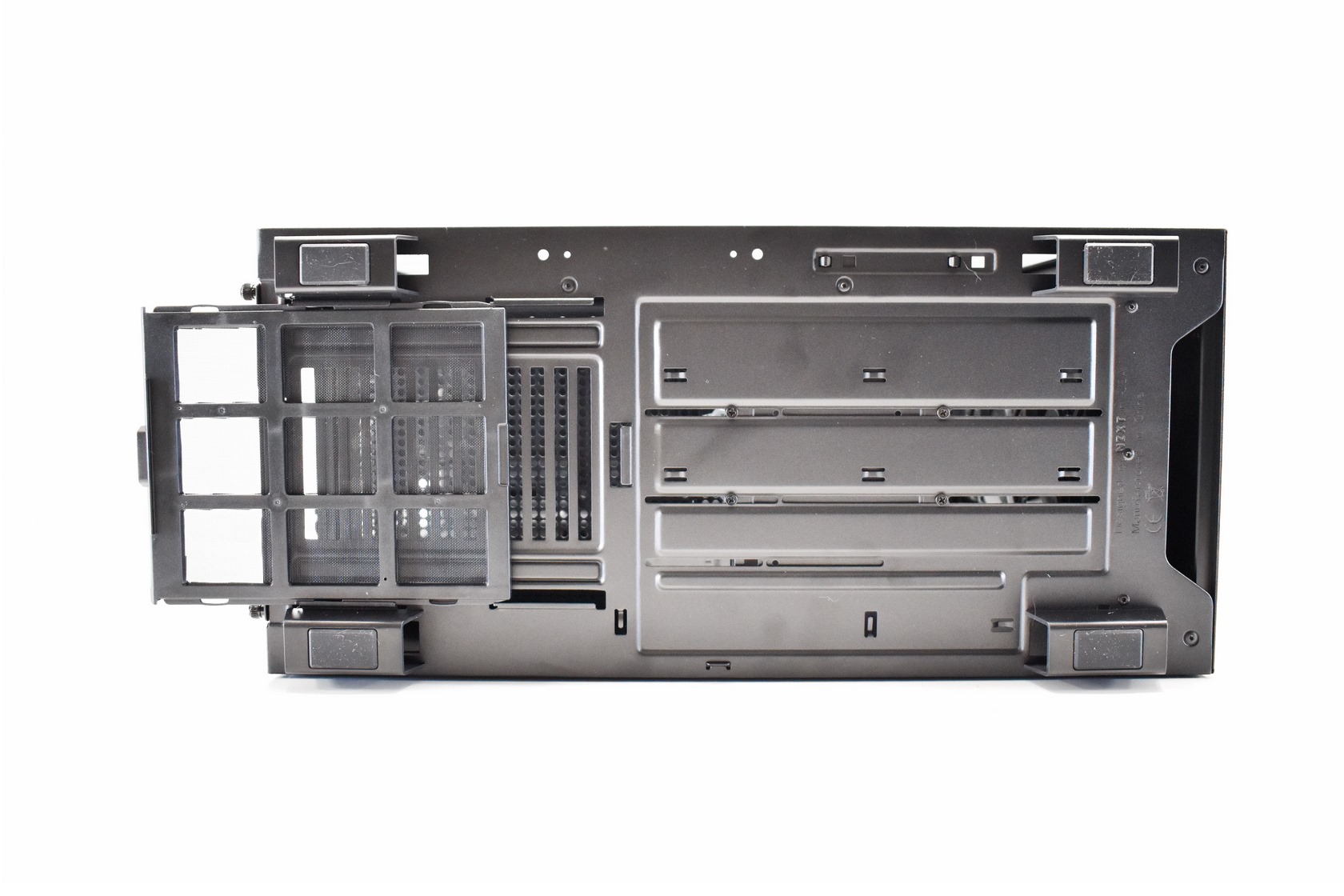

At the base of the H710i we find a rear removable air-filter and the rails where you can move the internal 3.5/2.5" drive cage.
