THE ARMIS AR7X EVO TG ARGB INTERIOR

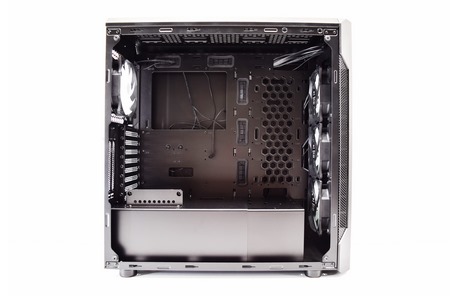

Interior space looks quite impressive, for a mid-tower that is.

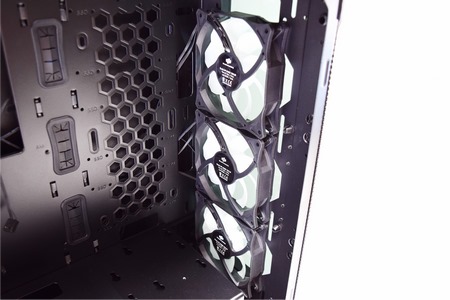

Here we see the front area which you can occupy with 240/280/360mm long radiators (next to it we see the three 2.5" vertical drive mounts).

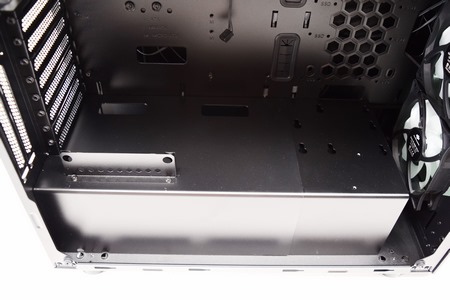

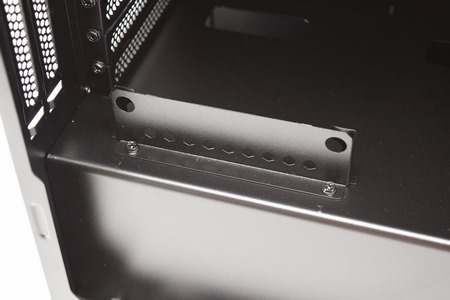

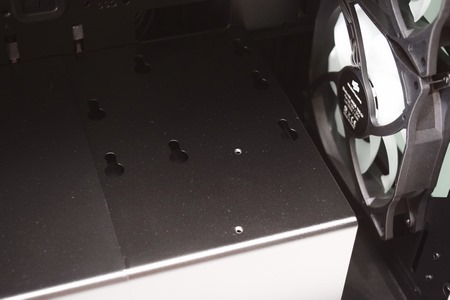

The PSU shroud extends from the front and all the way to the rear of the tower (thus effectively keeping all cables out of sight) and has a 3.5" drive mount on the far right and a vertical GPU mount on the far left.

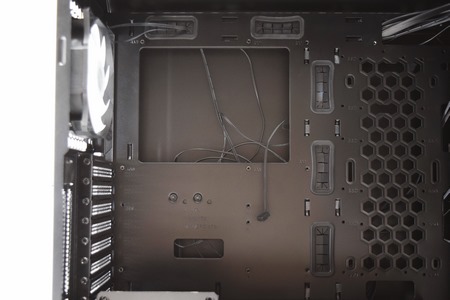

The motherboard tray has five large rubber grommets and a very large hole underneath the CPU area for swapping of backplates.

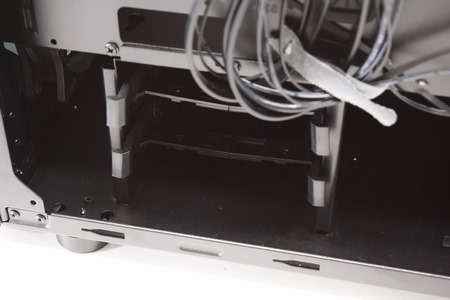

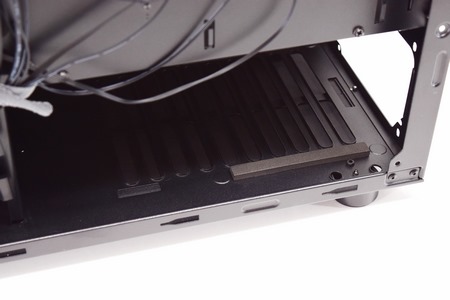

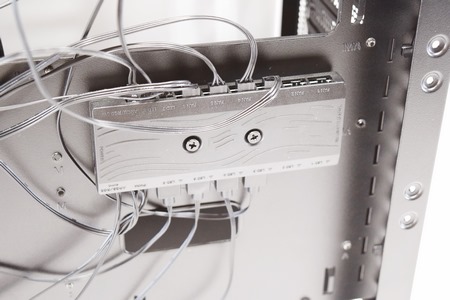

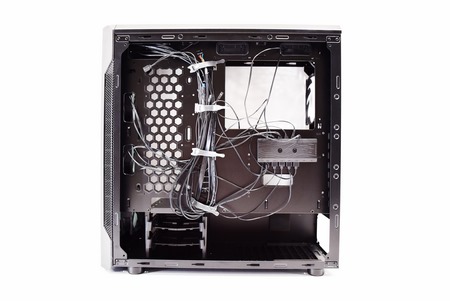

On the other side of the mainboard tray, we find a fan/ARGB controller (6 fans/8 LEDs - notice the holes on the far right? There you can mount 3 more 2.5SSDs), two 3.5/2.5" drive trays and the PSU area which has 3 rubber pads for the PSU.

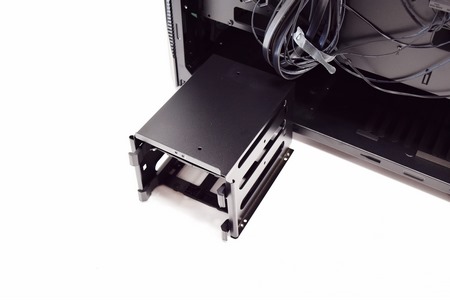

The rear drive tray can be removed if you'd like to mount a thicker radiator.

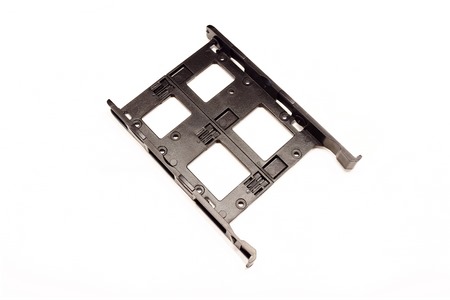

For good or bad the trays are made out of plastic.

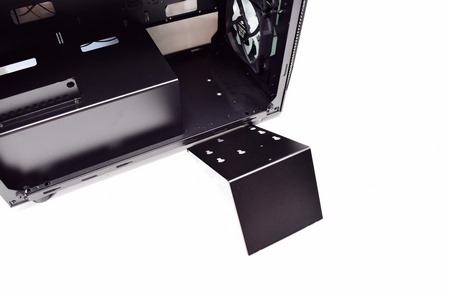

You can also remove the right side of the PSU shroud to install a thicker radiator.
