INSTALLATION

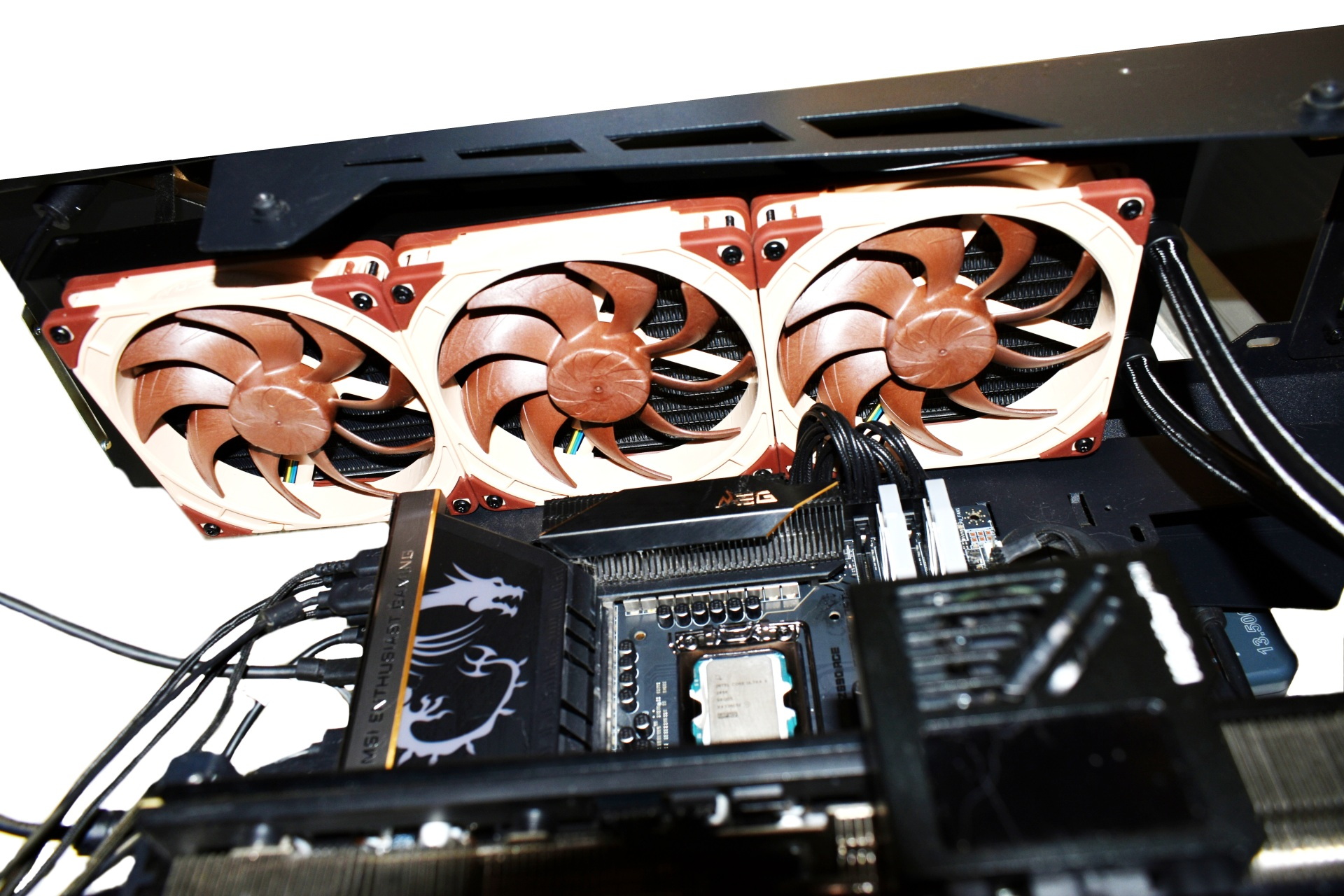

Size is always an issue with 420mm AIO coolers but with open-air cases/towers this is usually easy to resolve.

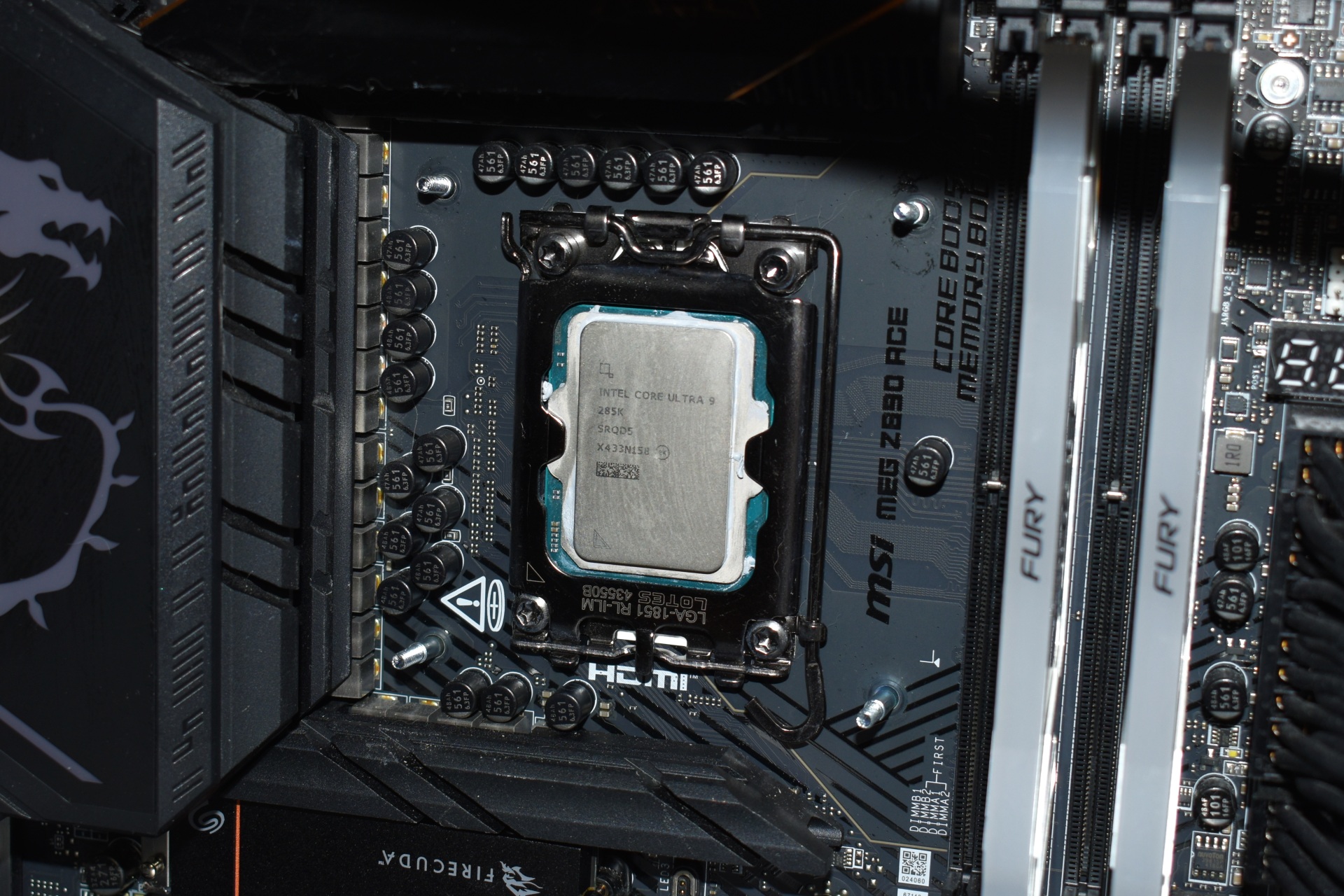

After the radiator you will need to place the backplate at the rear of the motherboard plate.

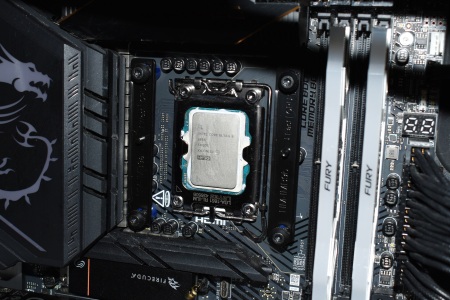

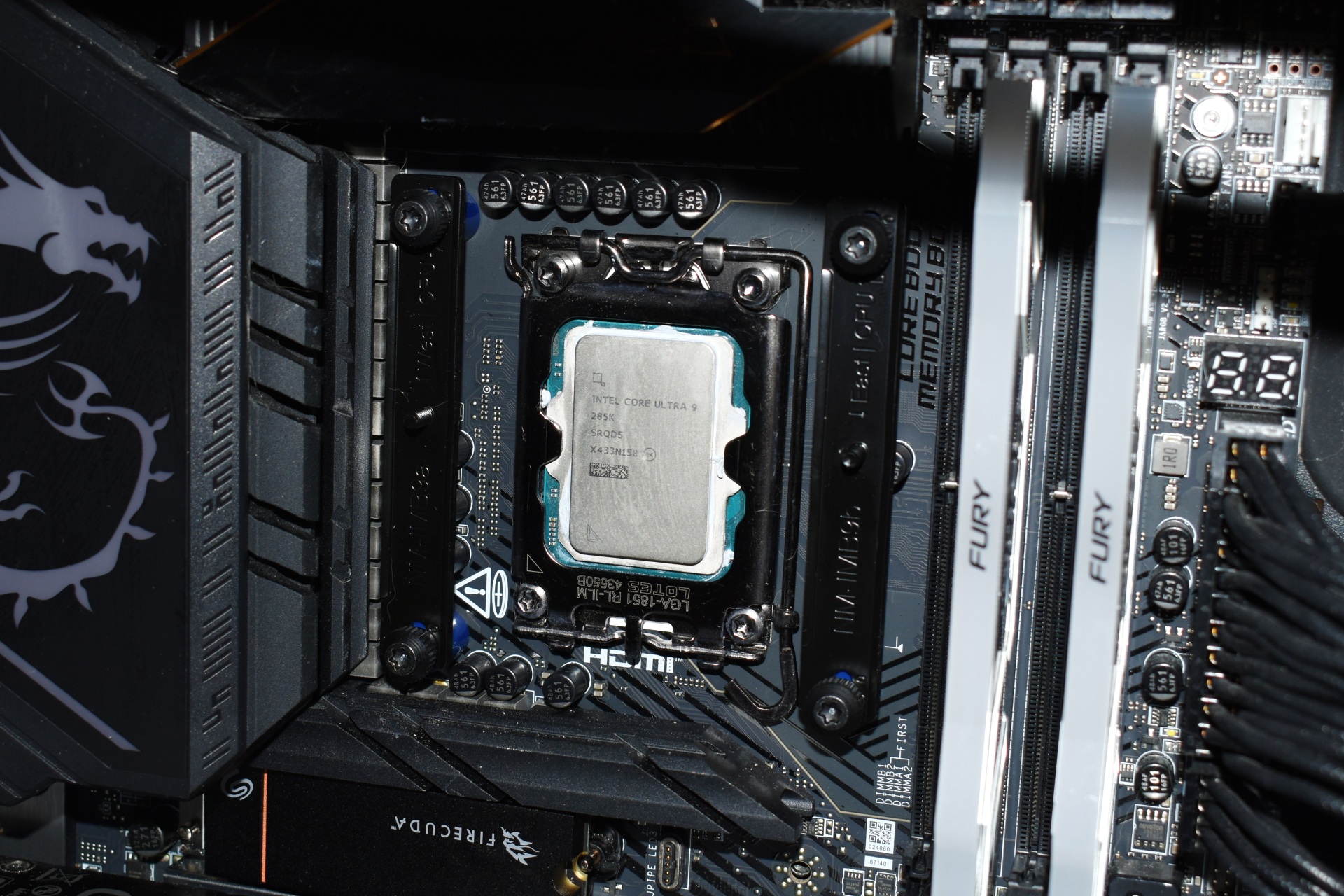

Next place the plastic standoffs on the inside side and secure the metal brackets with the Torx screws.

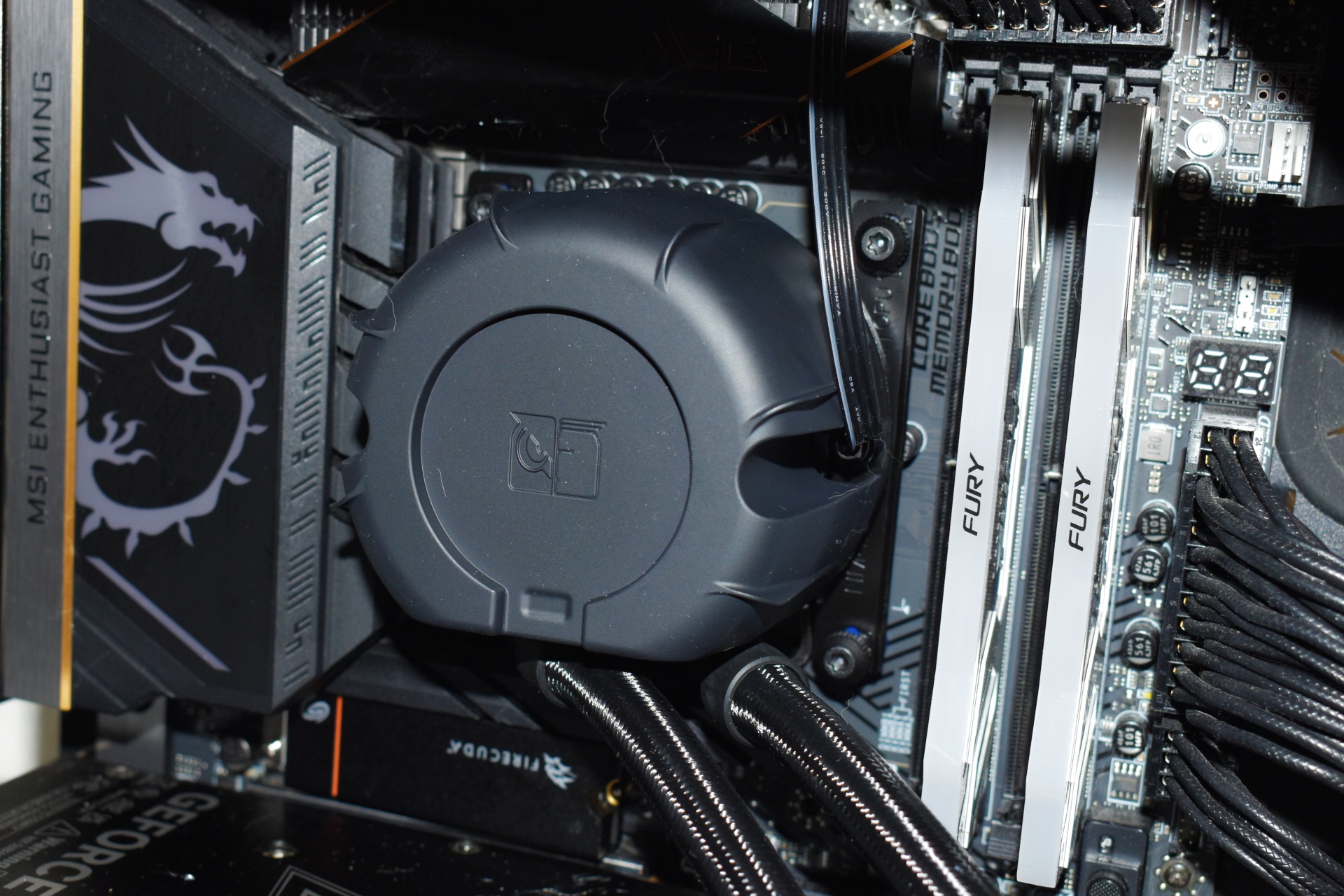

The pump is quite large (70mm tall, 89mm long and 78mm wide) but still a lot smaller compared to an air cooler.

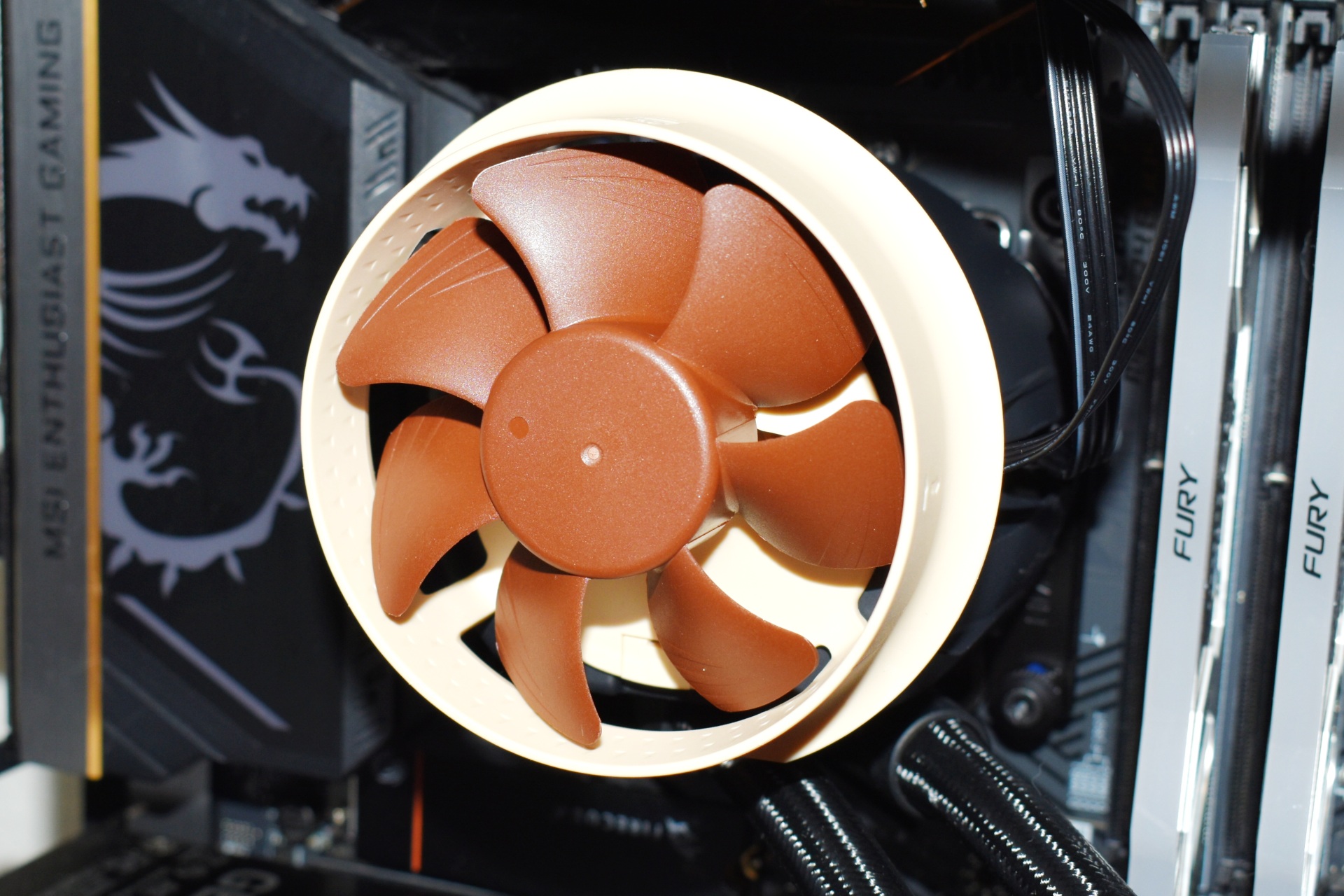

Mounting the NL-ACF1 auxiliary cooling fan increases height to around 100mm (short video is available both on TikTok and YouTube).
