THE BEWINCH R9 PRO

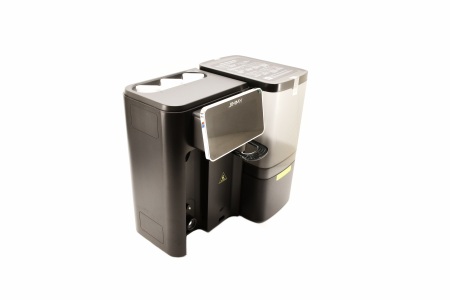

The bewinch R9 Pro is made of 6 pieces, the main device, filter cover, water reservoir, water reservoir cover, pitcher and glass base and the pitcher itself.

Obviously, what steals the show is the LED touch interface at the front.

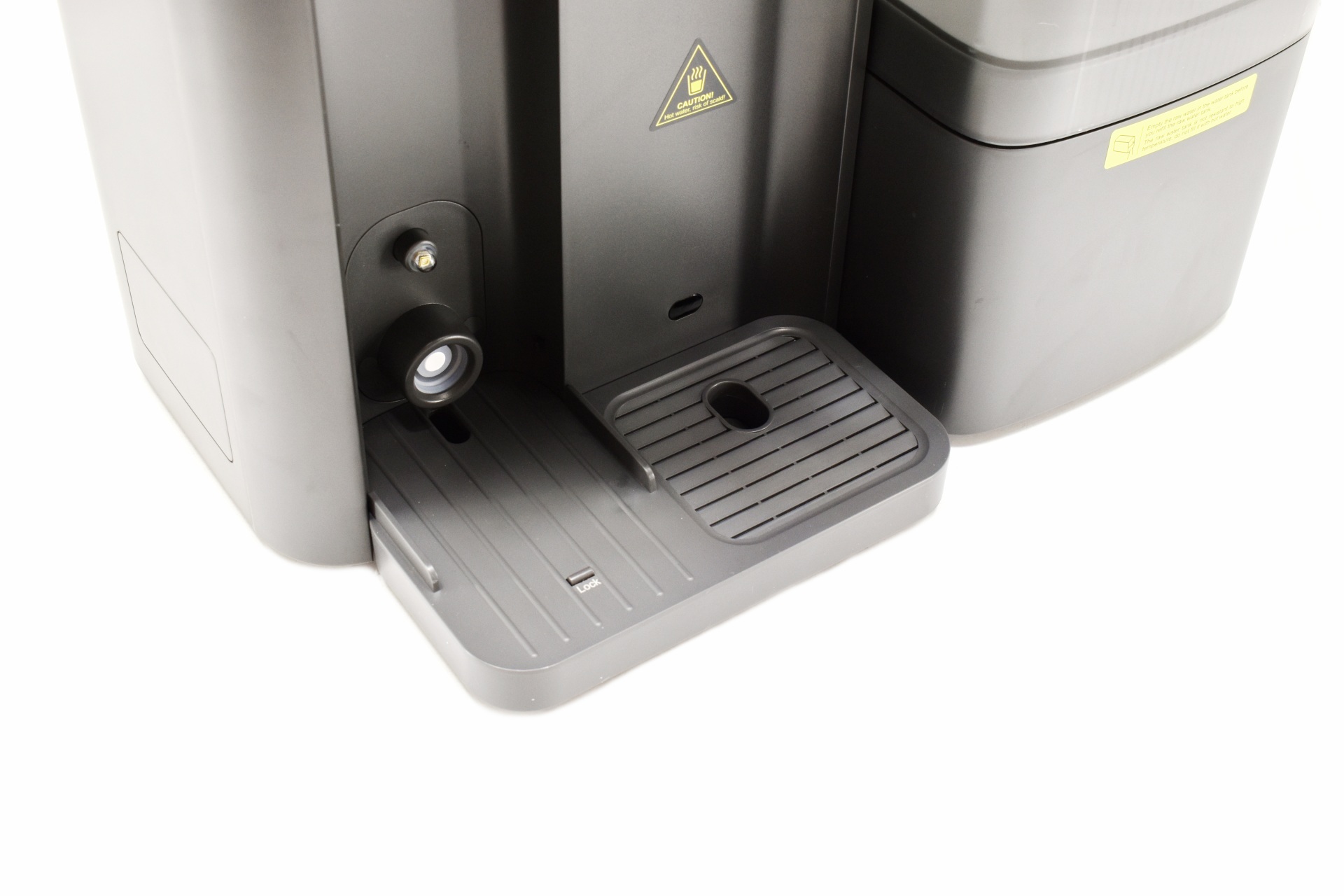

On the lower end we find the water outlet and the UV sterilization light.

This is also where you place the plastic base as seen above.

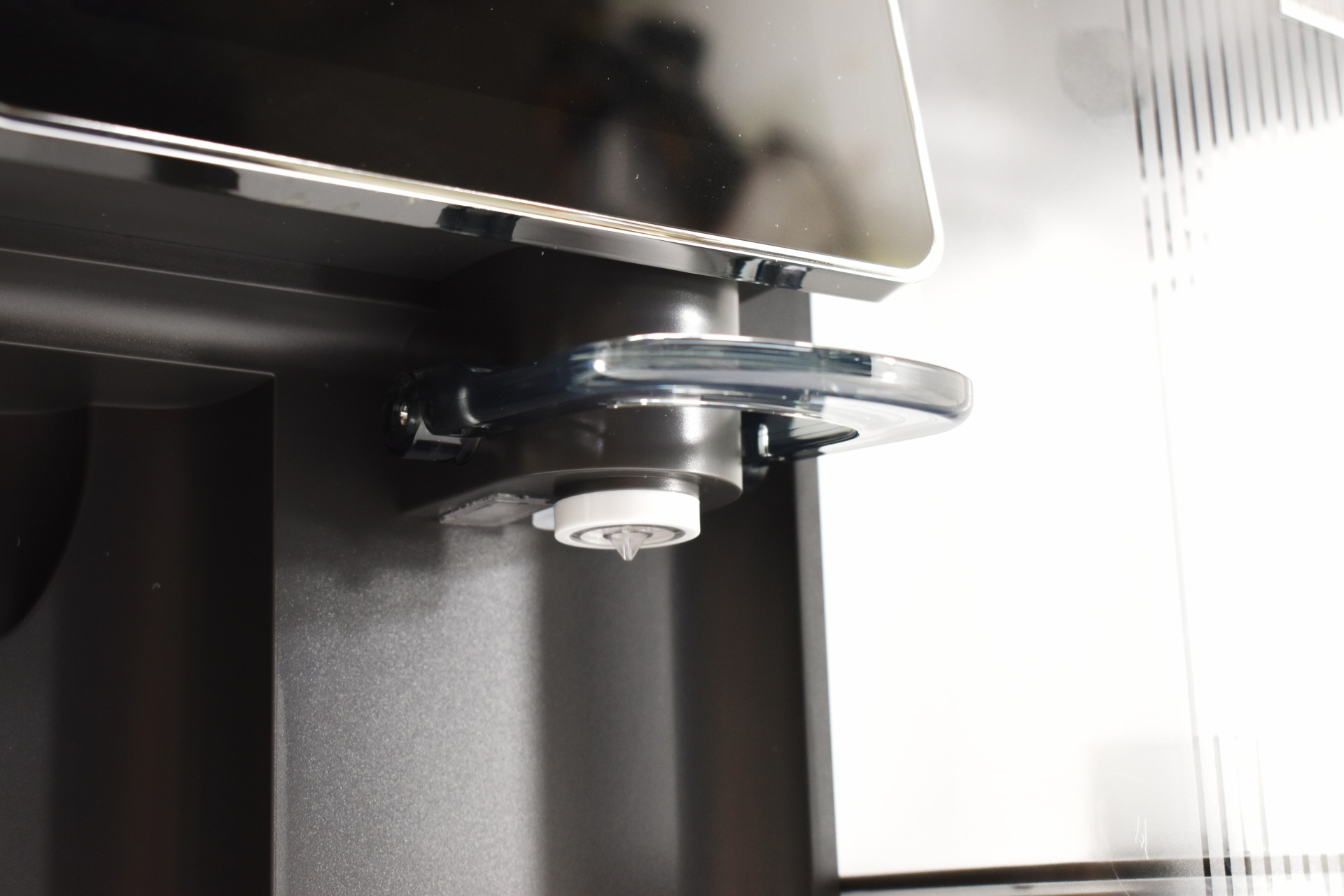

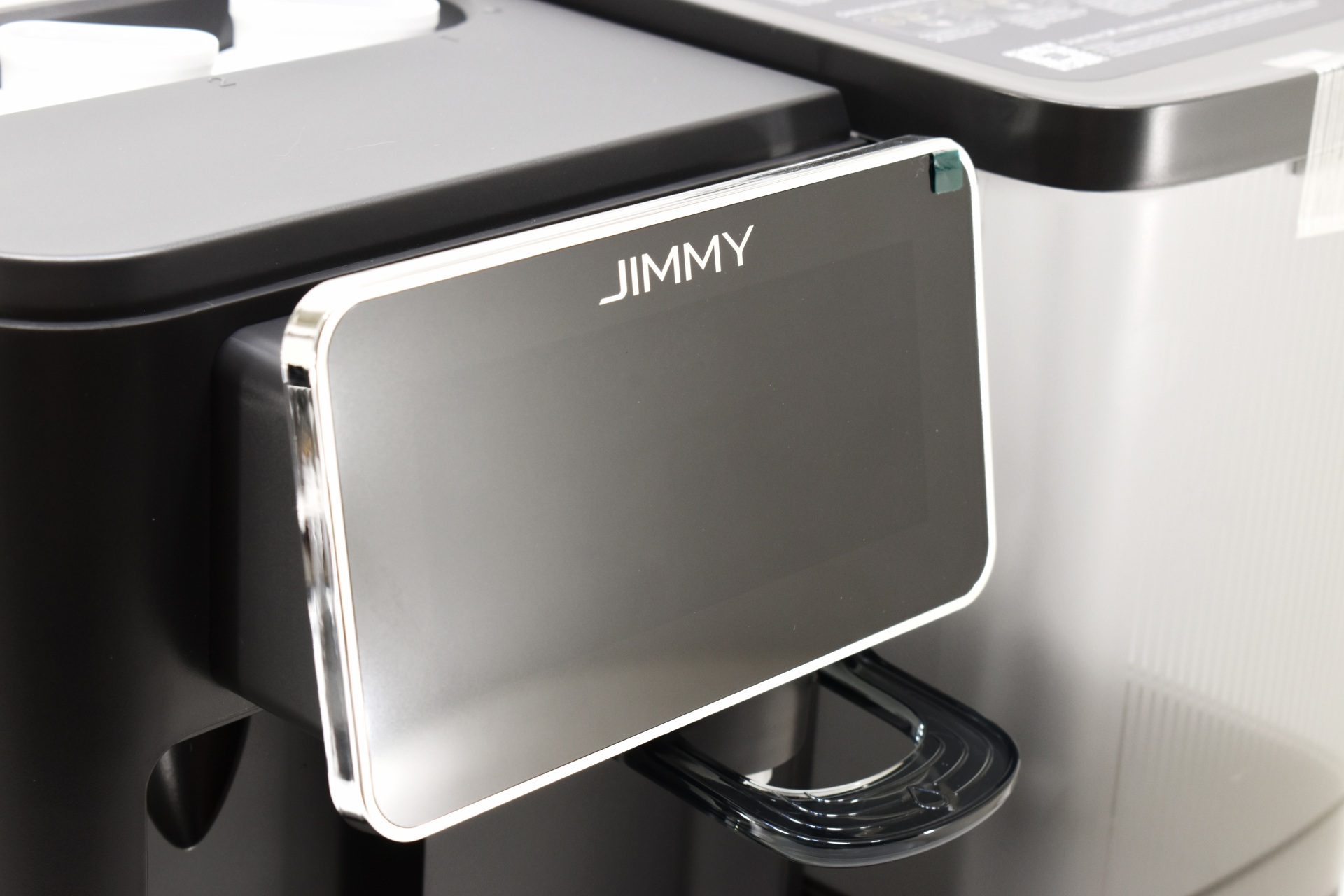

The dispenser module has a plastic handle which starts the procedure (unless you choose one of the fixed volumes from the LED touch interface it will dispense the entire pitcher).

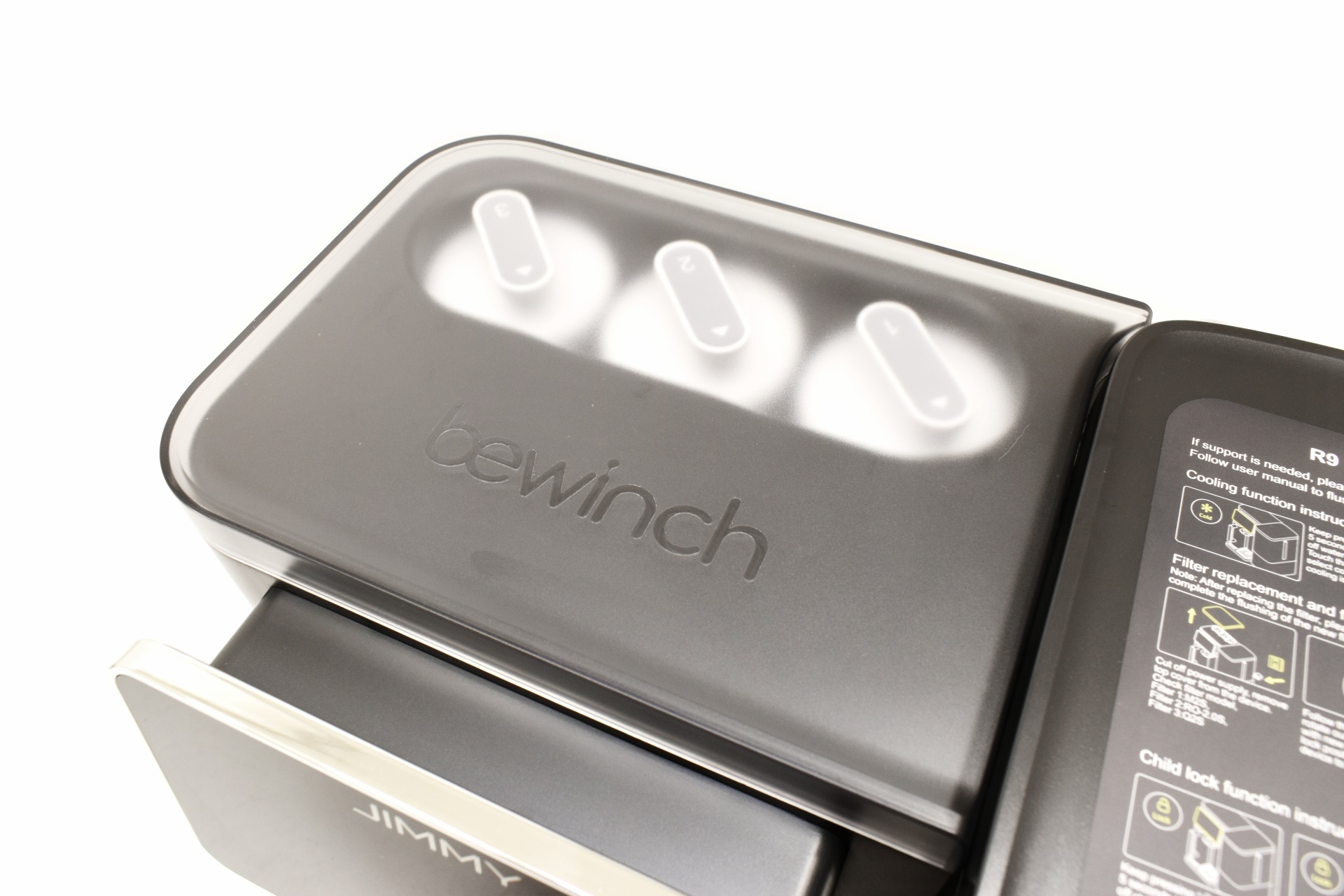

At the rear top we find the filter area and a cover with the bewinch name on it.

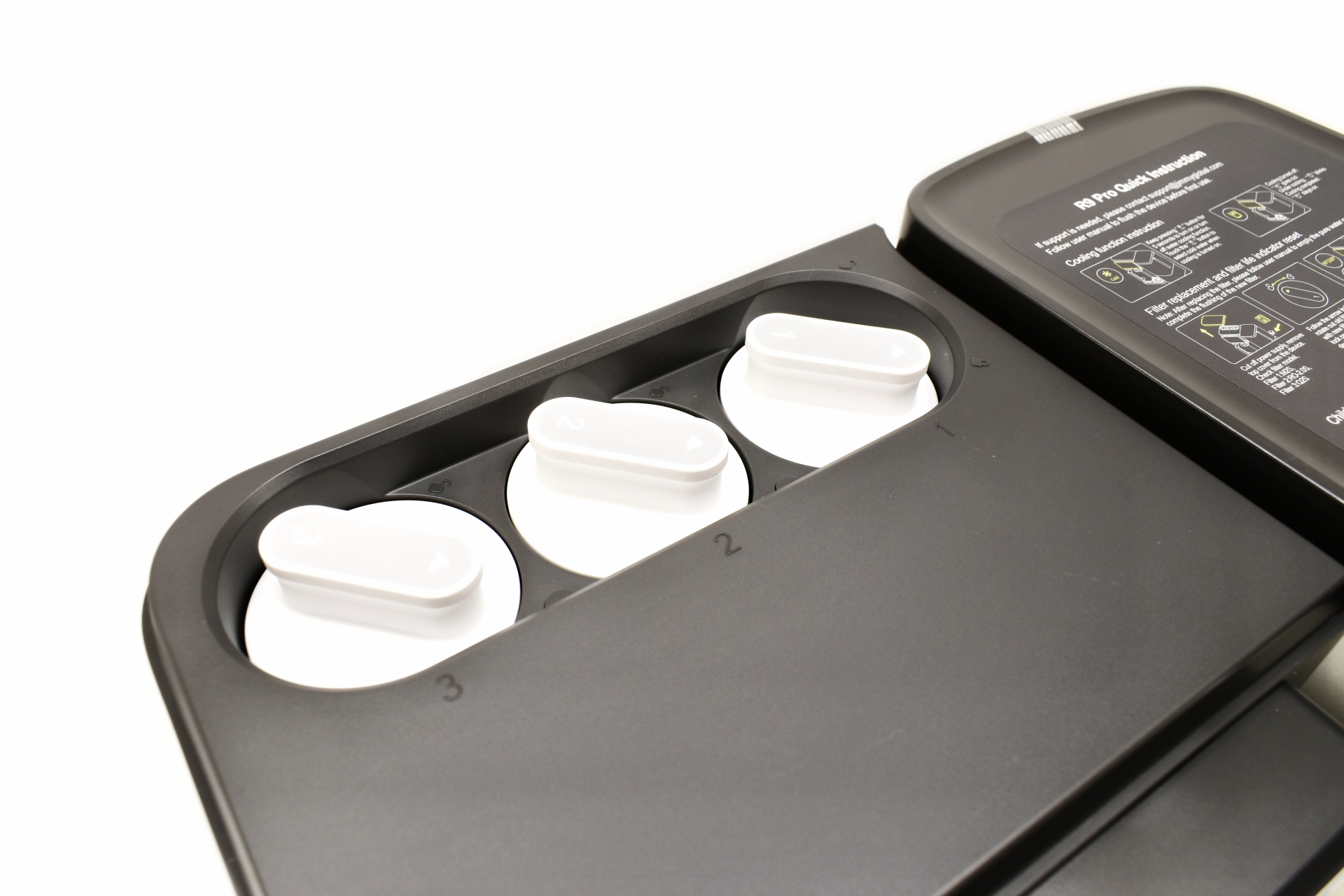

You can easily remove all three filters just by rotating then counter clockwise and pulling them out.

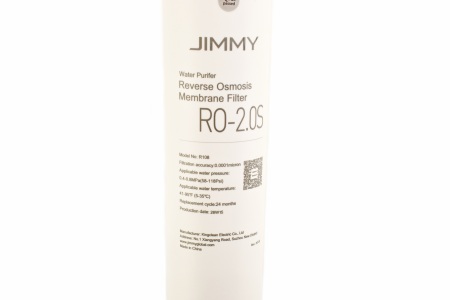

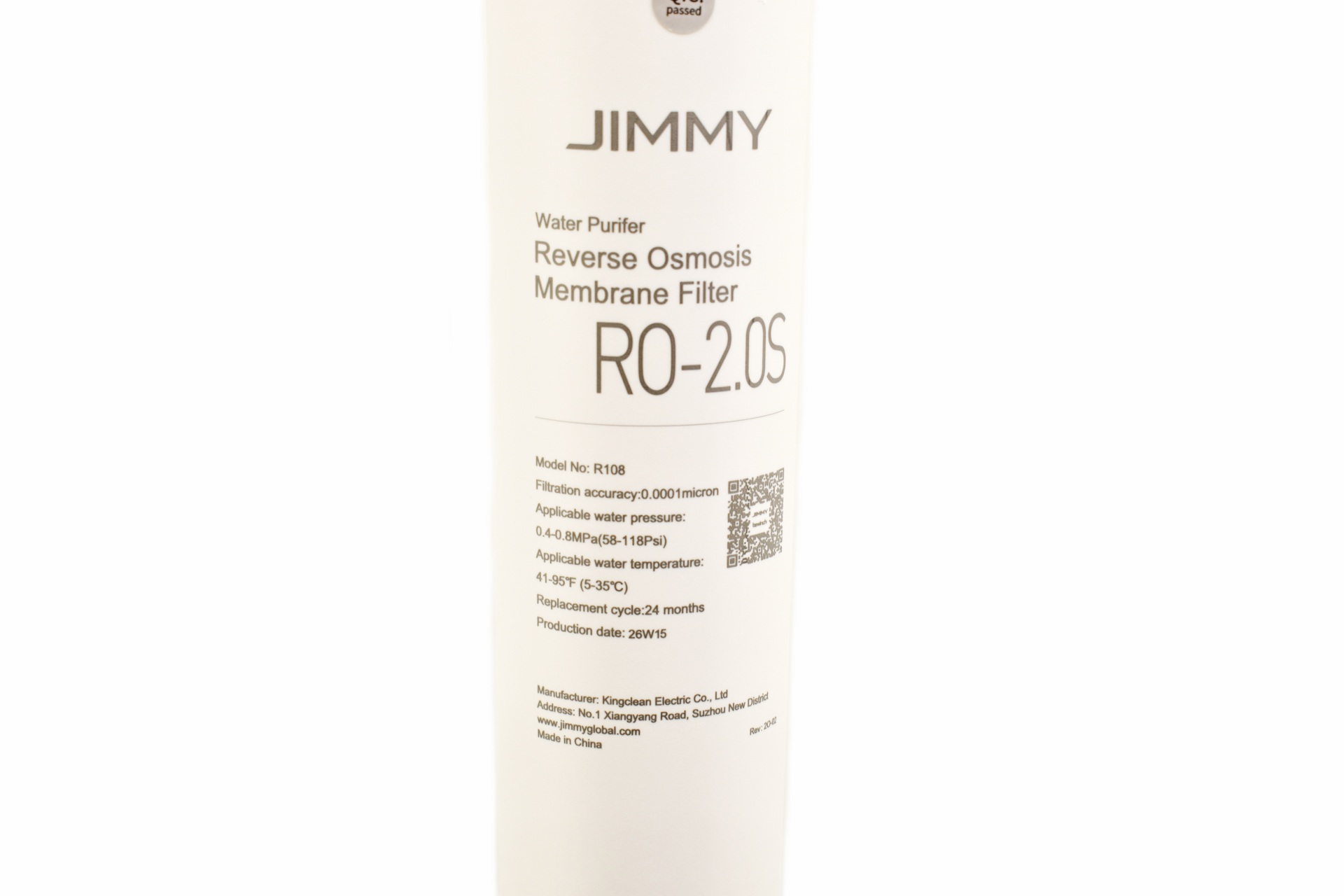

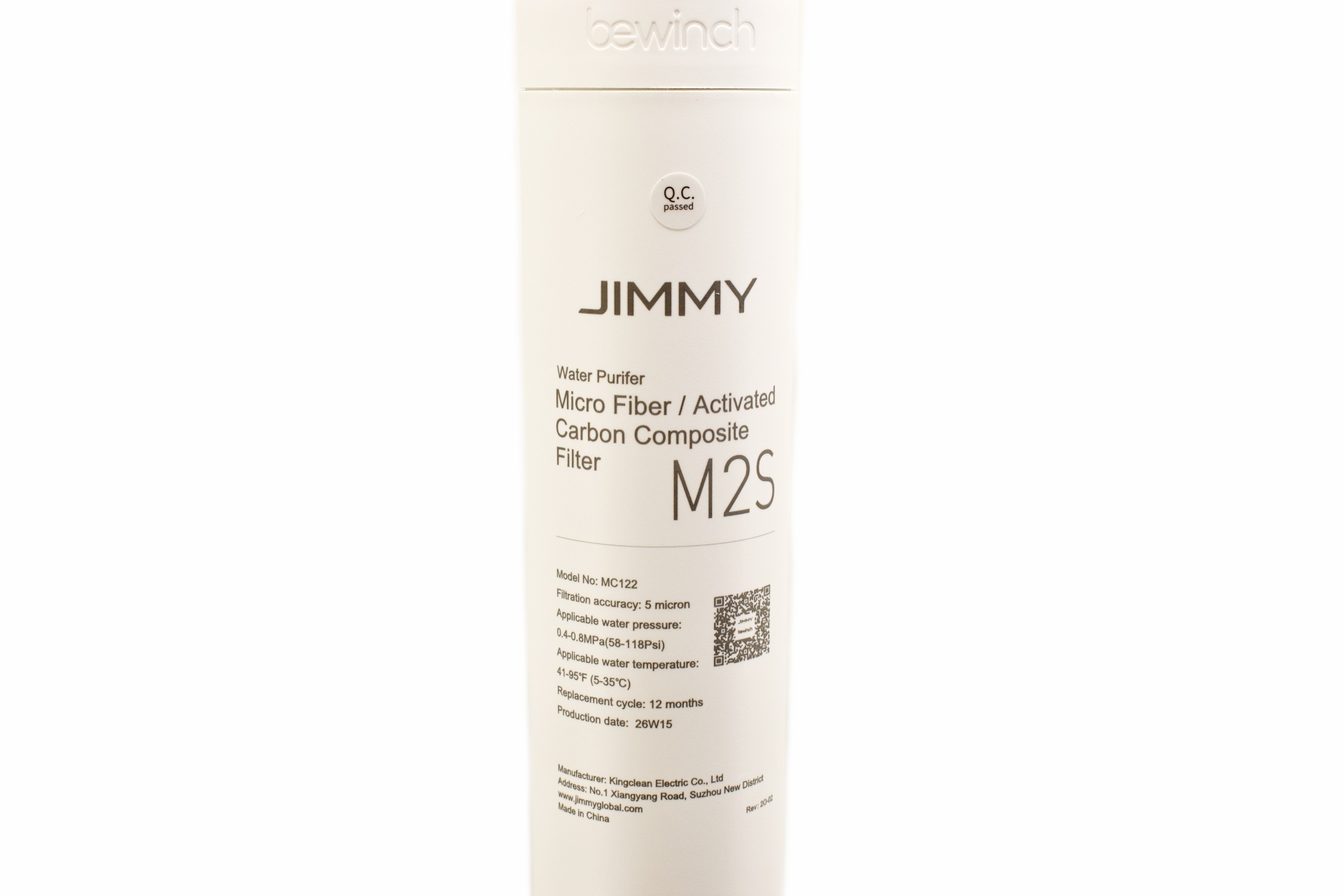

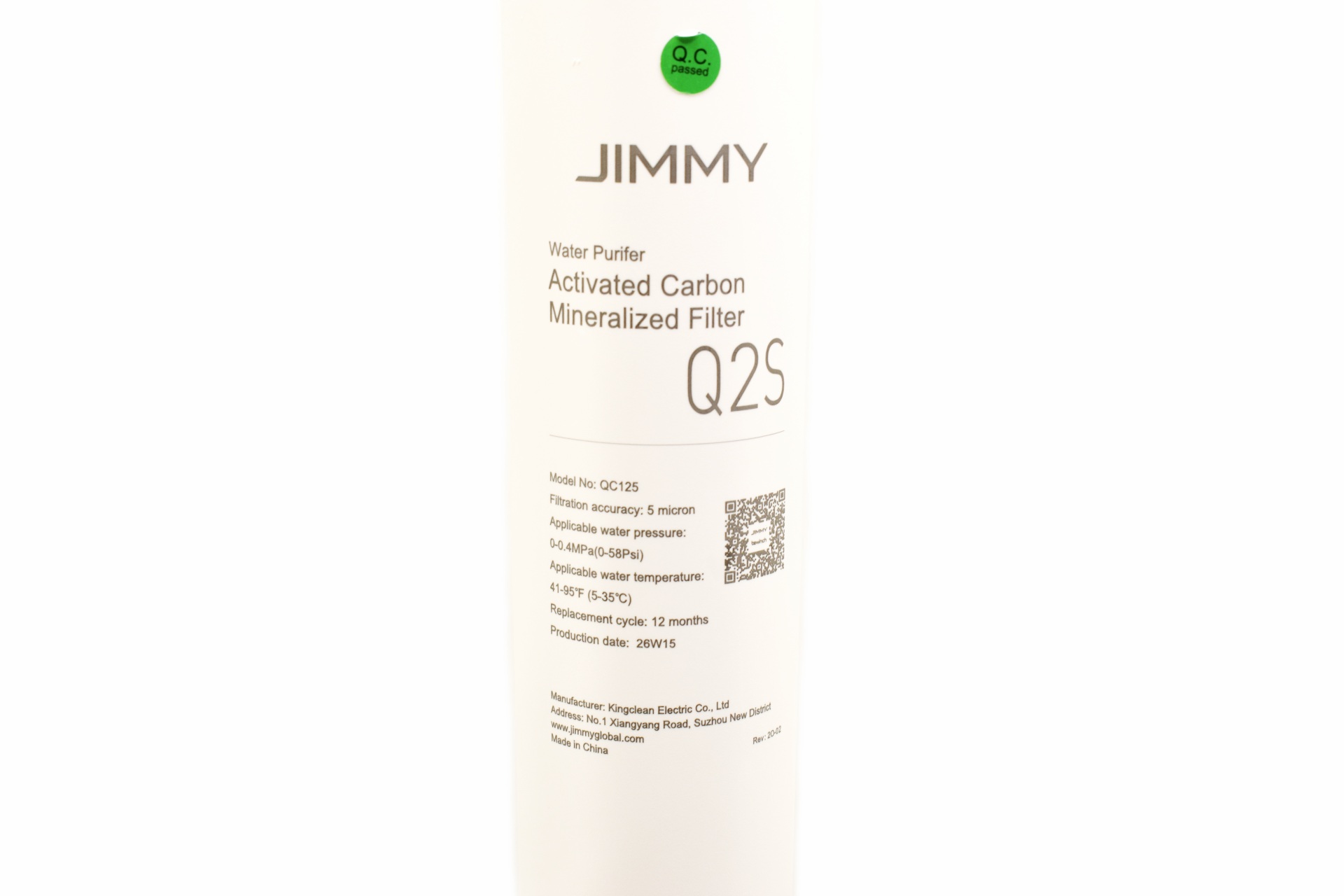

The 3 filters are the M2S micro fiber/activated carbon composite filter, RO-2.0S reverse osmosis membrane filter and the Q2S activated carbon mineralized filter.

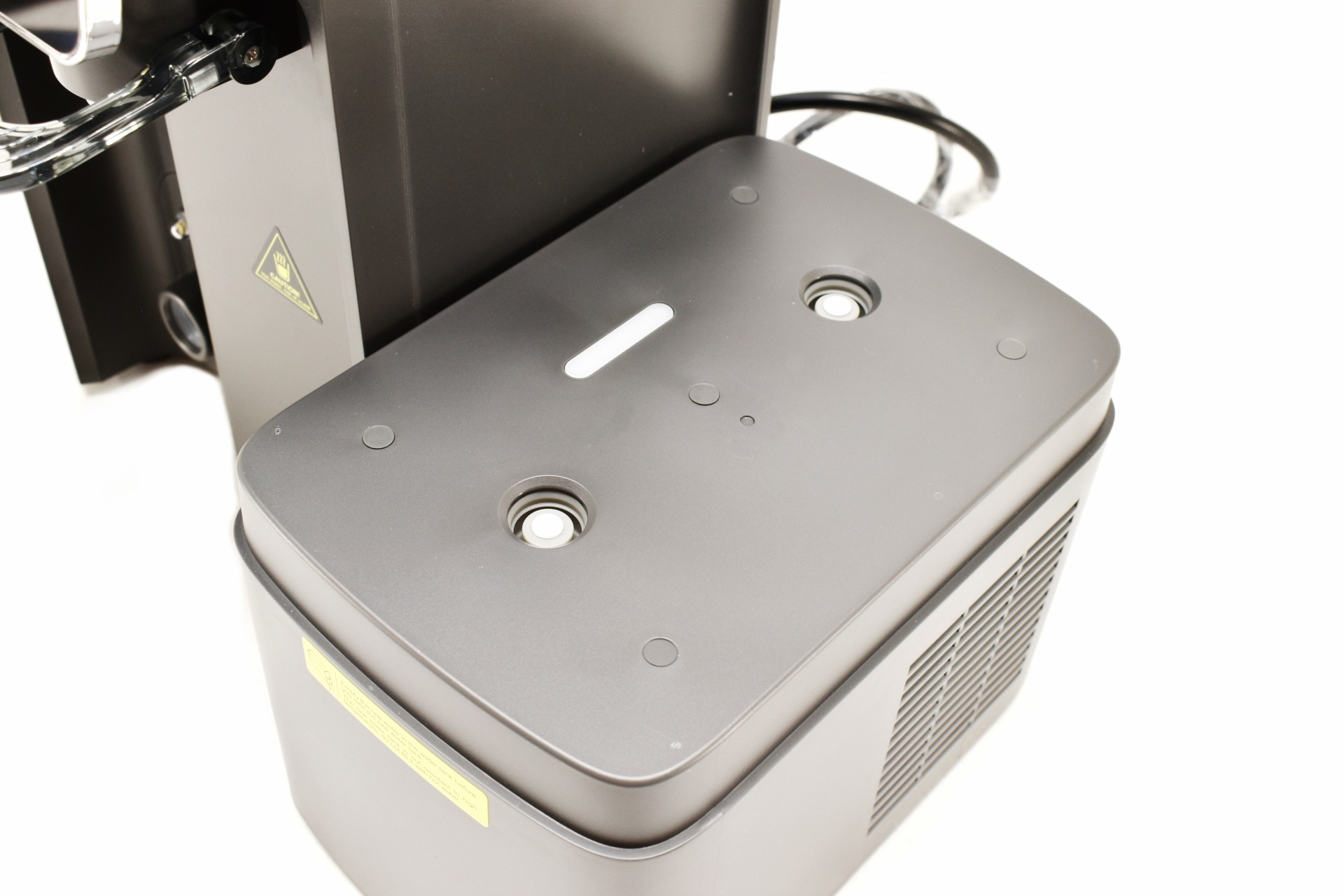

Moving to the water reservoir base we find in/out water ports.

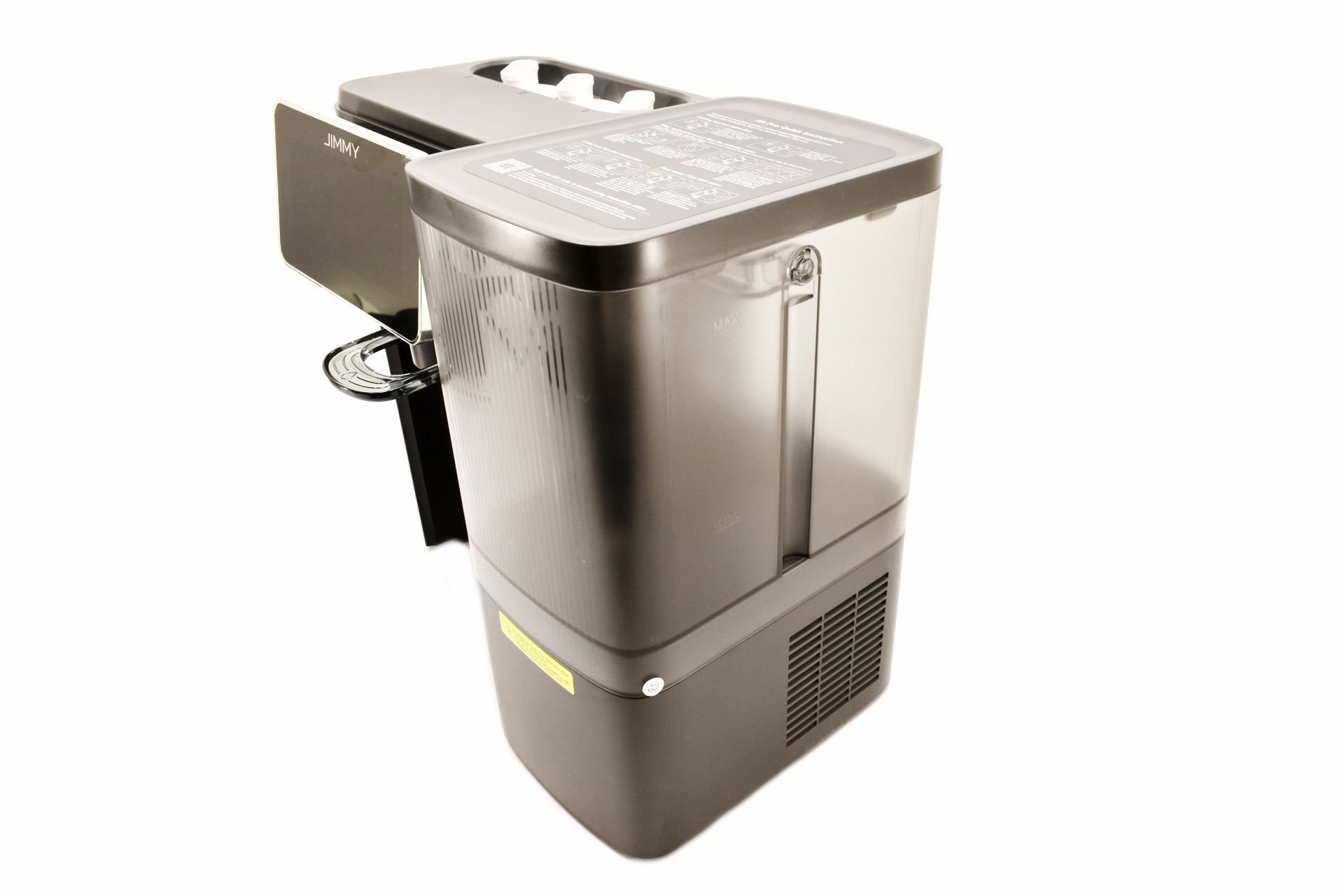

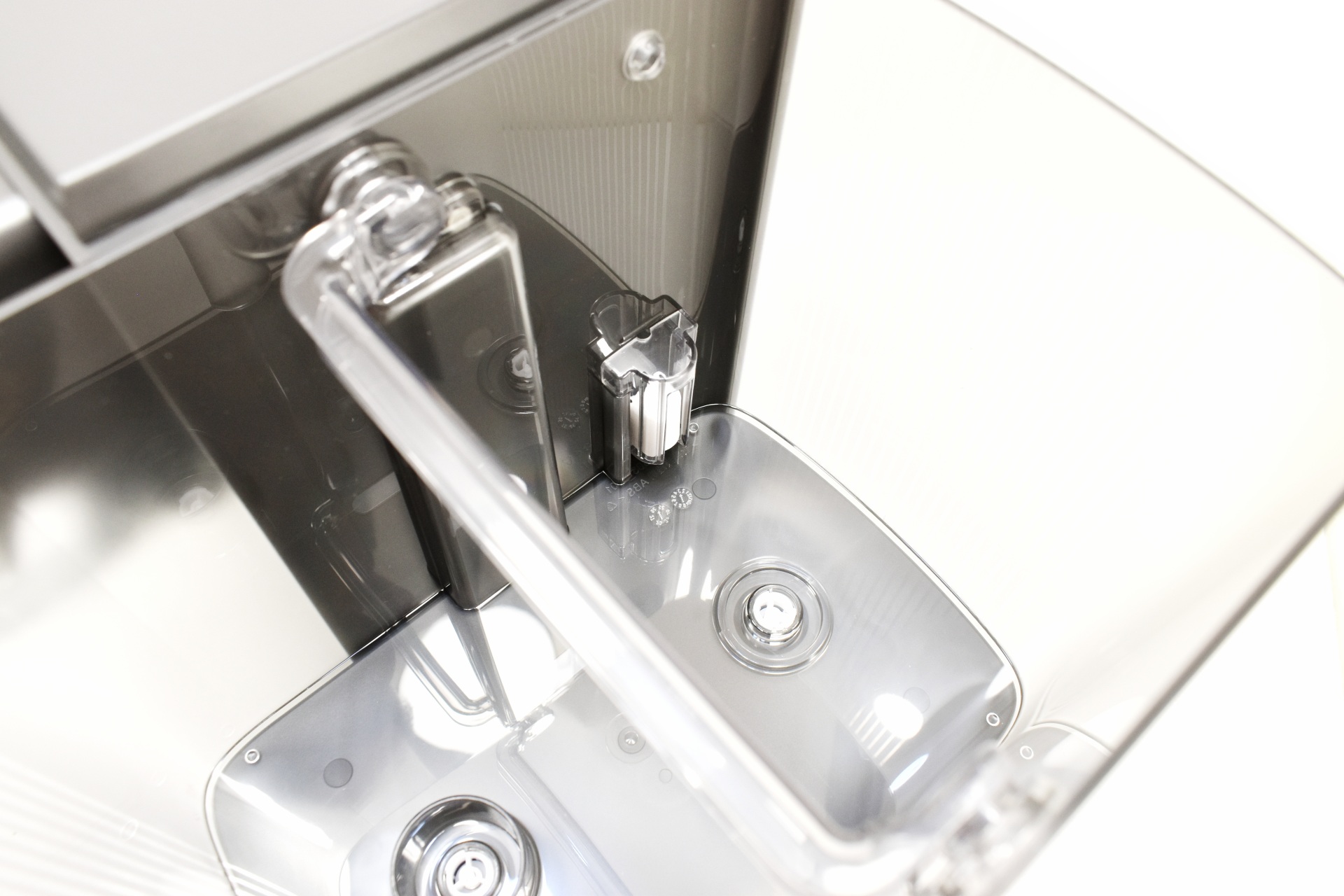

JIMMY has used a smoked plastic reservoir which still allows you to see the current water level (there's also a floater sensor inside).

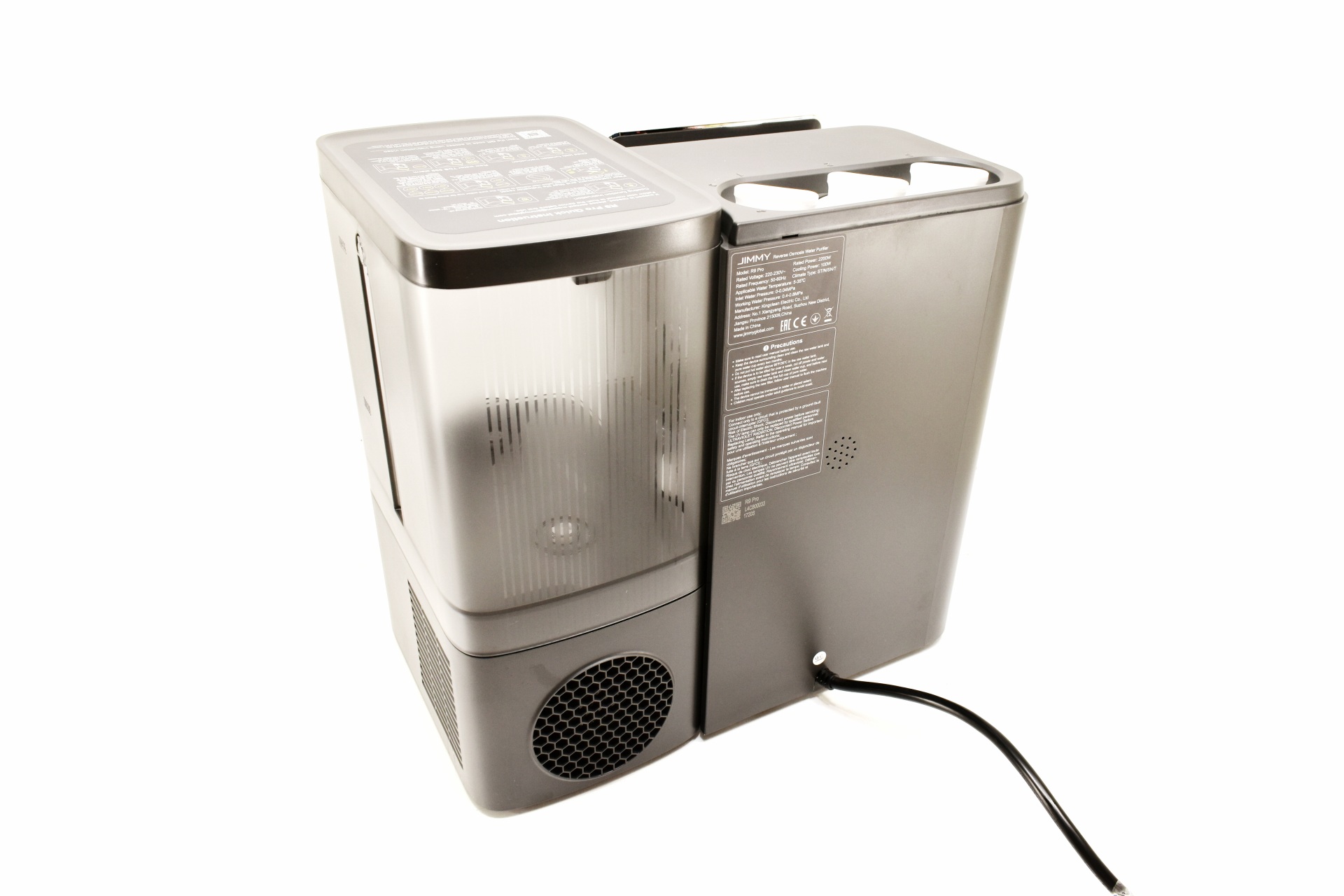

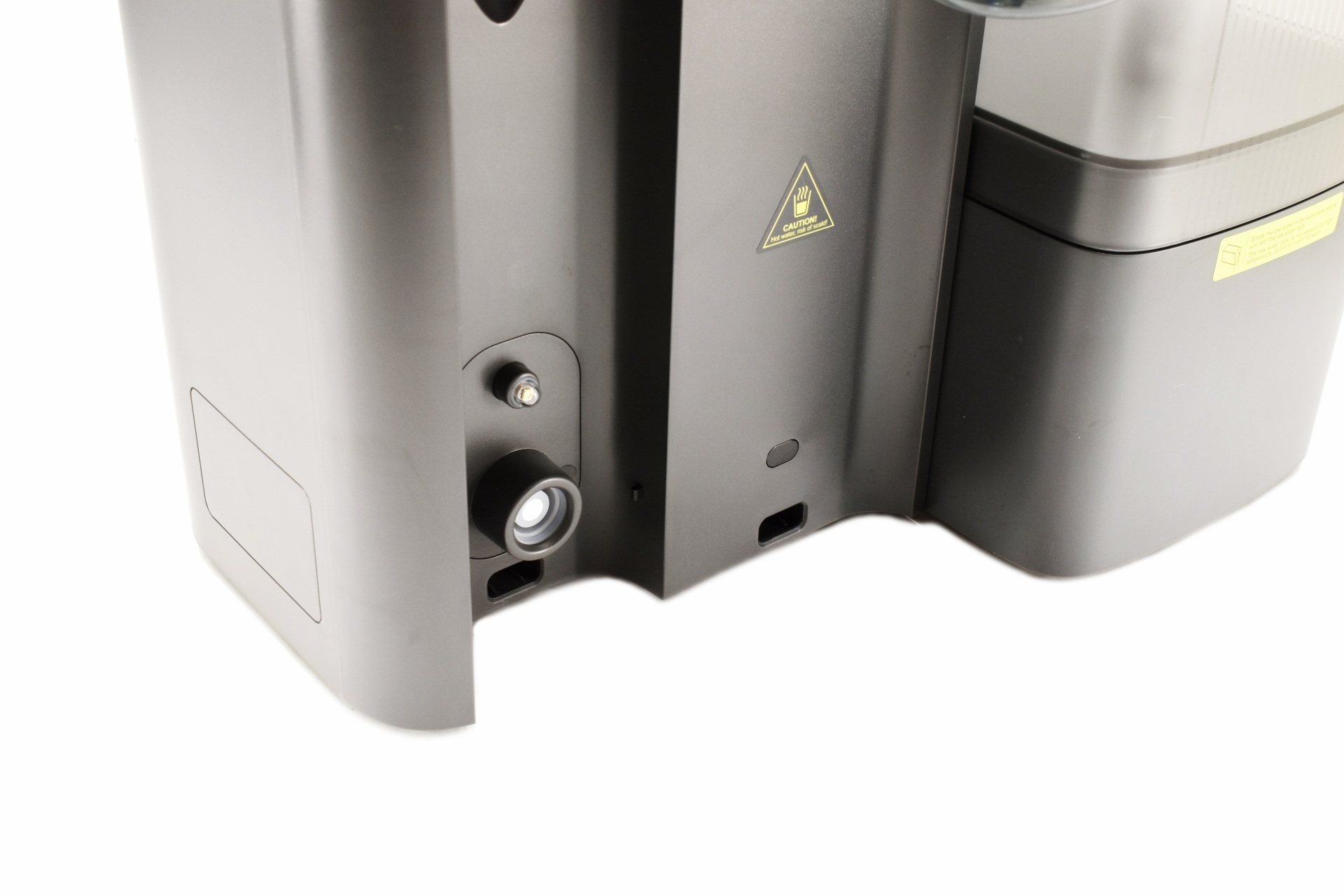

Taking a look at the rear, we see two air intake vents just under the reservoir and speaker holes right behind the filter area.

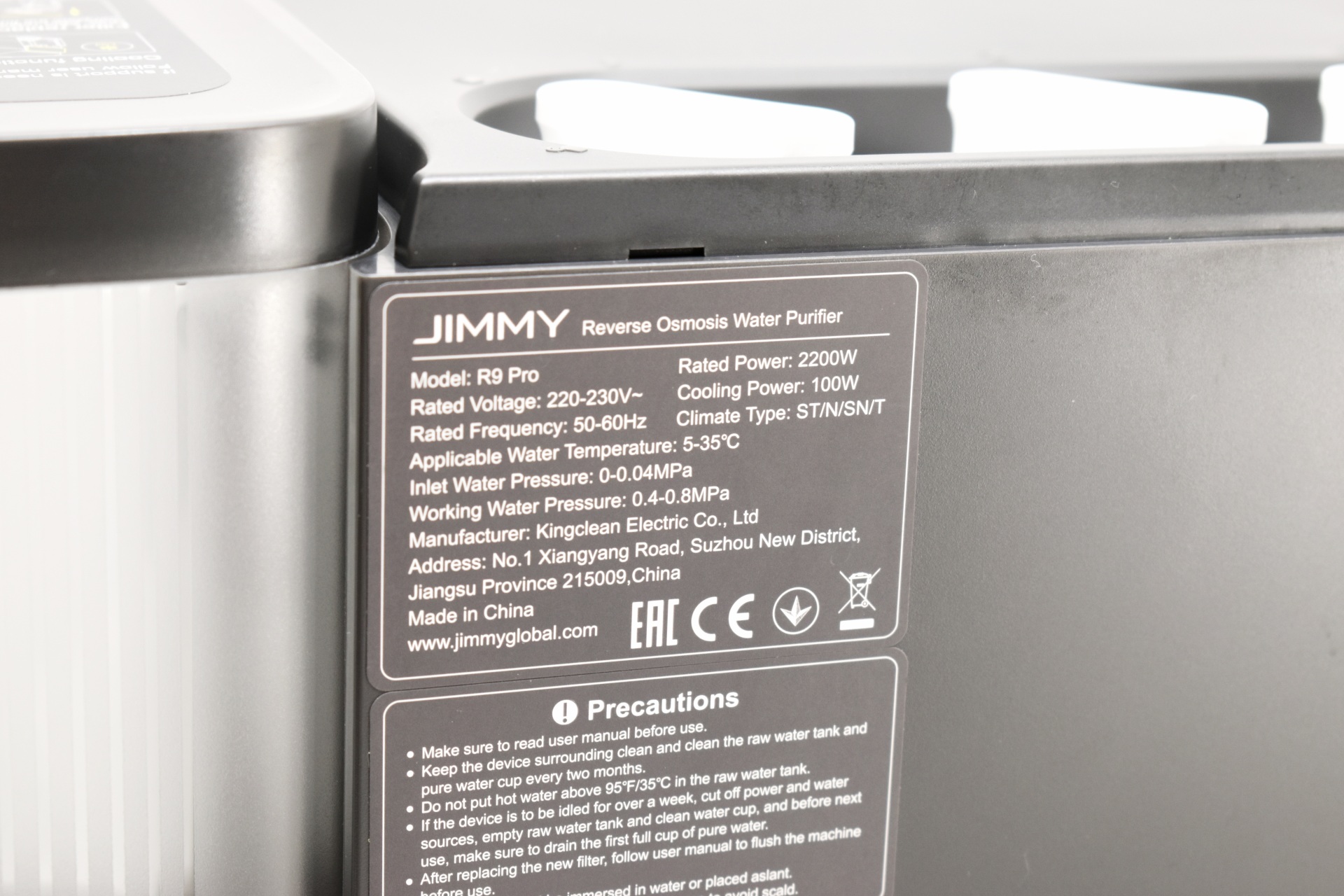

The electrical specifications and contact information for JIMMY are printed on a sticker placed at the rear.

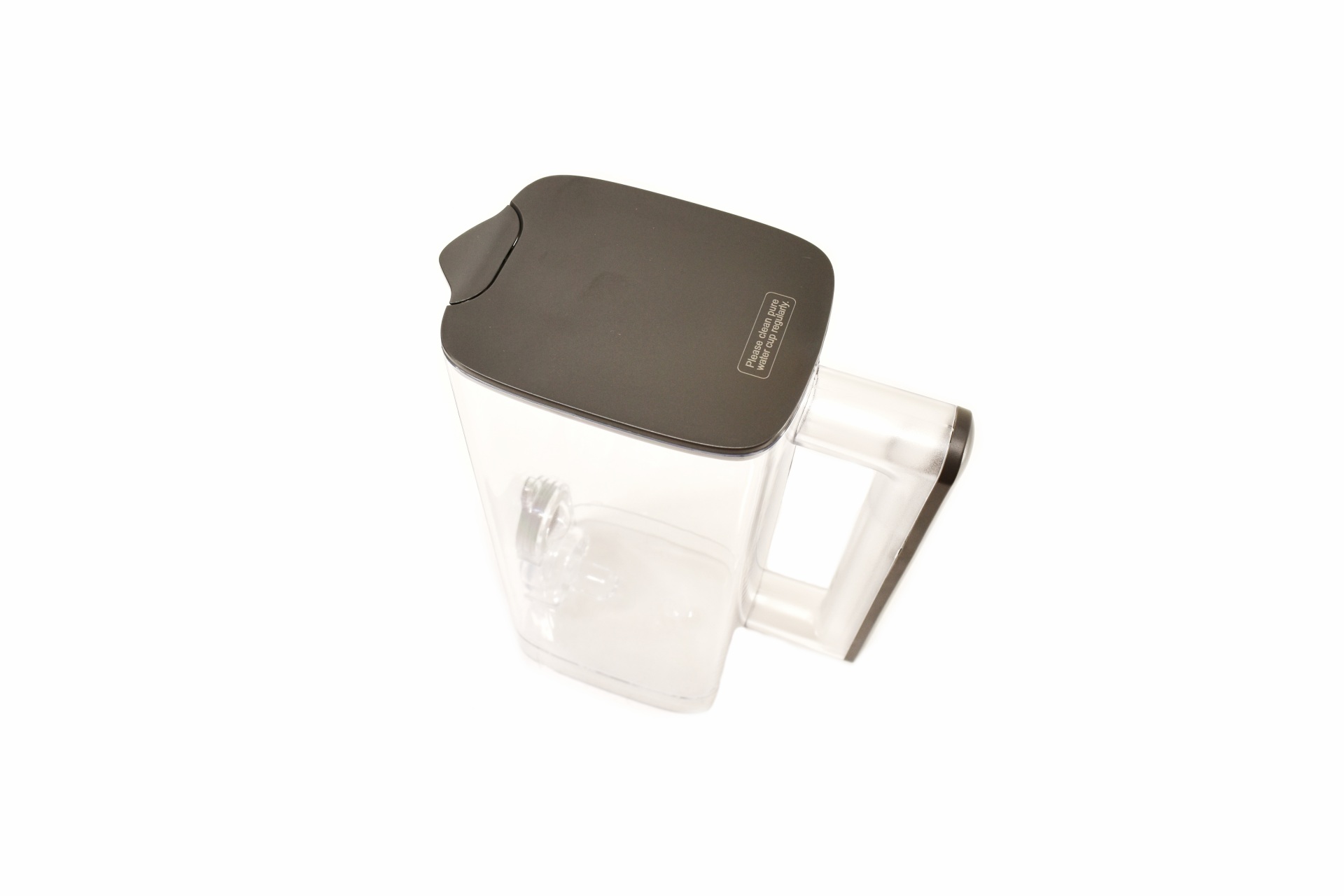

Both water pitchers are made of high-quality Tritan material which is BPA free, safe and durable.

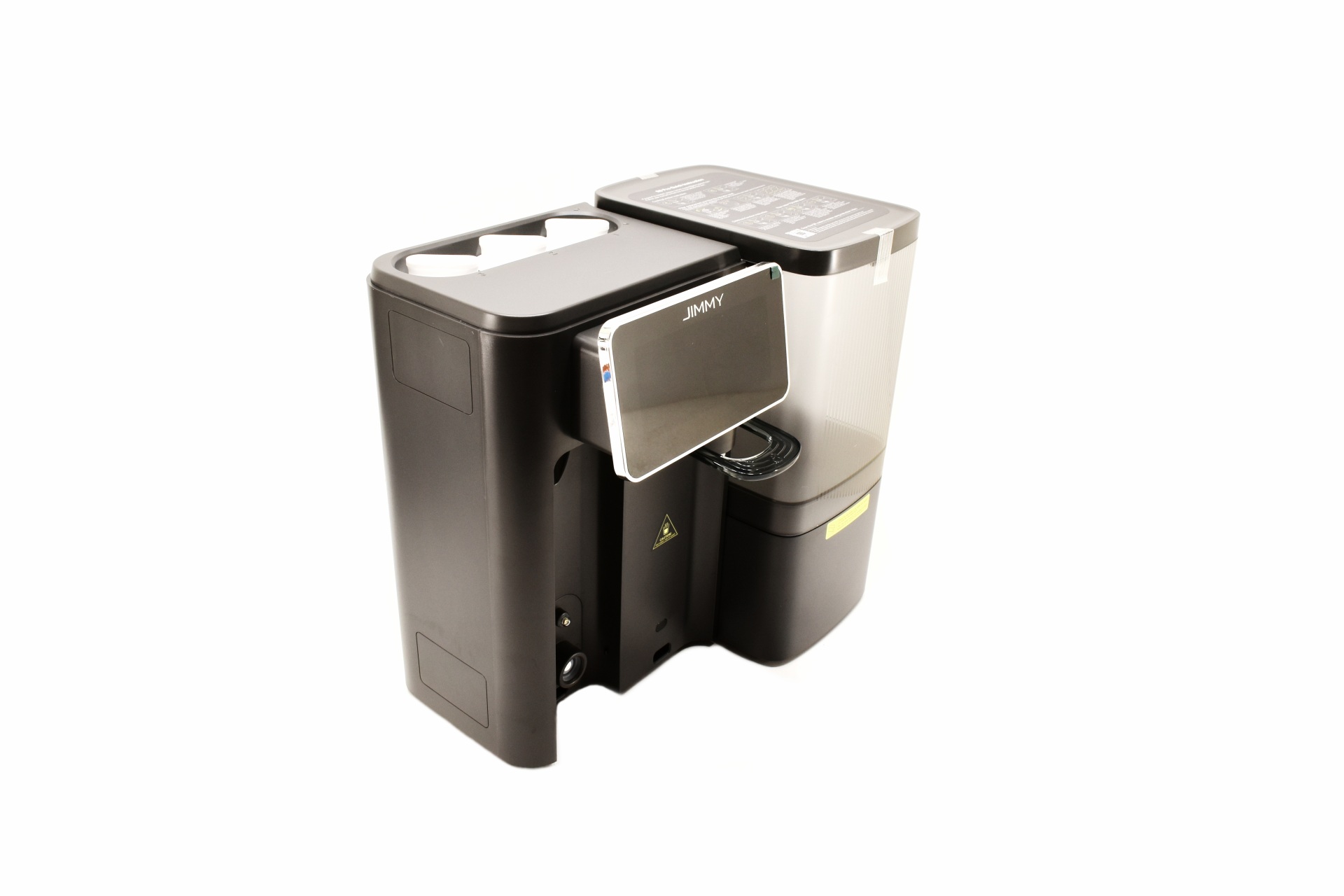

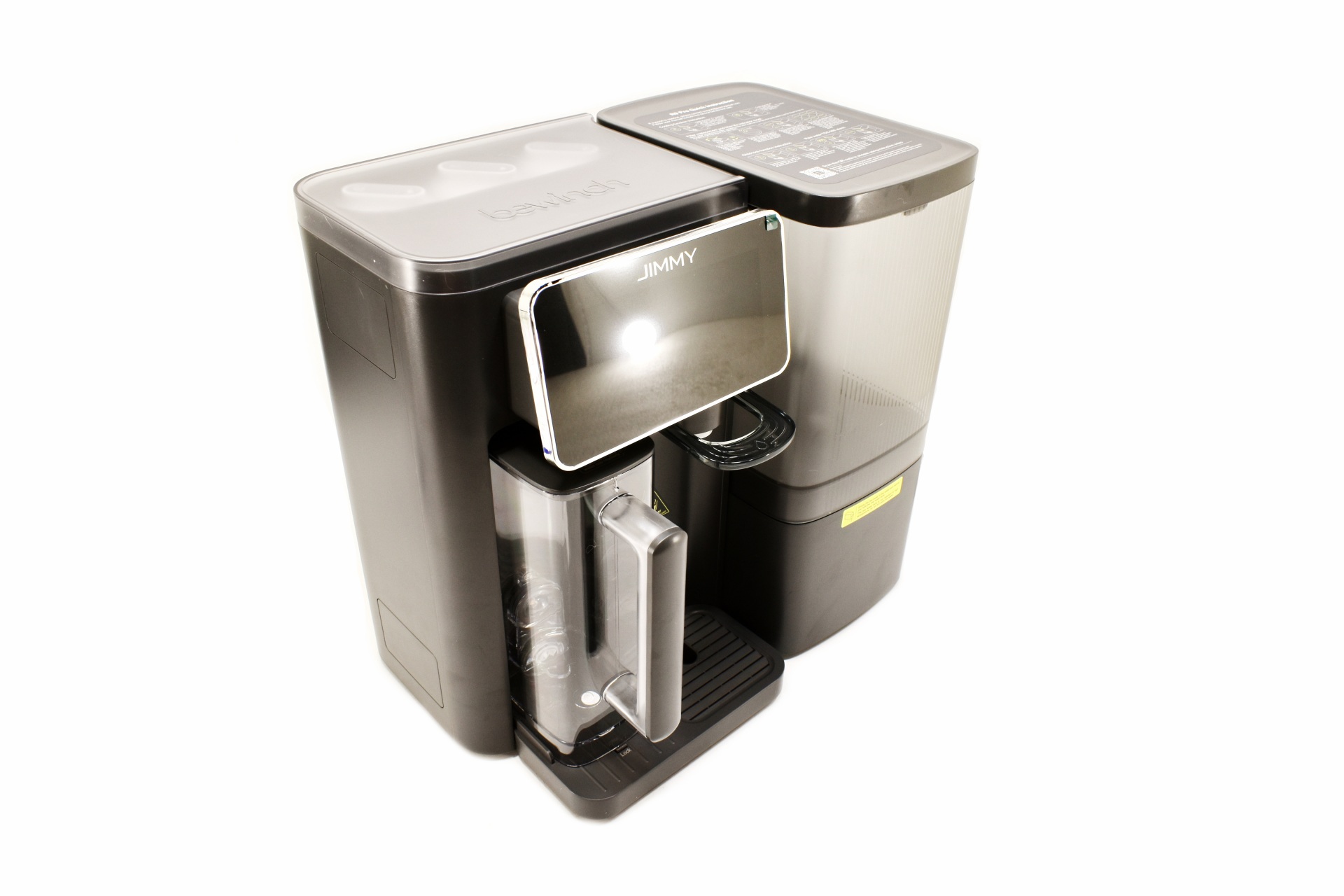

This is how the device looks when everything is attached.
