THE CHAMP 2K

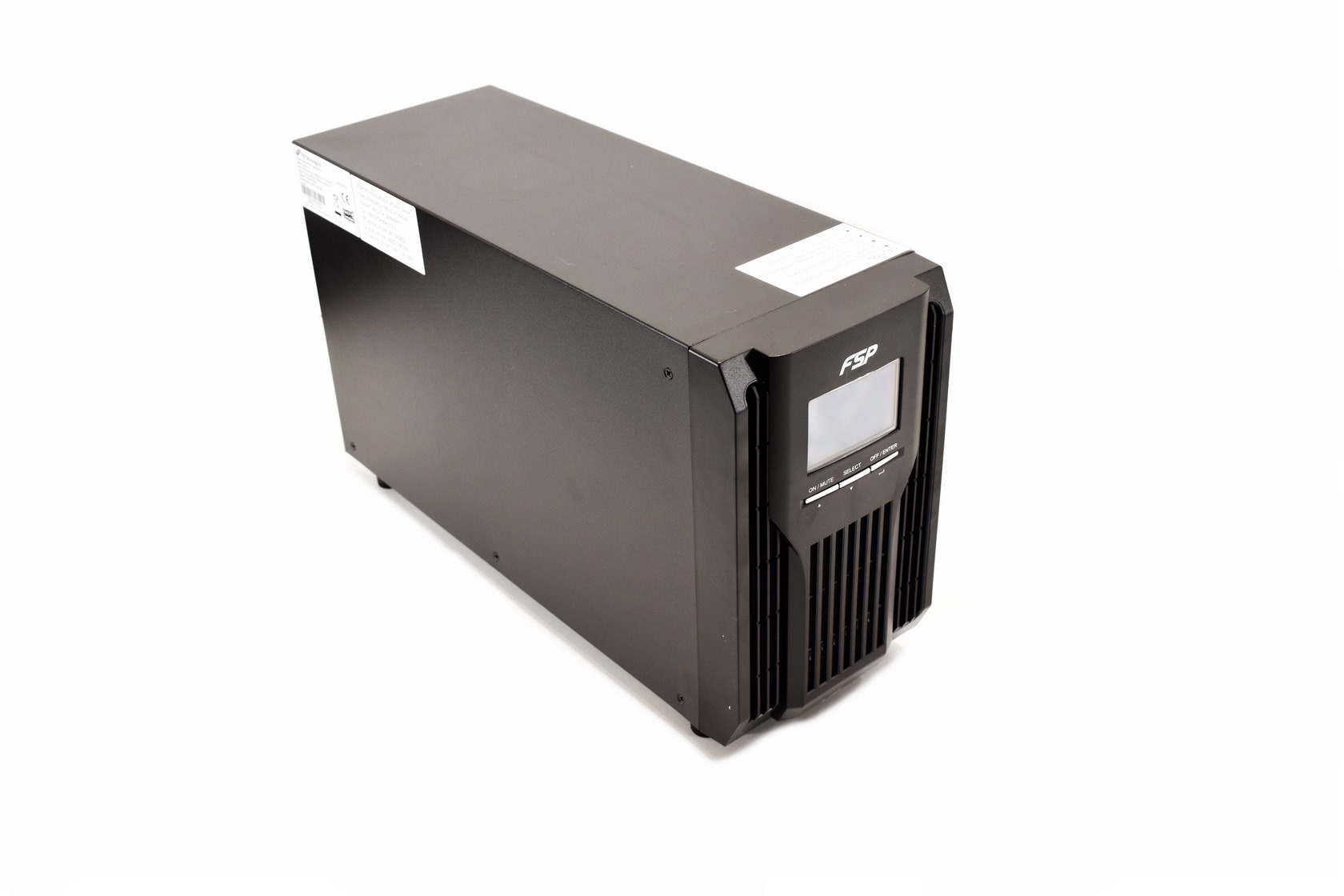

The Champ 2K is a mid-sized tower model that measures 397mm in length, 145mm in width and 220mm in height and weighs 17kg.

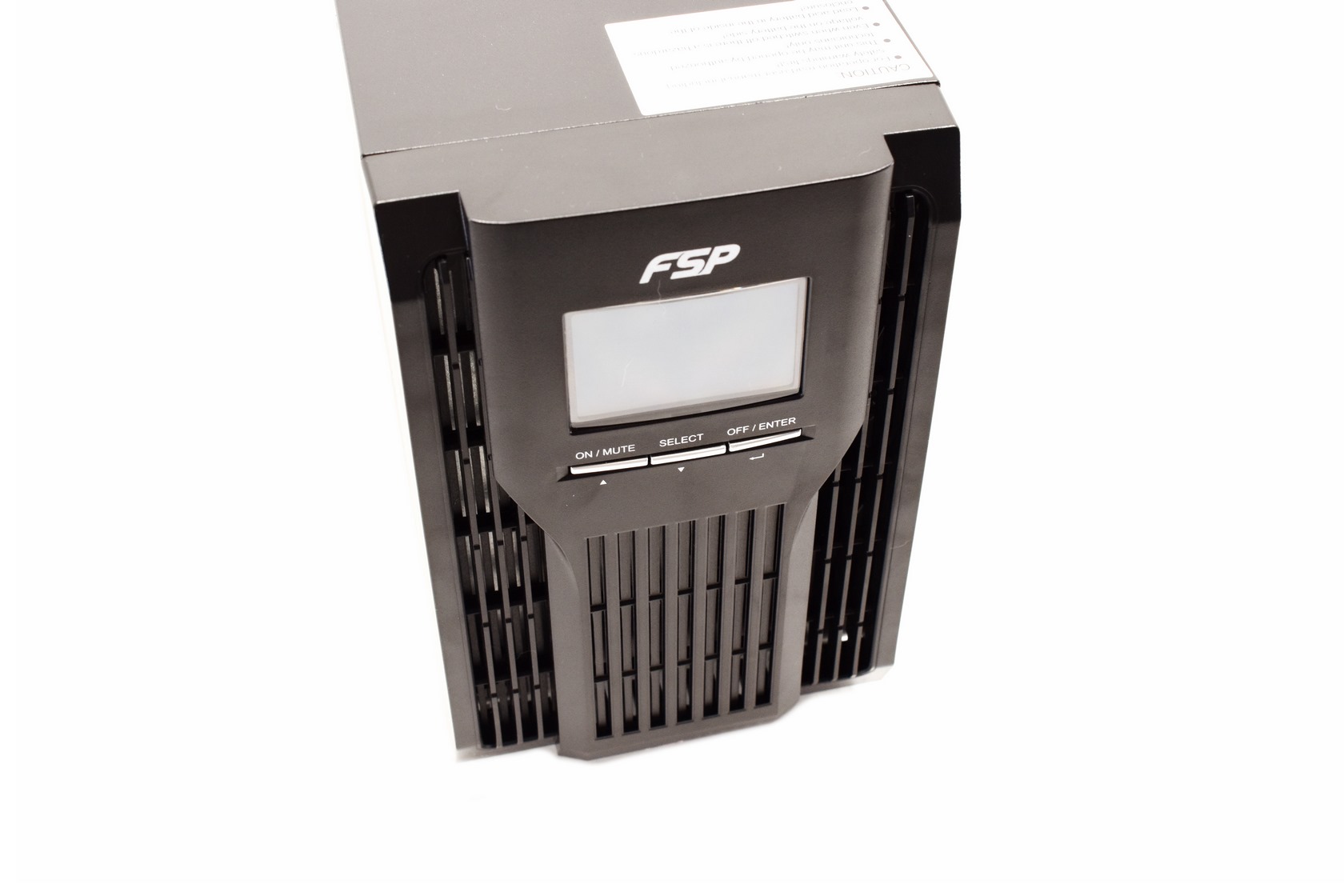

At the front we find the LCD screen along with 3 buttons used to switch between screens and adjust various settings.

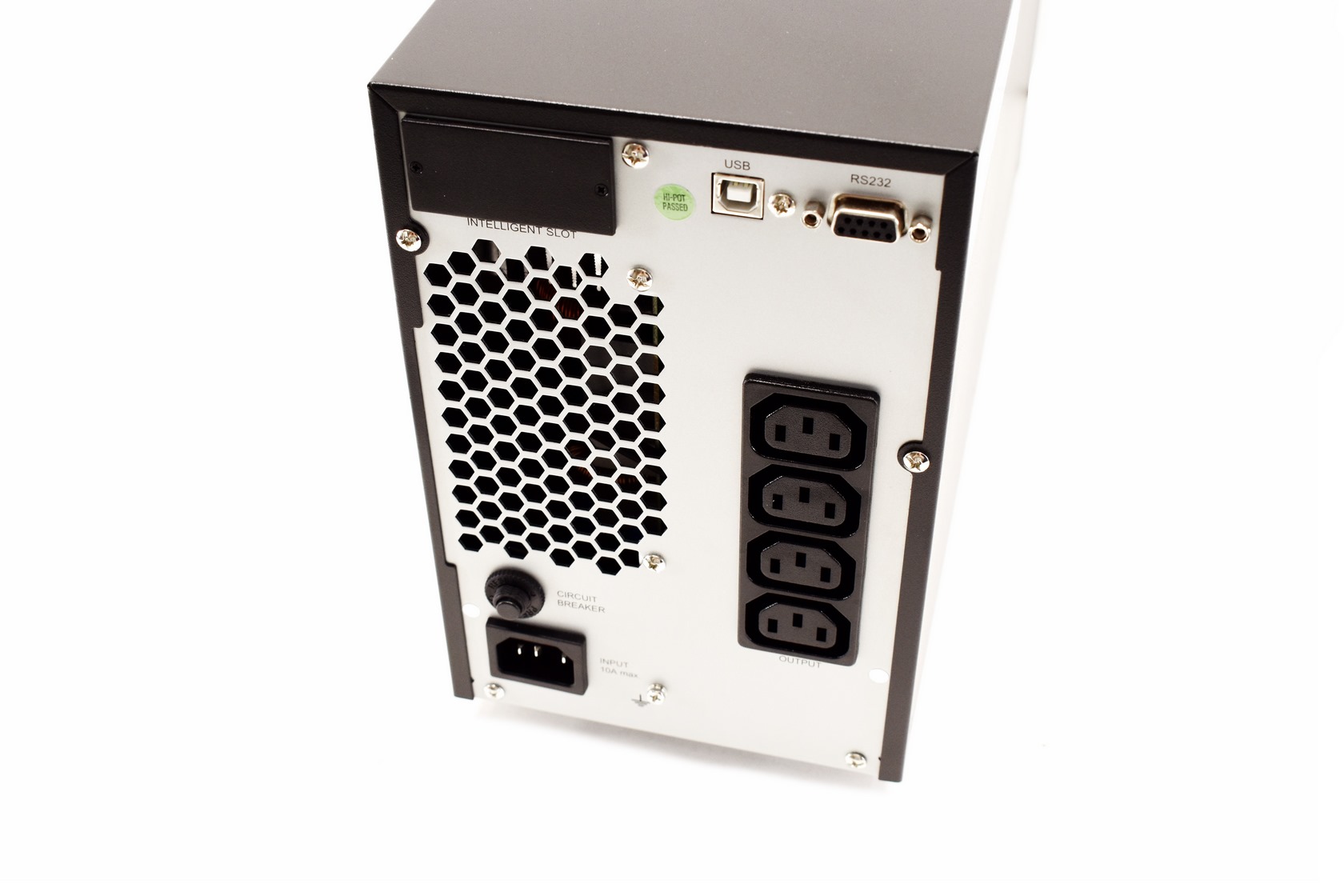

Turning the unit around we find the intelligent slot, USB host port, RS232 serial port, 4 IEC power plugs, circuit breaker and the power port.

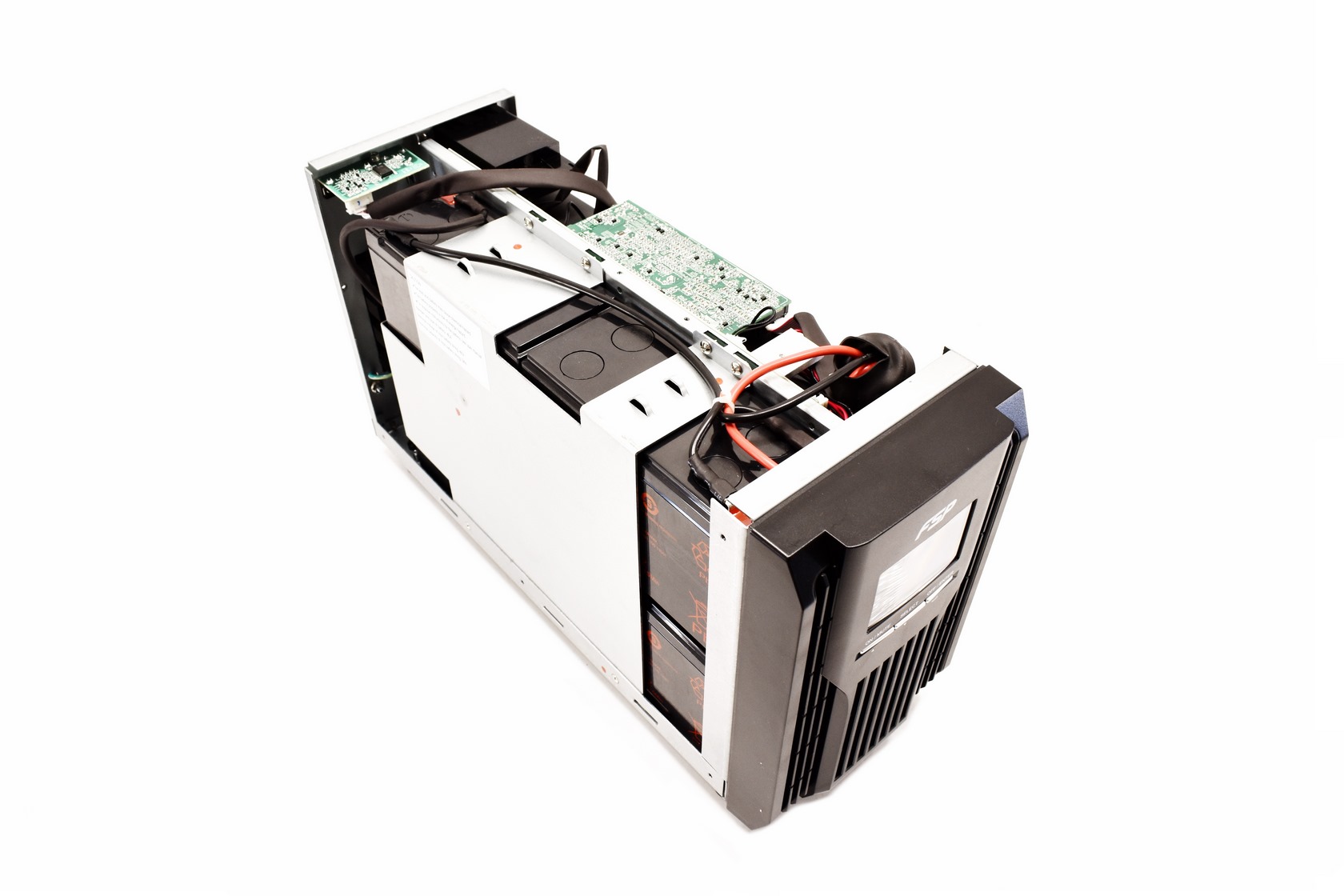

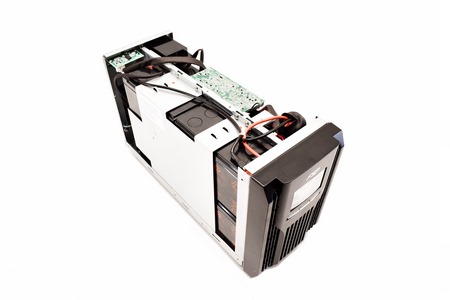

Opening up the enclosure is very easy and so end users should also be able to swap batteries.

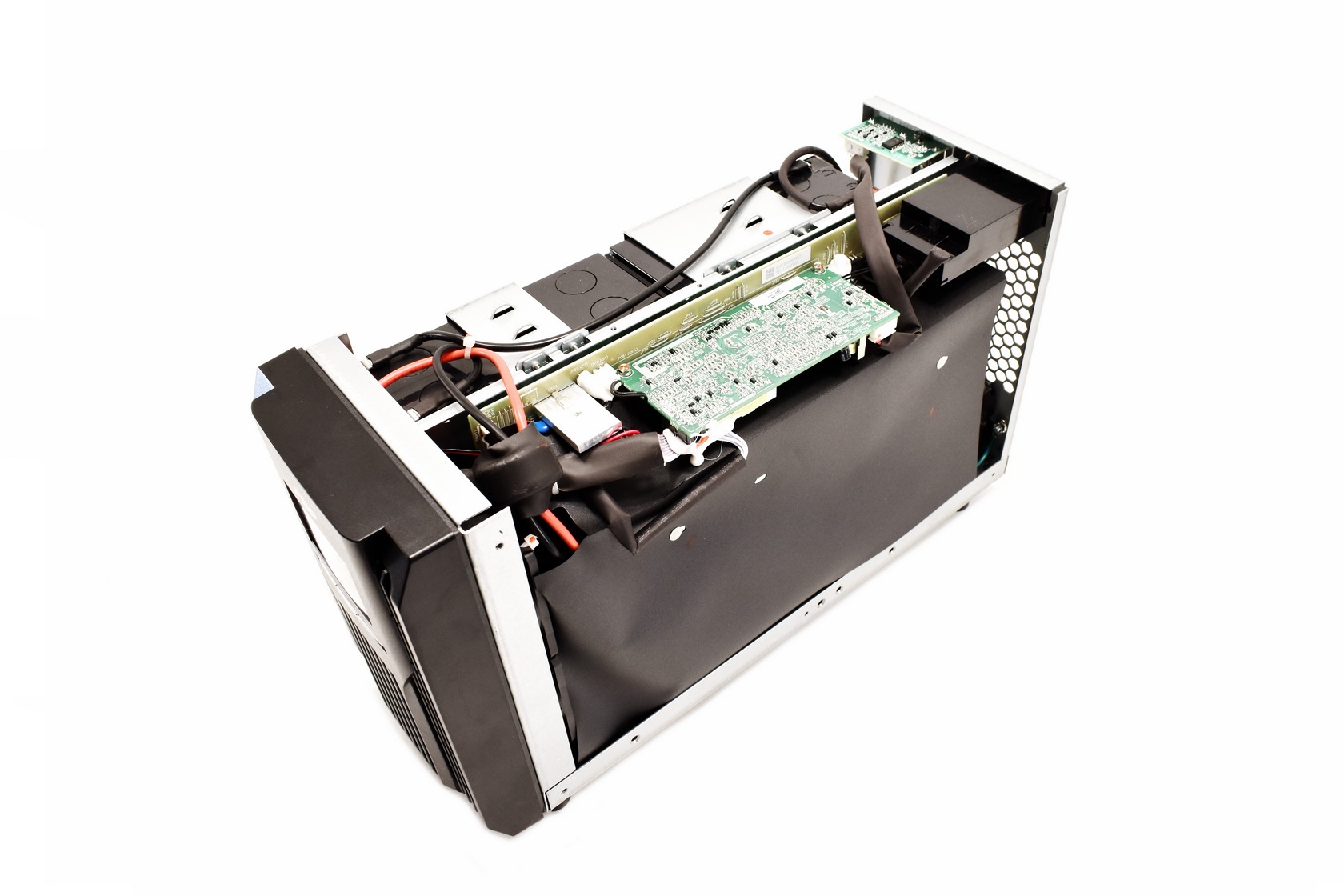

Taking a look from the right side reveals the two 80mm intake fans at the front.

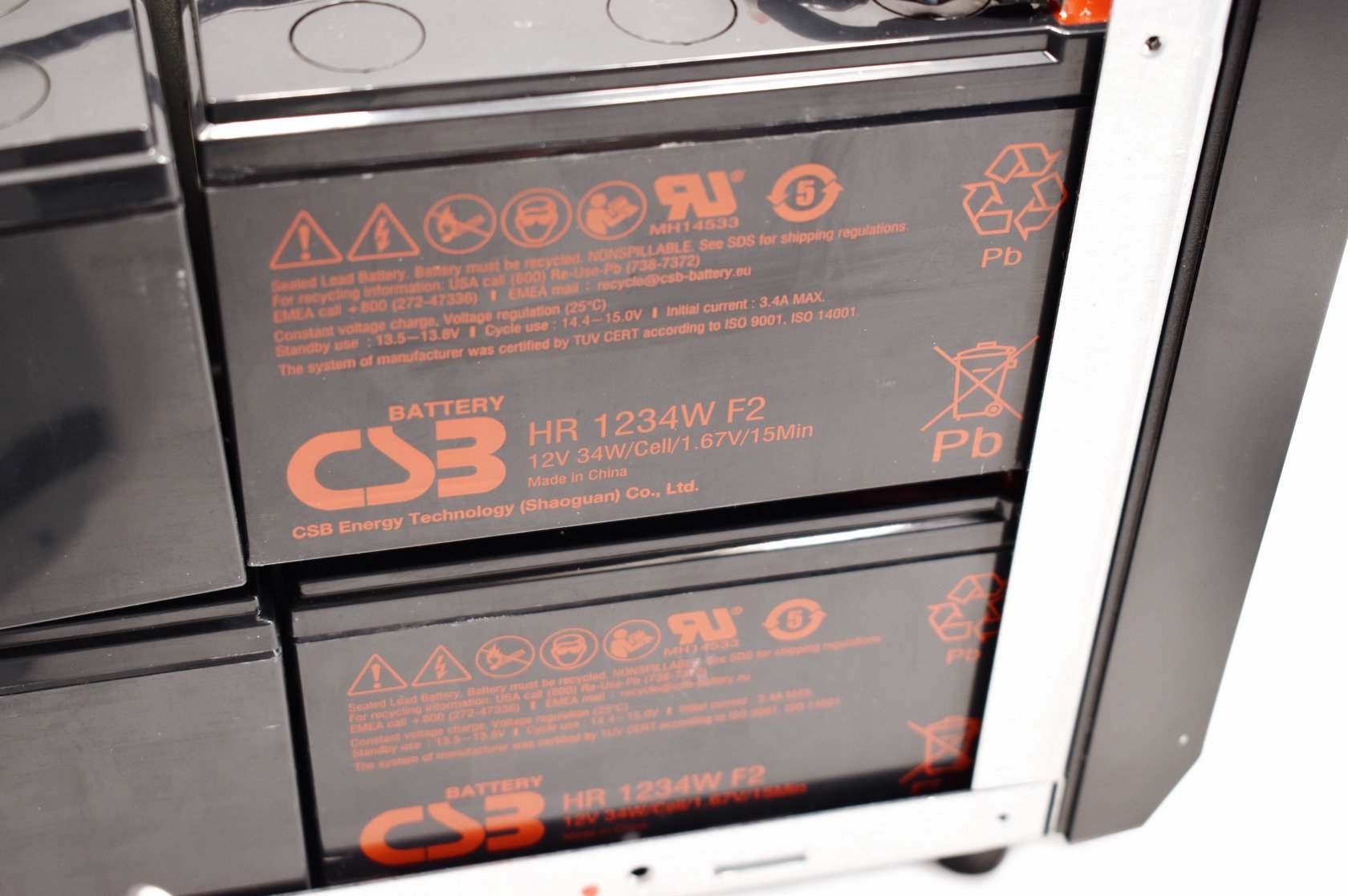

This particular unit uses a total of four 12V/9ah sealed lead batteries by CSB.

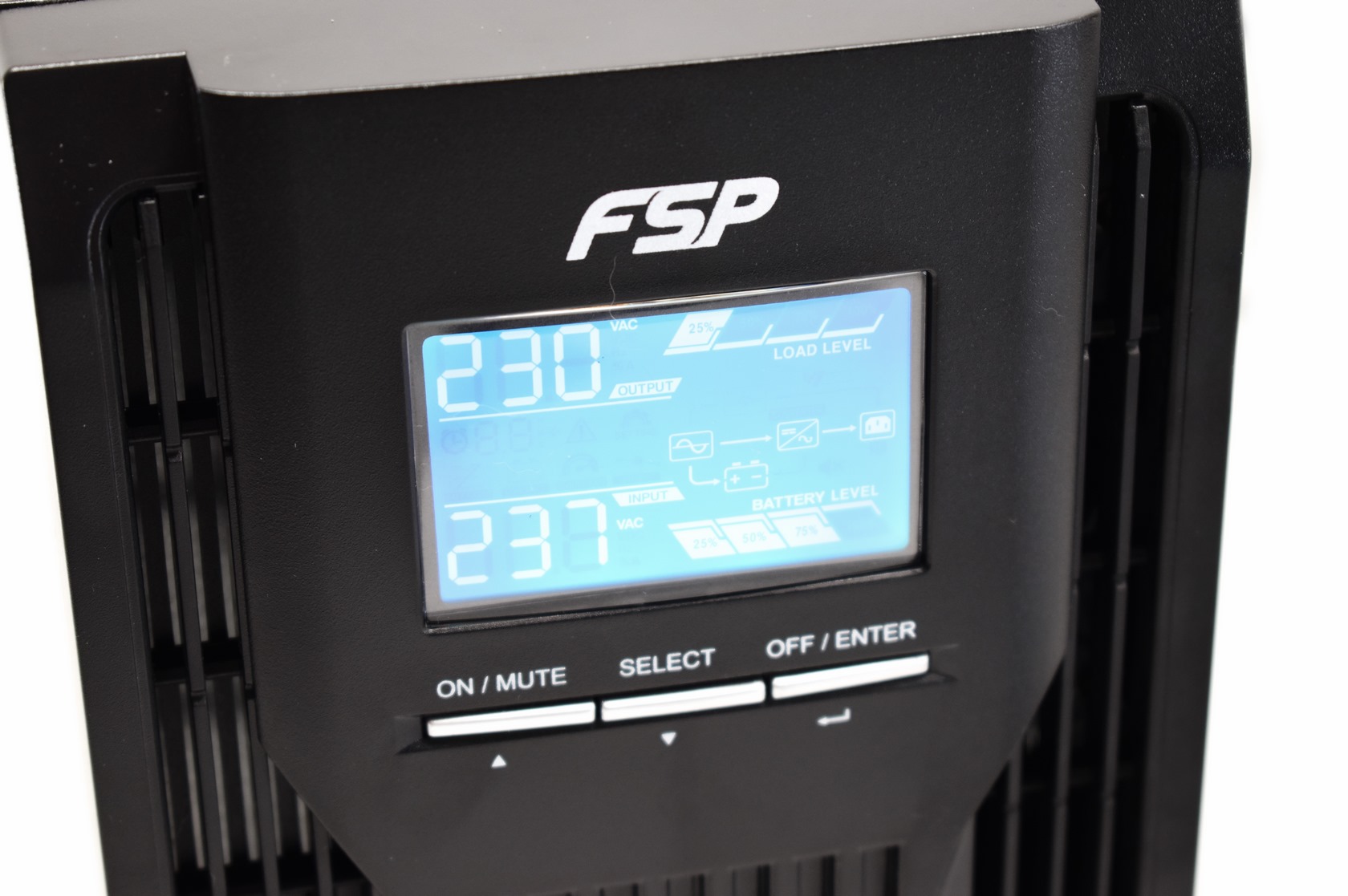

The LCD screen offers various information about the unit such as load, battery charge/level, mode in use (line/battery/bypass/ECO) and possible faults/errors.
