THE P34A80 1TB

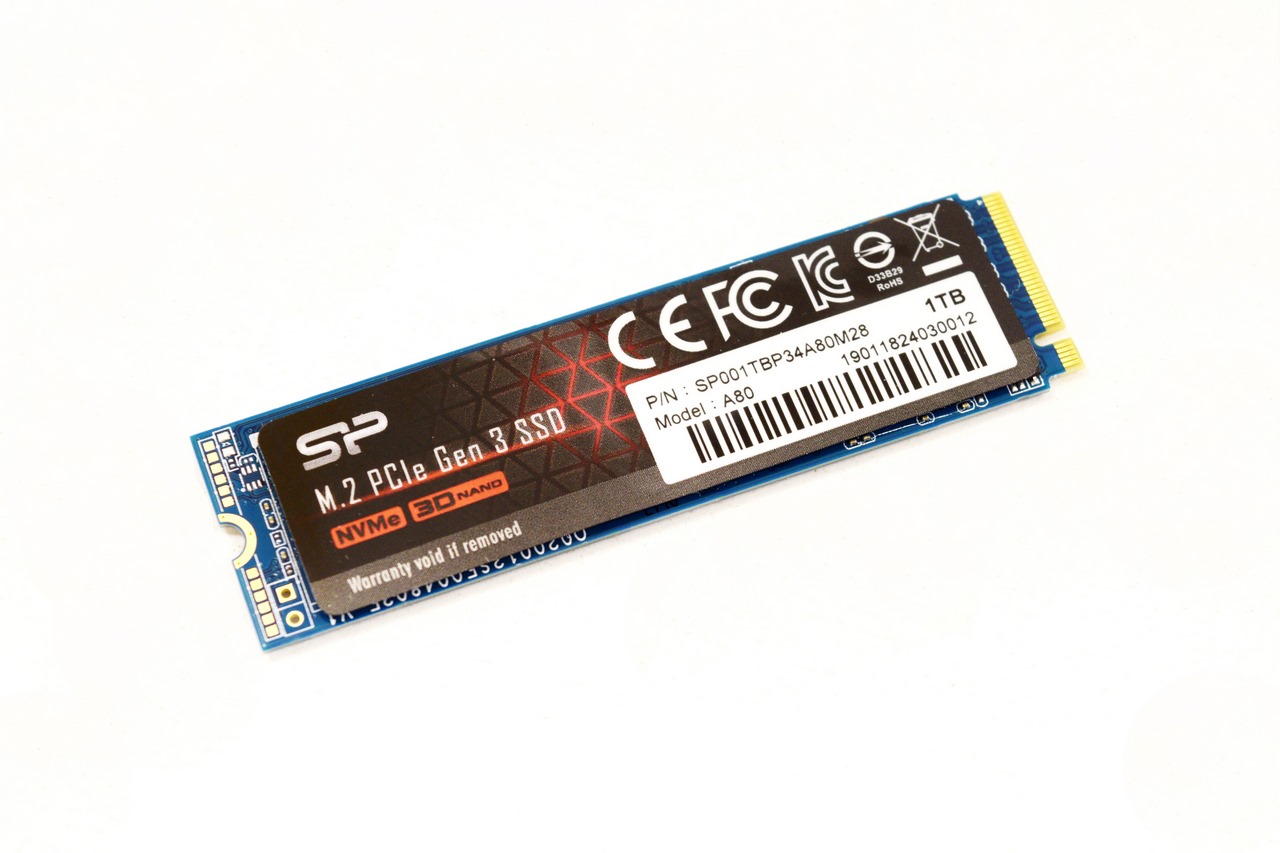

On a long sticker located at the top of the drive are the part number, barcode, model name and drive capacity (the drive follows the typical 2280 form factor).

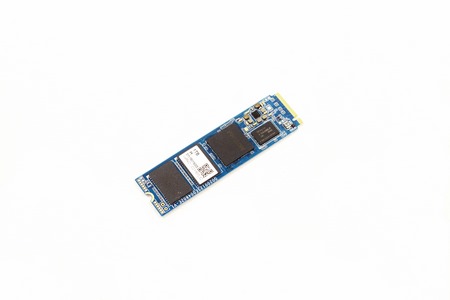

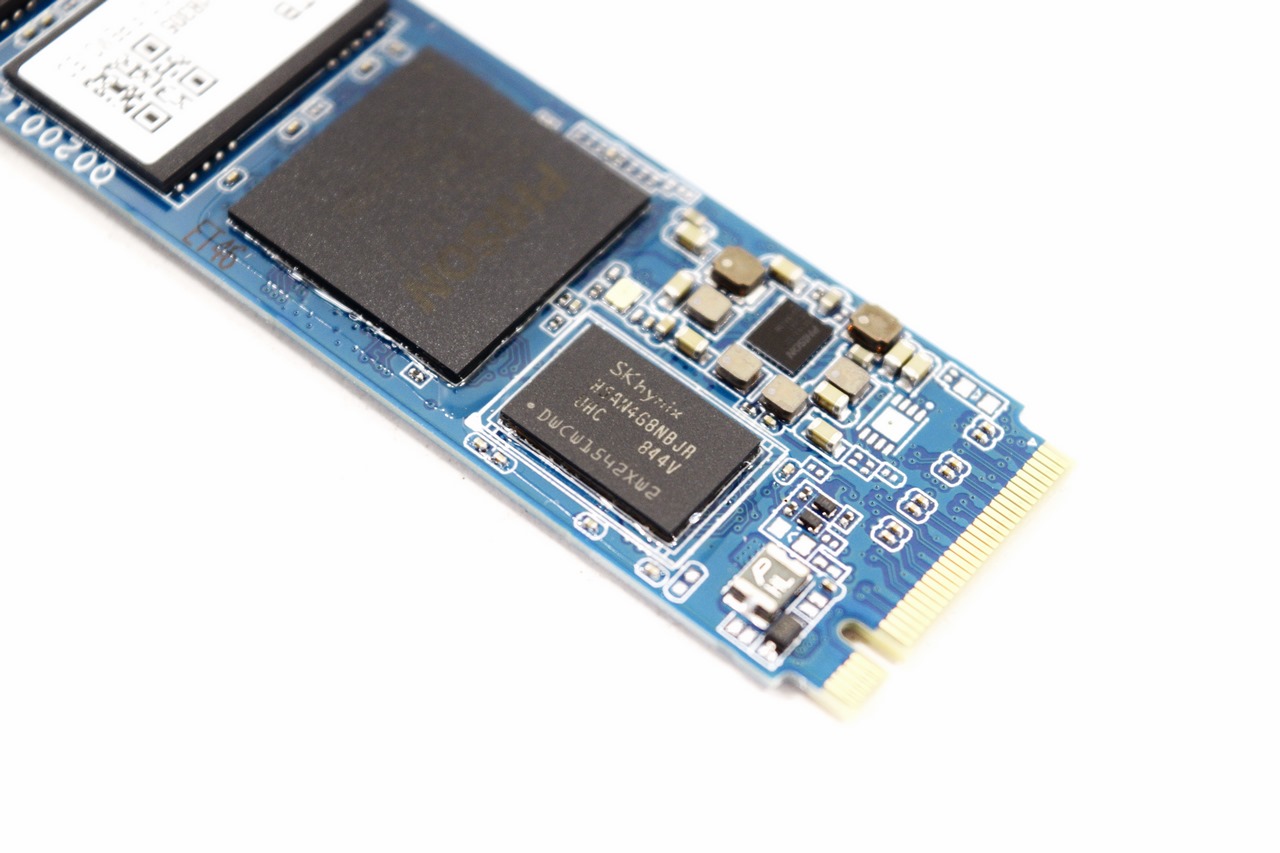

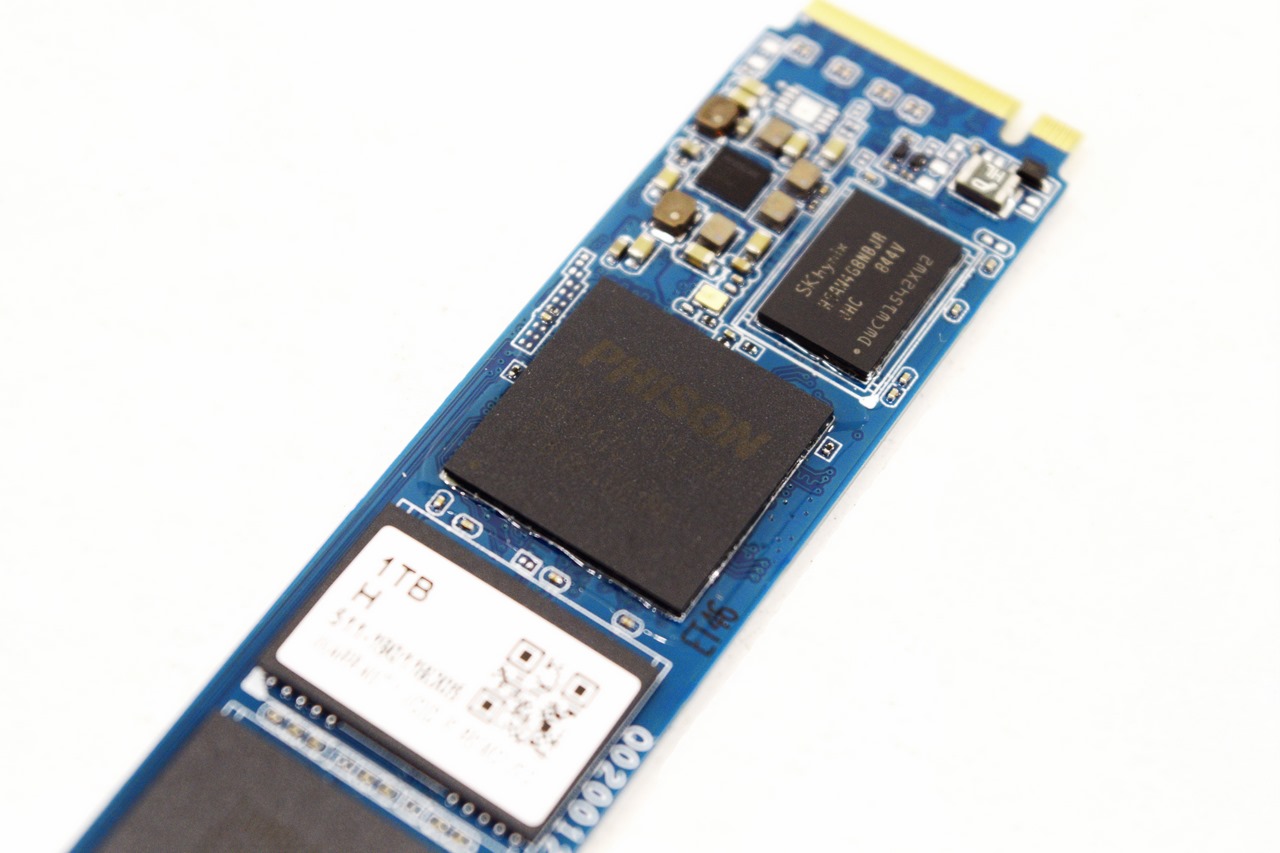

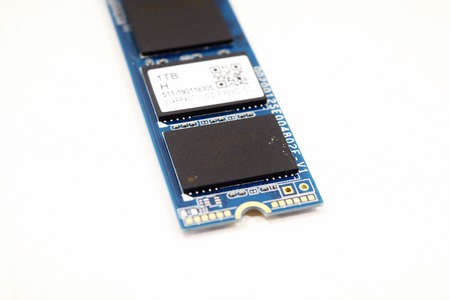

Removing the sticker reveals two Toshiba 64-layer BiCS3 3D TLC NAND flash modules (256GB in size each), the Phison PS5012-E12 controller and 512MB of DDR4 SDRAM by SKhynix.

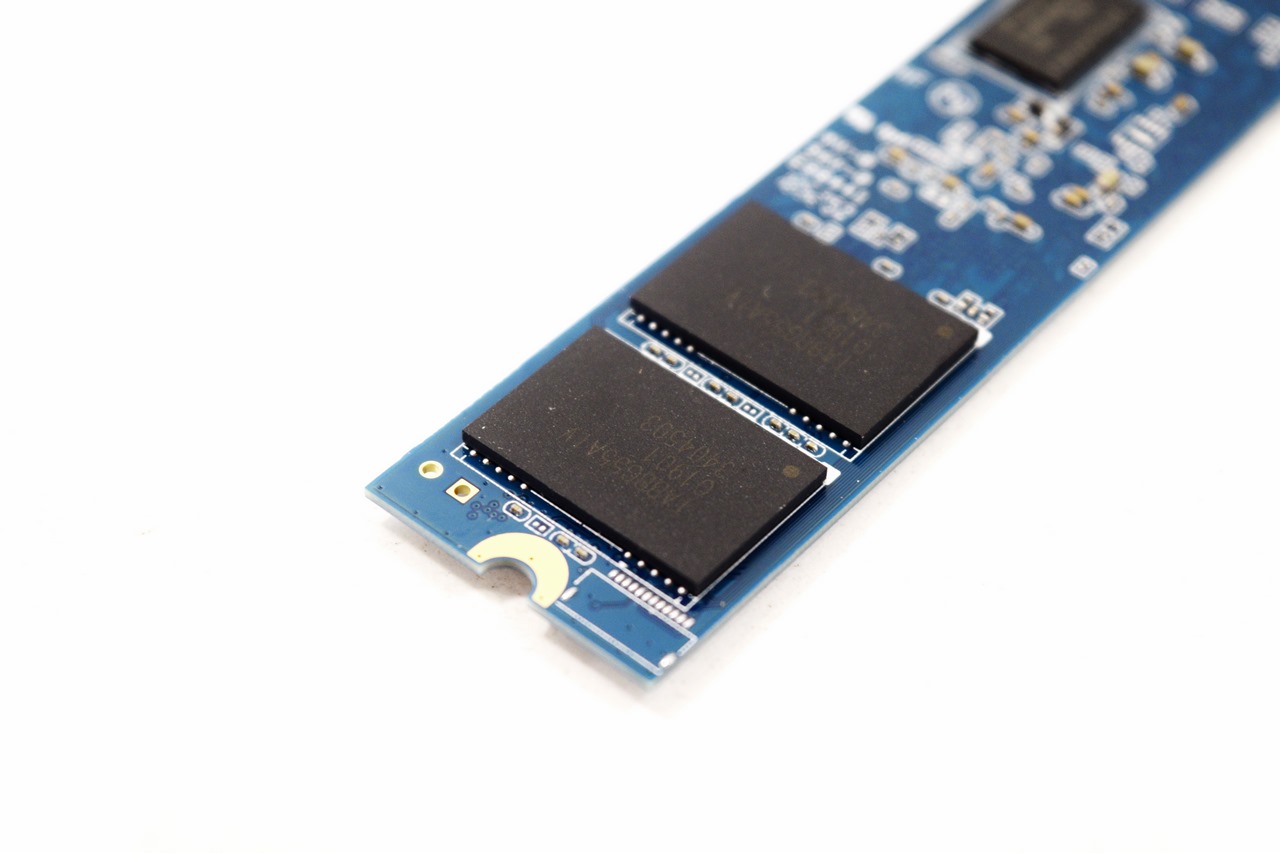

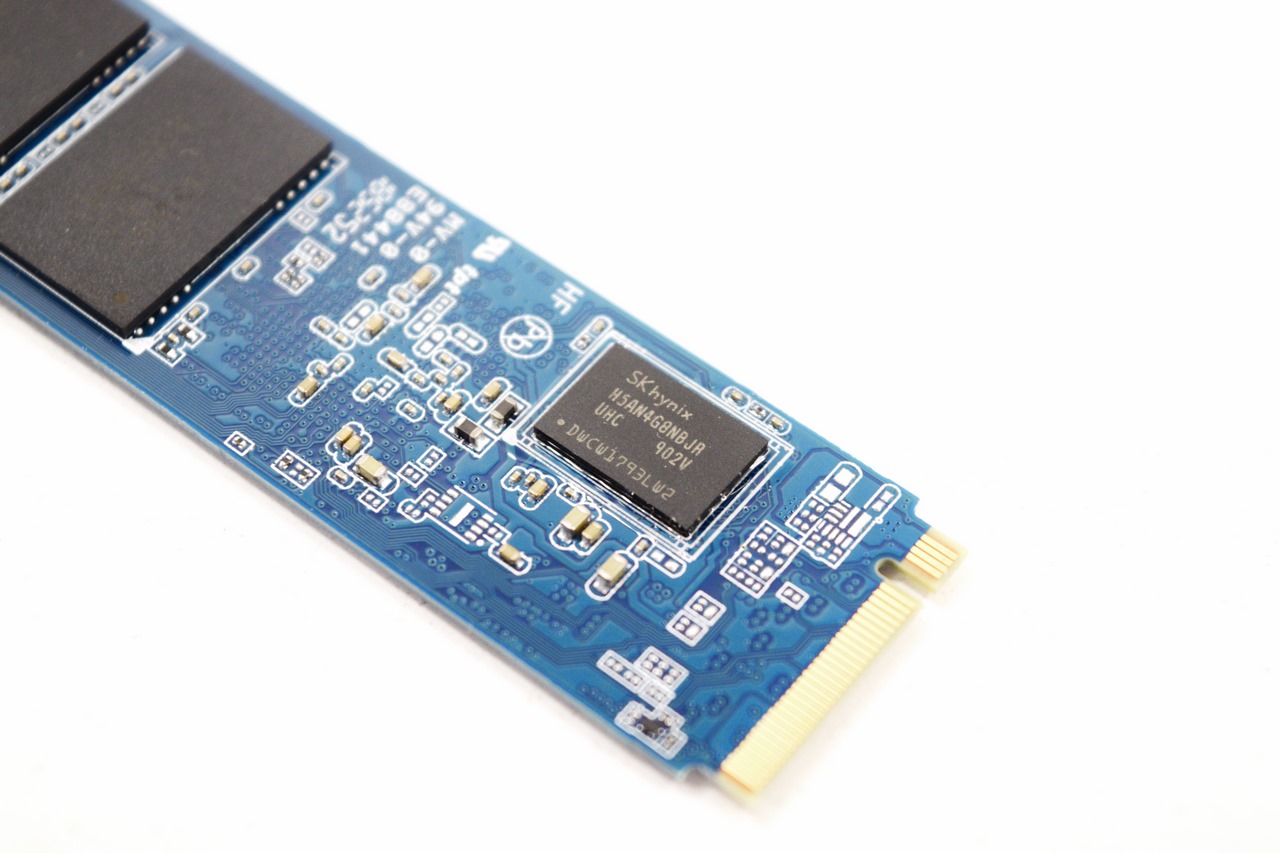

On the opposite side of the PCB we find two more Toshiba 64-layer BiCS3 3D TLC NAND flash modules and another 512MB DDR4 SDRAM module by SKhynix.
