THE FORCE SERIES MP510 960GB

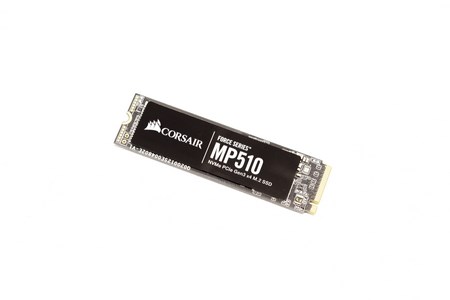

Although the Force Series MP510 follows the standard M.2 2280 form factor it's a double sided model meaning it has NAND modules on both sides of the PCB.

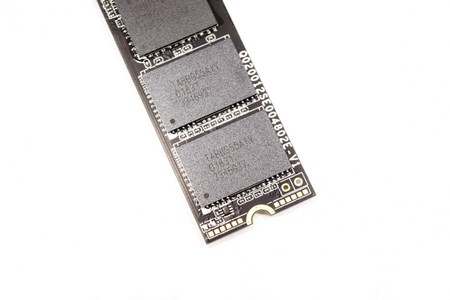

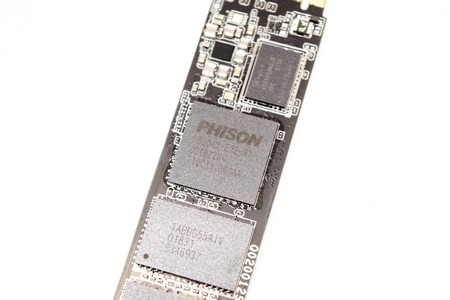

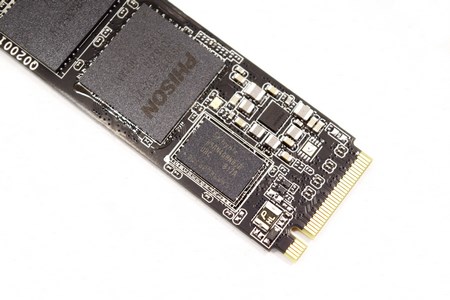

On the top side we find two Toshiba 64-layer BiCS3 3D TLC NAND flash modules (256GB in size each), the Phison PS5012-E12 controller and 512MB of DDR4 SDRAM by SKhynix.

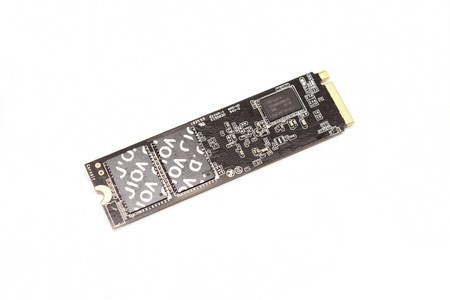

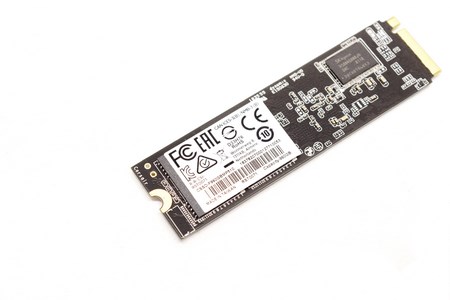

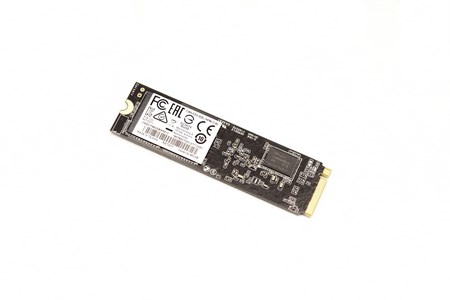

Two more Toshiba 64-layer BiCS3 3D TLC NAND flash modules and another 512MB DDR4 SDRAM module by SKhynix are placed on the bottom side of the PCB.
