THE NM800 PRO 2TB

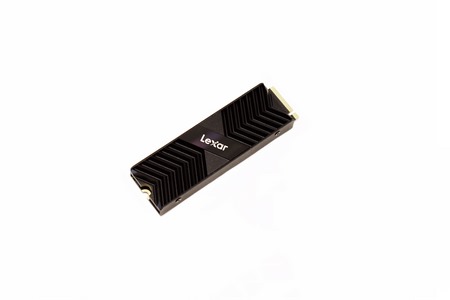

The black heatsinks used on the NM800 PRO may not be the most compact I’ve seen but since according to Lexar this is PS5 compatible it’s small enough.

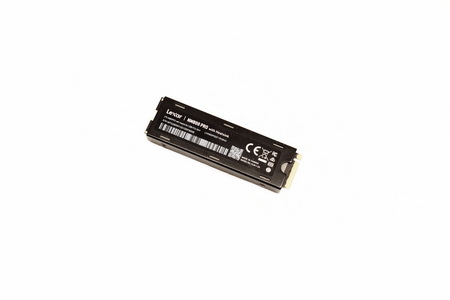

A small sticker placed on the opposite side has various information about the drive on it.

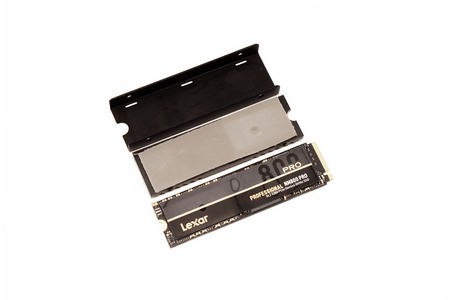

Taking apart the heatsink requires removing just 4 screws from the sides (was a bit surprised to see that Lexar kept the stock sticker on the SSD – this is a single side model so the other side is empty).

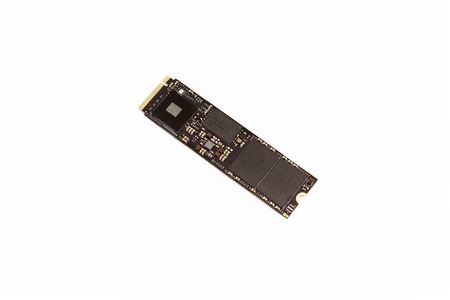

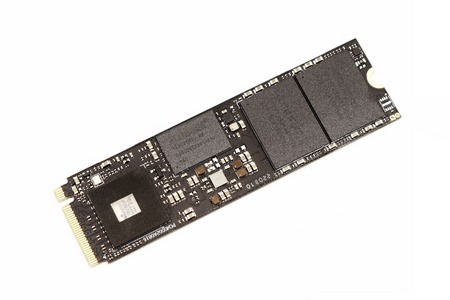

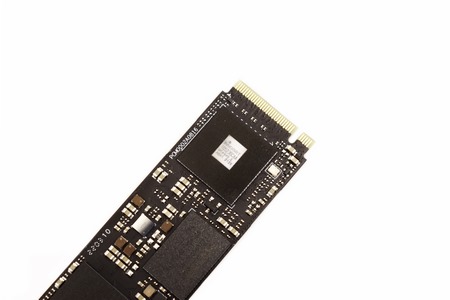

Underneath the large sticker at the top, we find the Innogrit IG5236 NAND flash controller together with an 2GB DDR4L (DRAM) module and two 176-layer 3D TLC NAND flash modules.
