THE IRDM PRO 2TB

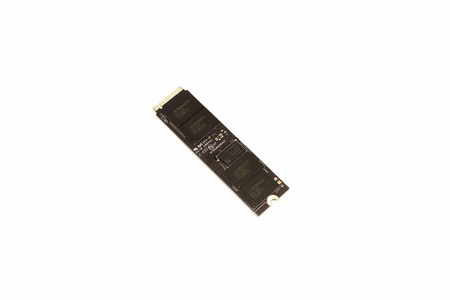

The IRDM PRO 2TB M.2 NVMe SSD by GOODRAM follows the typical dual side M.2 2280 (80mm in length and 22mm in width) design.

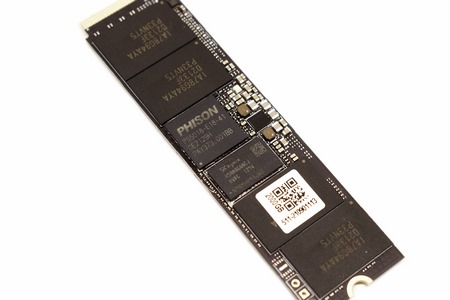

Underneath the sticker at the top, we find the PS5018 NAND flash controller by PHISON together with 4 NAND flash modules by Micron (B47R) and a single 1GB DDR4 SDRAM module by SK Hynix.

Turning the drive over we find yet another sticker underneath which we find 4 more NAND flash modules and a second 1GB DDR4 SDRAM module.

Here you can see just how the drive looks with the aluminum heatsink on it.
