THE KC3000 2TB

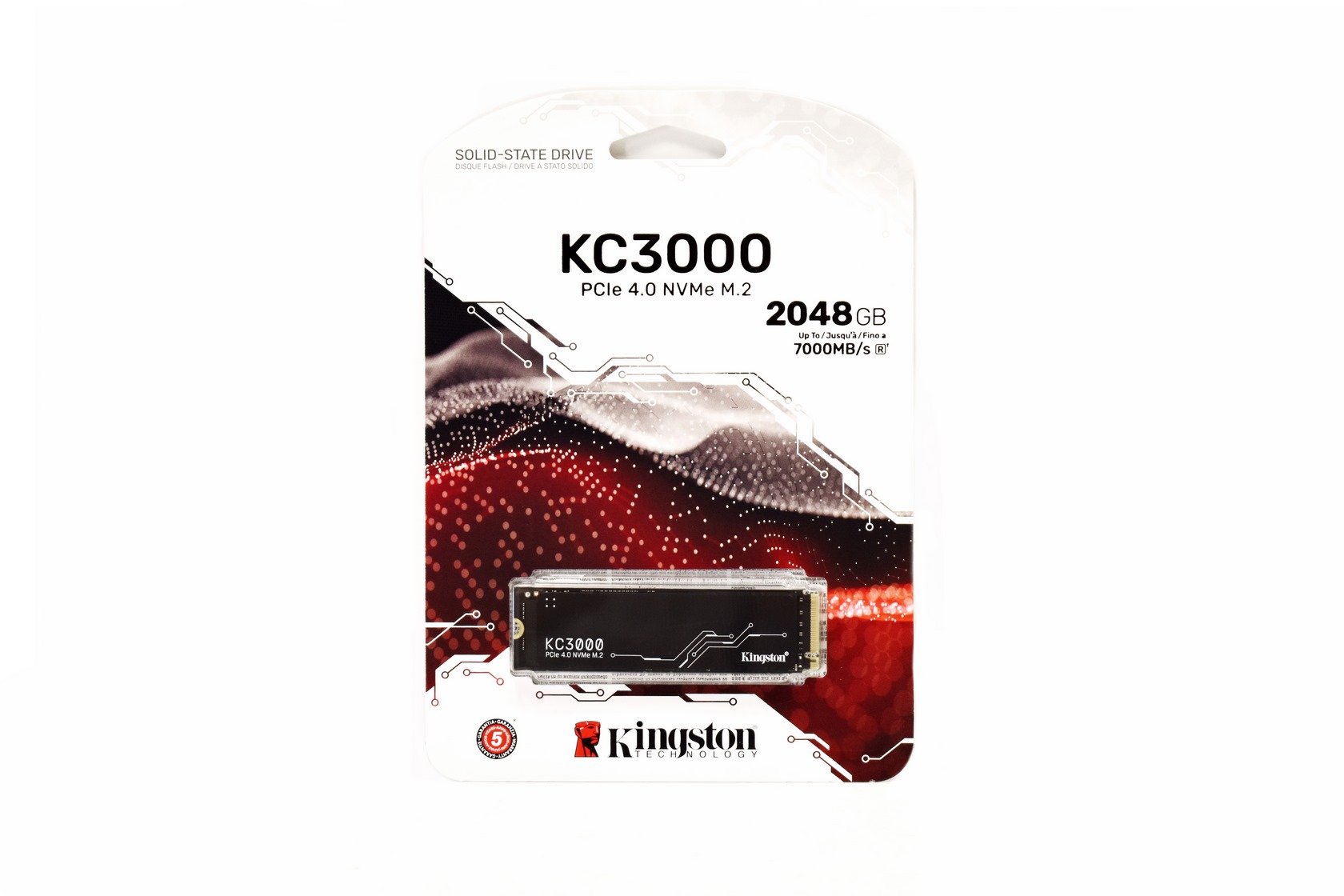

Kingston ships their KC3000 line of M.2 NVMe SSDs inside a blister package from where you can take a look at the drive itself.

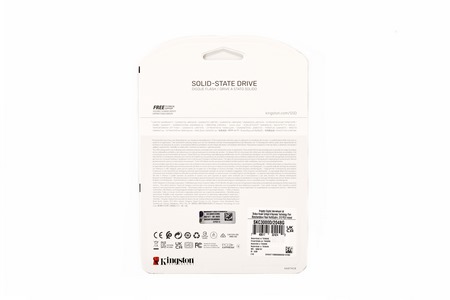

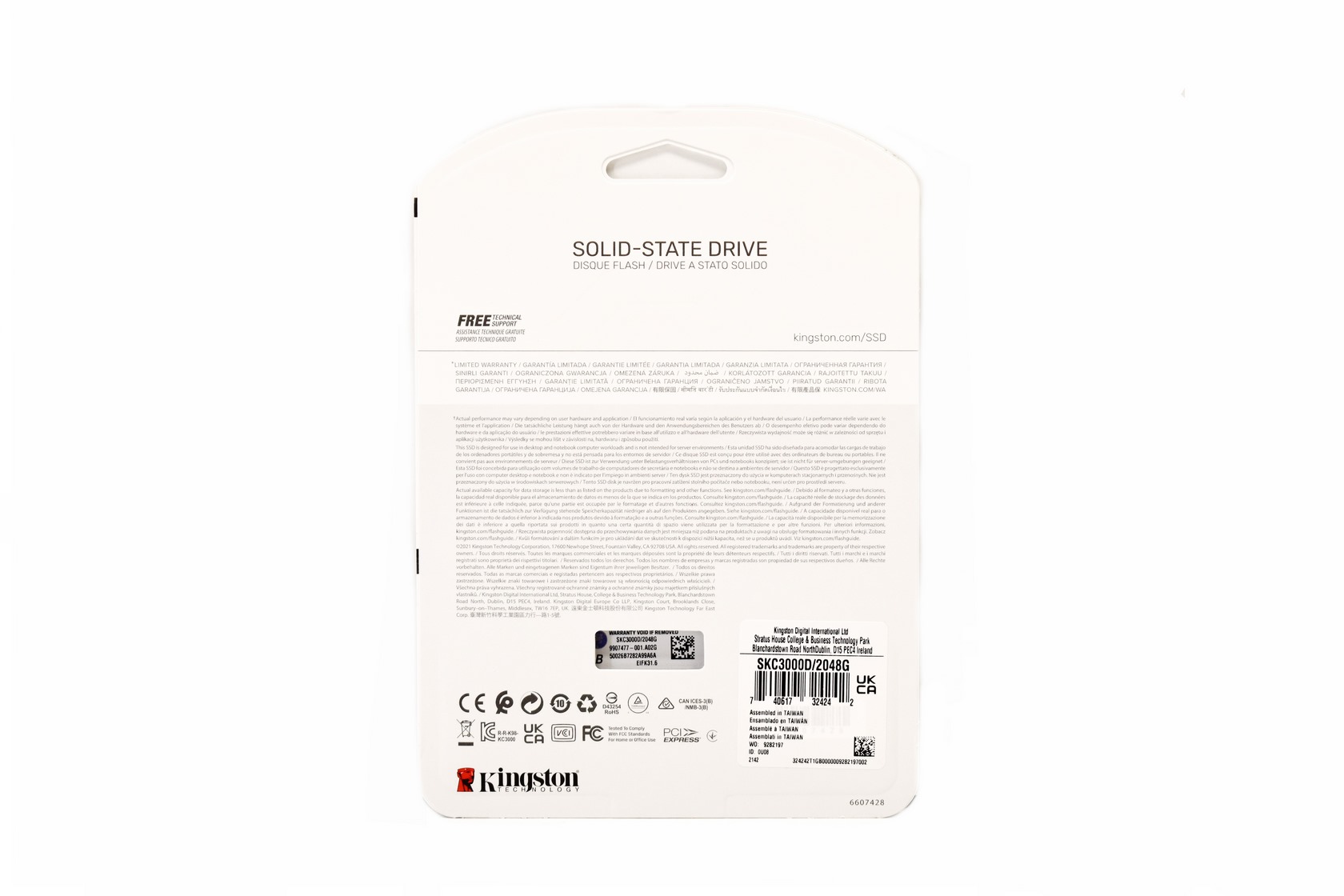

A few words about the drive and its warranty are printed at the rear in 24 languages.

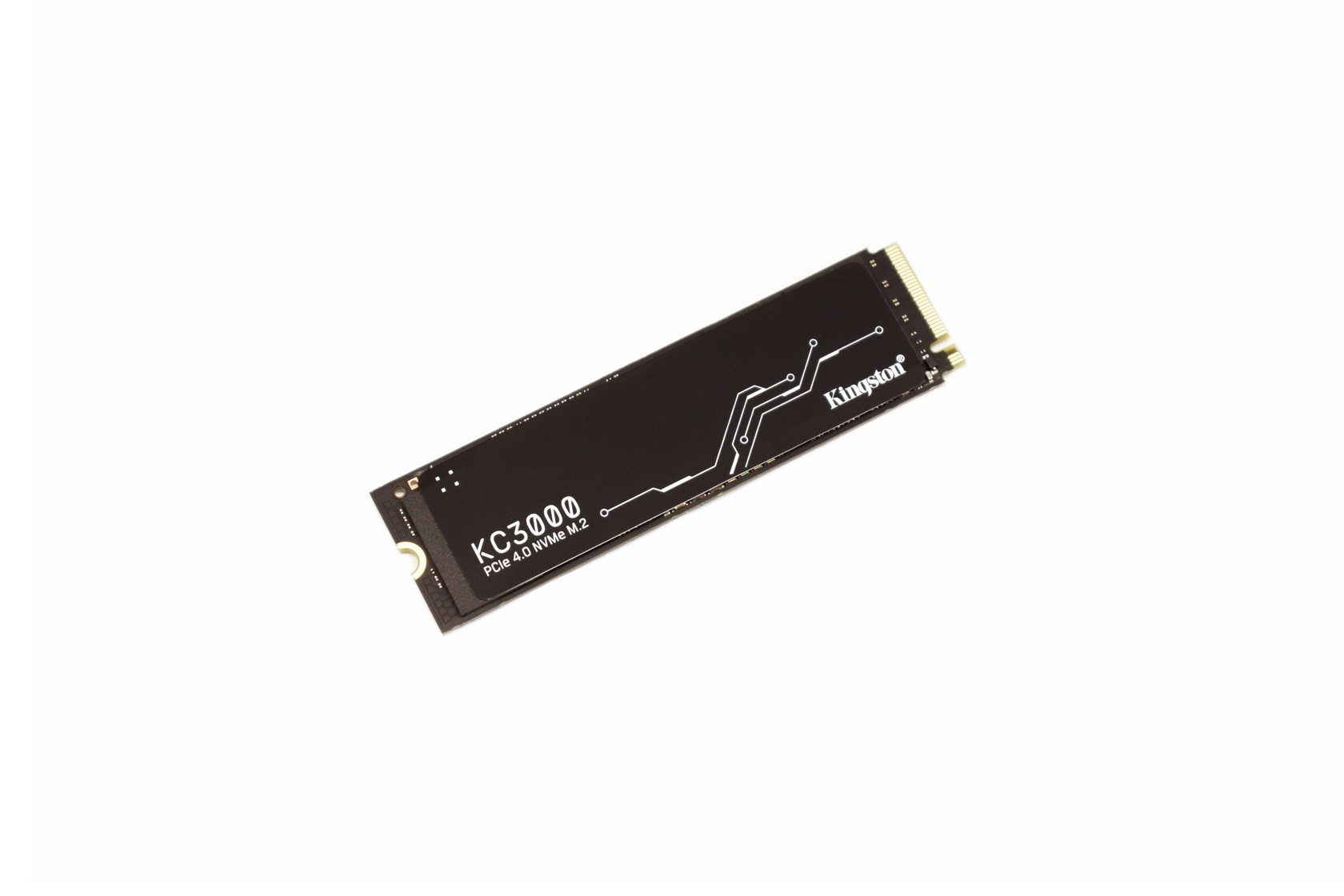

The KC3000 follows the typical M.2 2280 size (22mm in width and 80mm in length) and features a black sticker at the top.

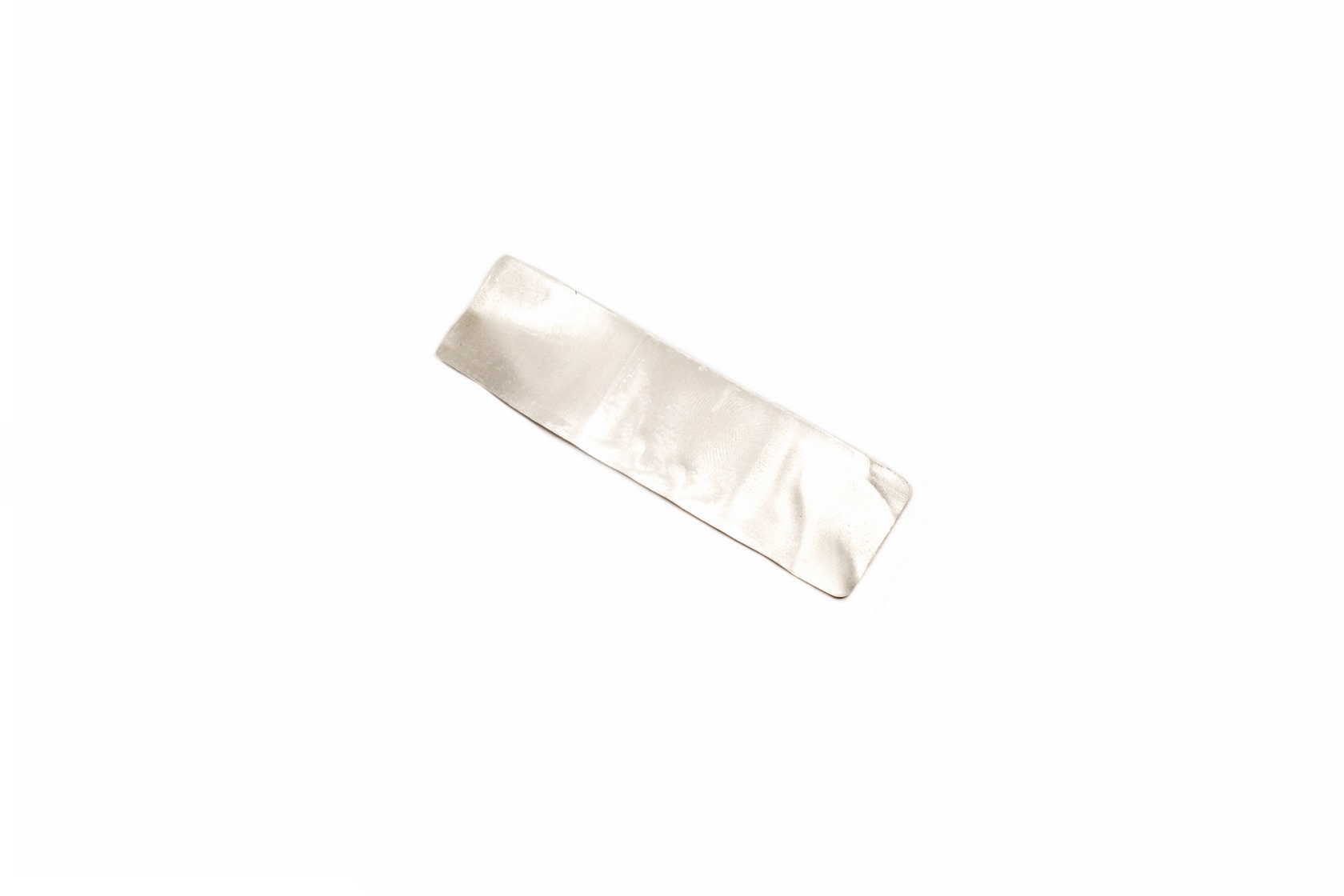

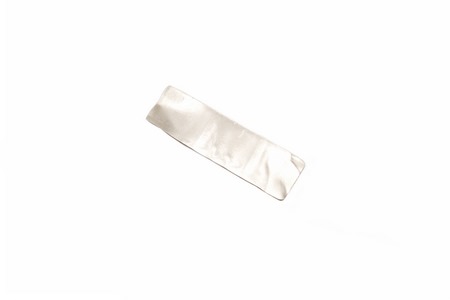

Kingston uses a mix of graphene and aluminum for the top sticker (unlike Sabrent and their copper one).

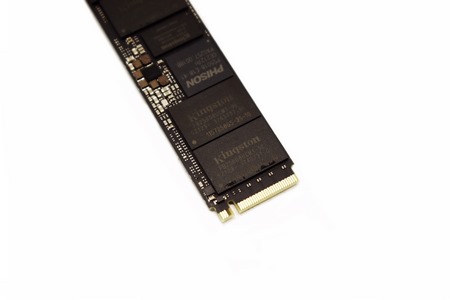

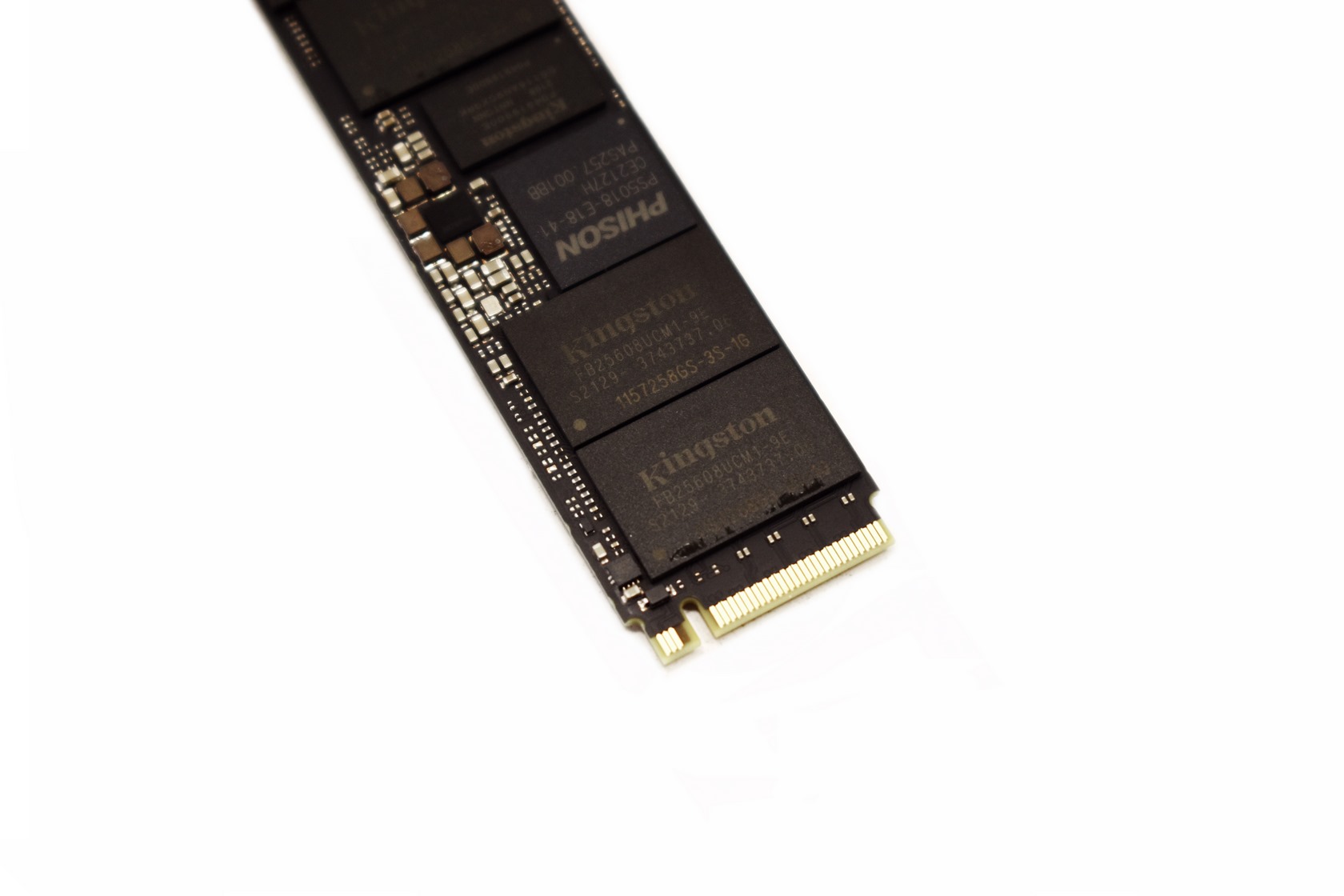

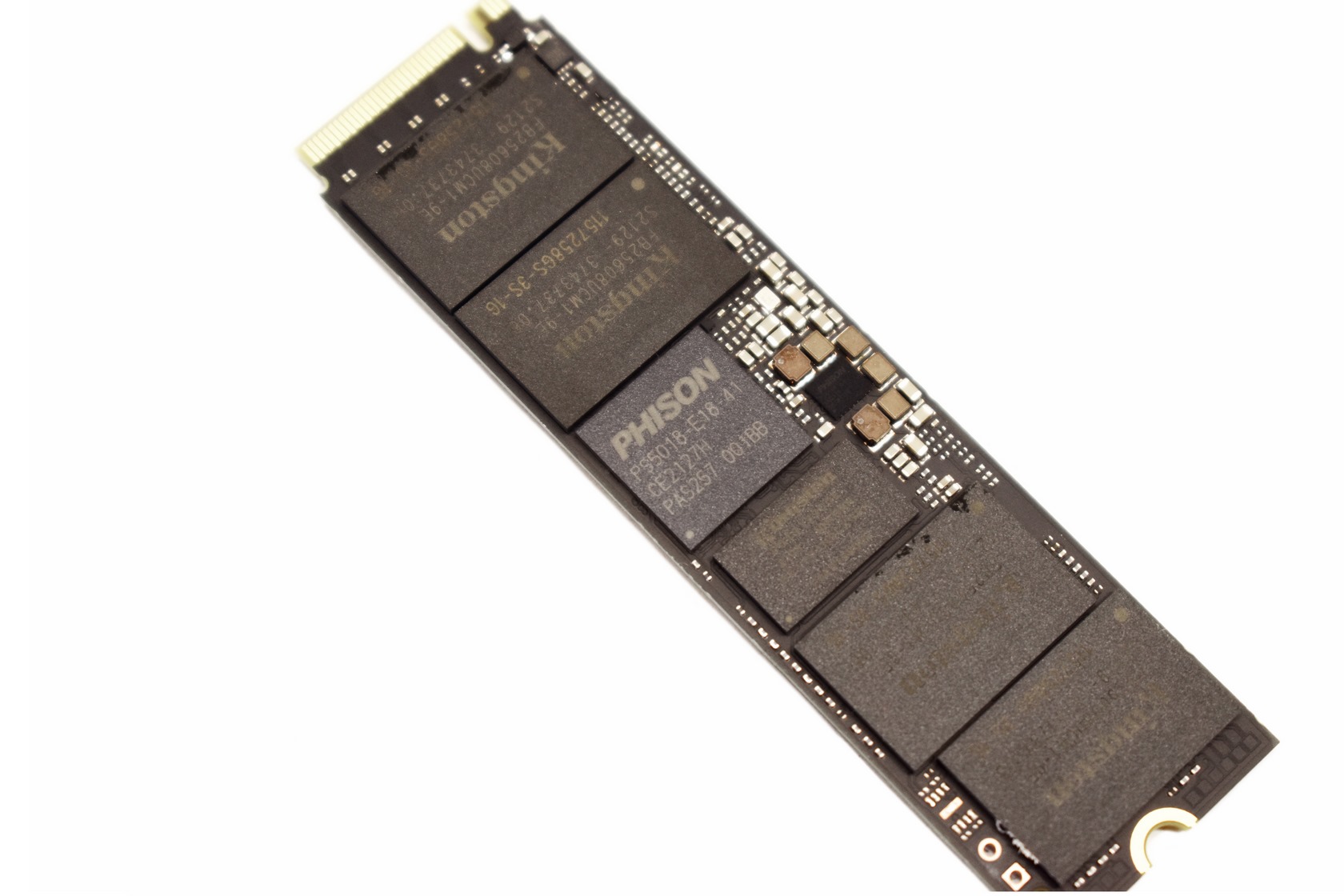

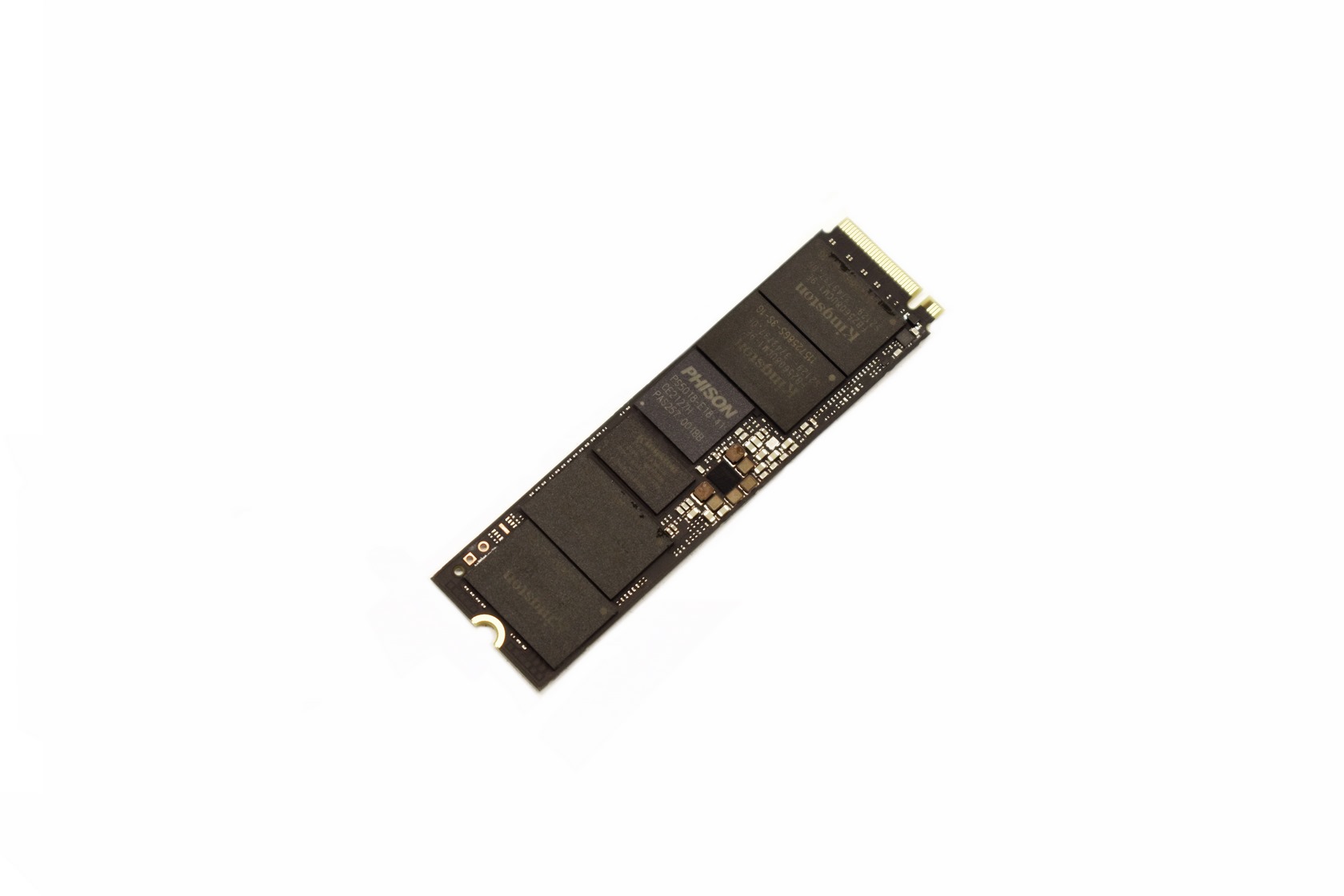

On this side we find the E18 NAND flash controller by PHISON together with 1GB of DDR4 SDRAM cache module and 4 NAND flash modules (each 256GB in size).

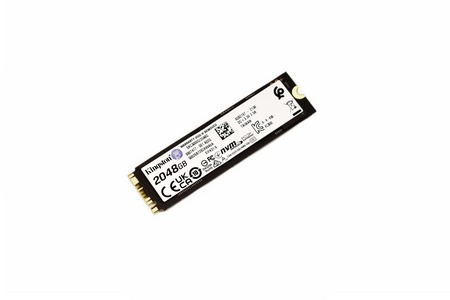

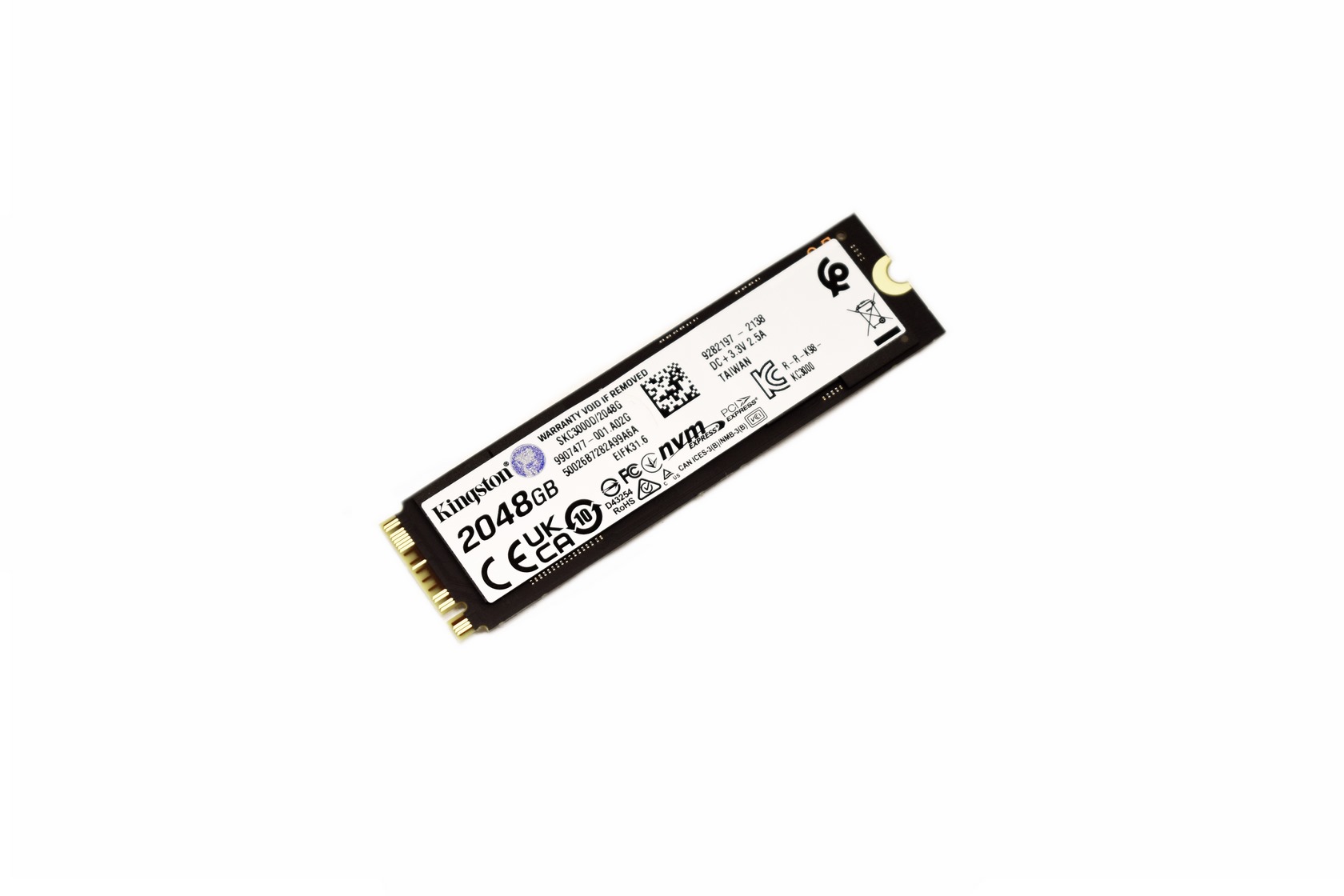

Unlike the 512GB/1TB variants which are single side models the 2/4TB variants are dual side ones and so on the other side we find another sticker.

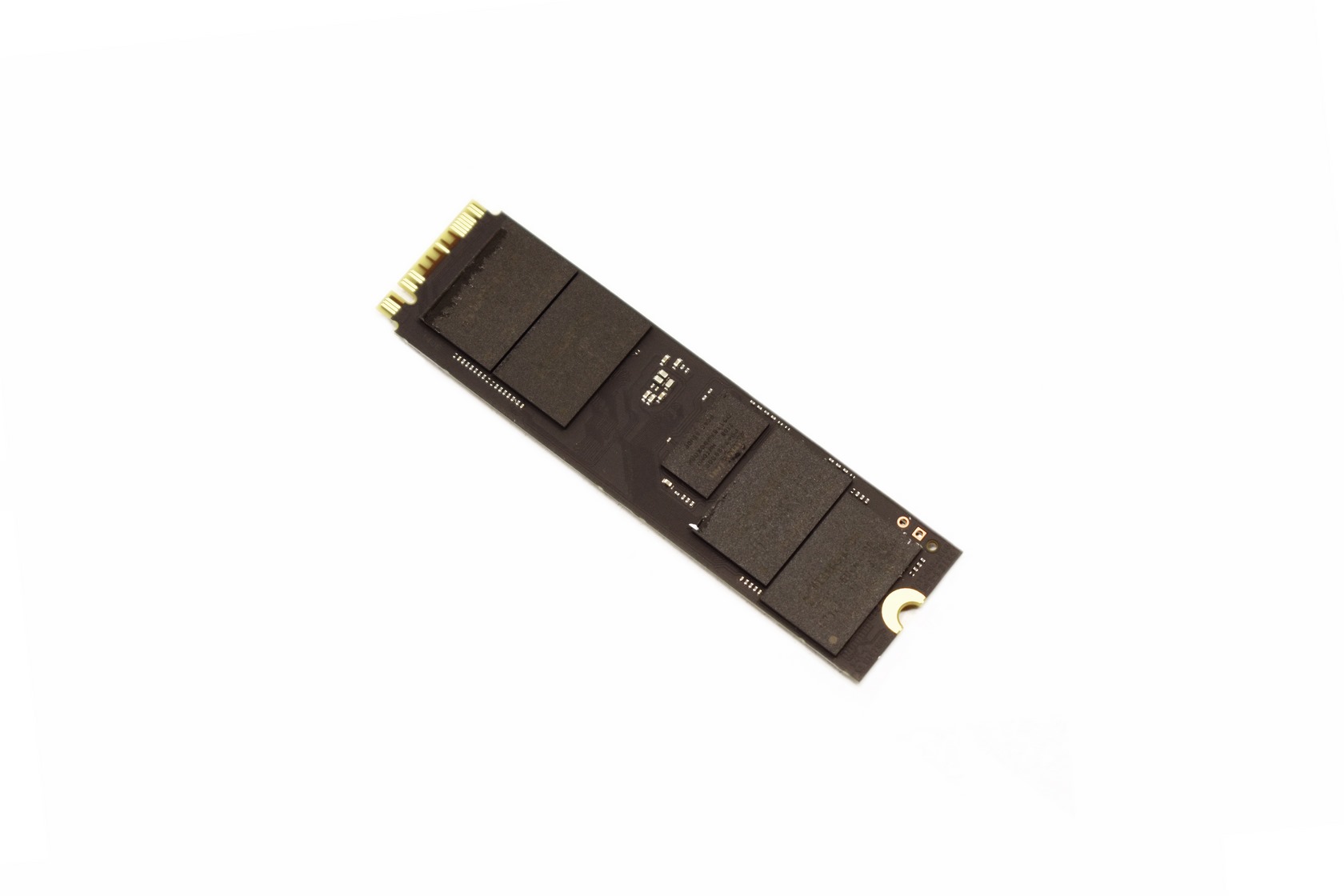

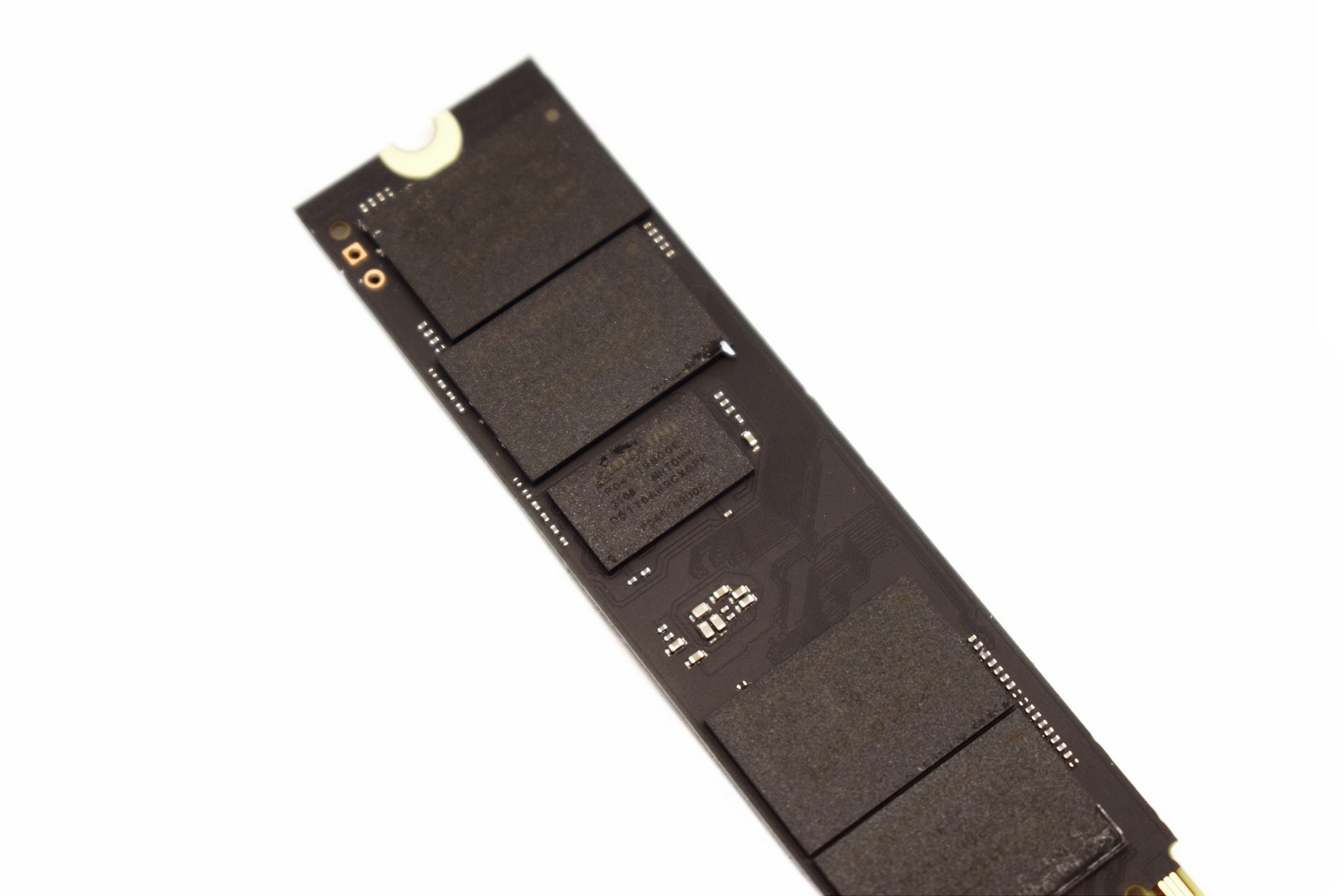

Underneath that sticker we find another 1GB DDR4 SDRAM cache module and 4 extra NAND flash modules (again each 256GB in size).
