INTRODUCTION

    Modern high‑performance systems place unprecedented demands on their power supplies, especially as GPUs and CPUs continue to push higher transient loads and sharper power excursions. This has shifted the PSU from a background component to a critical part of system stability, where electrical behavior under dynamic conditions matters just as much as raw wattage. ATX 3.1 and PCIe 5.1 have become the new baseline for next‑generation builds, defining stricter transient‑response requirements and introducing the 12V‑2x6 connector for safer, higher‑capacity GPU power delivery. The FV‑1200PM represents Formula V Line’s entry into the Platinum‑class ATX 3.1 and PCIe 5.1 space and that's obviously also what today's review is all about.

    Formula V Line is a Taiwanese company founded by a group of professionals in 2012. Our main product lines include various computer cases, power supplies and air-cooling systems for computers. Our research and development team can bring your best ideas to life. Formula V Line's mission is to create reliable products with the best price-quality ratio. For more information, visit http://formulav-line.com/

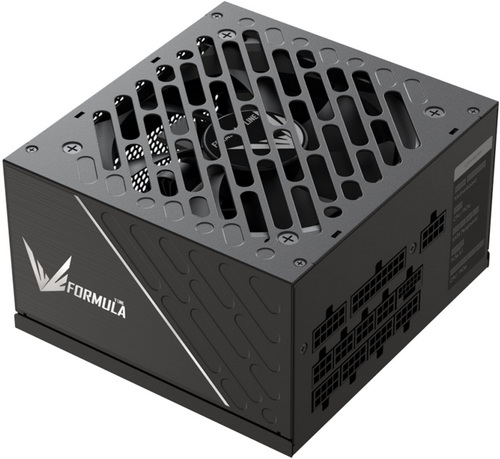

    The FV PM line of power supply units currently includes three output variants (850/1000/1200W) available in both black and white colors. The 1200W output model which I have here with me today is ATX 3.1 & PCIe 5.1 compliant and 80 PLUS Platinum certified (up to 92% efficiency) and features a single 12V-2x6 power connector, four 6+2 pin PCIe power connectors, single +12V rail (100A) capable of delivering 100% of the units’ power output (1200W) and has a total power output of no less than 1348W (peak should be up to 2700W for up to 100ms - once again however this is not something I can test). The FV-1200PM also features a half-bridge & LLC Resonant Converter with DC to DC design, active PFC, zero fan mode for its 120mm fan (starts spinning after 40% load), high-quality Japanese capacitors certified for use up to 105 degrees Celsius and a full array of electrical protections including over-current (OCP), over-voltage (OVP), under-voltage (UVP), short-circuit (SCP), over-temperature (OTP), surge and in-rush (SIP), no-load operation (NLO) and over-power (OPP). As for warranty Formula V Line covers the entire FV PM line of PSUs with a 10-year limited one.
