THE MEGA GM 1000W EXTERIOR

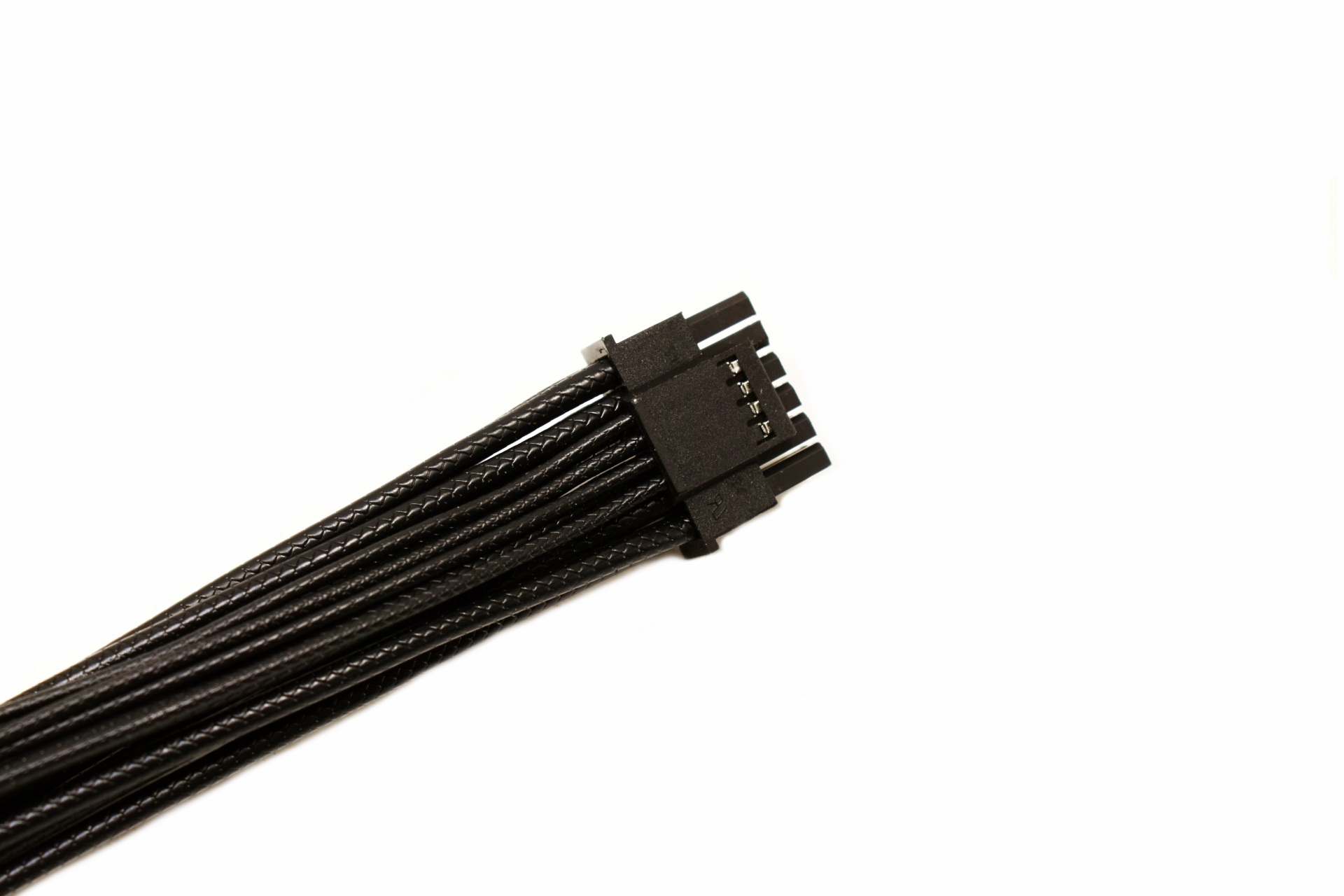

All modular power cables in the bundle feature individually sleeved cables, 12V-2x6 included.

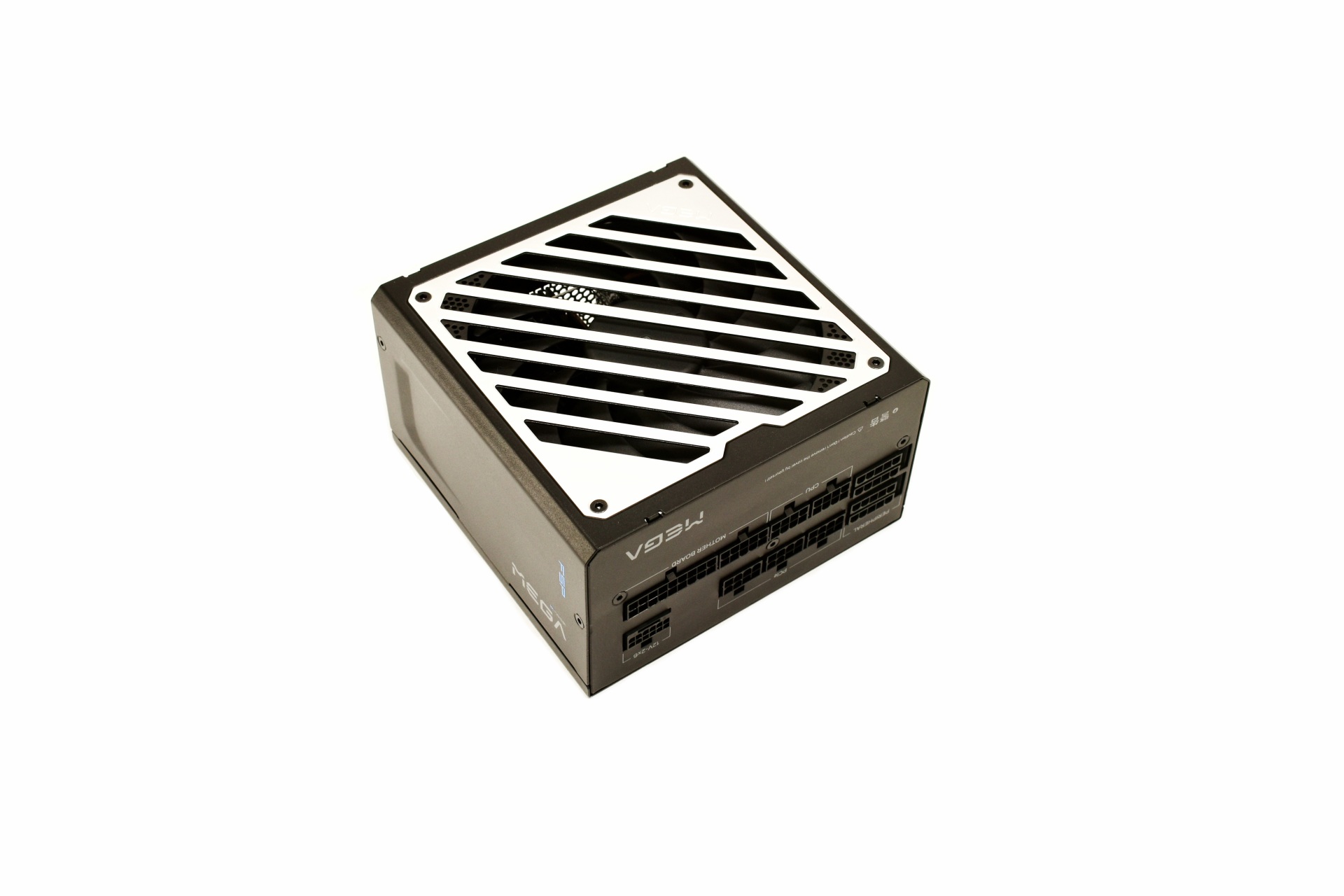

Measuring just 150mm in length, 150mm in width and 86mm in height the MEGA GM 1000W is a rather compact model (always for its output).

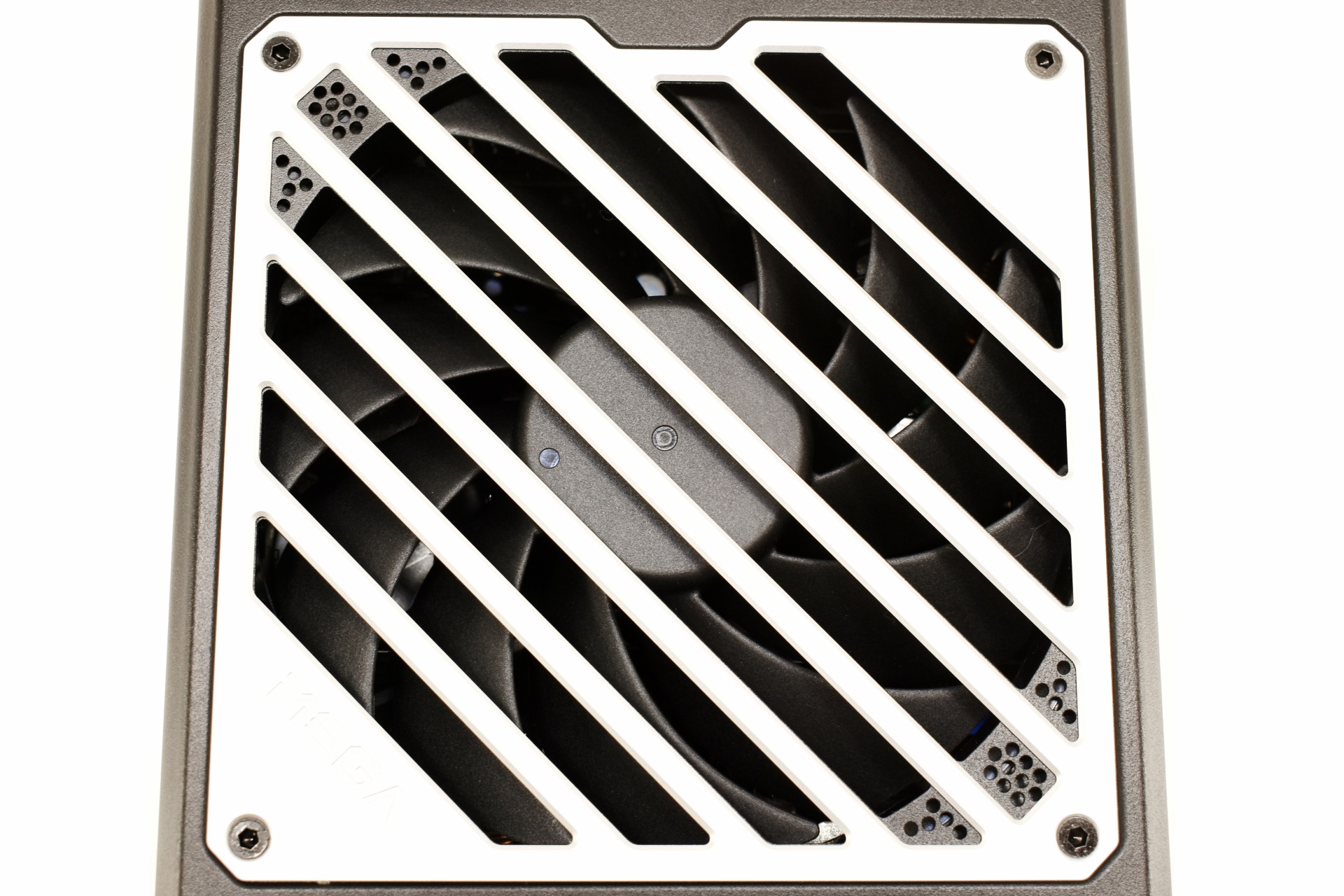

The 135mm FDB (fluid dynamic bearing) fan sits under a silver grille.

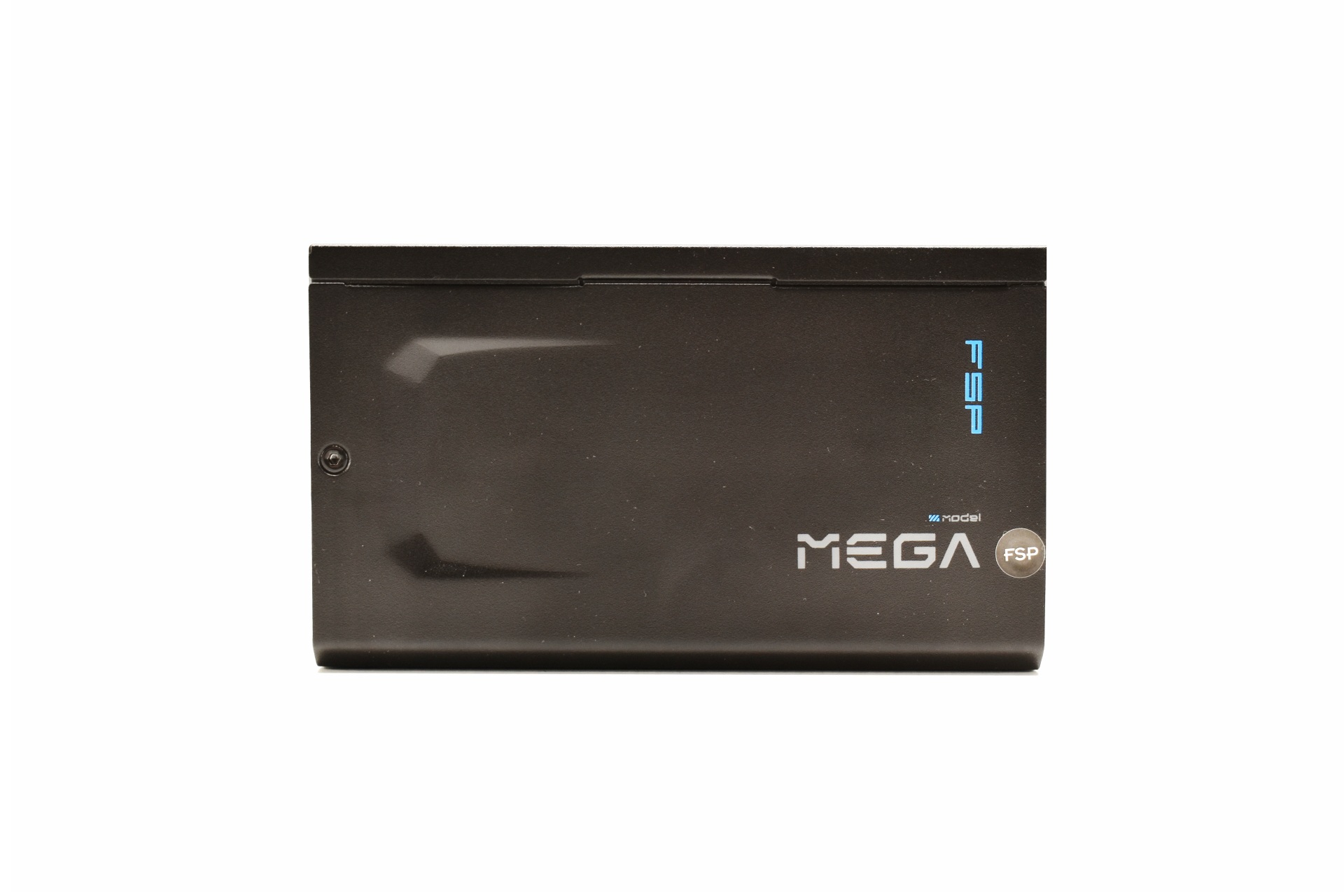

Typically, the model name and brand logo are printed on both sides.

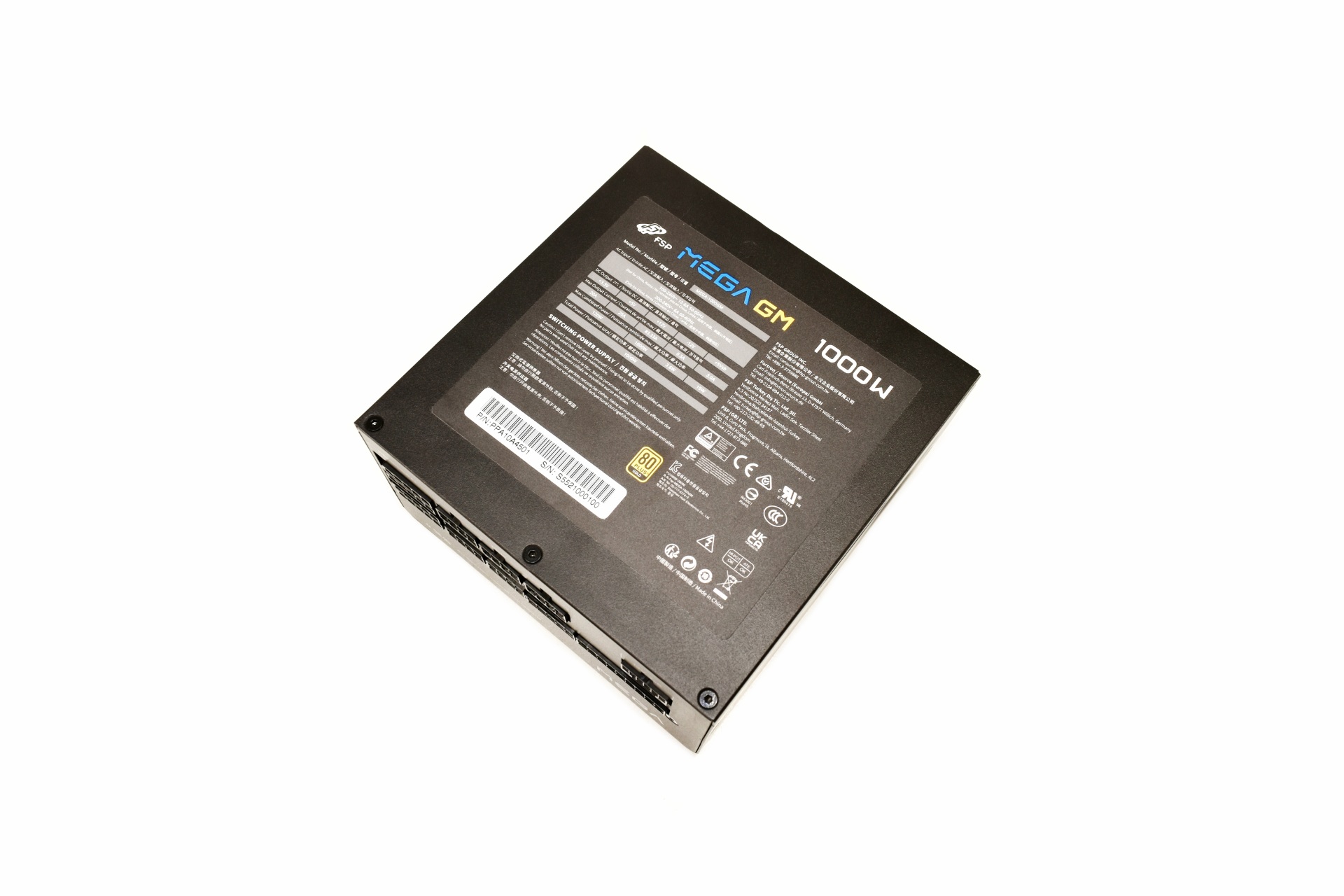

As usual the electrical table is printed on a large sticker located at the belly of the enclosure.

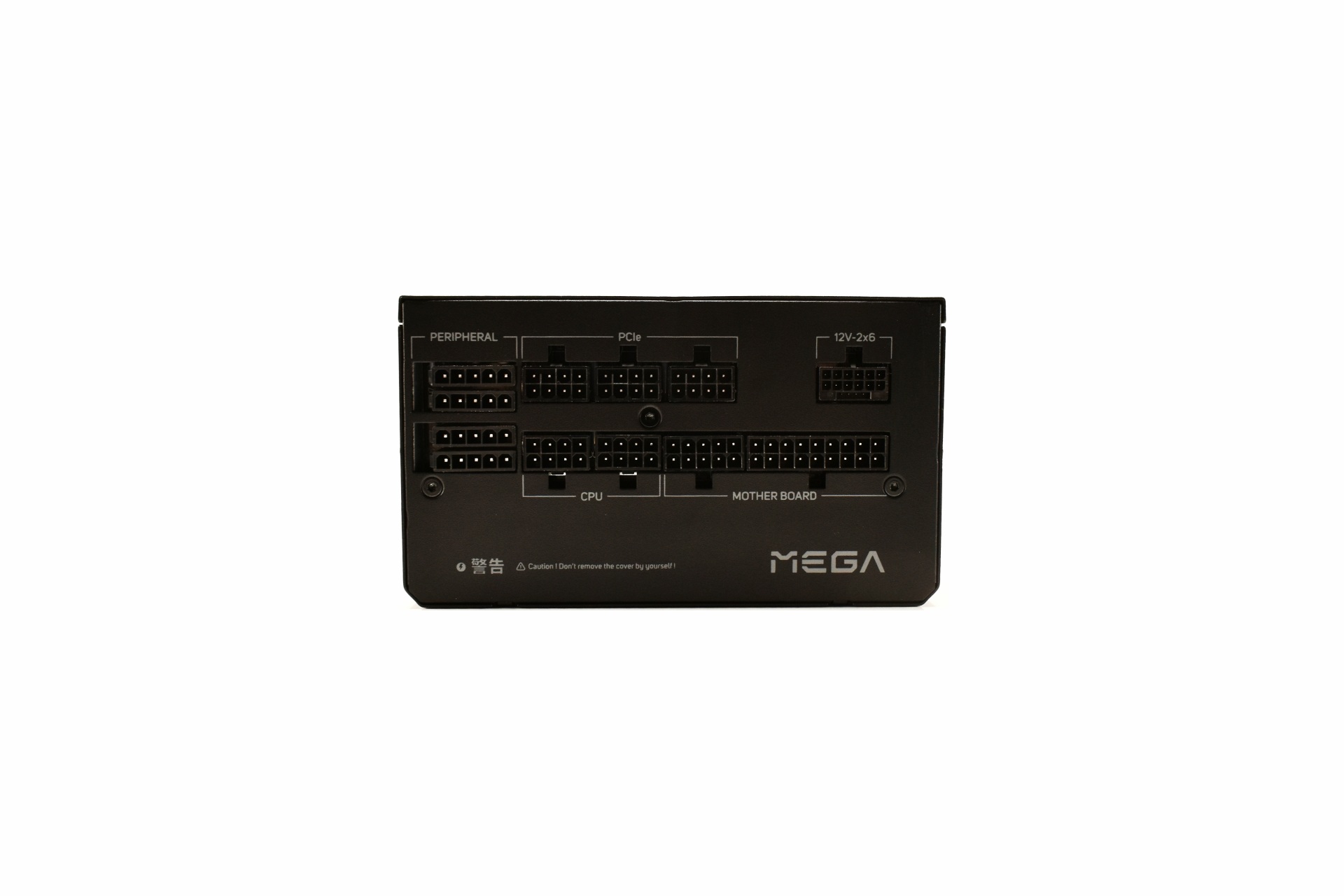

All 12 power connectors/ports at the front of the unit are different in shape and tagged.

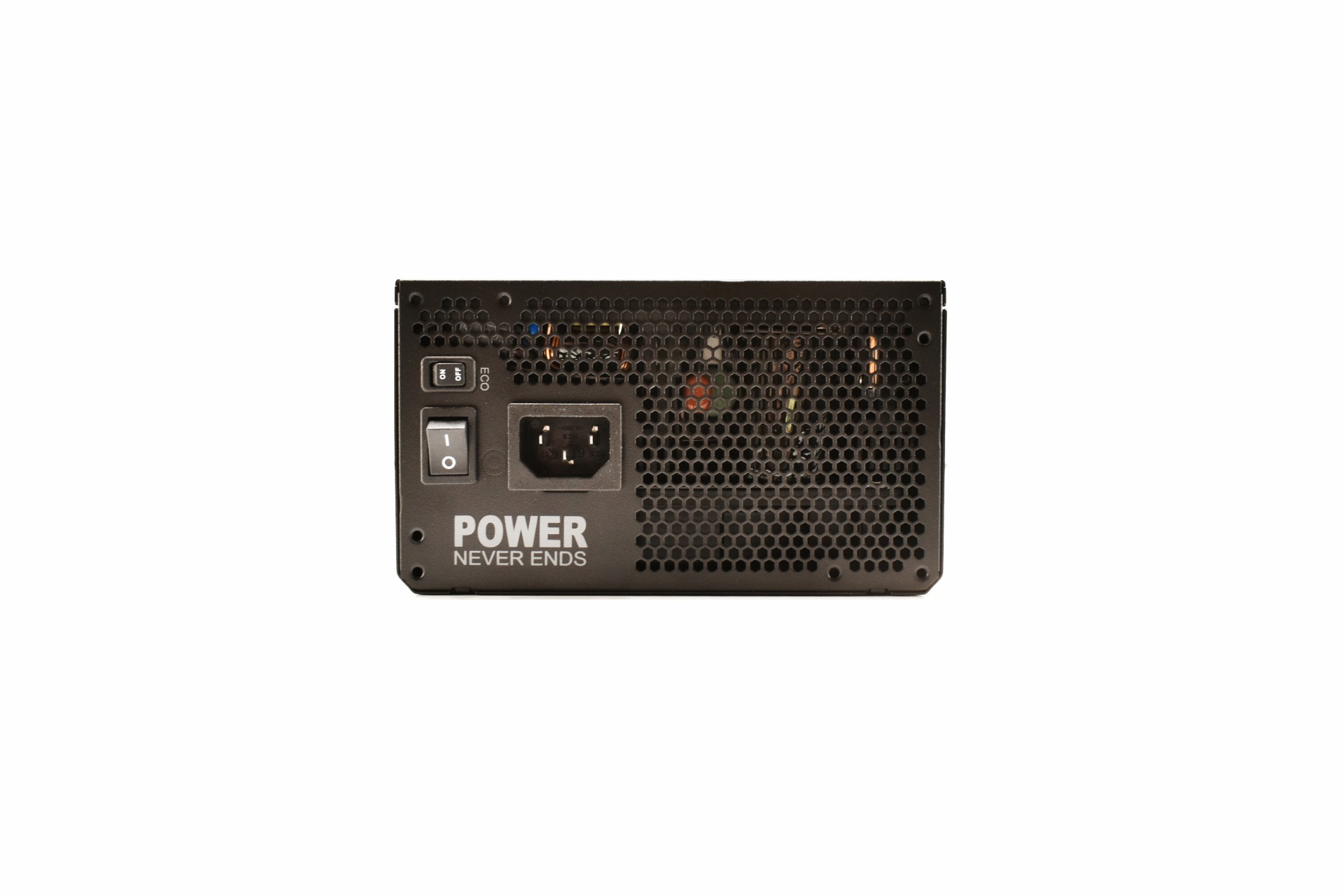

At the rear we find the eco semi-fanless mode on/off switch, power on/off switch and the power port.
