THE CORE REACTOR 750W INTERIOR

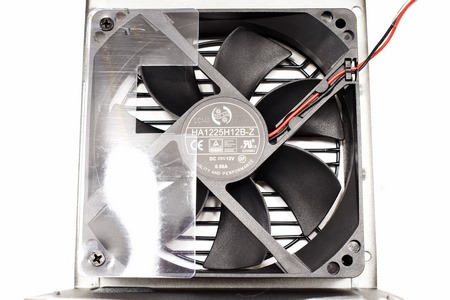

The 120mm fan XPG has chosen to use is manufactured by Hong Hua Electronics and can reach speeds of up to 2200RPM to produce airflow levels of up to 73.9CFM with up to 32.4dBA of noise.

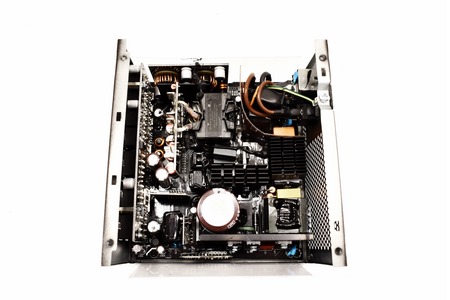

Judging by the OEM markings this is clearly an CWT (Channel Well Technologies) unit.

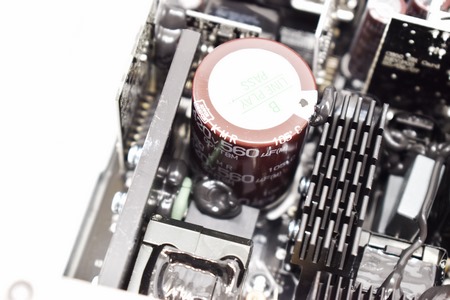

Primary capacitor is manufactured by Nippon Chemi-Con and is rated for use up to 105 degrees Celsius (420V/560uF).

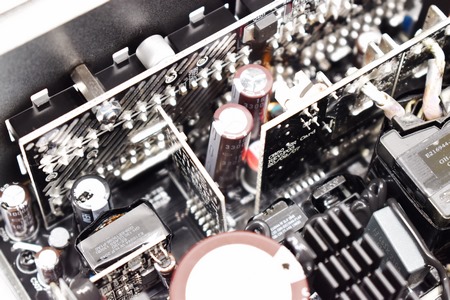

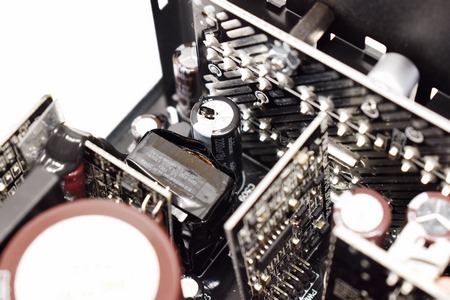

Secondary capacitors are by Nippon Chemi-Con and Nichicon (also rated for use up to 105 degrees Celsius).
