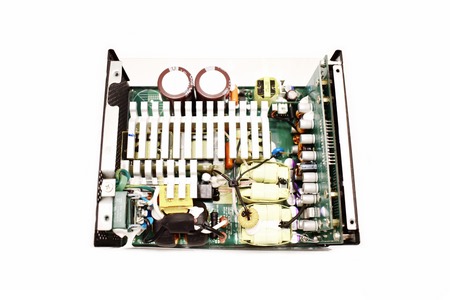

THE ST1100-TI INTERIOR

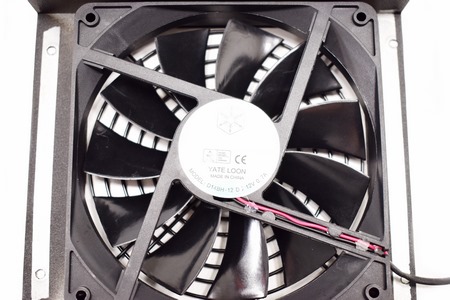

According to Yate Loon Electronics the 135mm fan used can reach speeds of up to 2800RPM to produce up to 140CFM of airflow with 48.5dBA of noise.

After digging around with OEM codes this unit seems to be manufactured by Enhance Electronics.

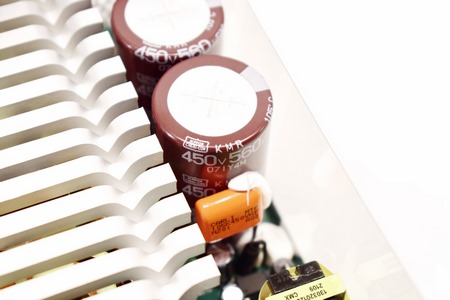

Both primary capacitors are by the Japanese Nippon Chemi-Con and are certified for up to 105 degrees Celsius use (560uF each, 1120uF total).

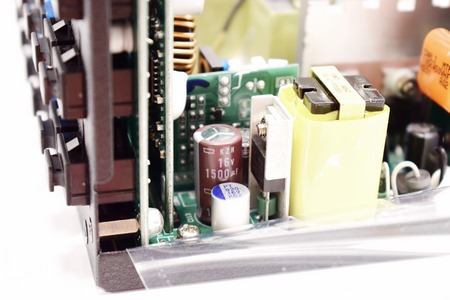

Secondary capacitors are also manufactured by Nippon Chemi-Con and are also rated for use up to 105 degrees Celsius.
