THE ION+ 2 860W INTERIOR

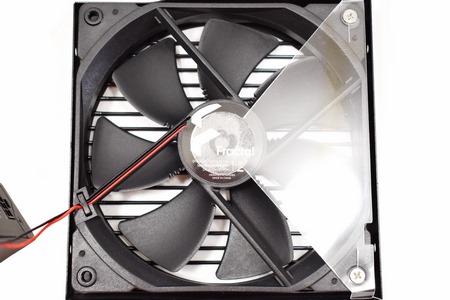

The 140mm fluid-dynamic bearing fan used with the ION+ 2 860W can hit speeds of up to 2000RPM.

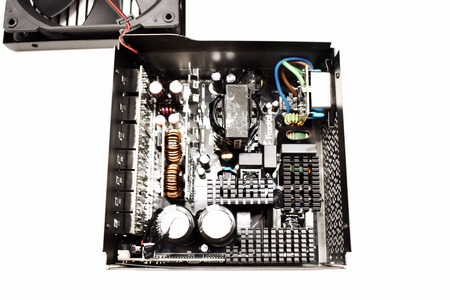

Once again High Power seems to be the OEM manufacturer behind this model (both the exterior and interior of the ION+ 2 860W seems to be almost identical with the ION+ 860P model) and so quality is at near excellent levels.

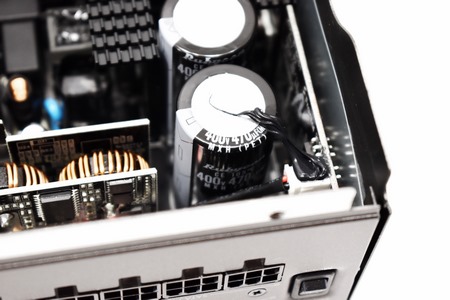

Inside the sample I have here the primary capacitors are manufactured by Rubycon and are certified for use up to 105 degrees Celsius.

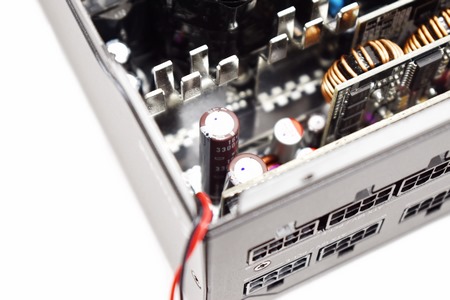

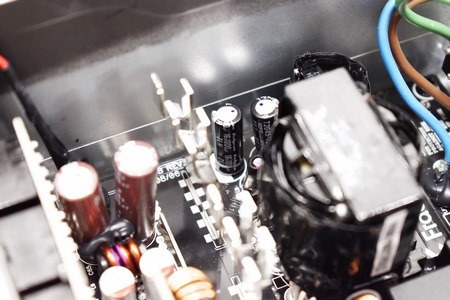

Secondary capacitors are once again manufactured by Rubycon and United Chemi-Con and are also certified for use up to 105 degrees Celsius.
