THE TOR PRO EXTERIOR

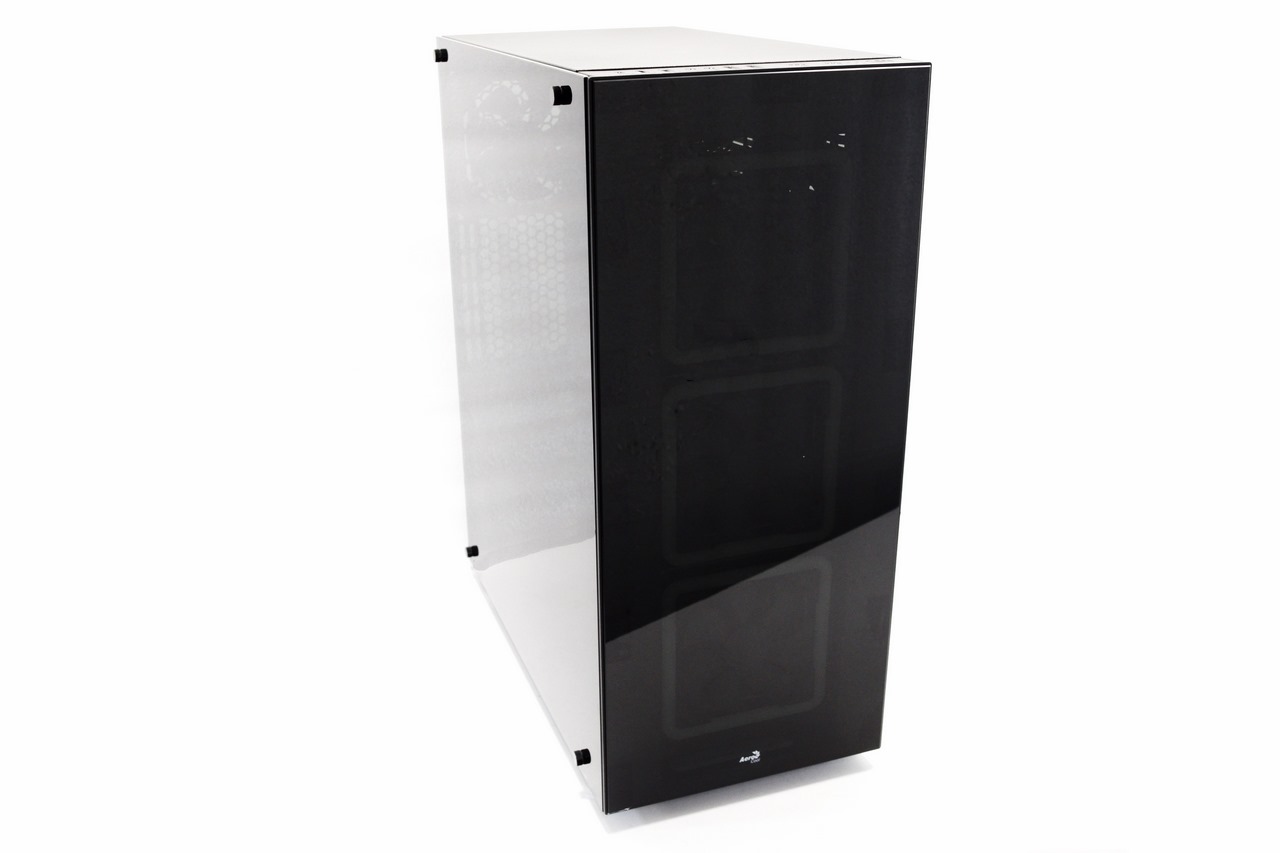

The 566mm tall, 473mm long and 249.5mm wide Tor Pro RGB may not be the largest full tower to ever pass from our lab but it's still larger than any mid-tower that comes to mind.

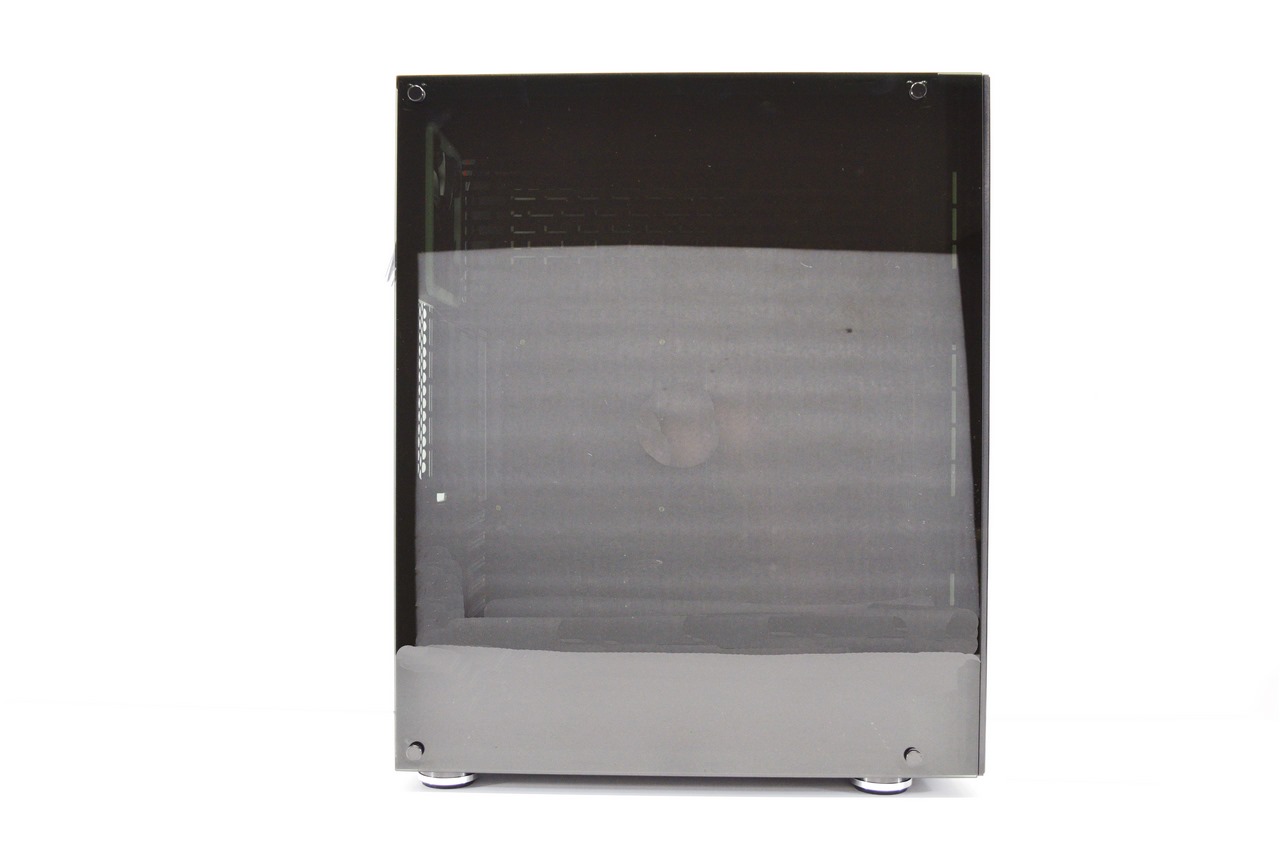

Moving on the left side we find a large tempered glass panel held in place via 4 thumbscrews (however these are short screws so pay extra attention when removing them so you don't drop the panel by mistake).

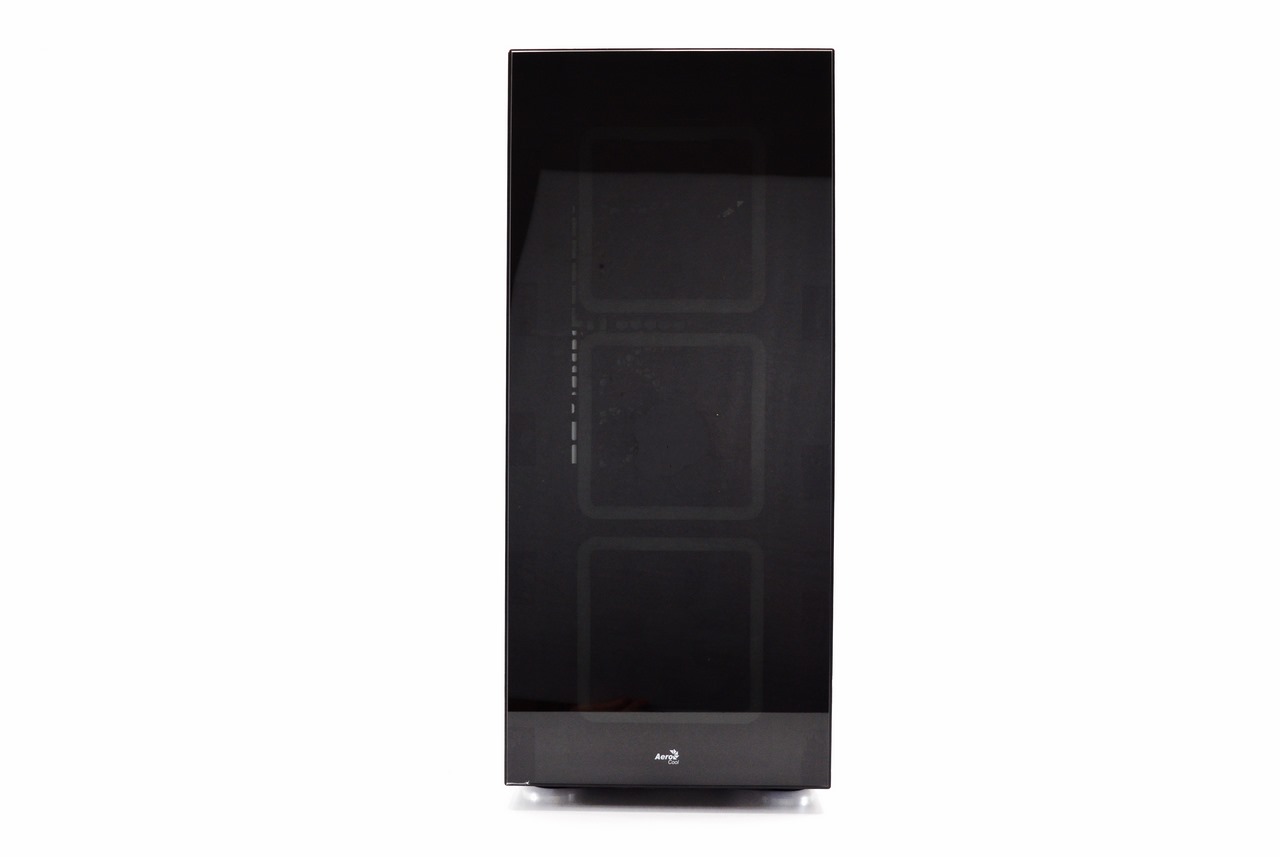

Aerocool has also used a tempered glass panel for the fascia which looks great largely thanks to the three visible 140mm fans.

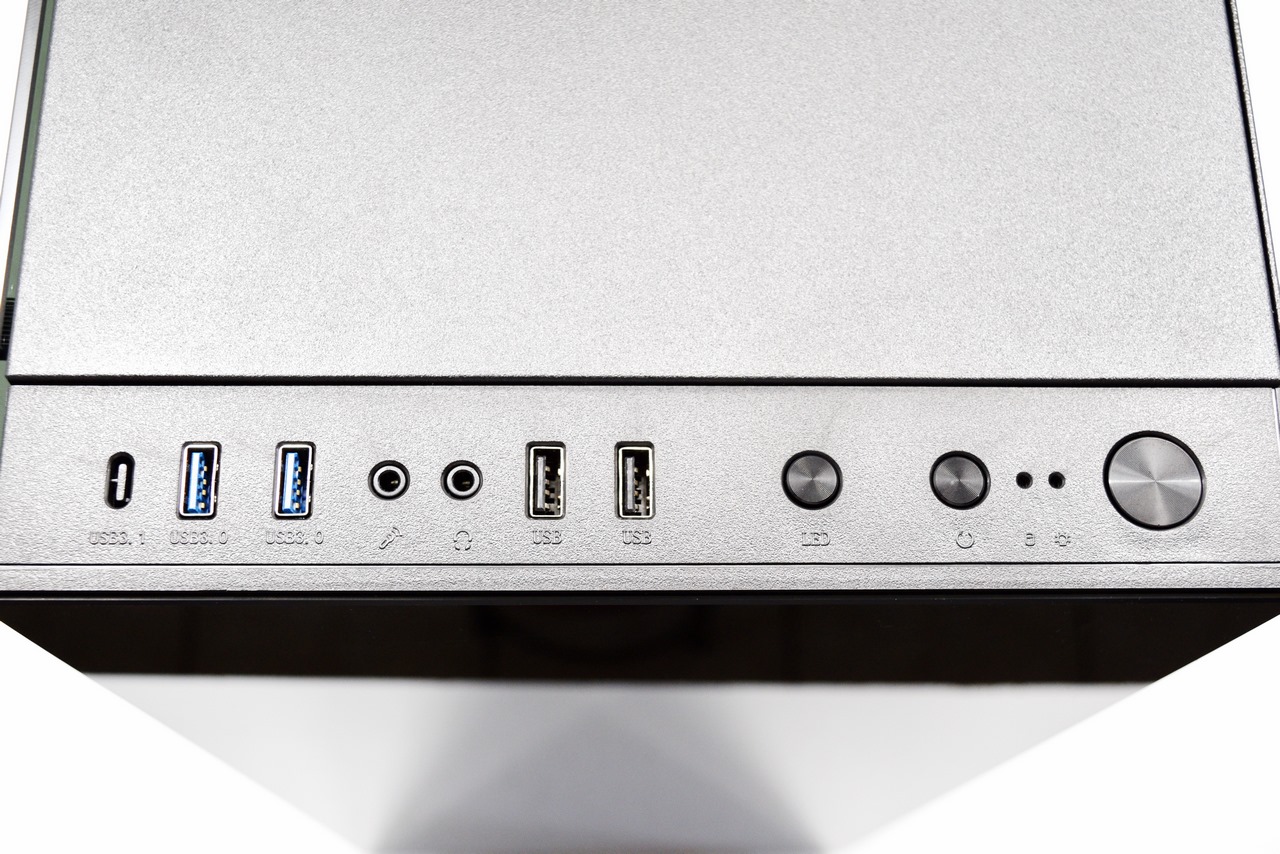

The I/O is located at the top of the fascia and here we find a USB 3.1 Type-C port, 2 USB 3.0 ports, microphone and headphones 3.5mm ports, 2 USB 2.0 ports, LED button, reset button, activity LEDs and the power on/off button.

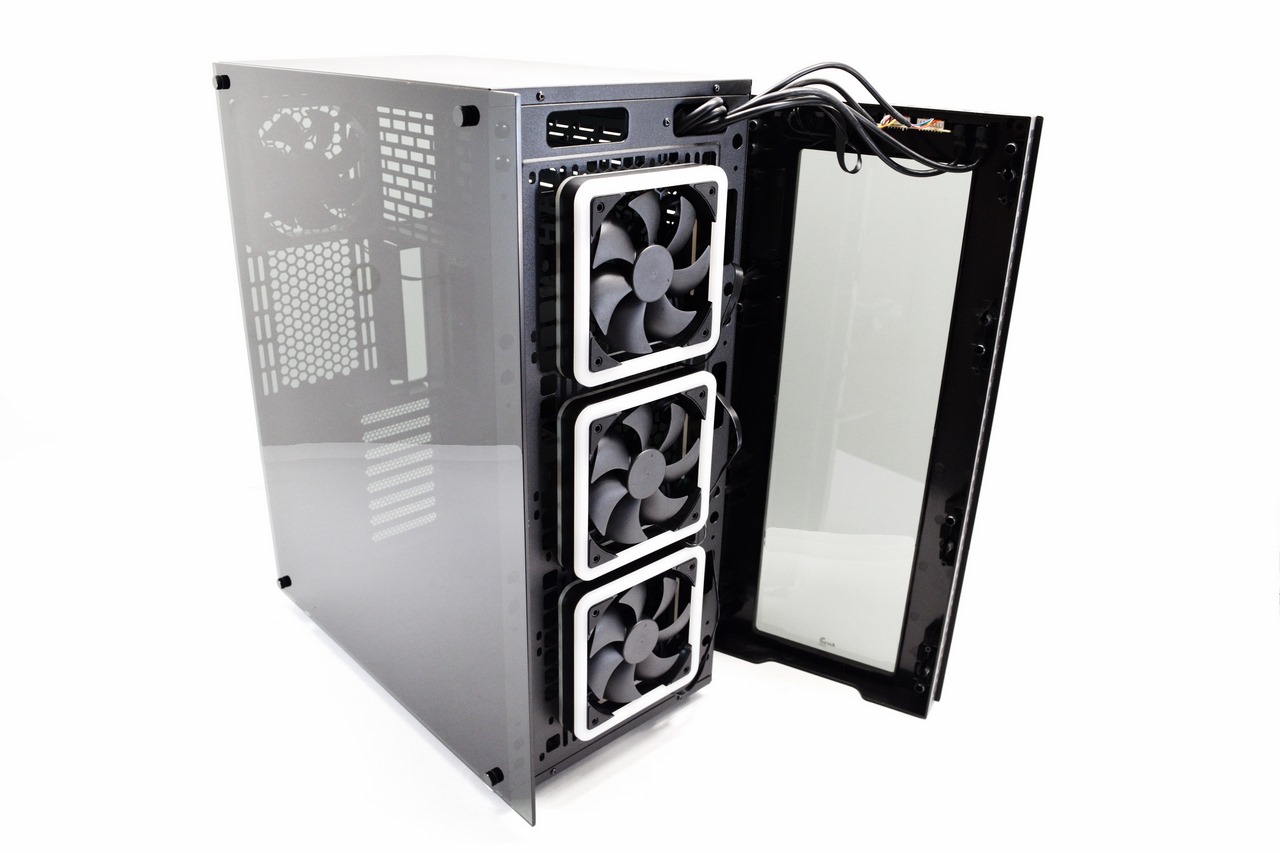

You can remove the fascia to access the 140mm fans just by pulling it from the hole located at its base.

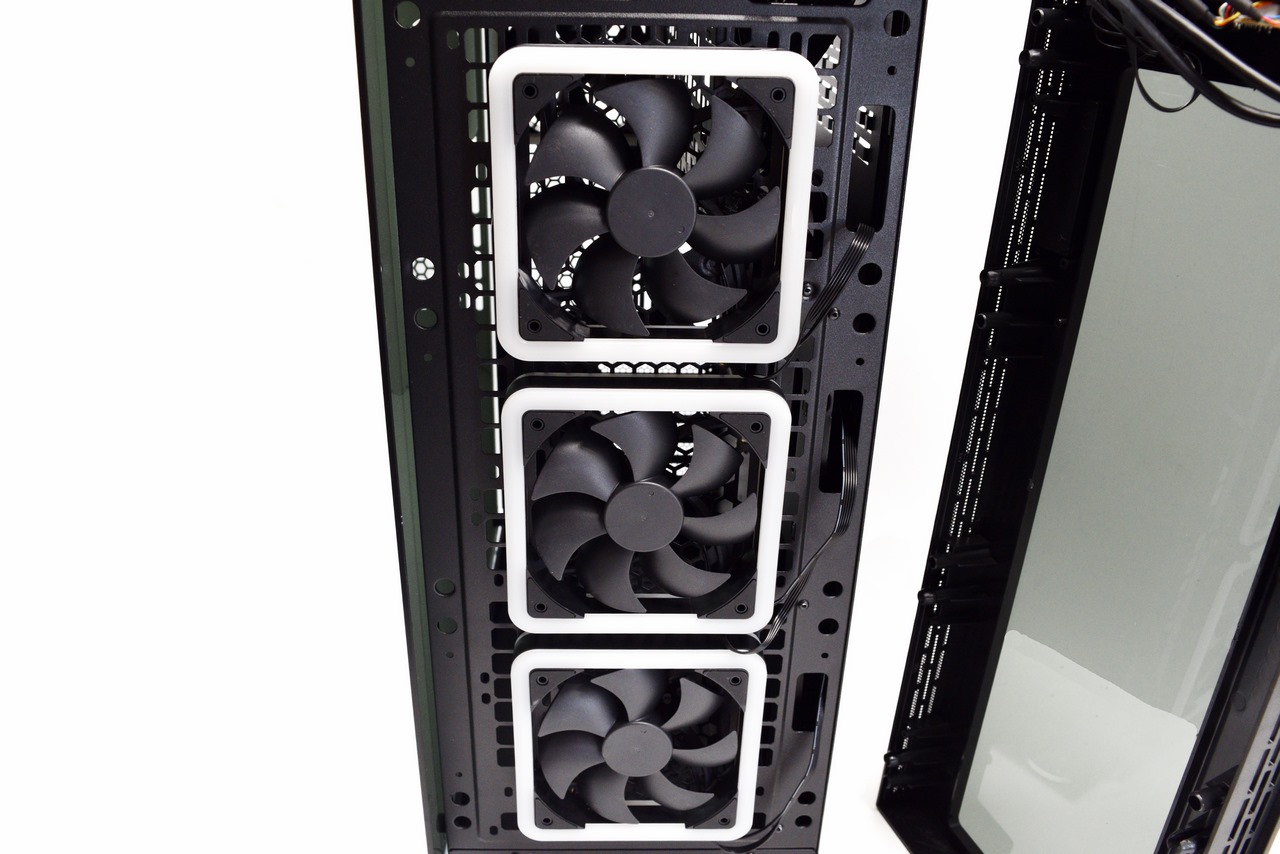

These three 140mm Edge RGB addressable fans can be replaced with four 120mm fans and can be paired with a 240/280/360/480mm radiator.

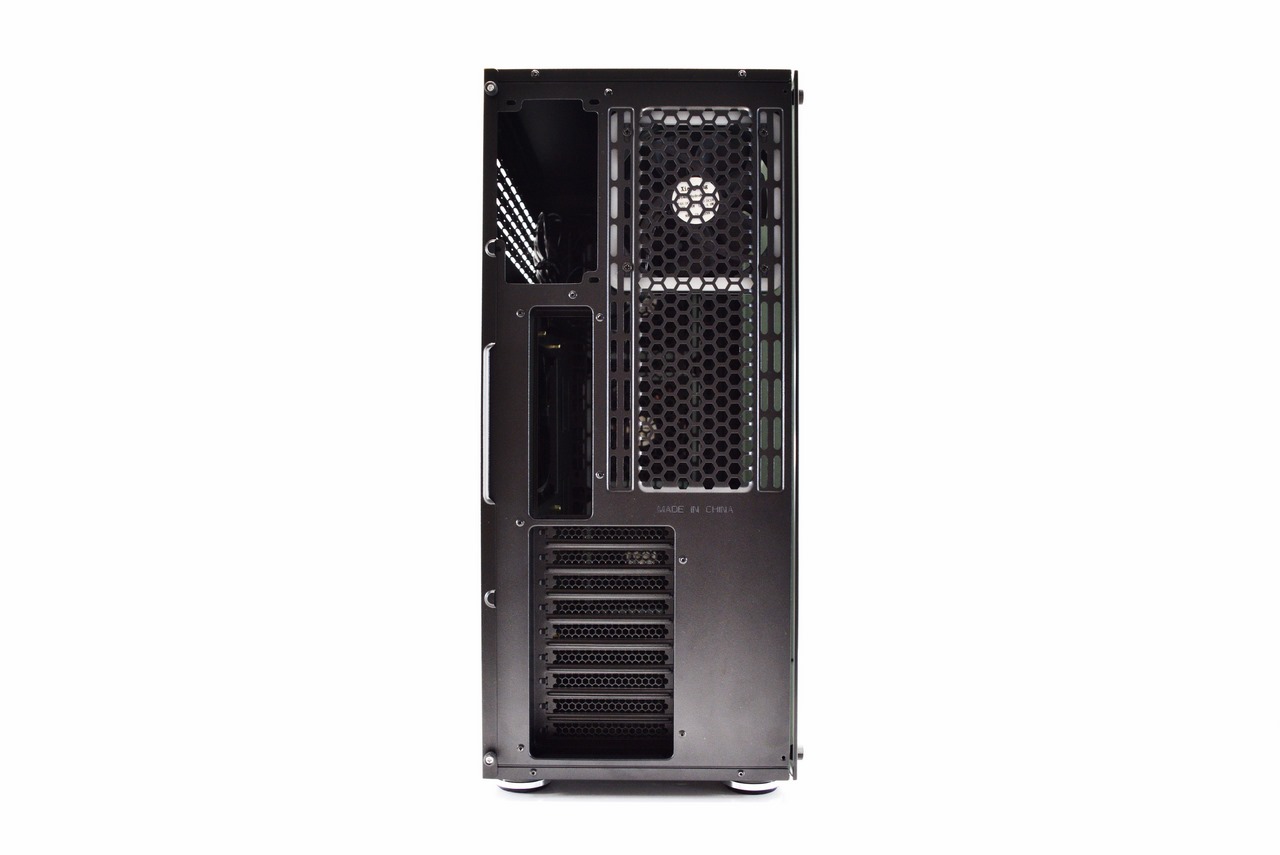

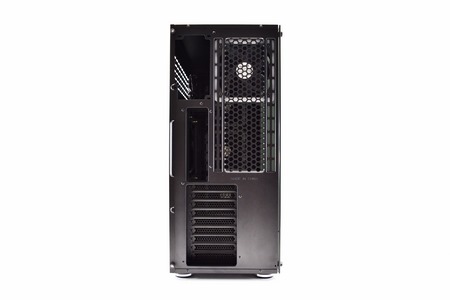

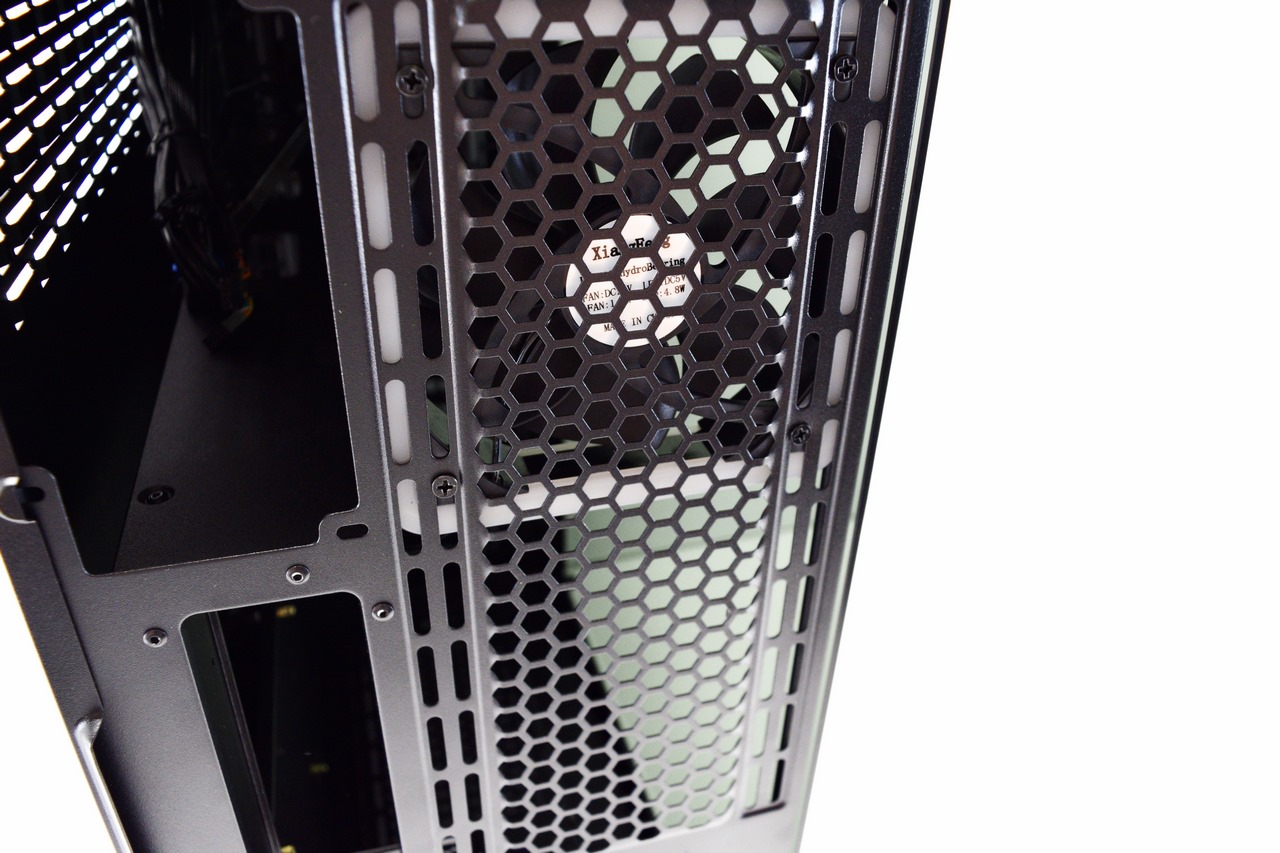

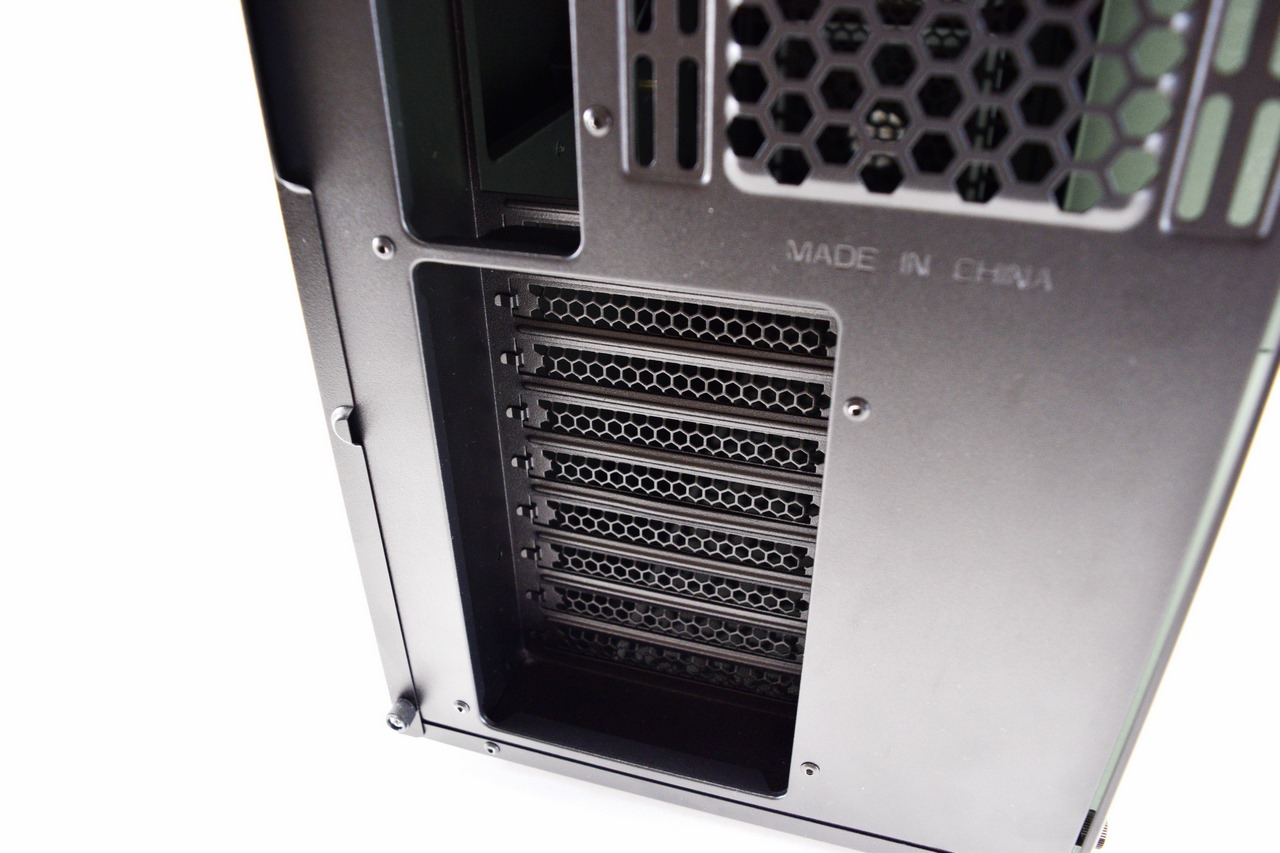

Moving at the rear of the Tor Pro we find yet another 140mm Edge RGB fan, enough room for even a 240/280mm radiator, the PSU area (located at the top) and the 9 PCI expansion slots.

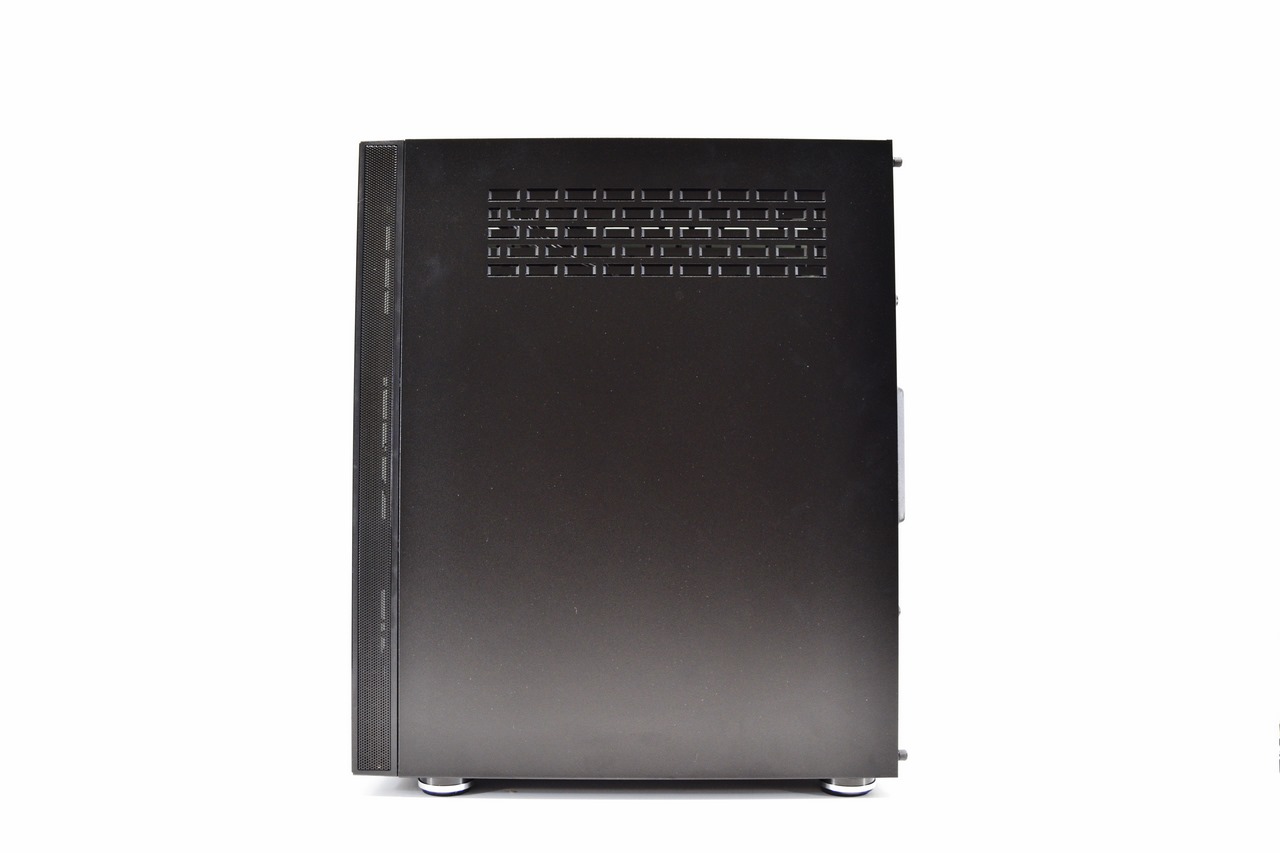

The right side panel has a perforated area at the top which unfortunately doesn't feature an air-filter.

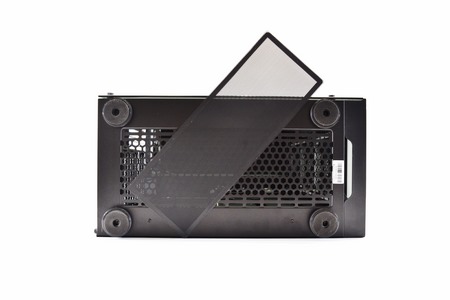

A large magnetic air-filter on the other hand is located at the base of the tower.
