THE GT-A BLACK EDITION EXTERIOR

















aerocool gt a black 07t

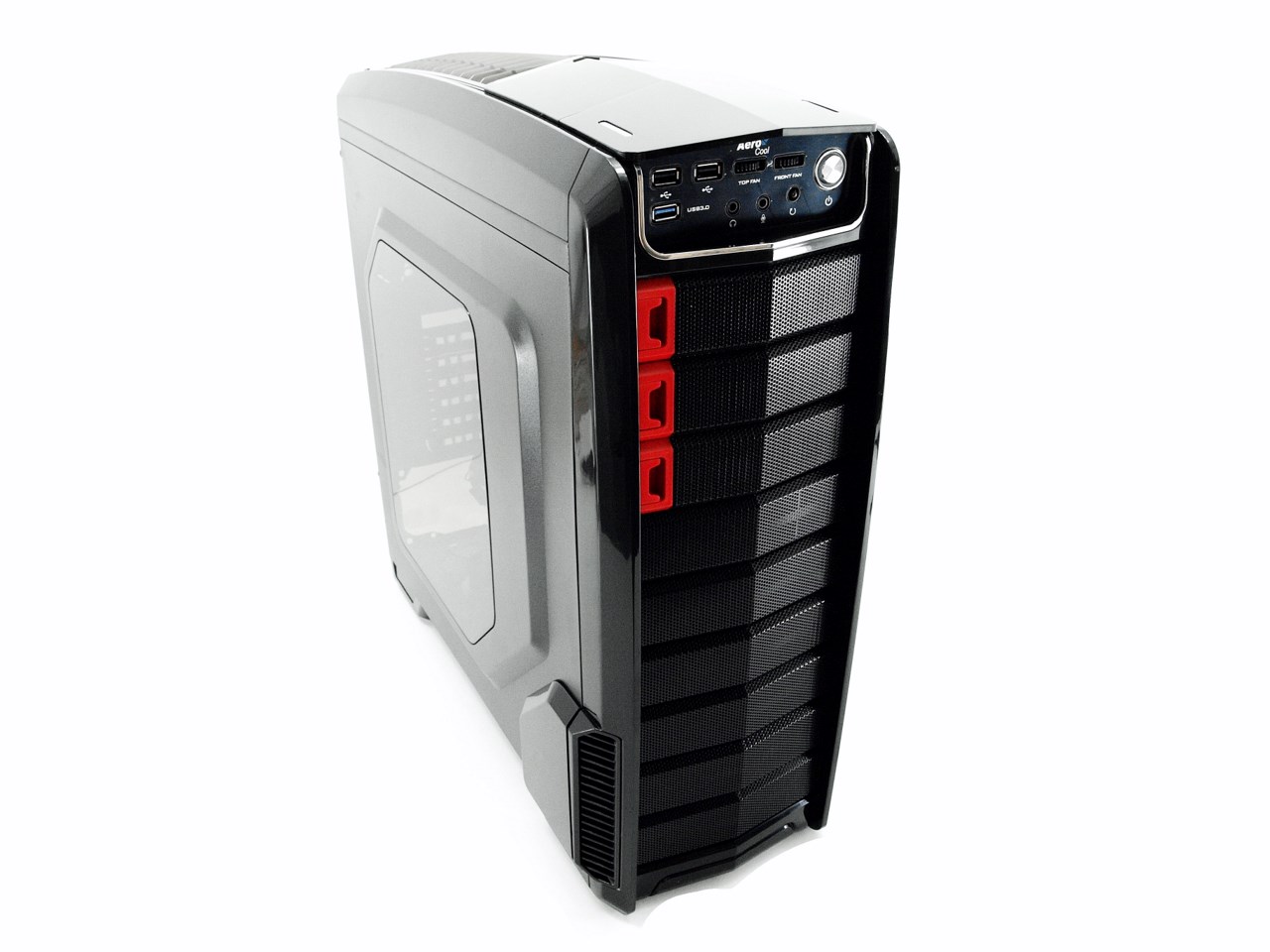

It may not be as good looking as the Xpredator X3 Devil Red Edition (at least for me) but the GT-A Black Edition still looks great thanks to the smooth corners and glossy/polished plastic used.





aerocool gt a black 08t

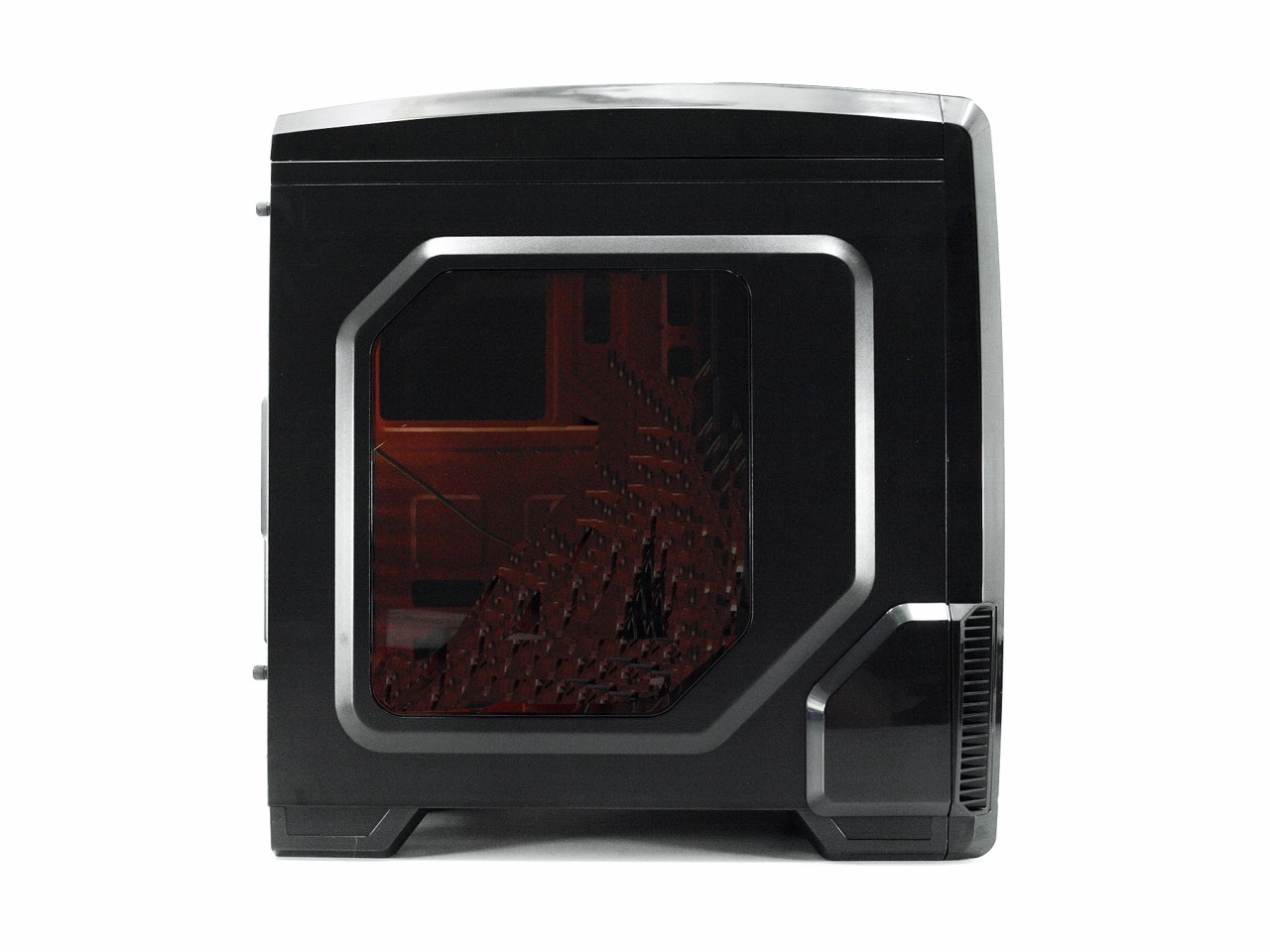

The right side panel has a large clear plastic window and extends outwards to allow use of tall CPU Coolers.





aerocool gt a black 09t

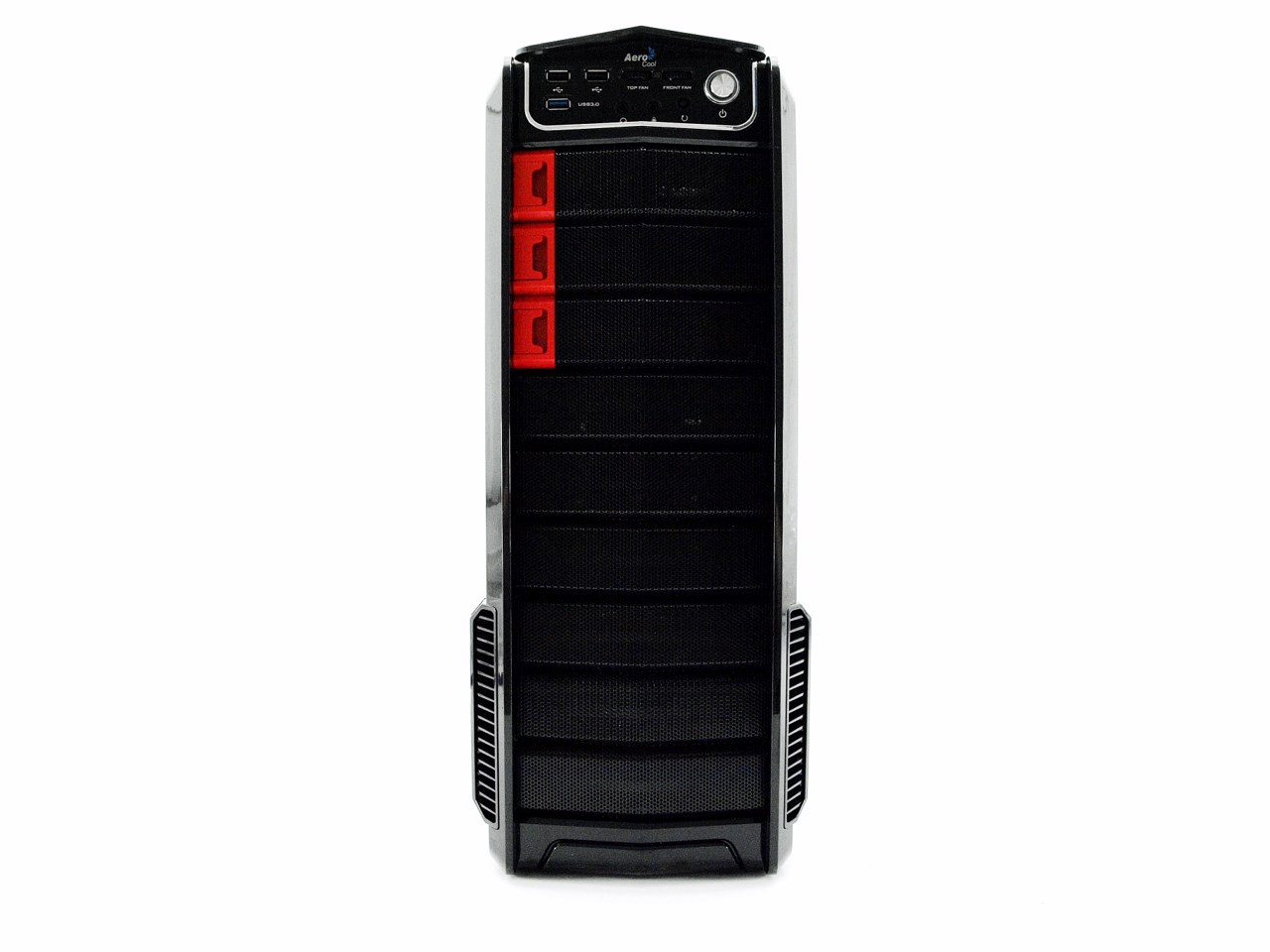

Most of the front fascia is perforated to allow air to enter (there are also two intakes on the lower end).





aerocool gt a black 10t

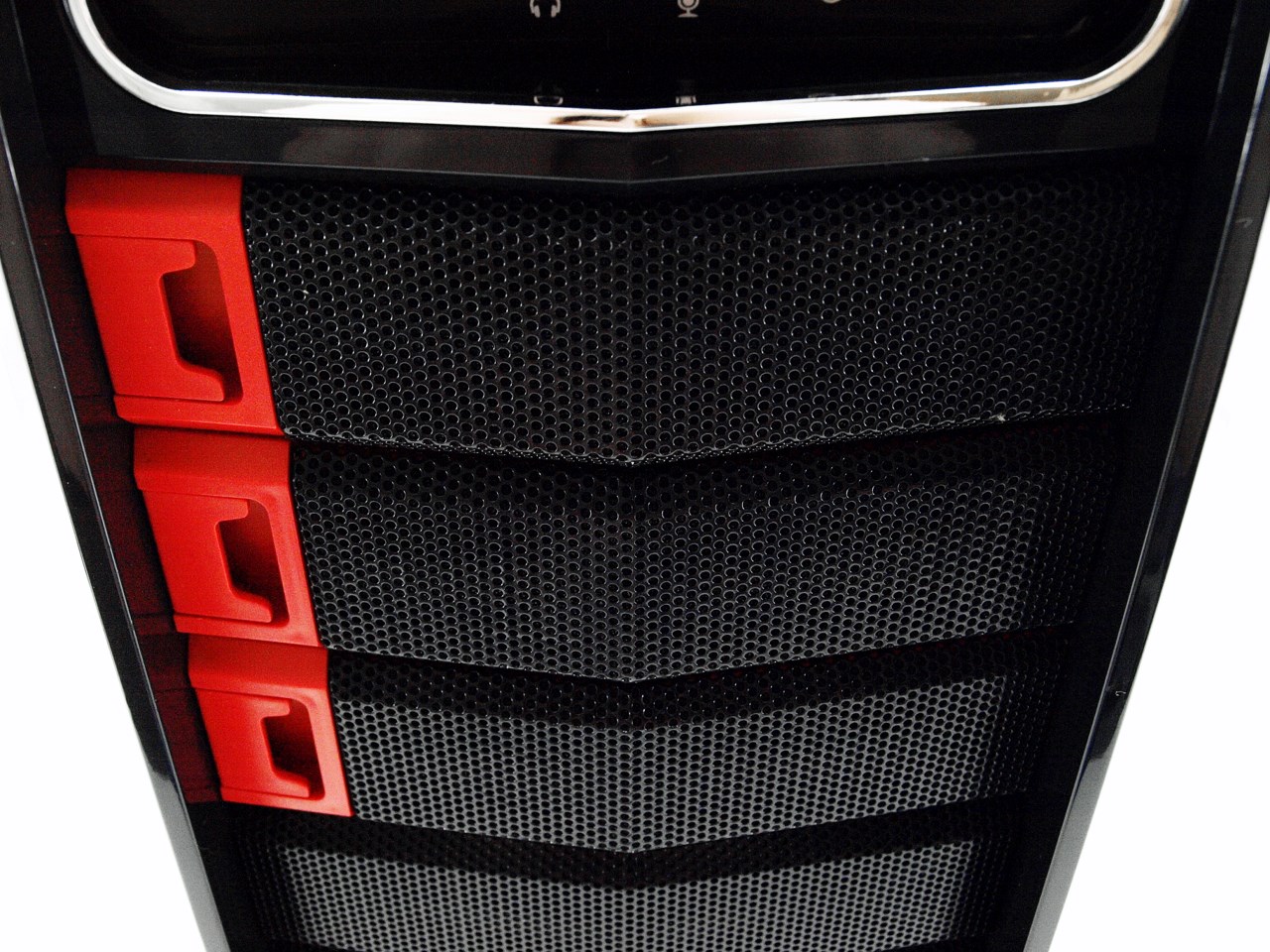

All three optical drive bays feature clip-on bay covers are extremely easy to remove and clean.





aerocool gt a black 11taerocool gt a black 12t

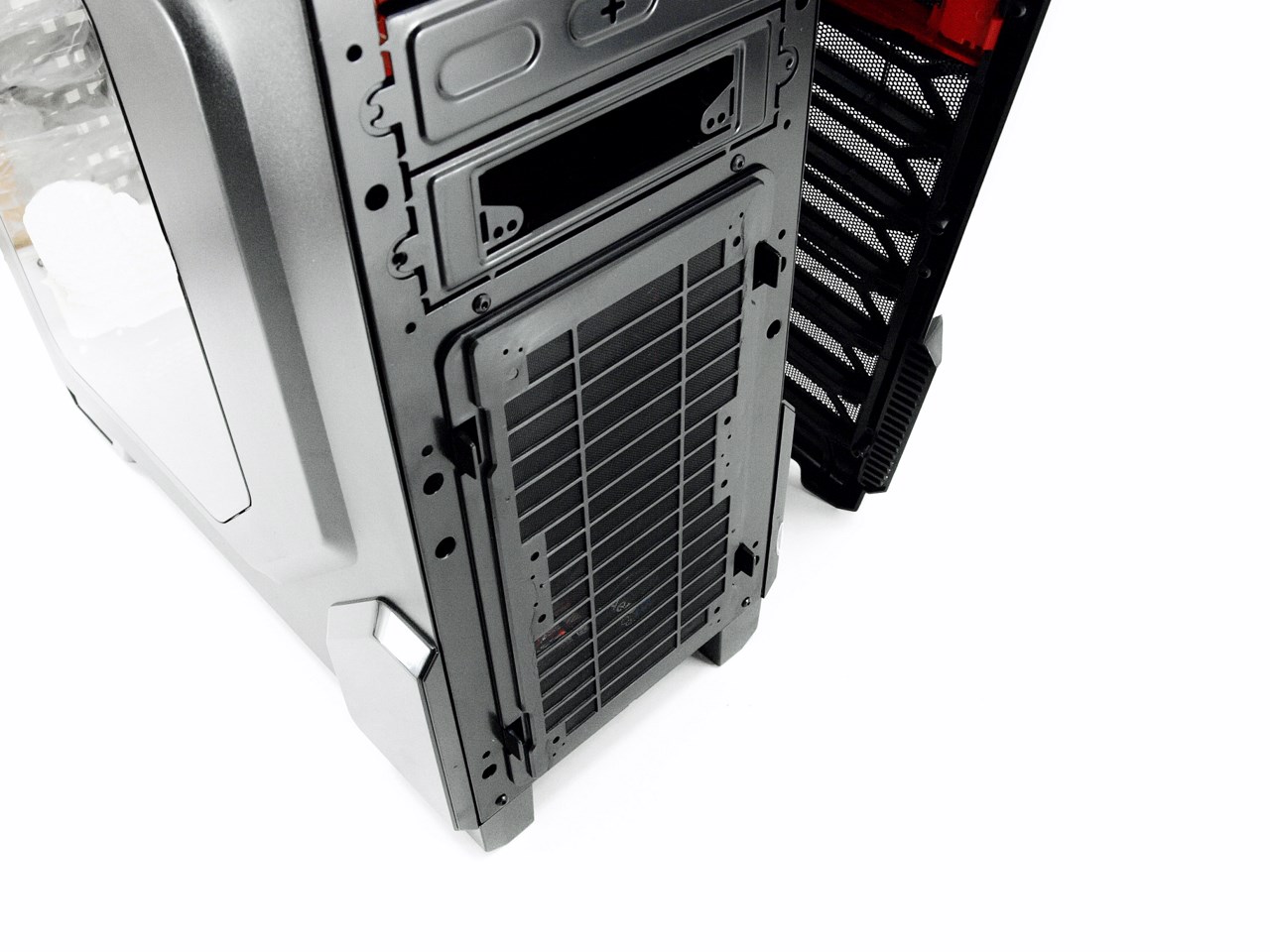

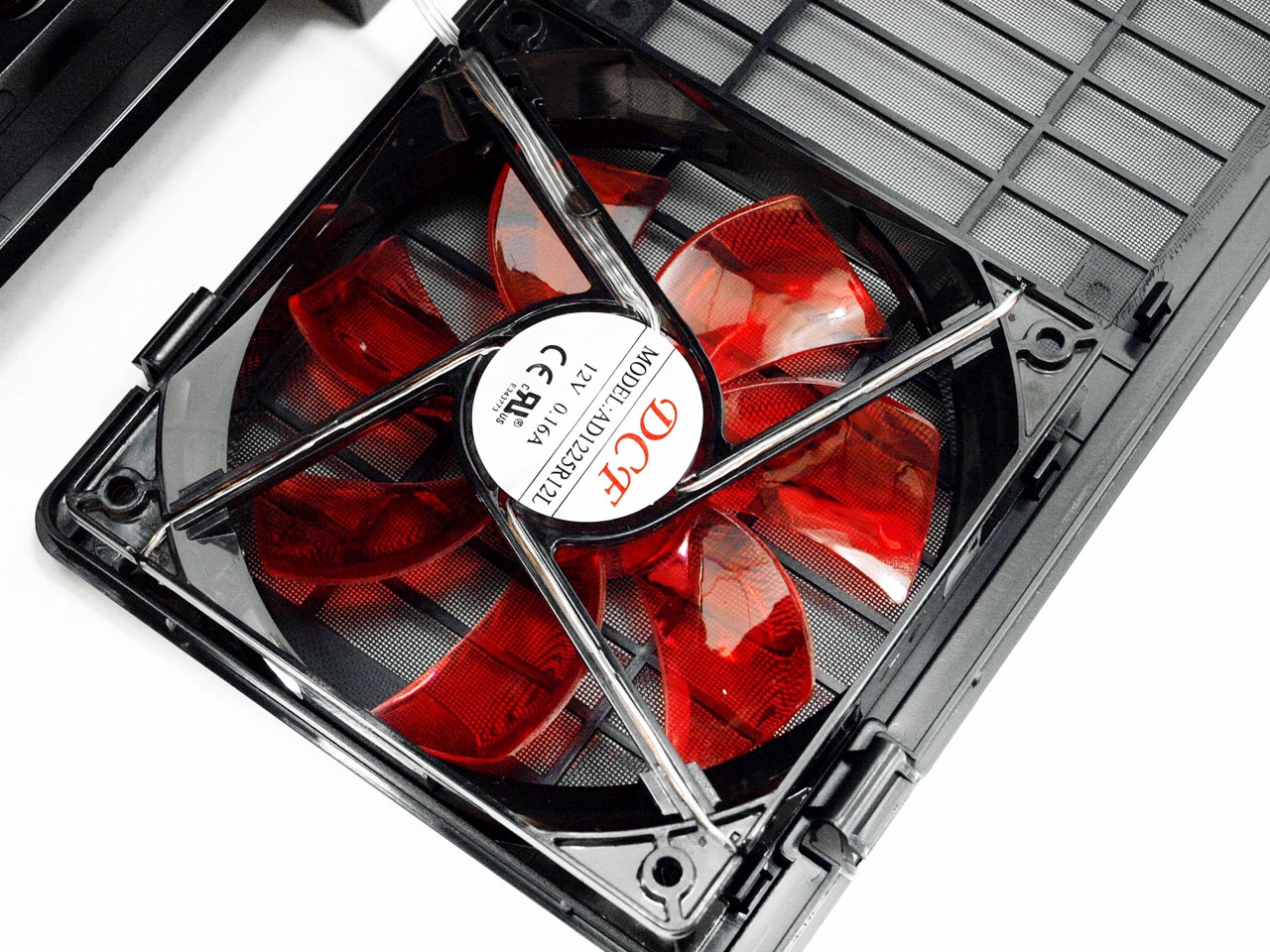

The fascia can be removed to reveal a dust-filter which has a 120mm LED fan on the interior.





aerocool gt a black 13t

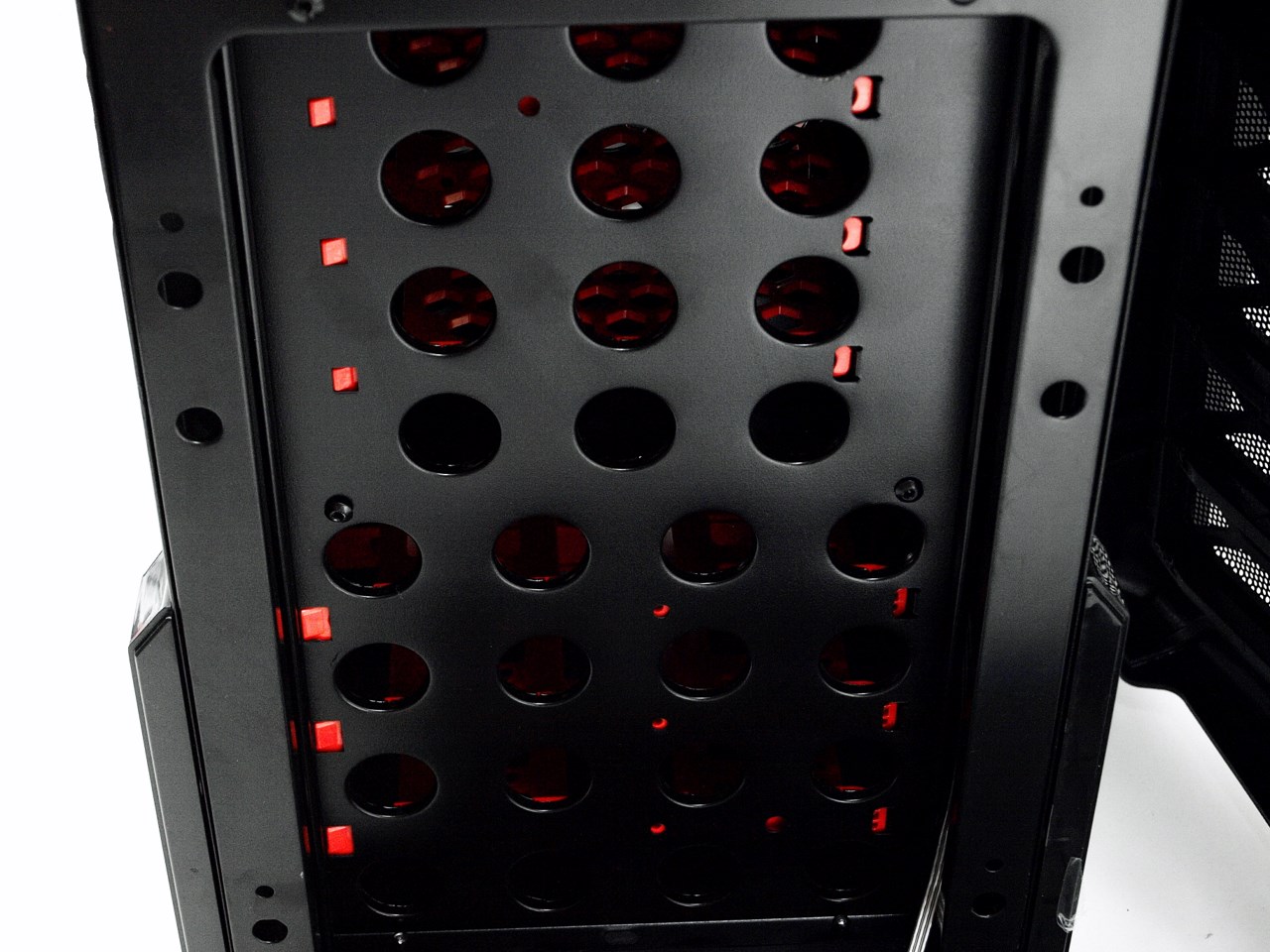

Unfortunately you can't mount a 240mm radiator at the front but you can mount a 2nd 120mm fan on the filter.





aerocool gt a black 14t

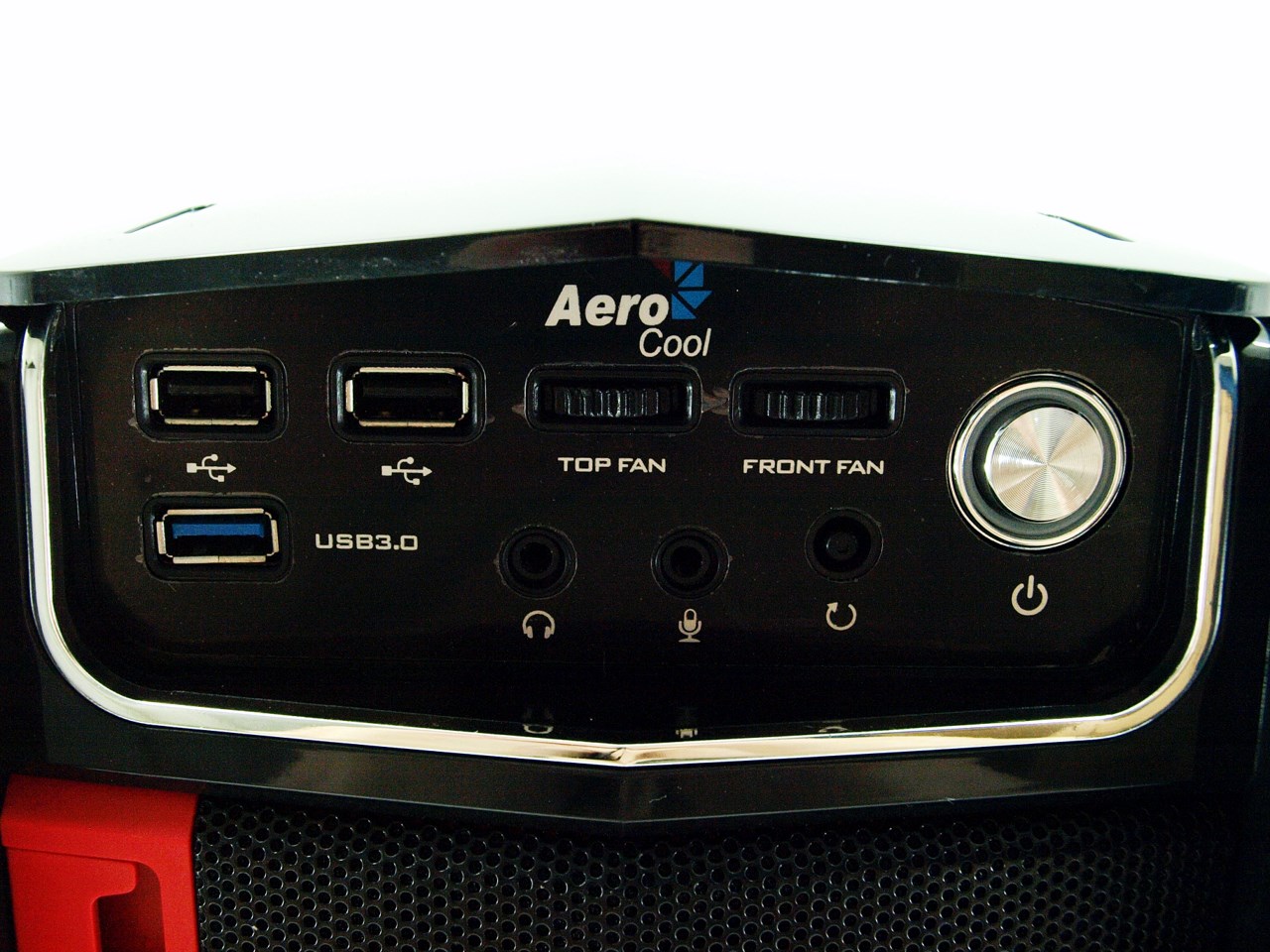

The I/O is located at the top and includes the power and HDD activity LEDs, two fan controller knobs, two USB 2.0 ports, USB 3.0 port, on/off power switch, reset switch and the typical microphone and headset mini jacks.





aerocool gt a black 15t

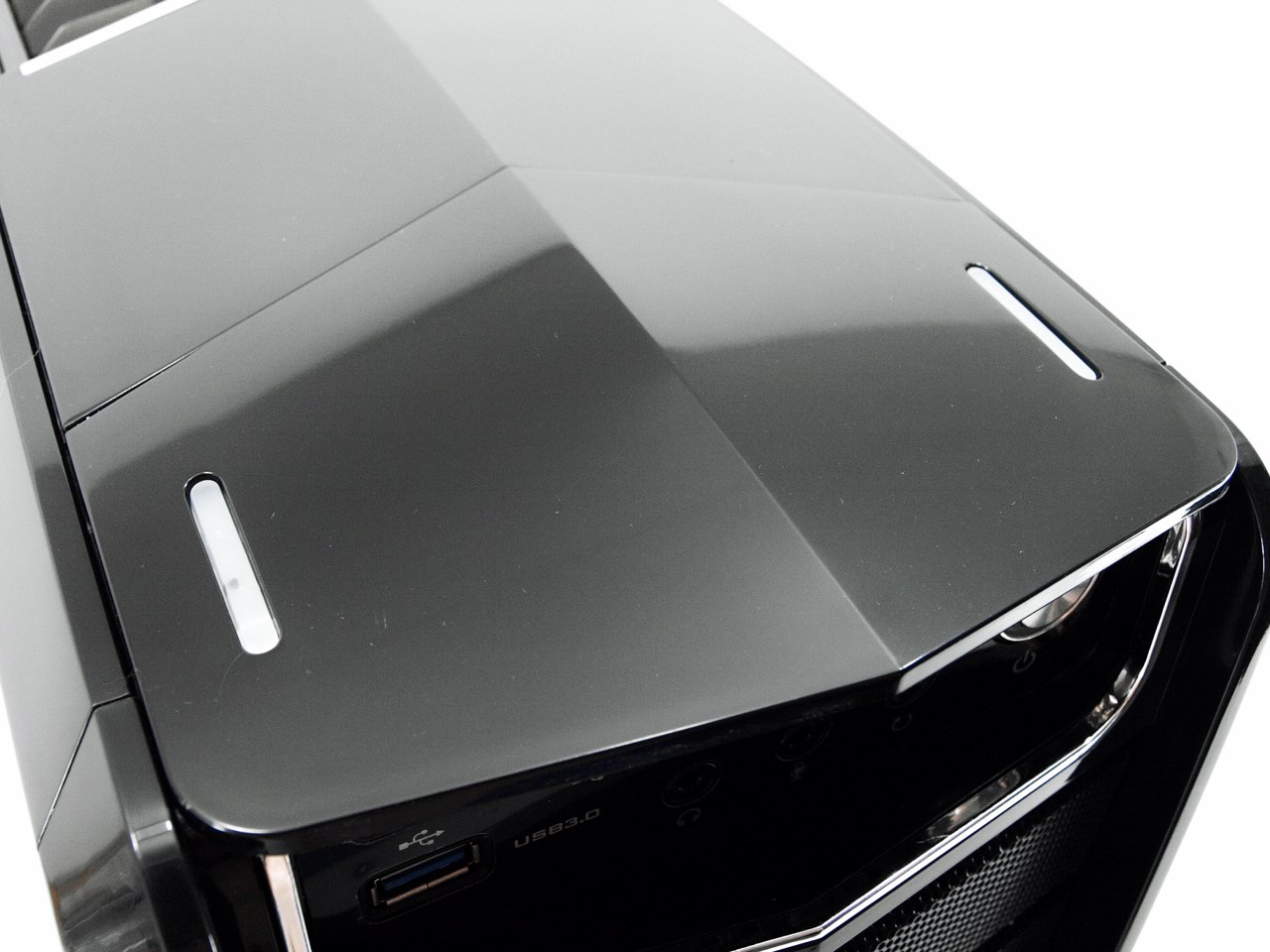

Two LEDs are placed at the top of the case above the I/O.





aerocool gt a black 16taerocool gt a black 17t

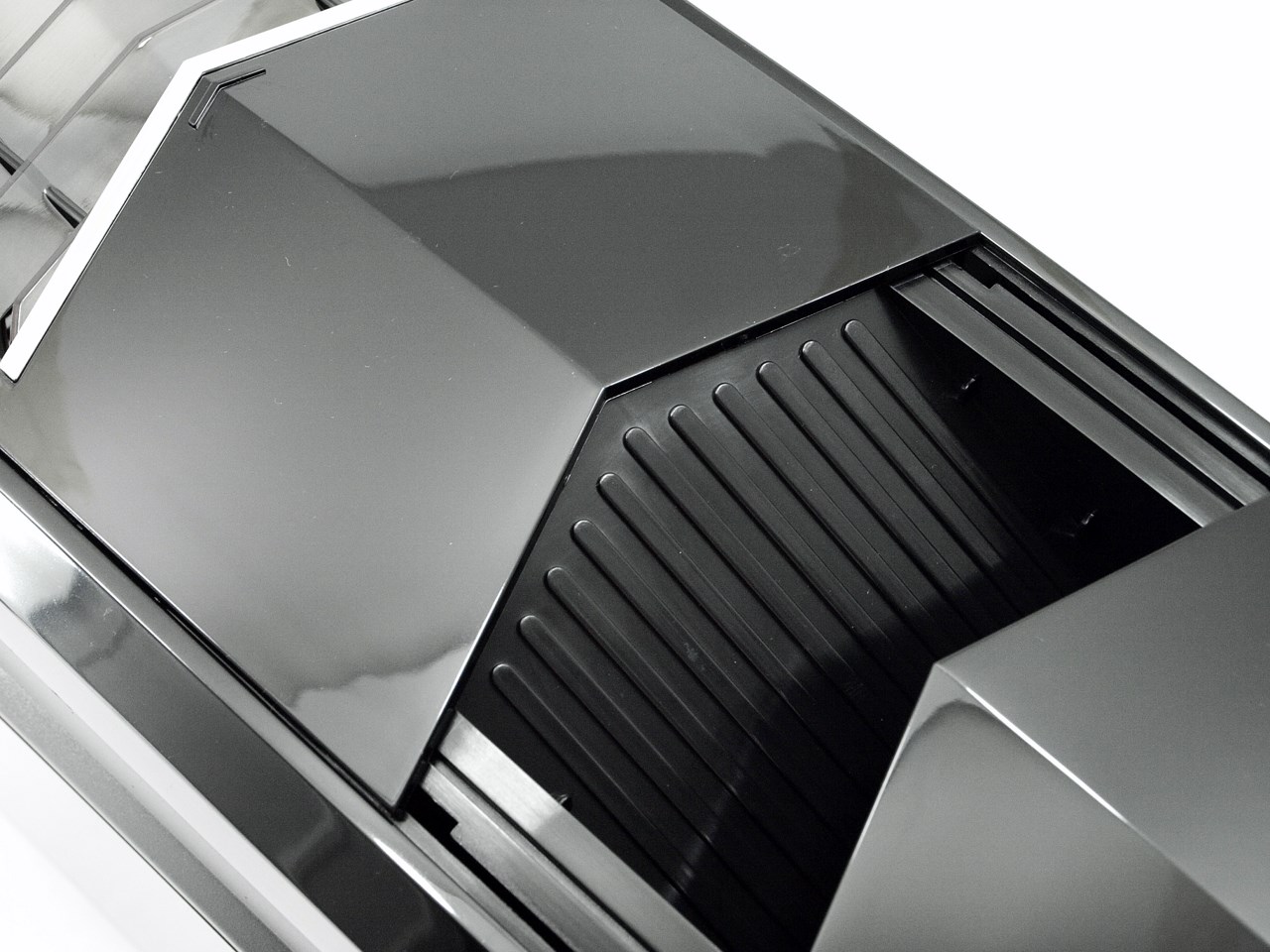

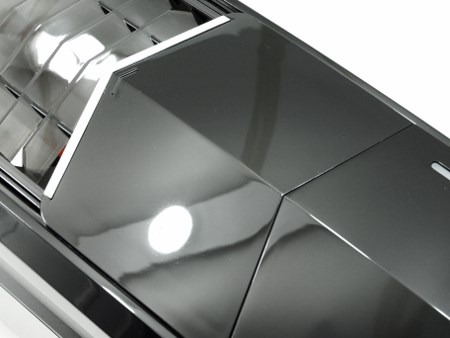

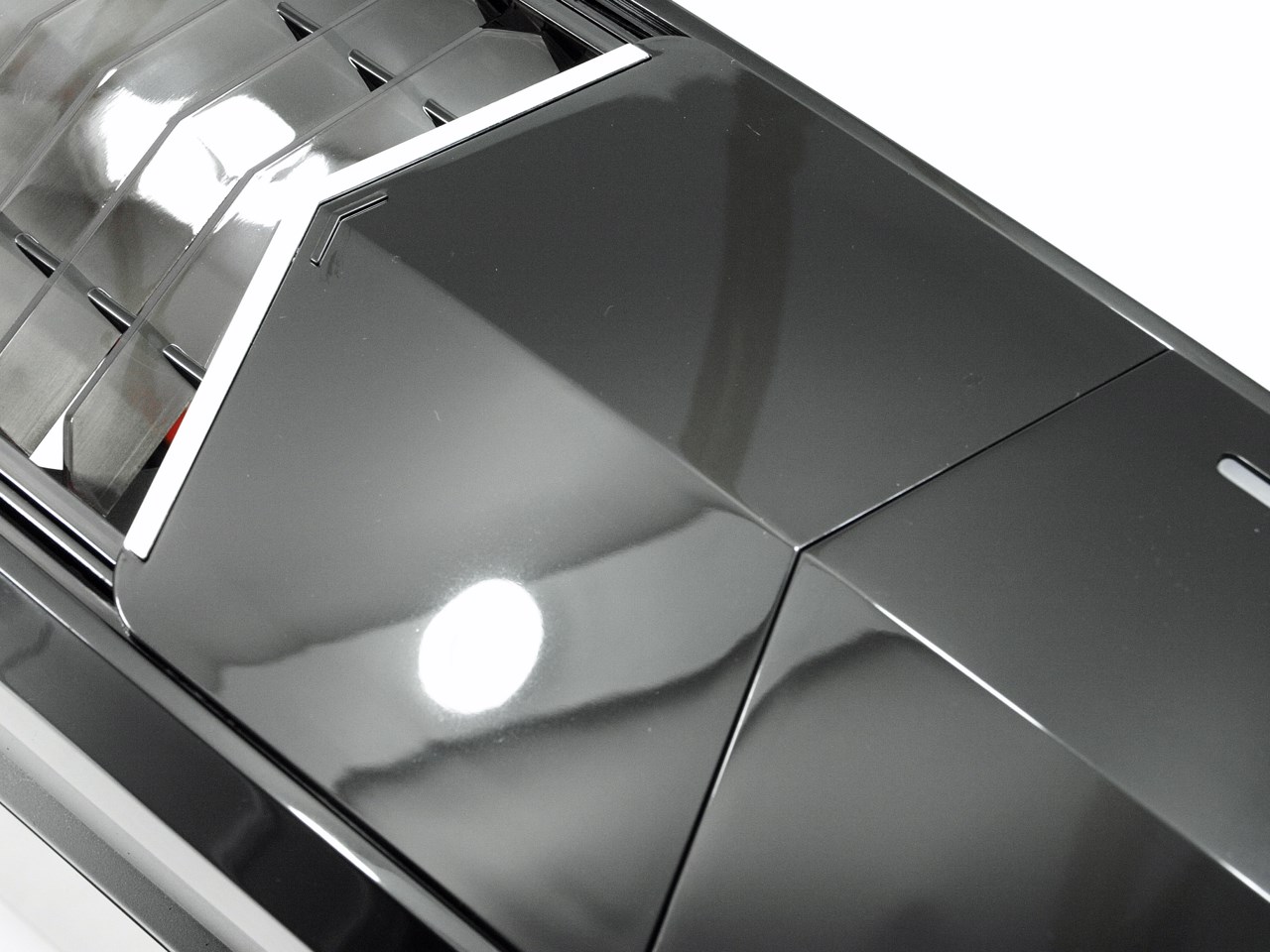

The 3.5/2.5" docking station is placed at the top right beneath a plastic slide door.





aerocool gt a black 18t

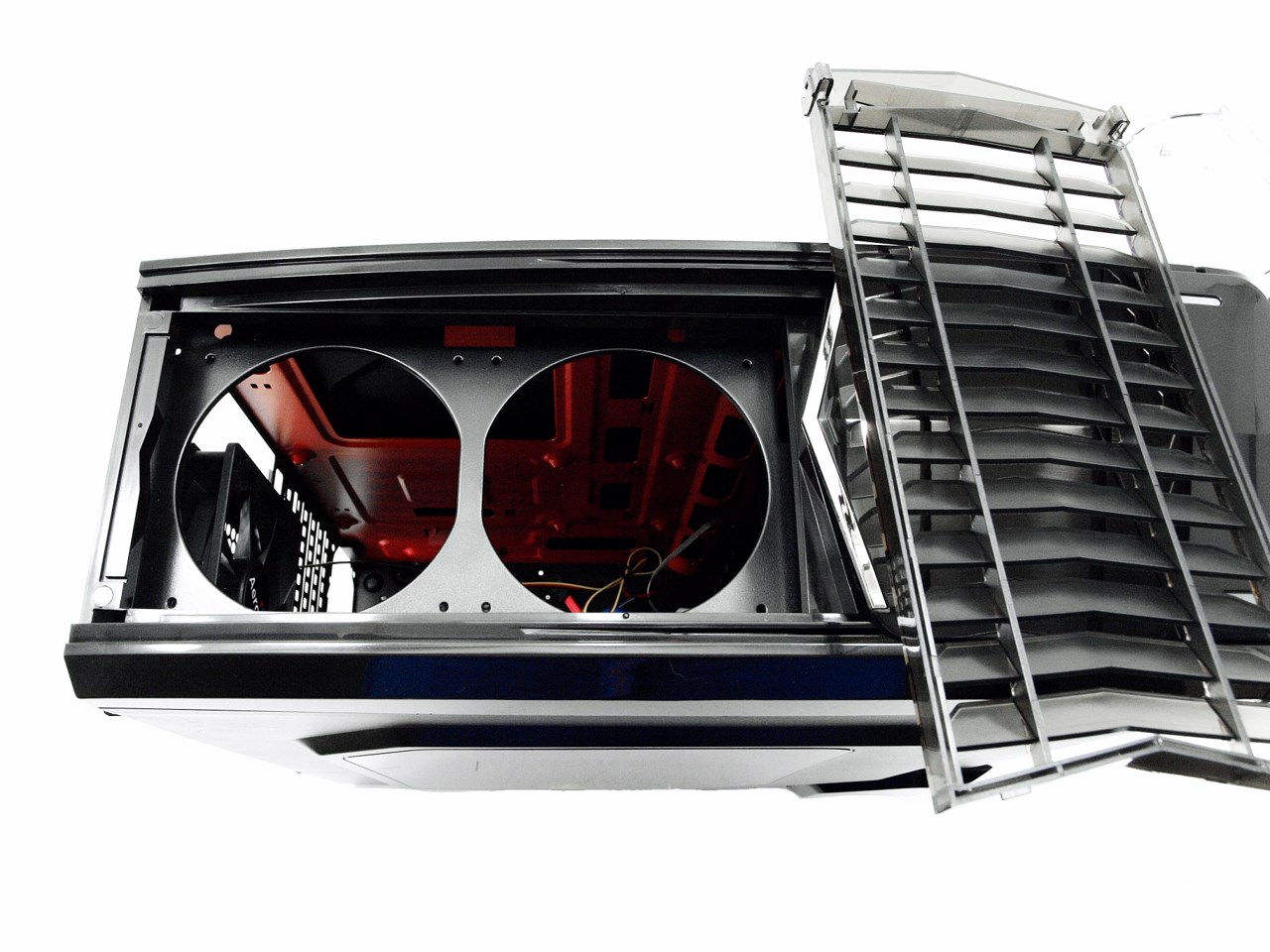

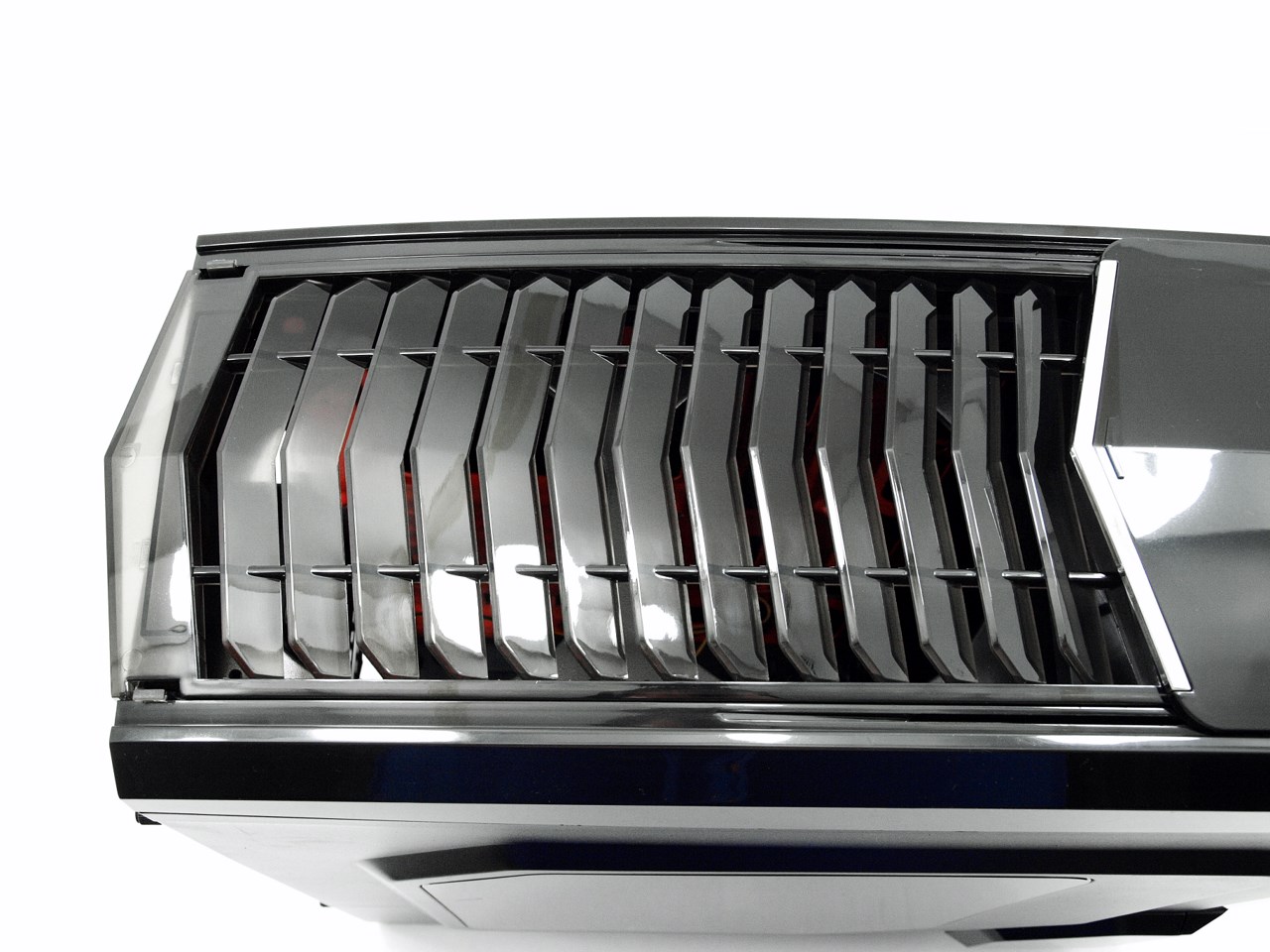

There are 13 plastic flaps at the top but unlike the ones found on the XPredator X3 Devil Red Edition these are fixed.





aerocool gt a black 19t

Right beneath there's enough room to place either two 120mm fans or an 240mm radiator.





aerocool gt a black 20t

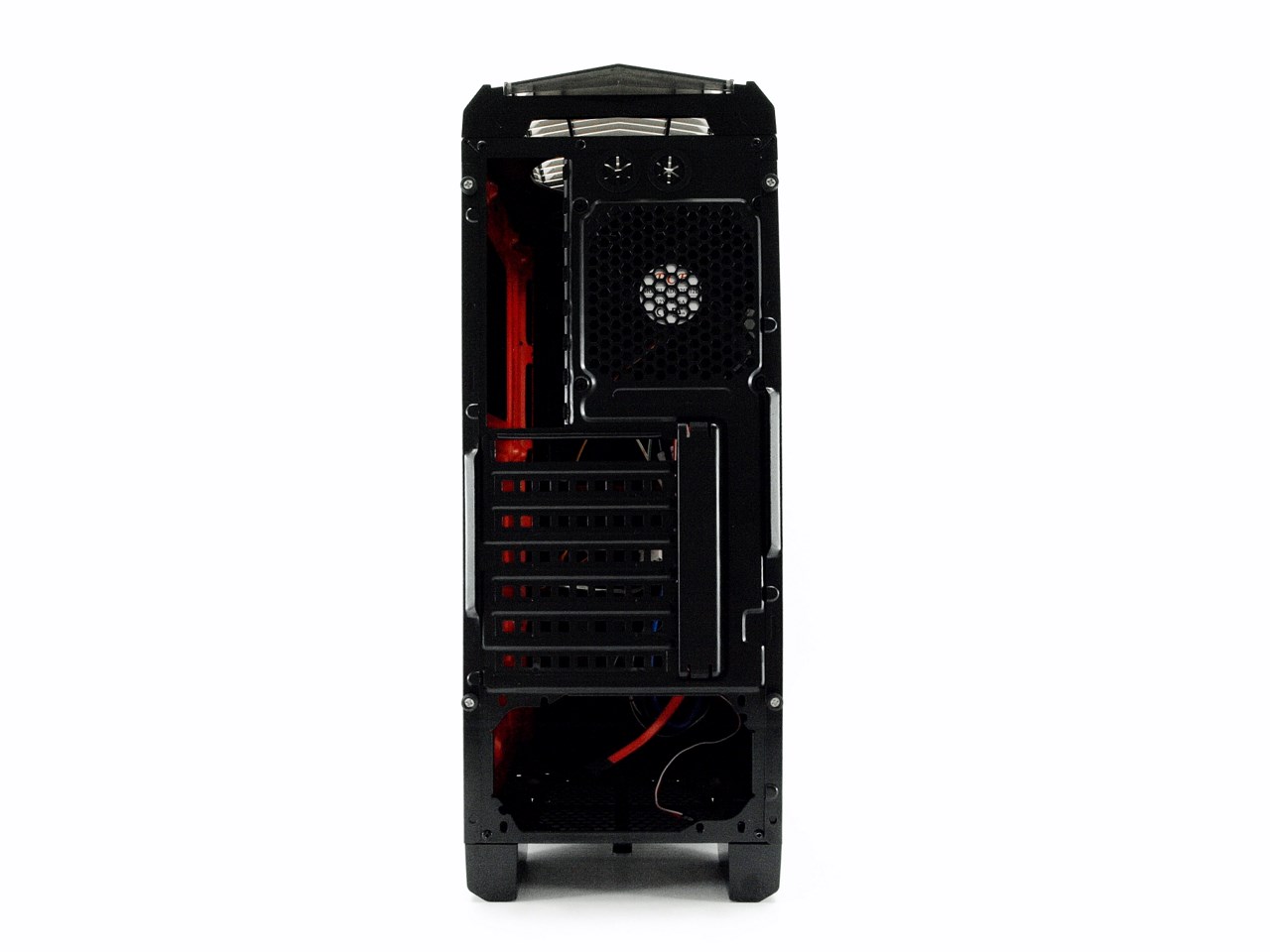

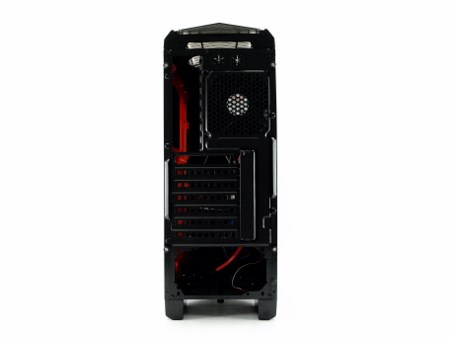

Two rubber grommets, a fan spot, 7 PCI expansion slots and the PSU area is what we see at the rear.





aerocool gt a black 21t

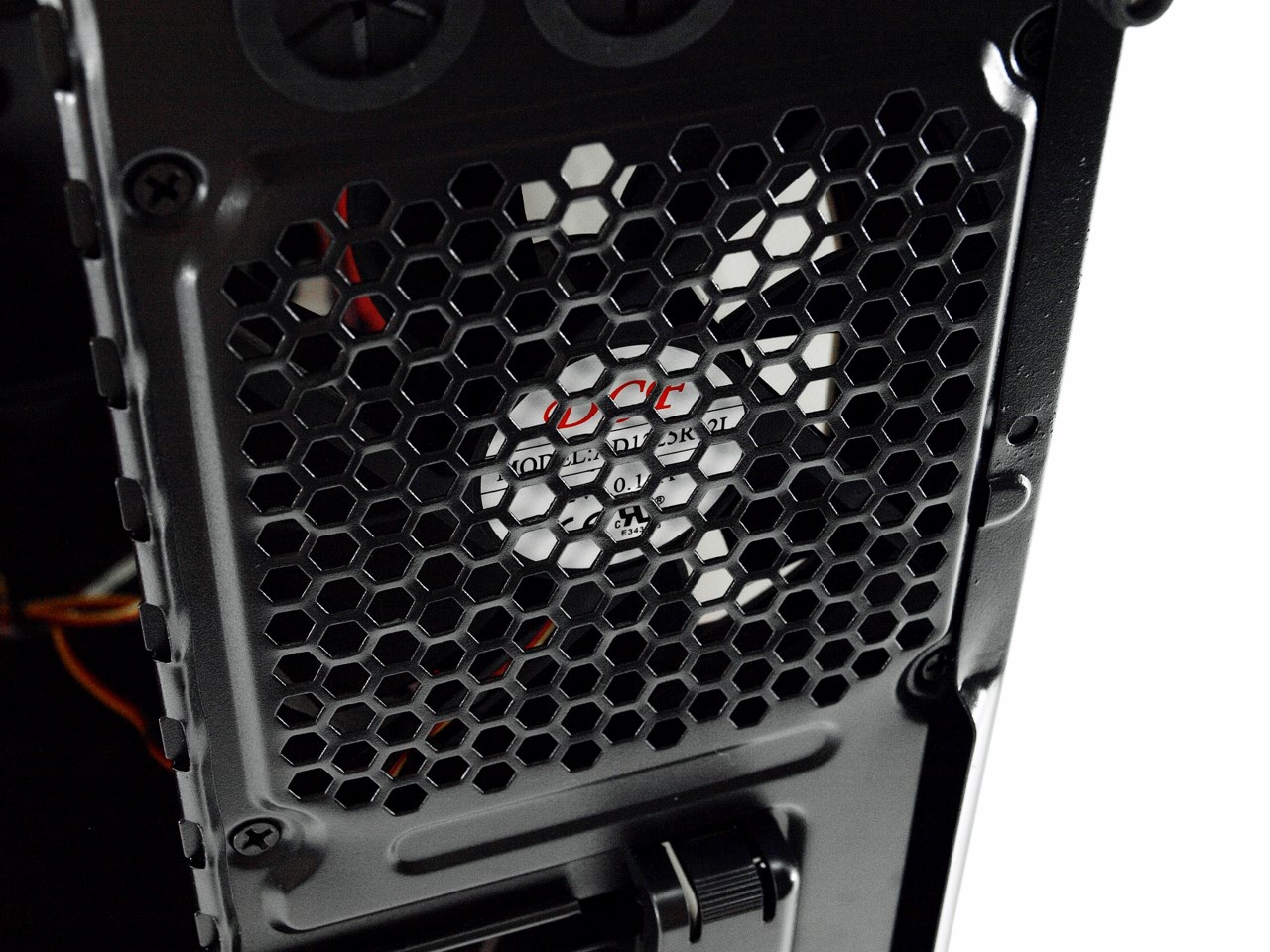

There's a 120mm fan preinstalled by Aerocool and unfortunately you can't swap it for a 140mm one.





aerocool gt a black 22t

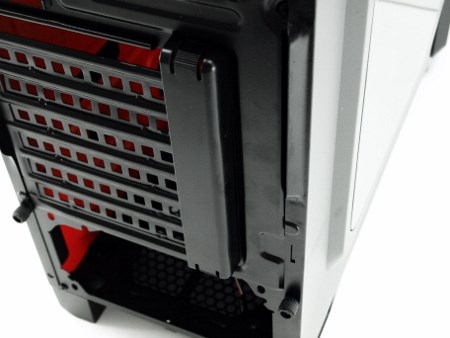

Aerocool has placed a plastic cover above the PCI expansion slots.





aerocool gt a black 23t

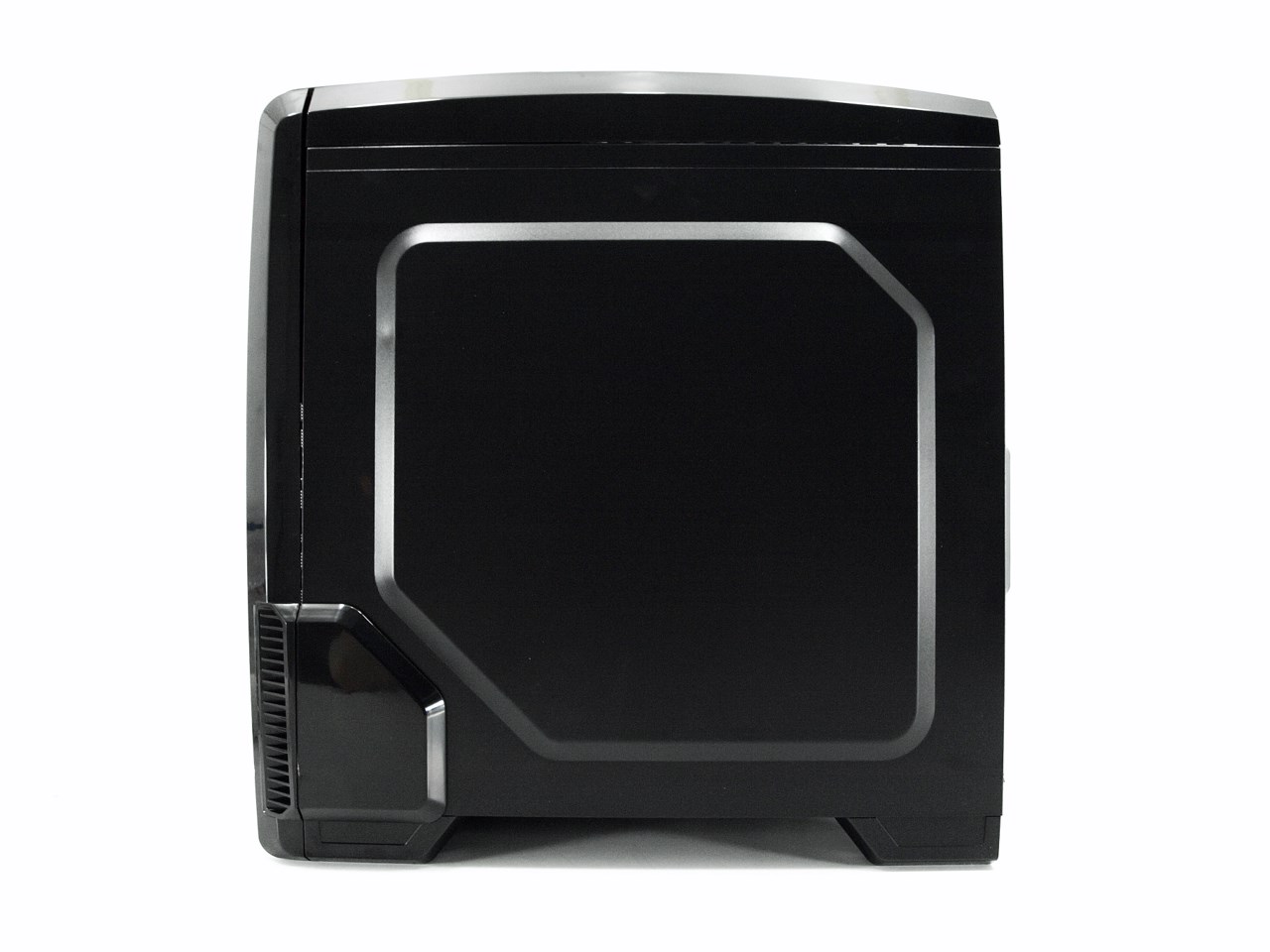

To allow more room for cable management the left side panel also extends outwards.





aerocool gt a black 24t

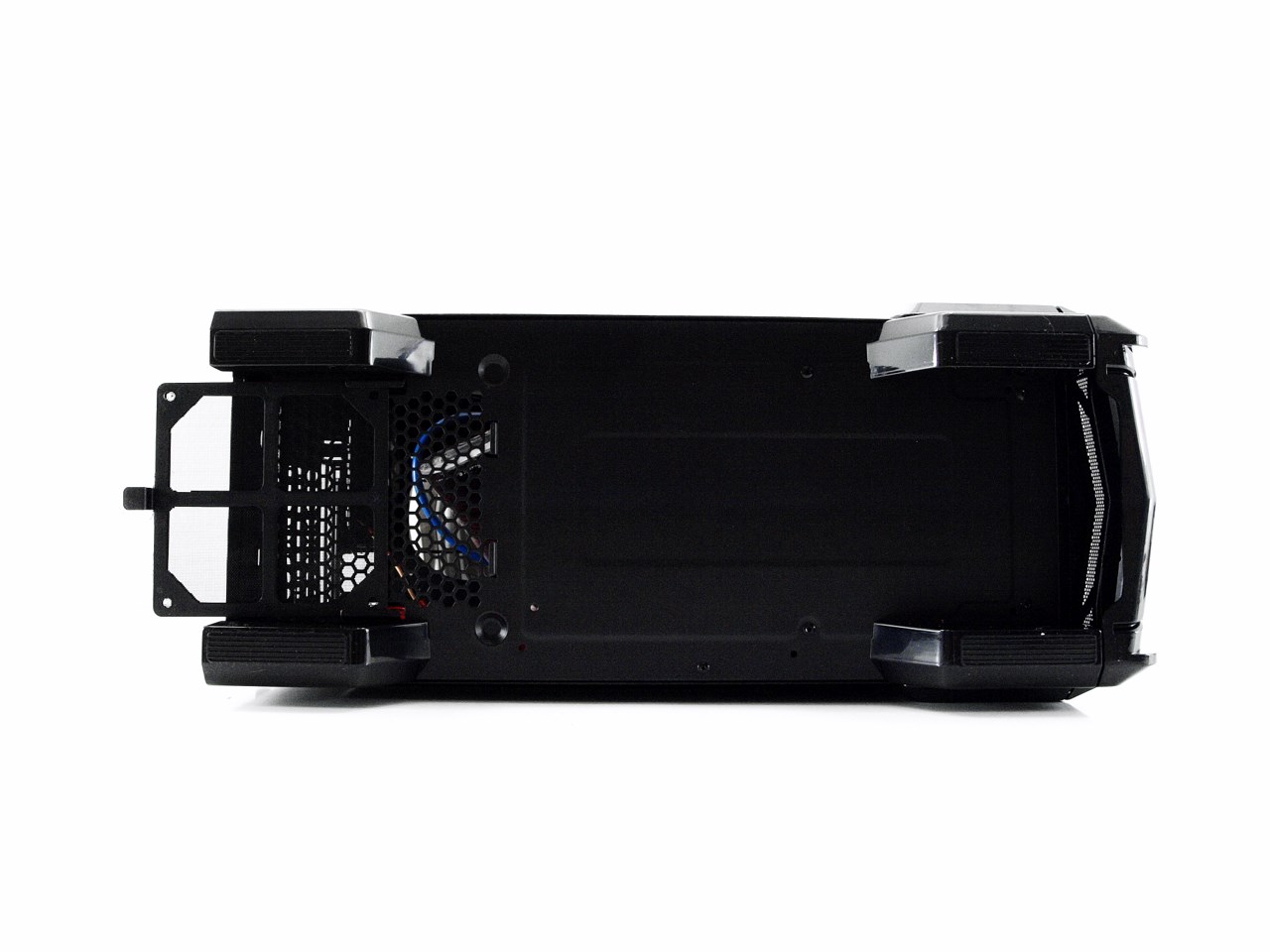

At the bottom we see 4 tall feet and a removable air-filter beneath the PSU area.
