THE H5 UNIVERSAL

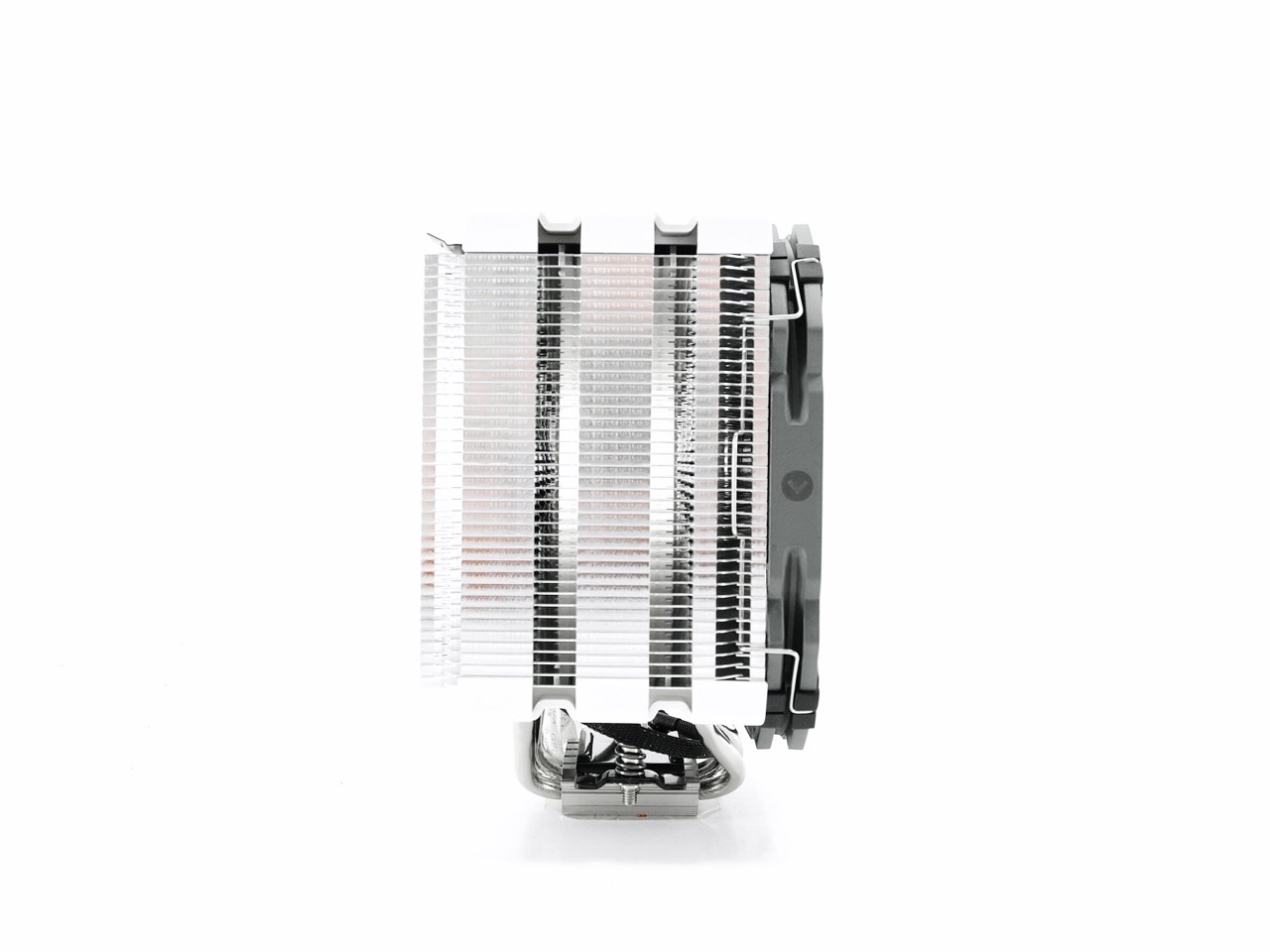

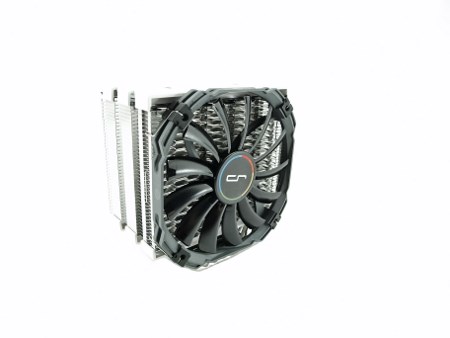

The H5 Universal is actually a mid-sized CPU cooler since along with the thin 140mm pre-mounted fan it's 98mm thick, 143mm wide and 160mm tall with a weight of 853g.

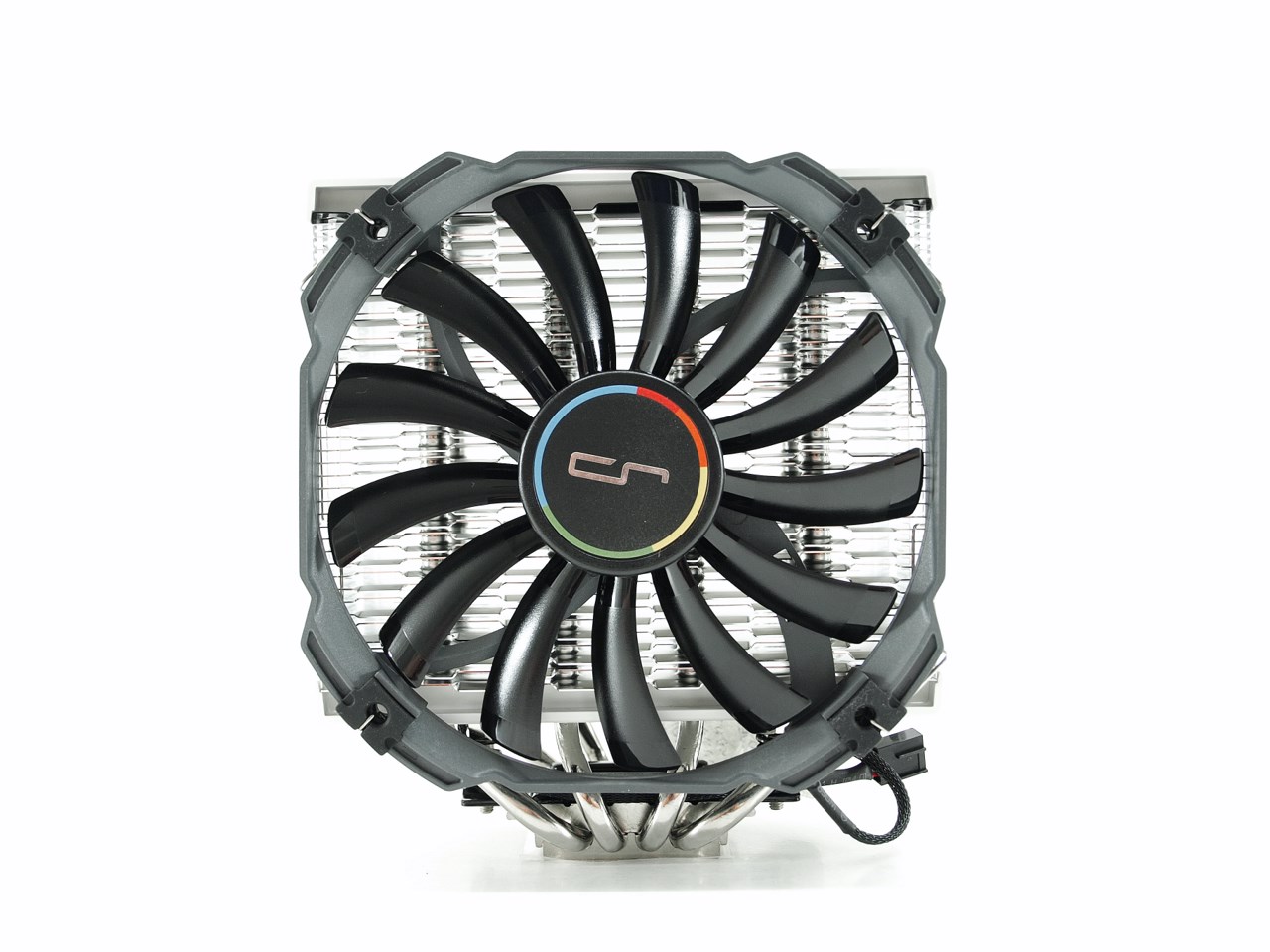

CRYORIG has used a low-profile 140mm fan that can spin up to 1300RPM to produce up to 65CFM of airflow with just 24dBA of noise.

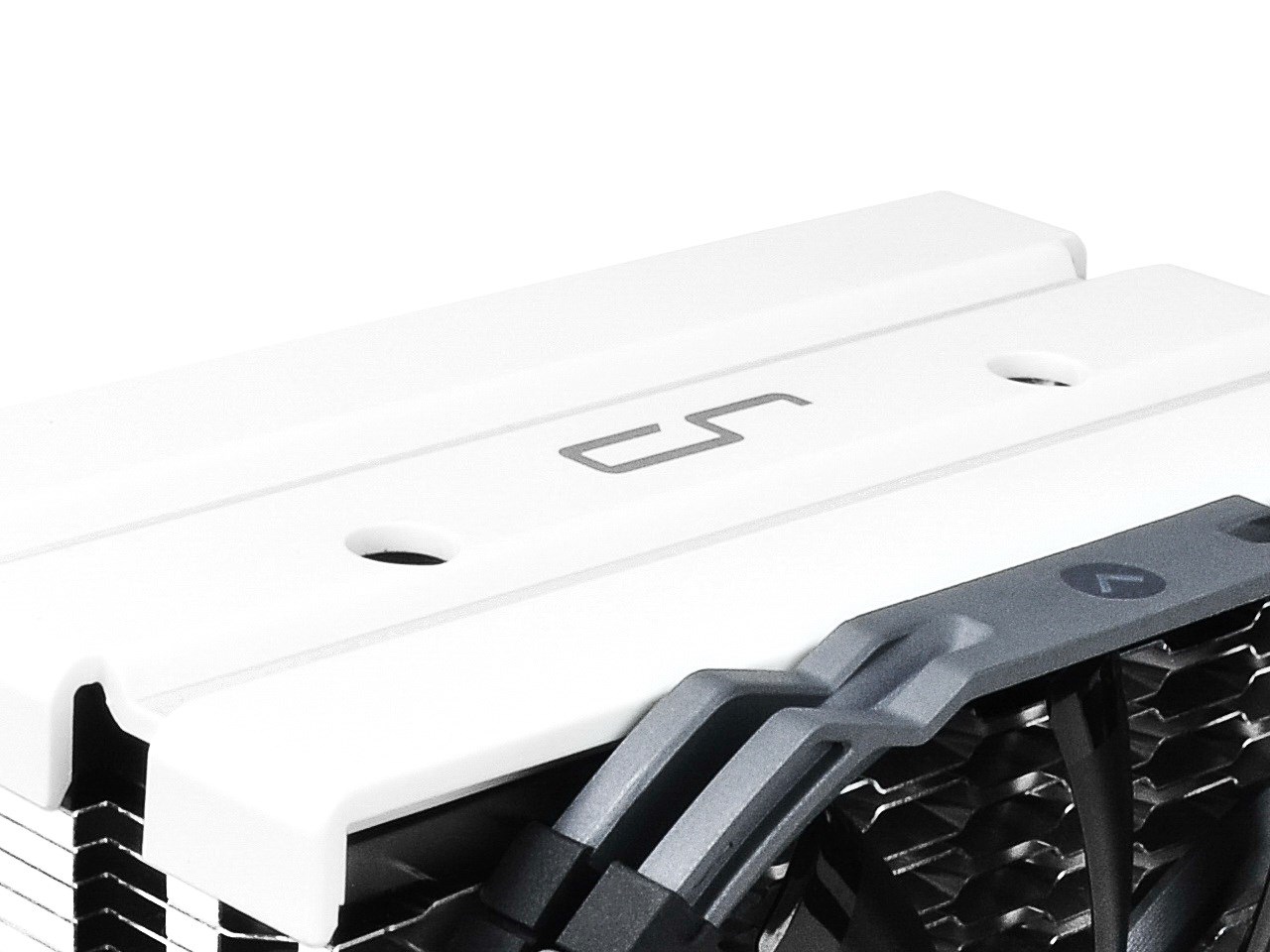

A plastic shroud with two large holes used to install the mounting hardware with the help of the bundled Philips screwdriver is placed on both the top and bottom of the H5 Universal (the company logo is placed at the top).

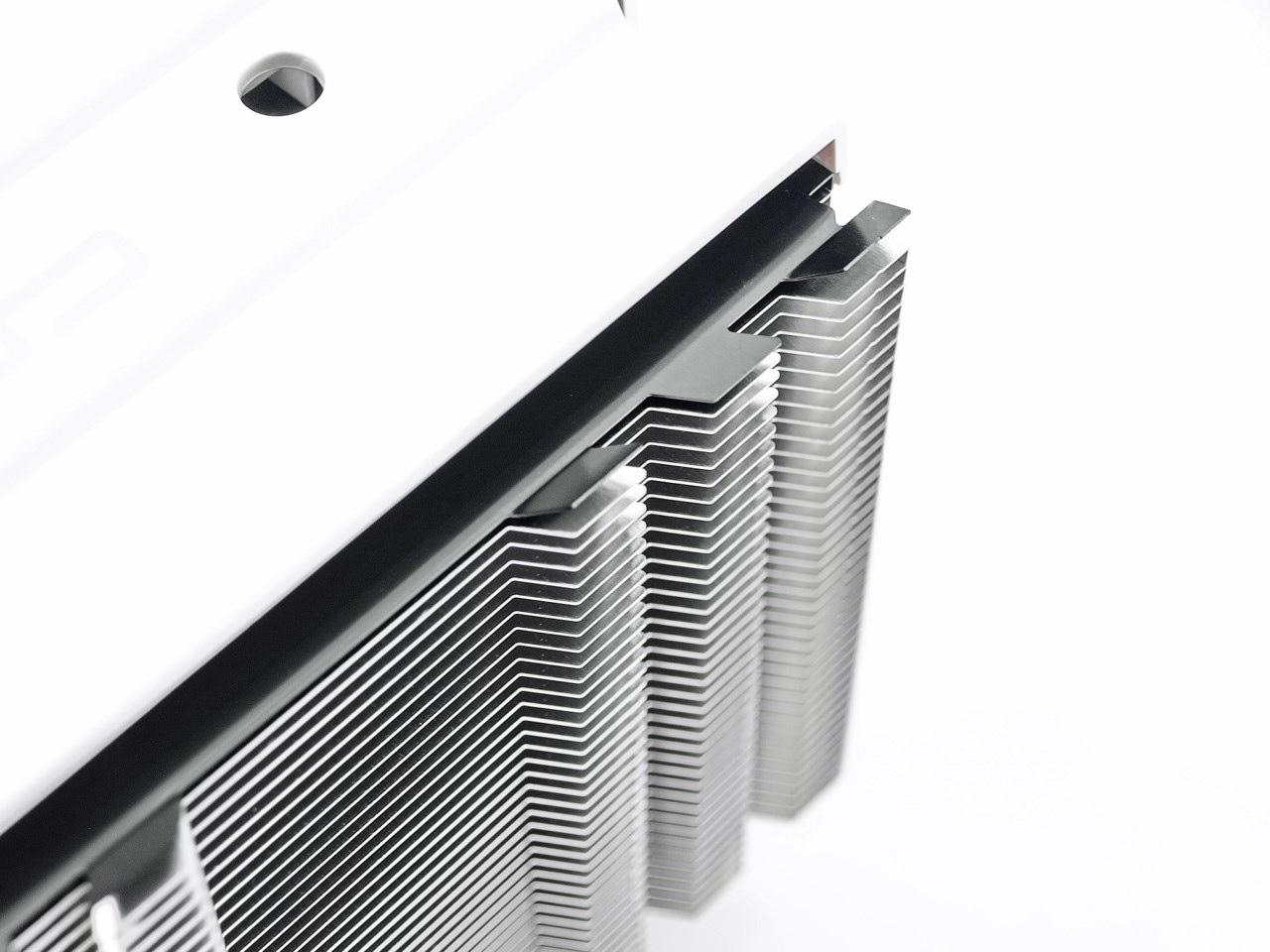

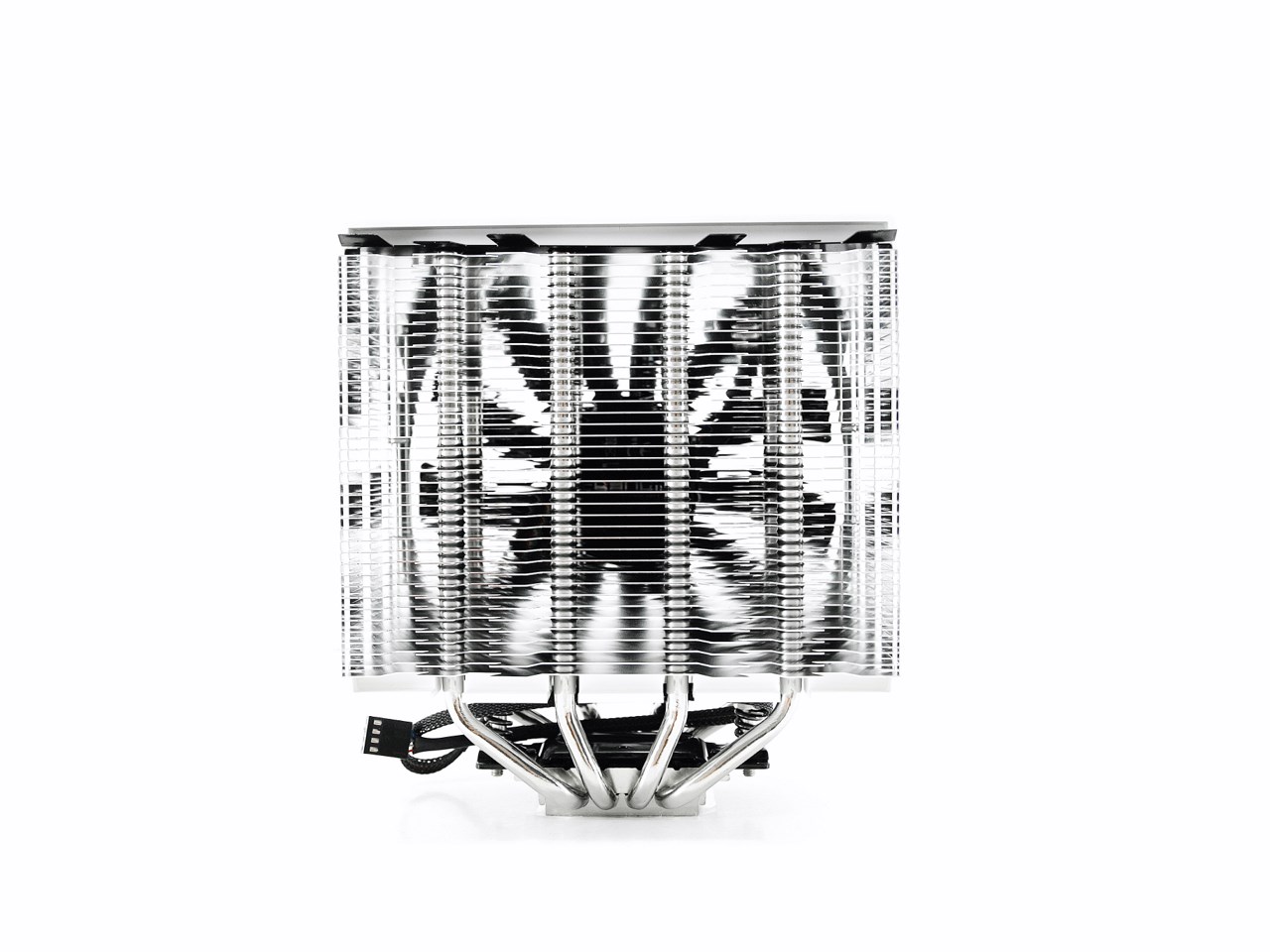

As you can all see the heatsink is made out of 38 aluminum fins (each 0.4mm thick) which are bend on both sides to hold air inside and thus improve cooling efficiency.

The proprietary Hive Fin design should improve cooling efficiency always according to CRYORIG.

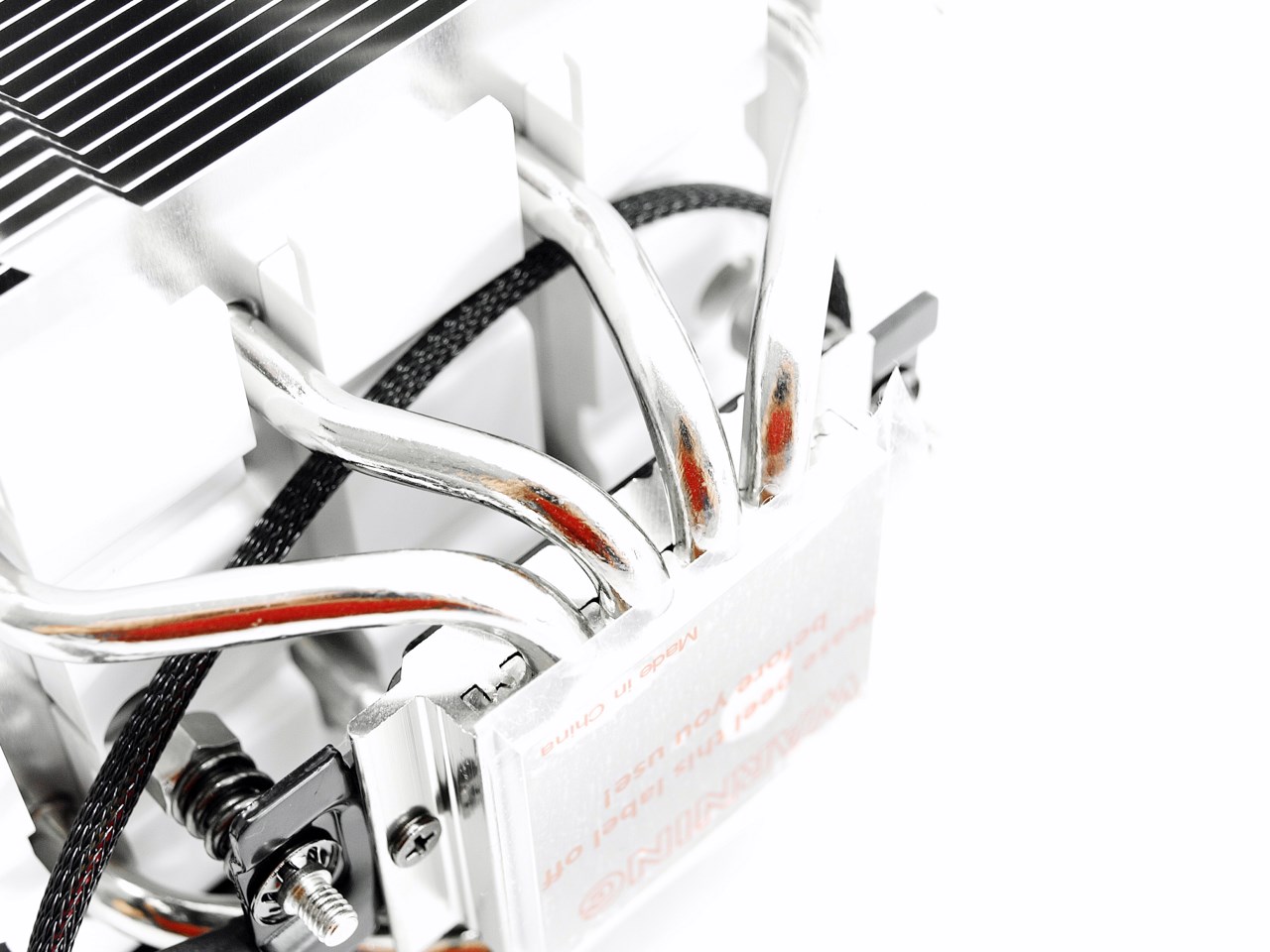

The H5 Universal makes use of four 6mm nickel-plated copper heatpipes.

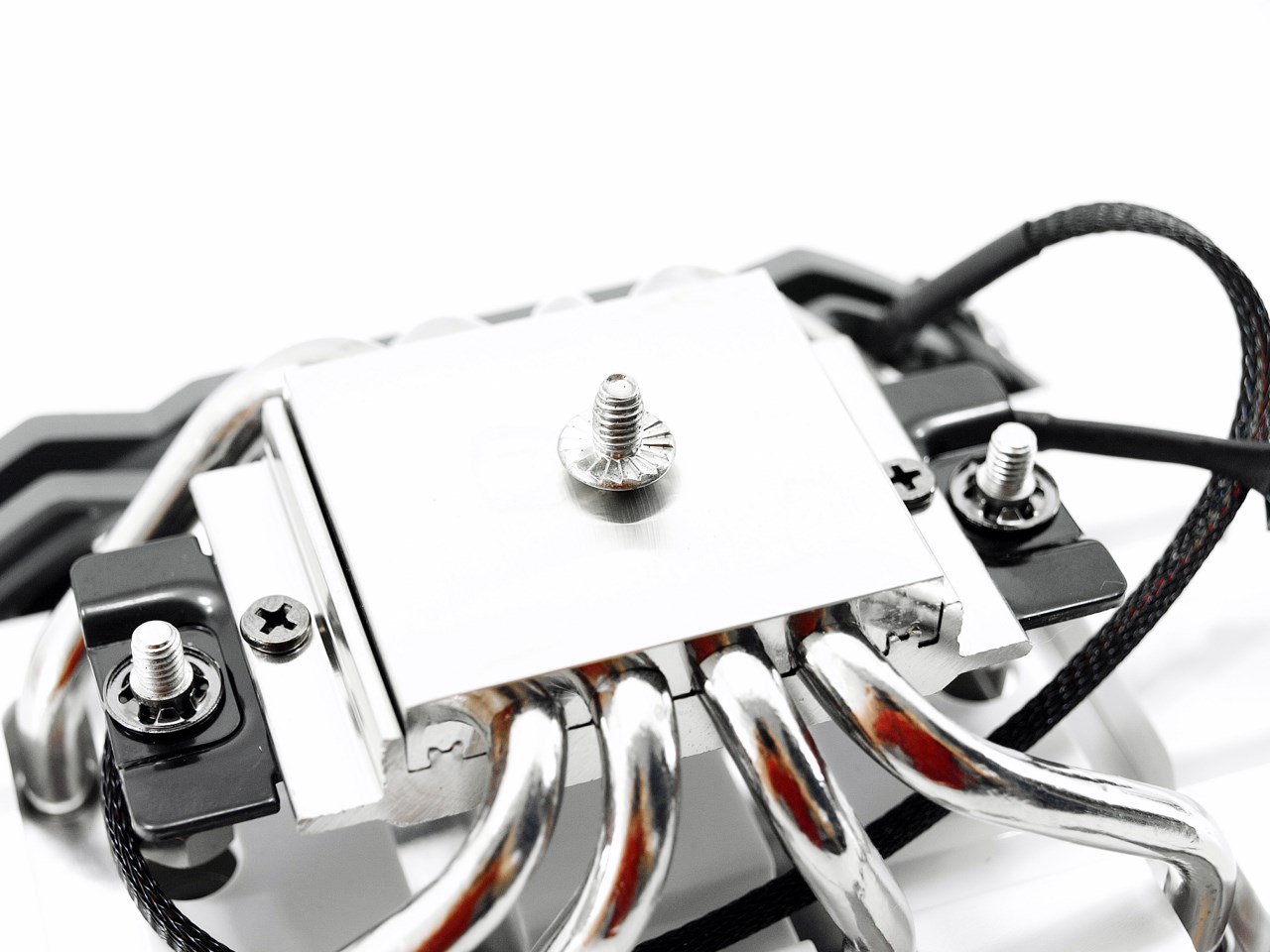

Although the base of the heatsink doesn't feature a mirror like finish still it has no machine marks.
