THE MUGEN MAX

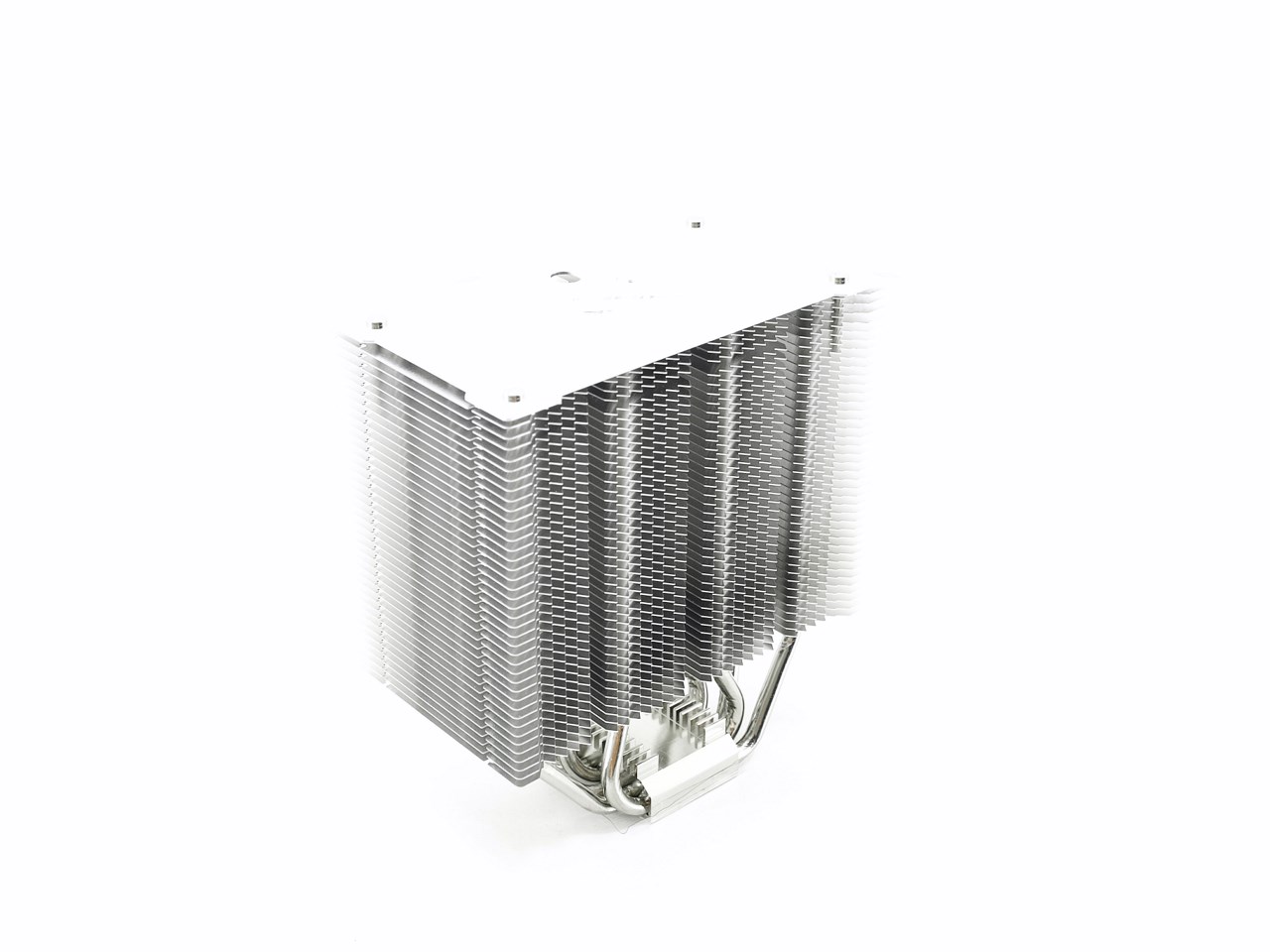

Just like its predecessors the Mugen MAX heatsink is not only 720g heavy but also quite large measuring 161mm in height, 145mm in width and 81mm in length.

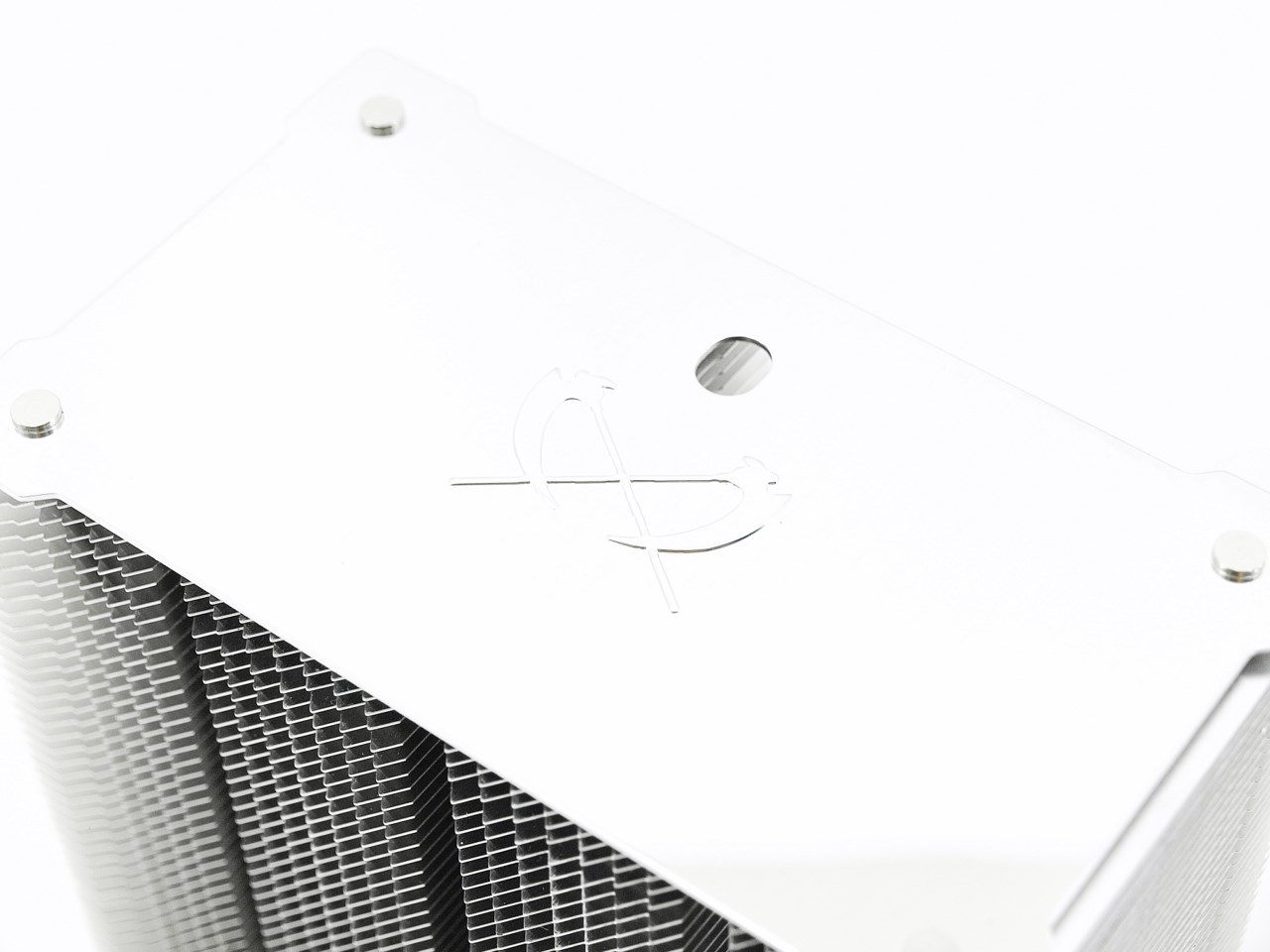

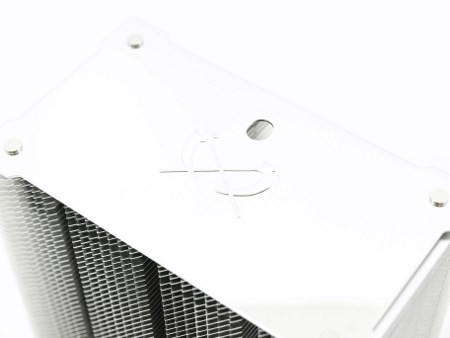

The company logo is present at the top aluminum fin.

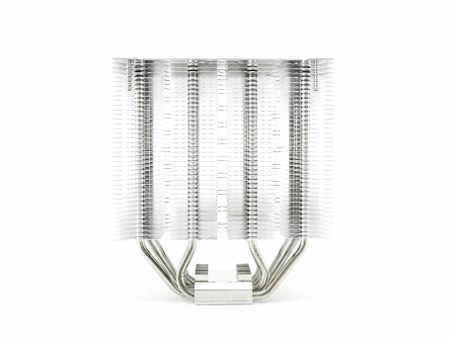

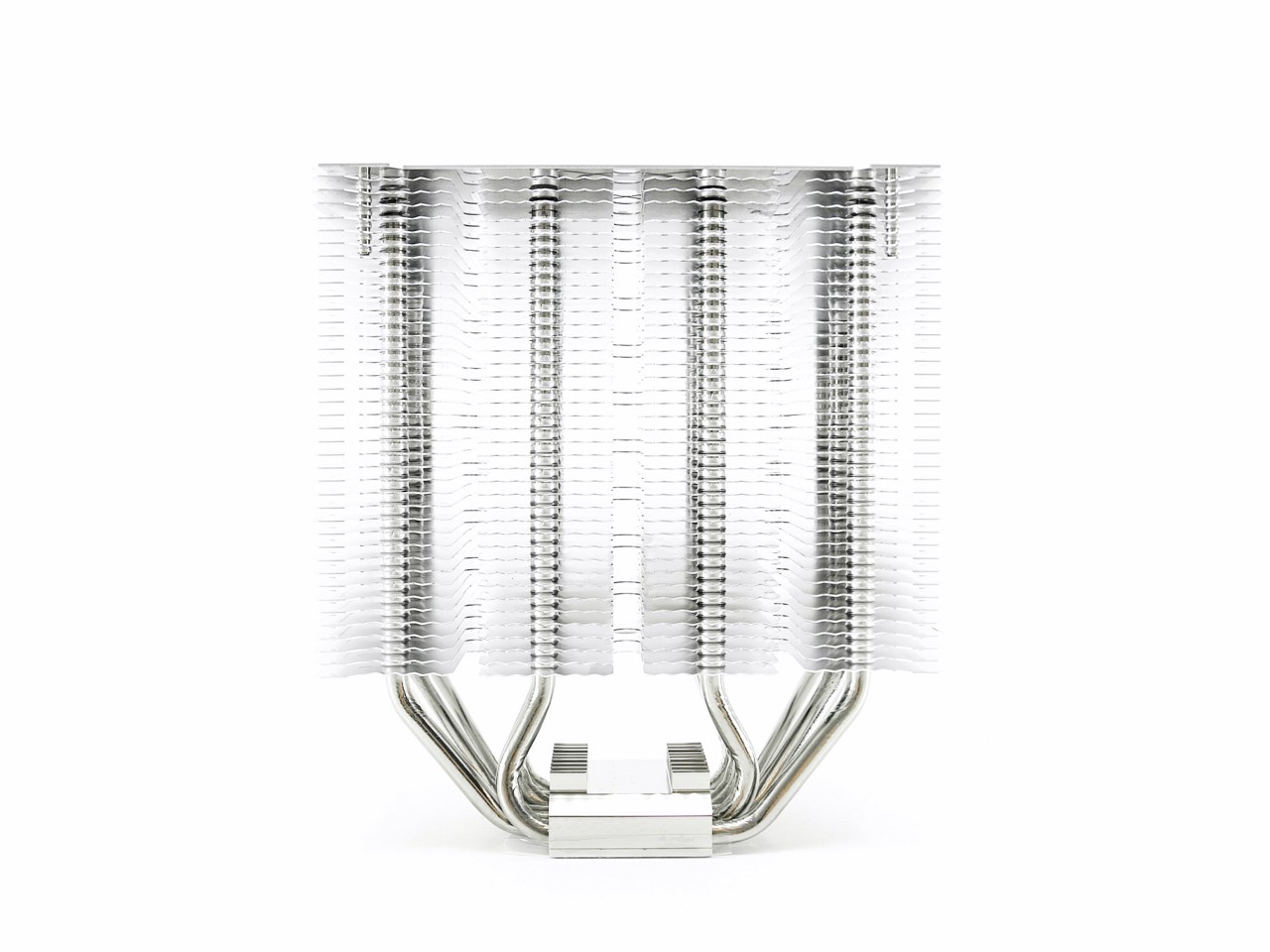

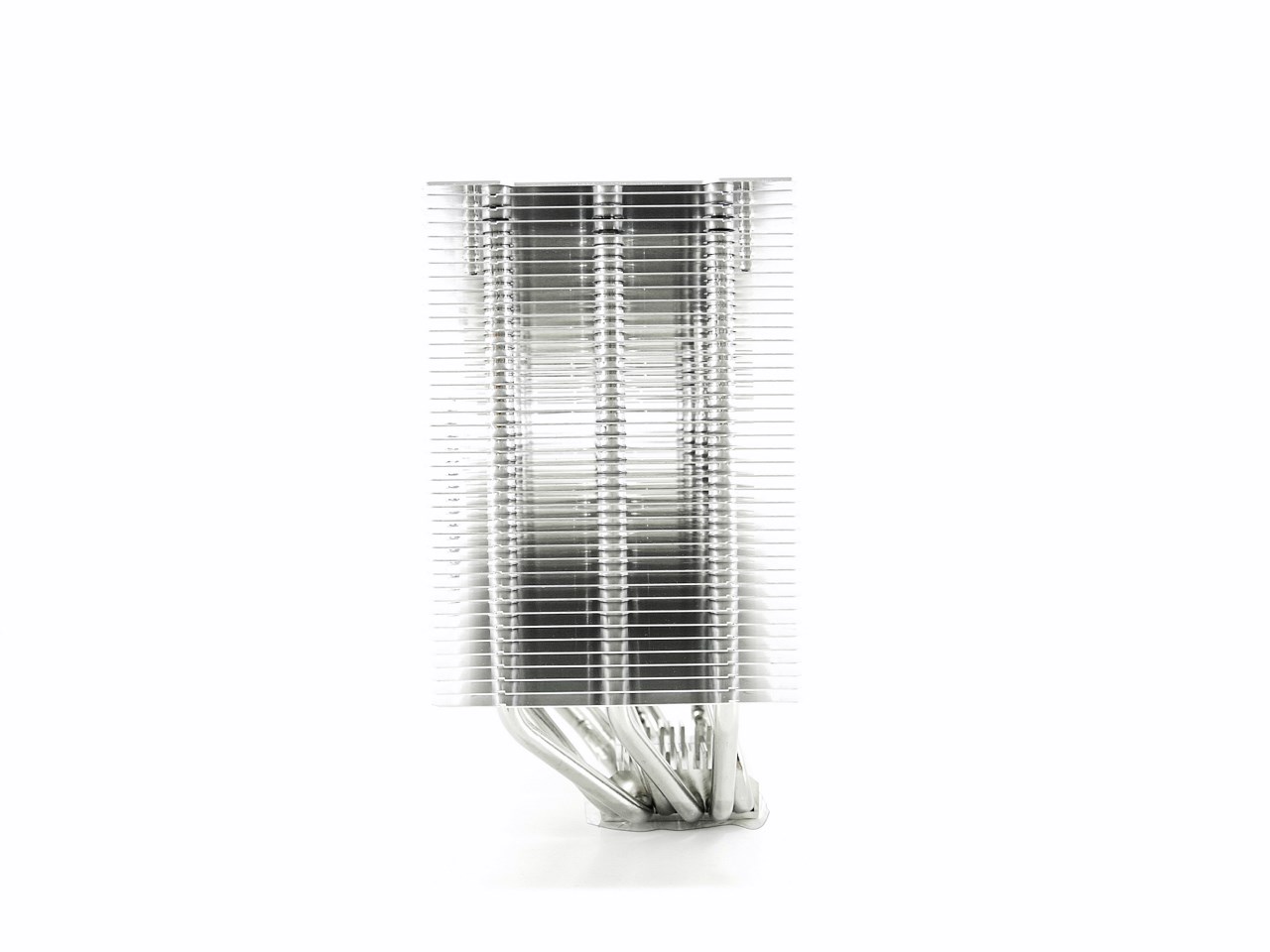

As you can see rather using a single large heatsink Scythe seems to have actually used 4 smaller heatsinks which are connected via part of the fins.

There are 40 aluminum fins placed on the heatsink.

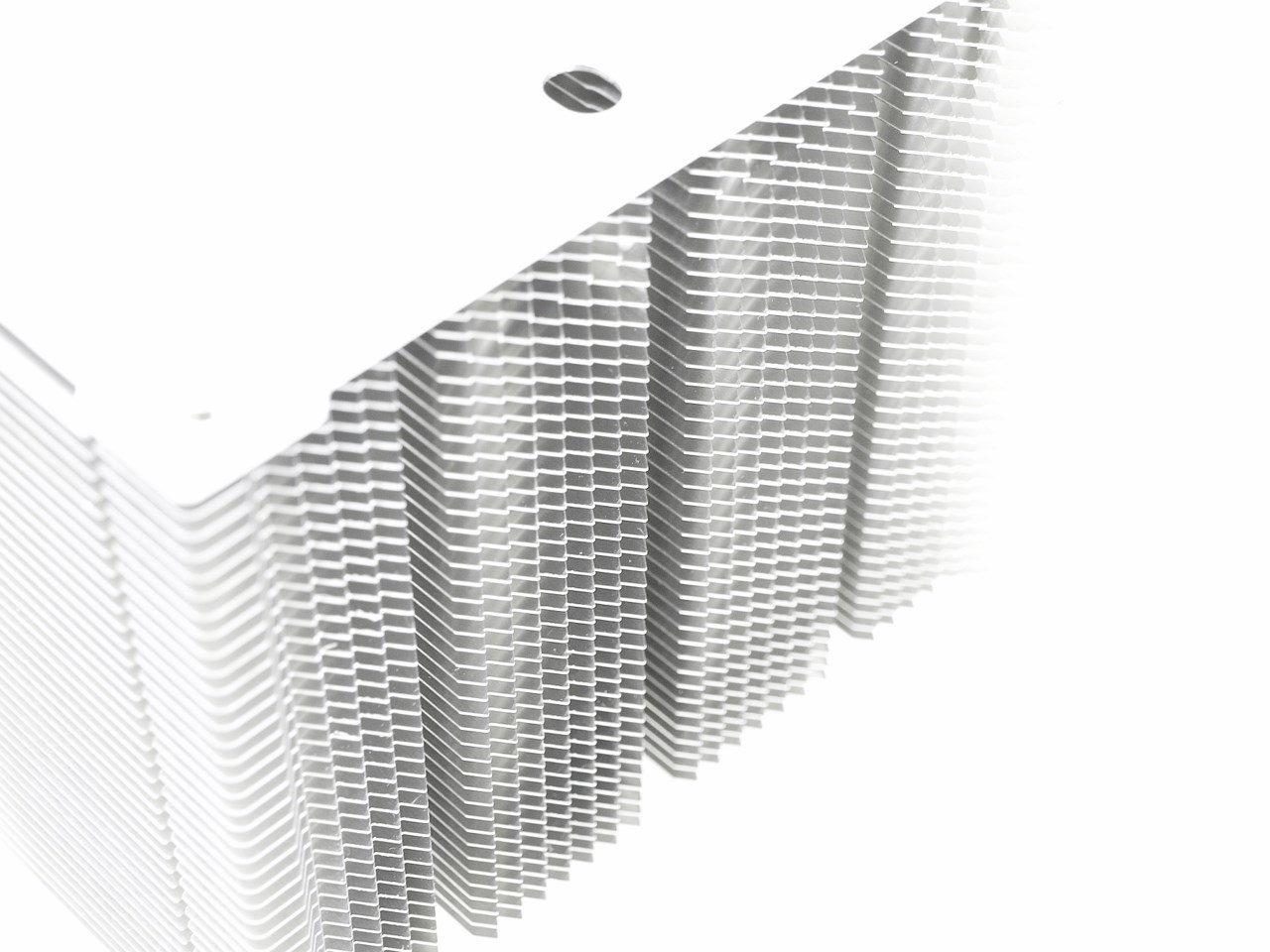

The arrow like shape of the fins should help by improving airflow levels.

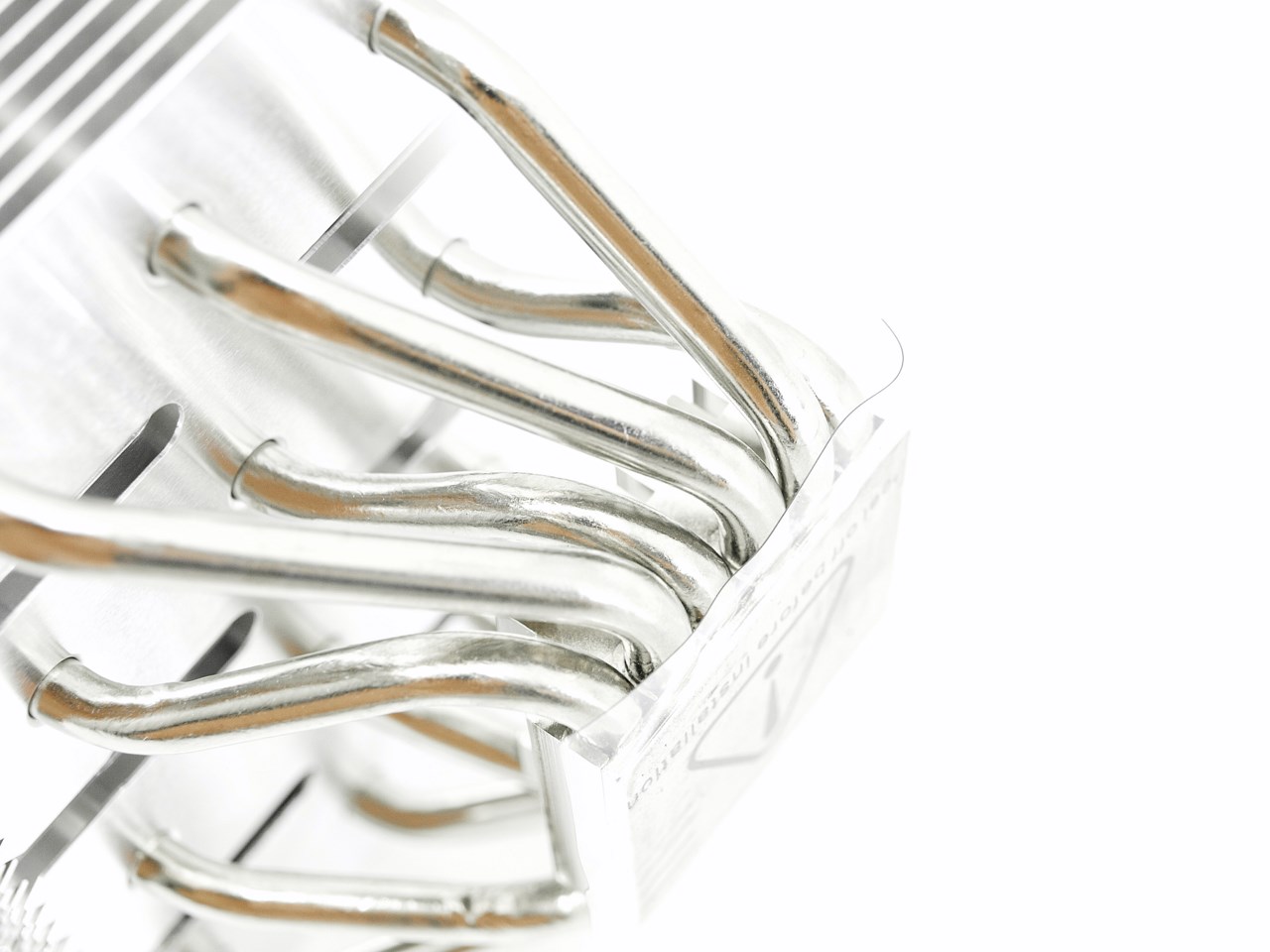

Six 6mm nickel plated copper heatpipes pass through the base and all of the fins.

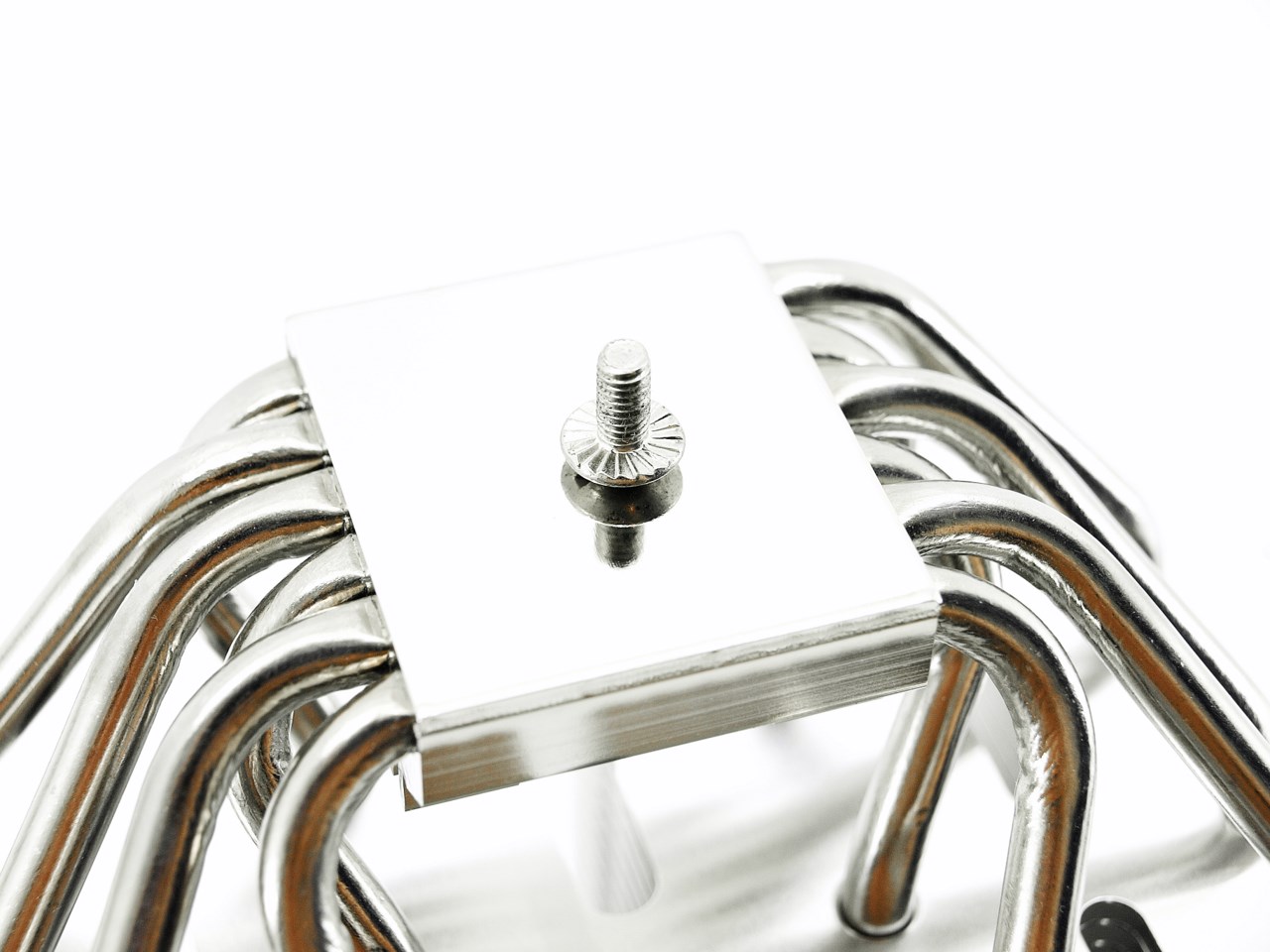

The nickel-plated all-copper base has a nice mirror like finish.

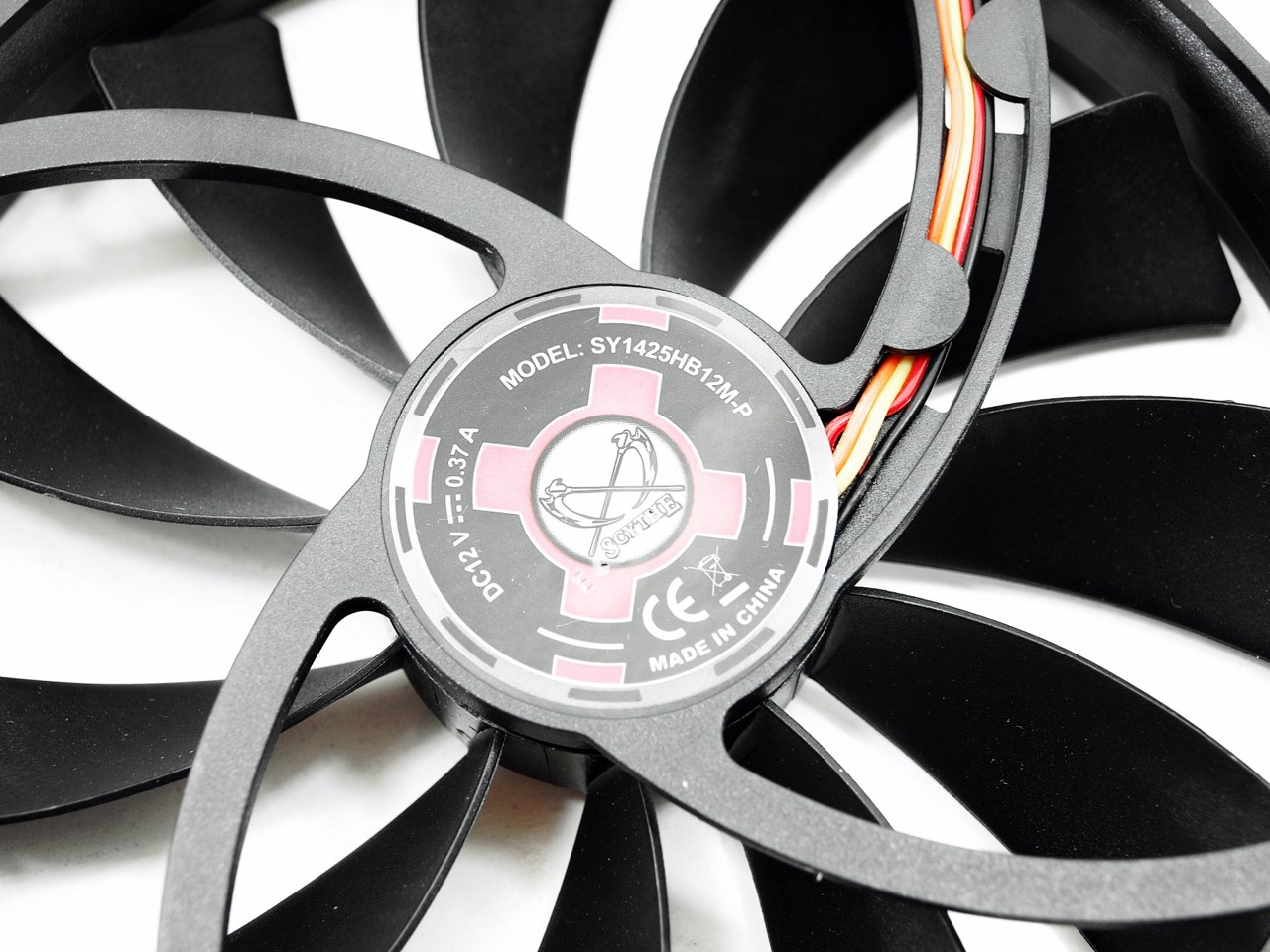

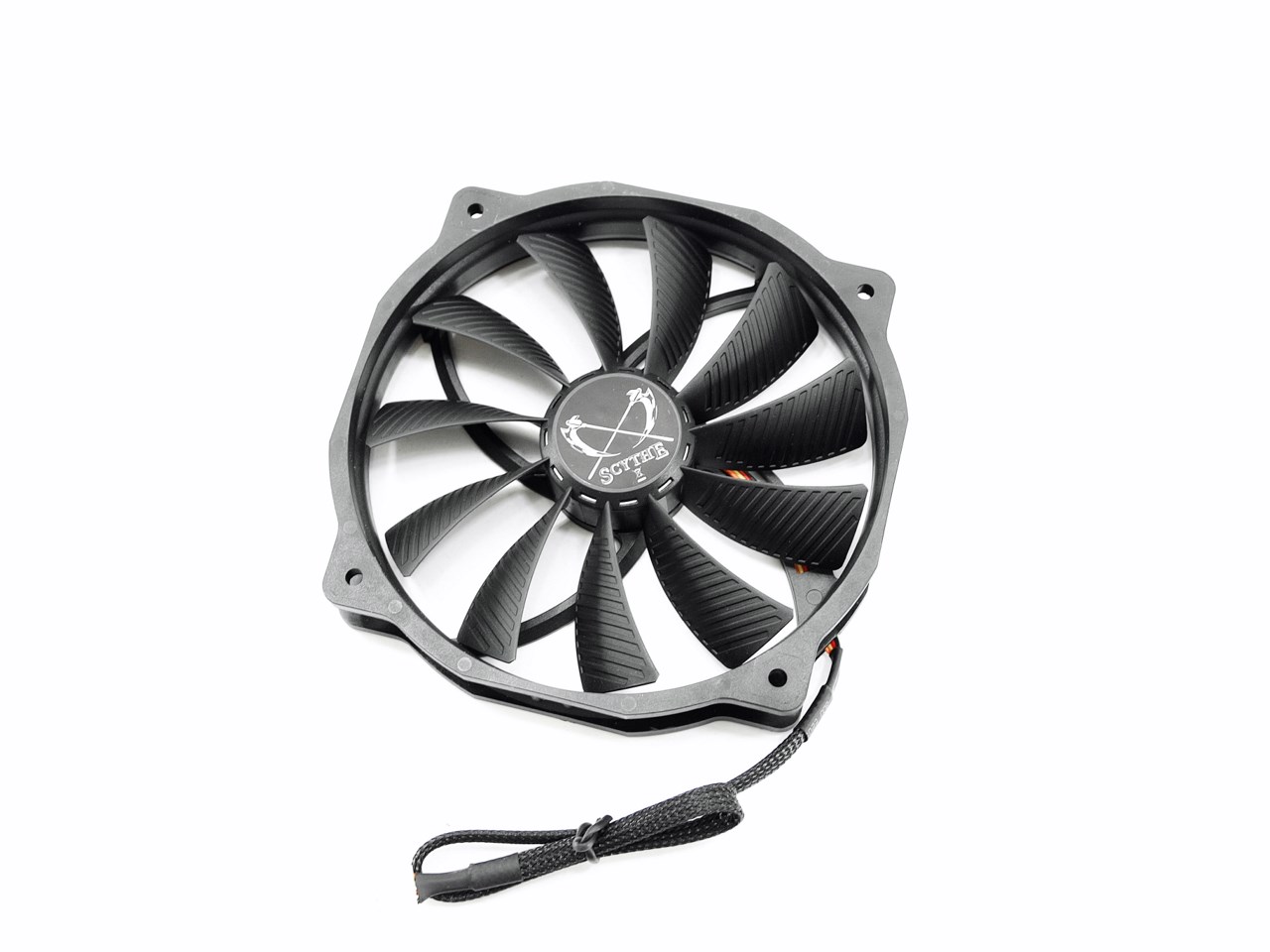

Scythe includes a 140mm Glidestream sleeve-bearing PWM fan with the Mugen MAX that can spin up to 1300RPM (+-10%) to produce up to 97.18CFM with only 30.7dBA of noise.

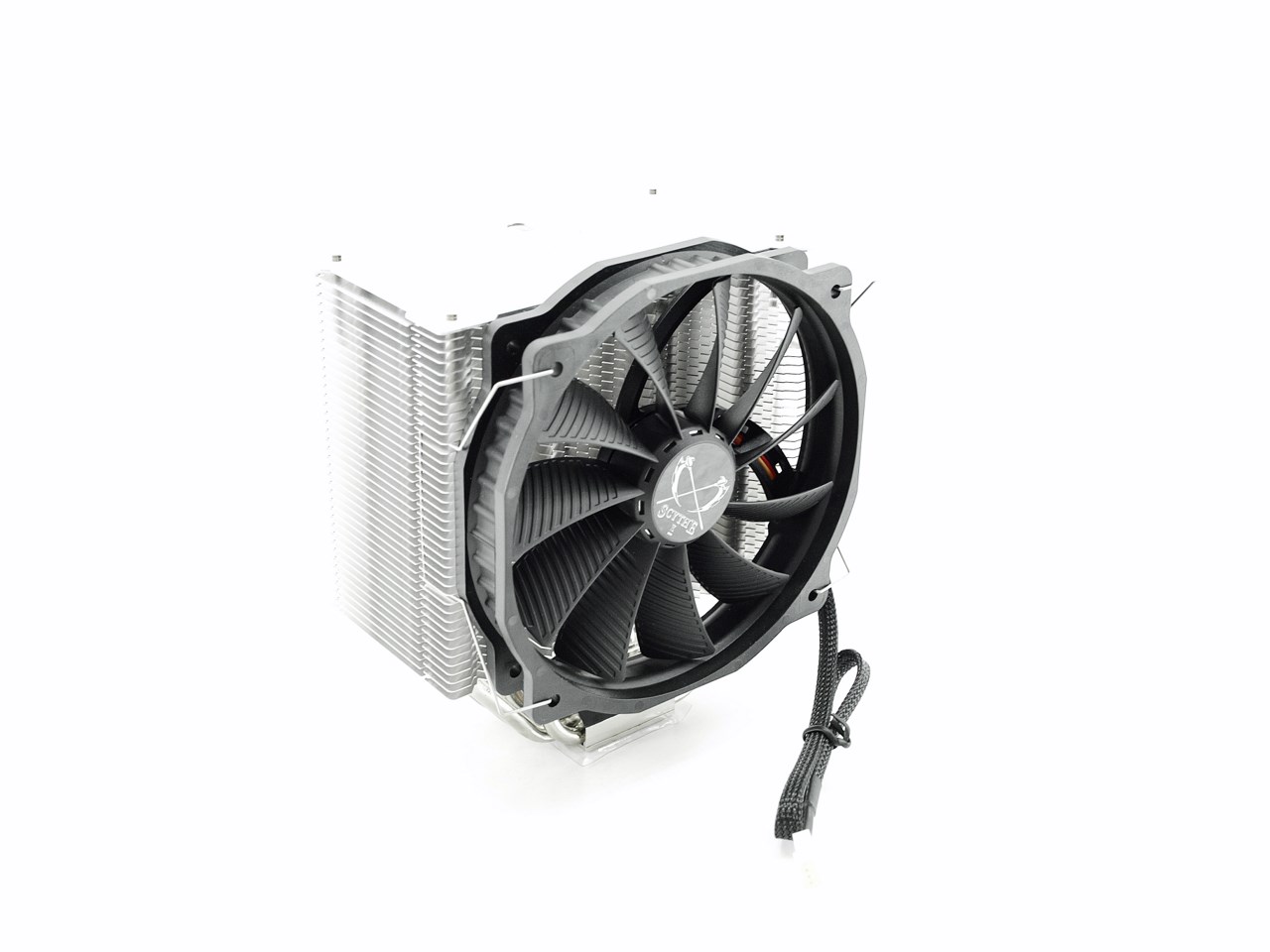

With the fan installed the Mugen MAX is now 111mm in depth and weighs 850g.
