THE XCUBENAS XN3004R EXTERIOR

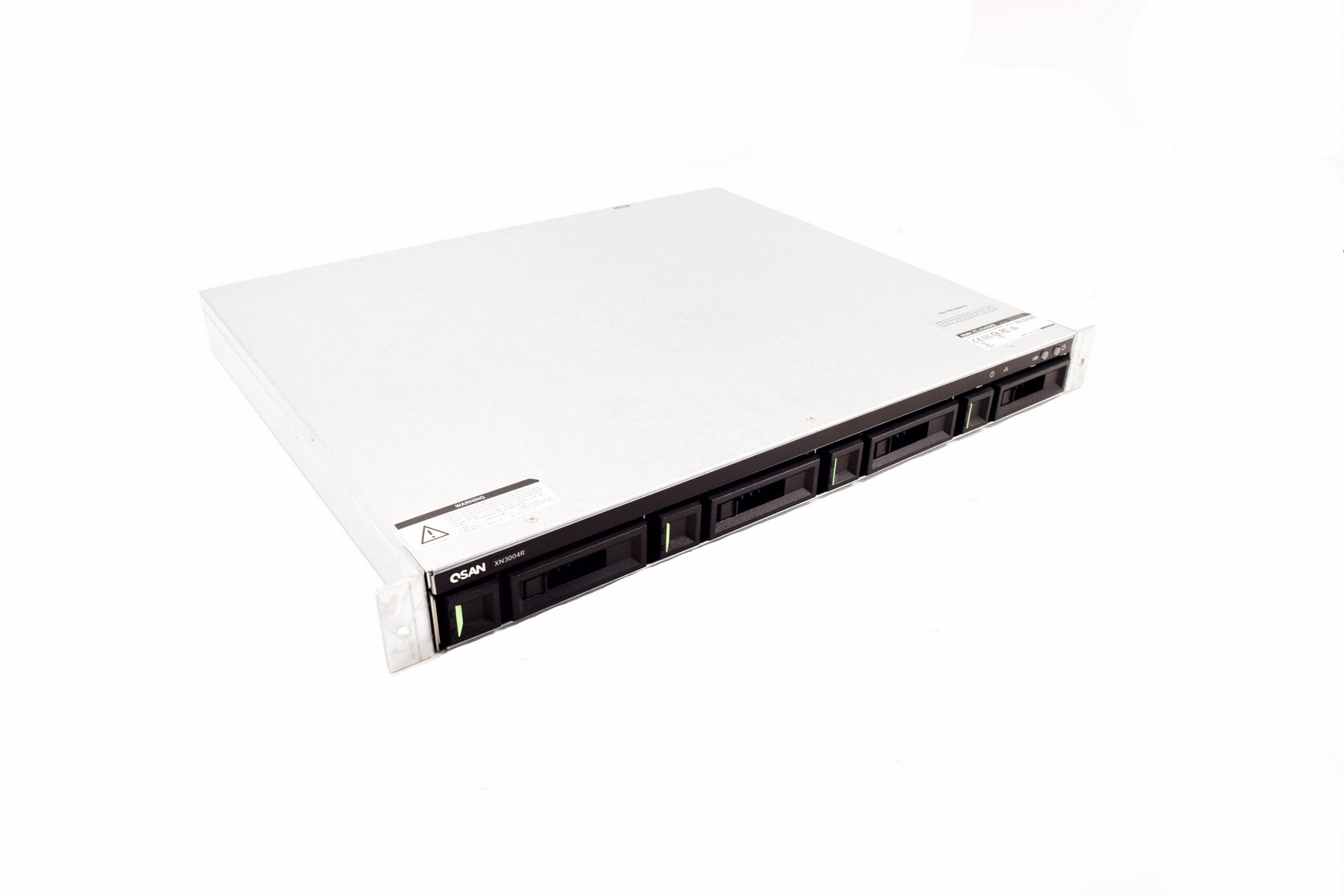

The XCubeNAS XN3004R follows the 1U standard and measures 438mm in width, 370mm in length and 44mm in height.

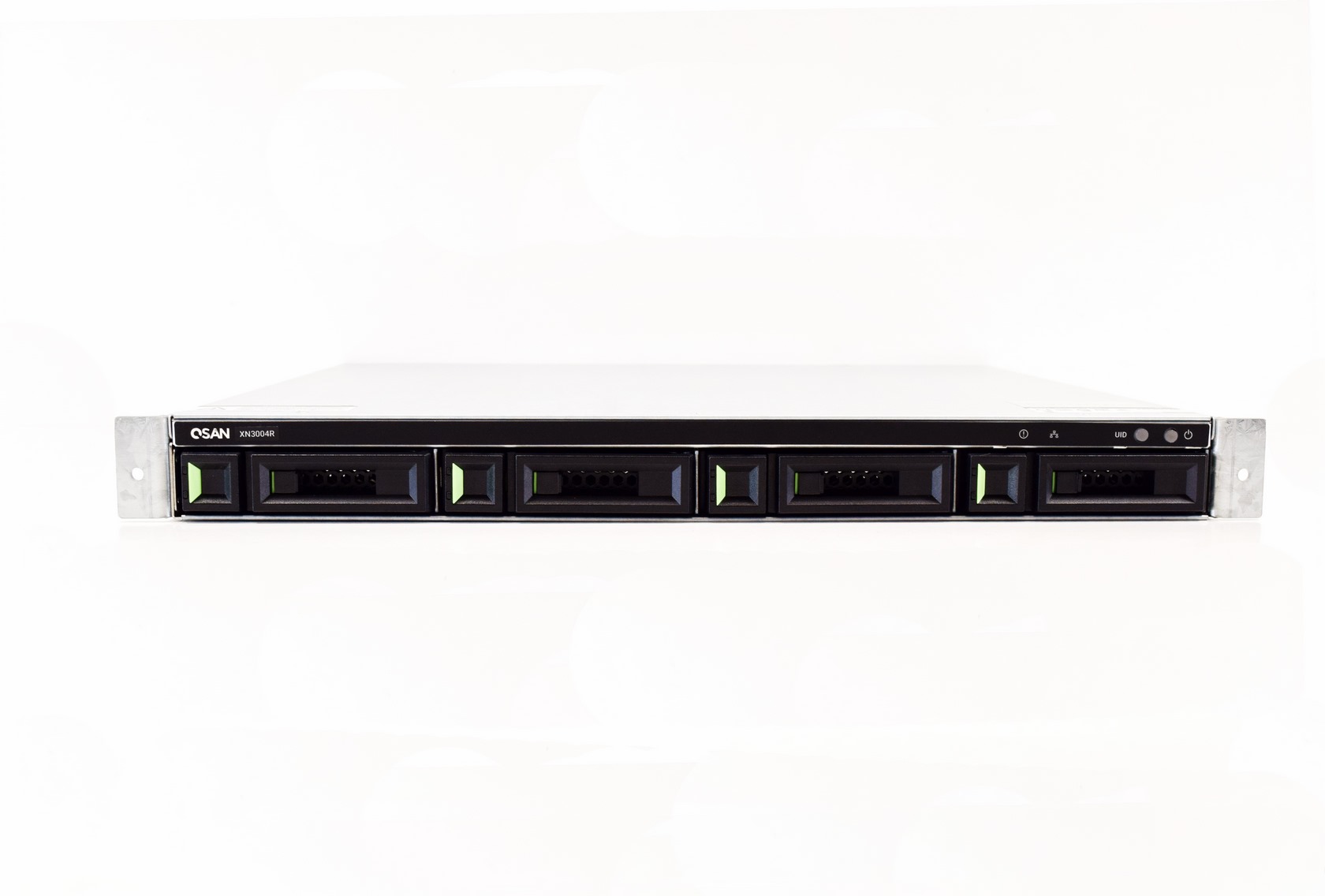

QSAN has once again used their trademark color theme (lime green and black) at the front.

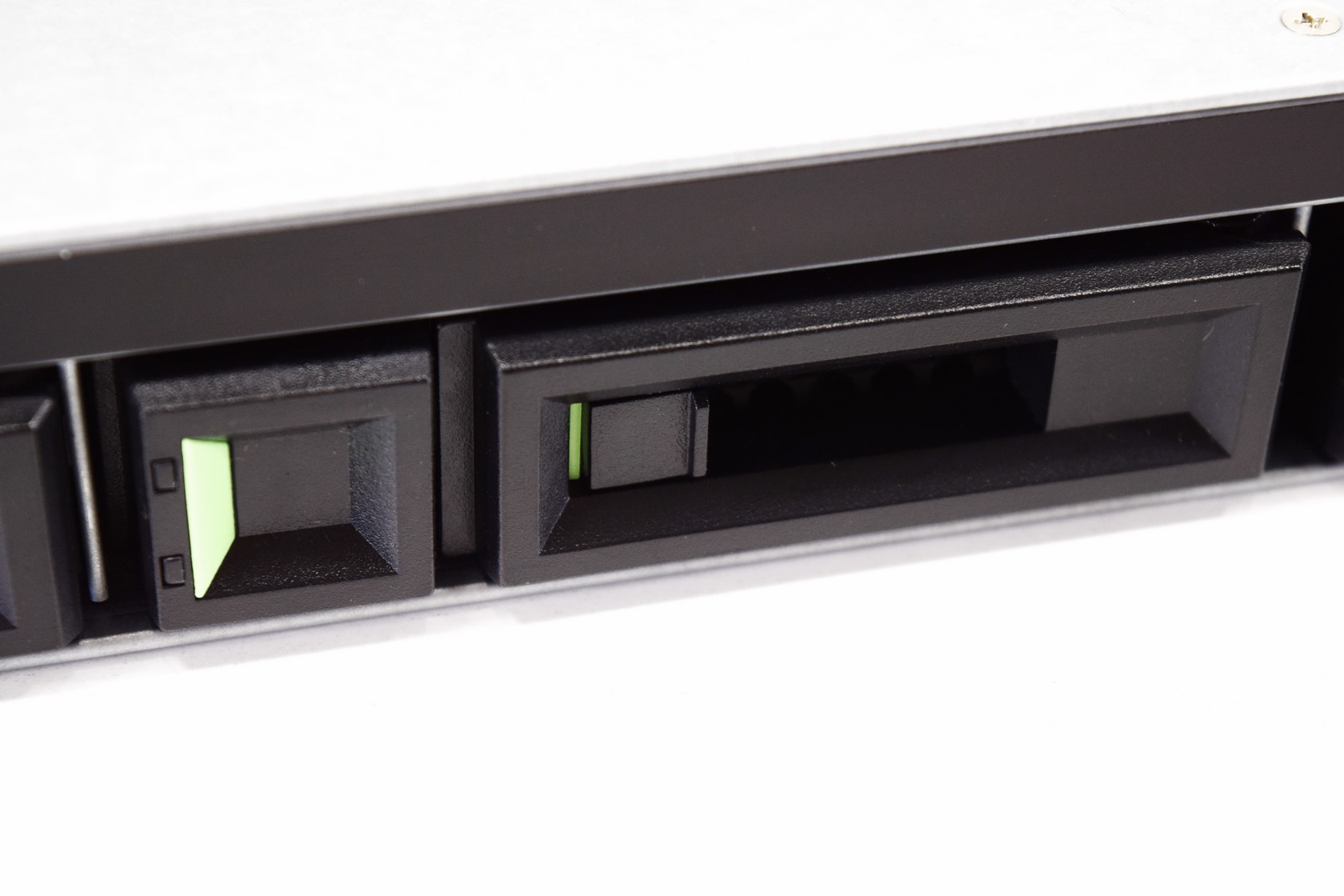

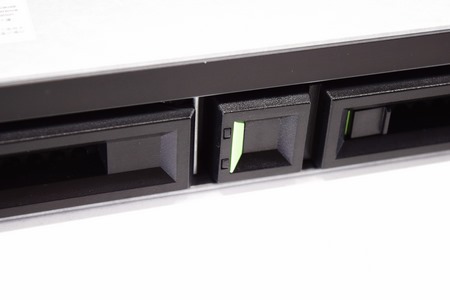

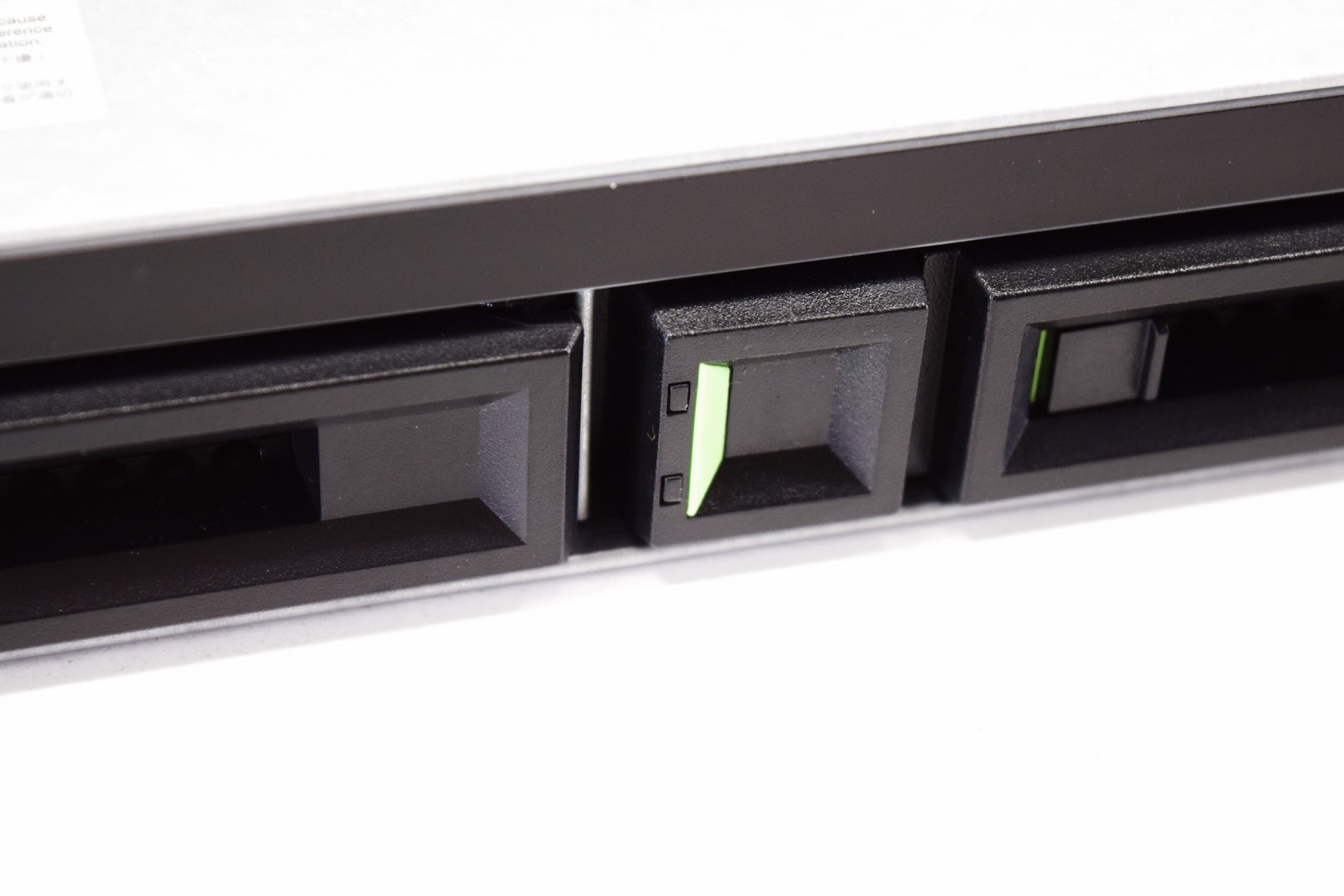

Each drive tray has two activity LEDs (HDD/Power) and a locking switch at the front.

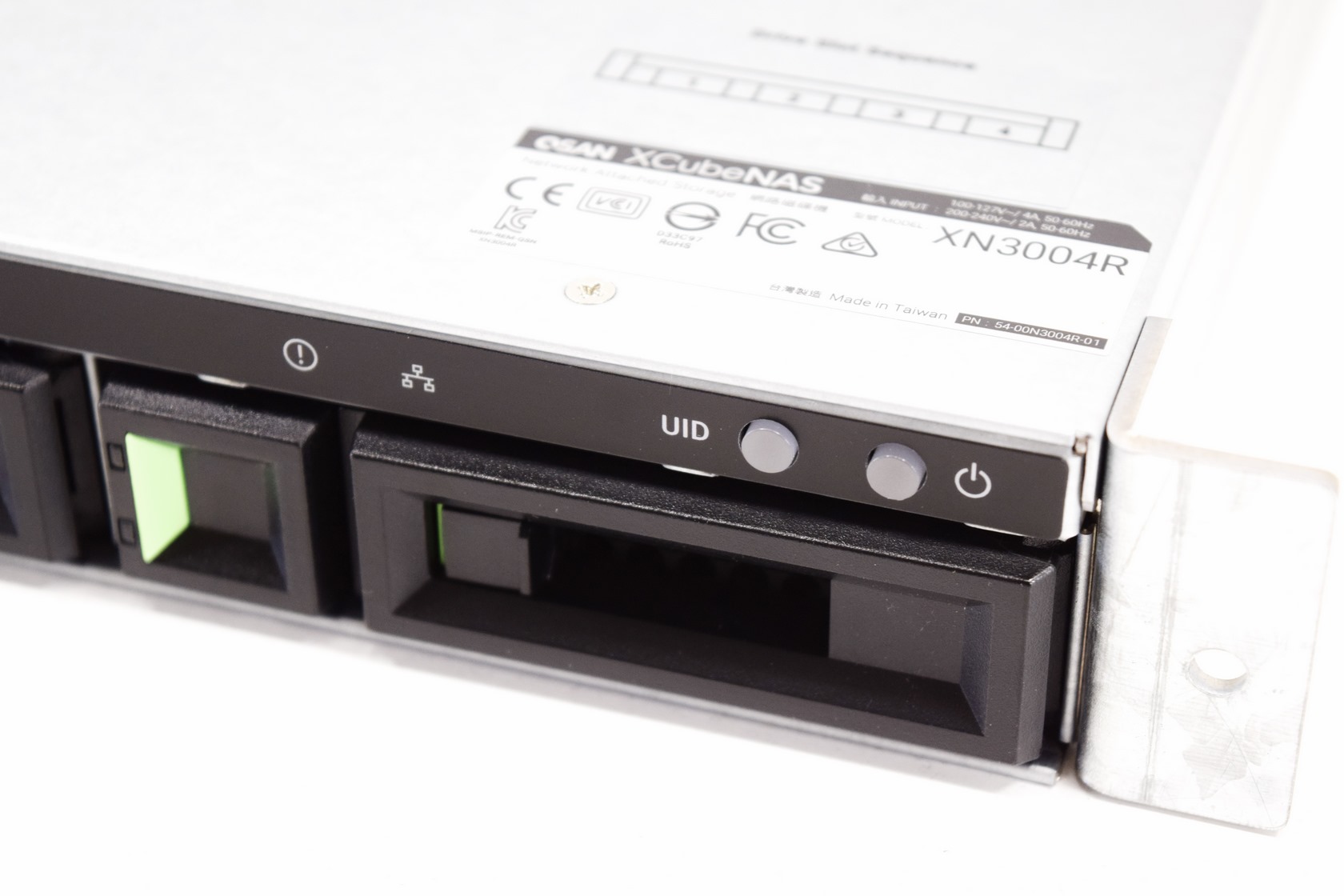

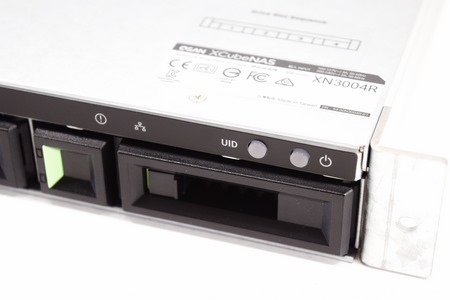

On the far right of the fascia we find the power on/off and the unique identifier (UID) buttons/LED indicators.

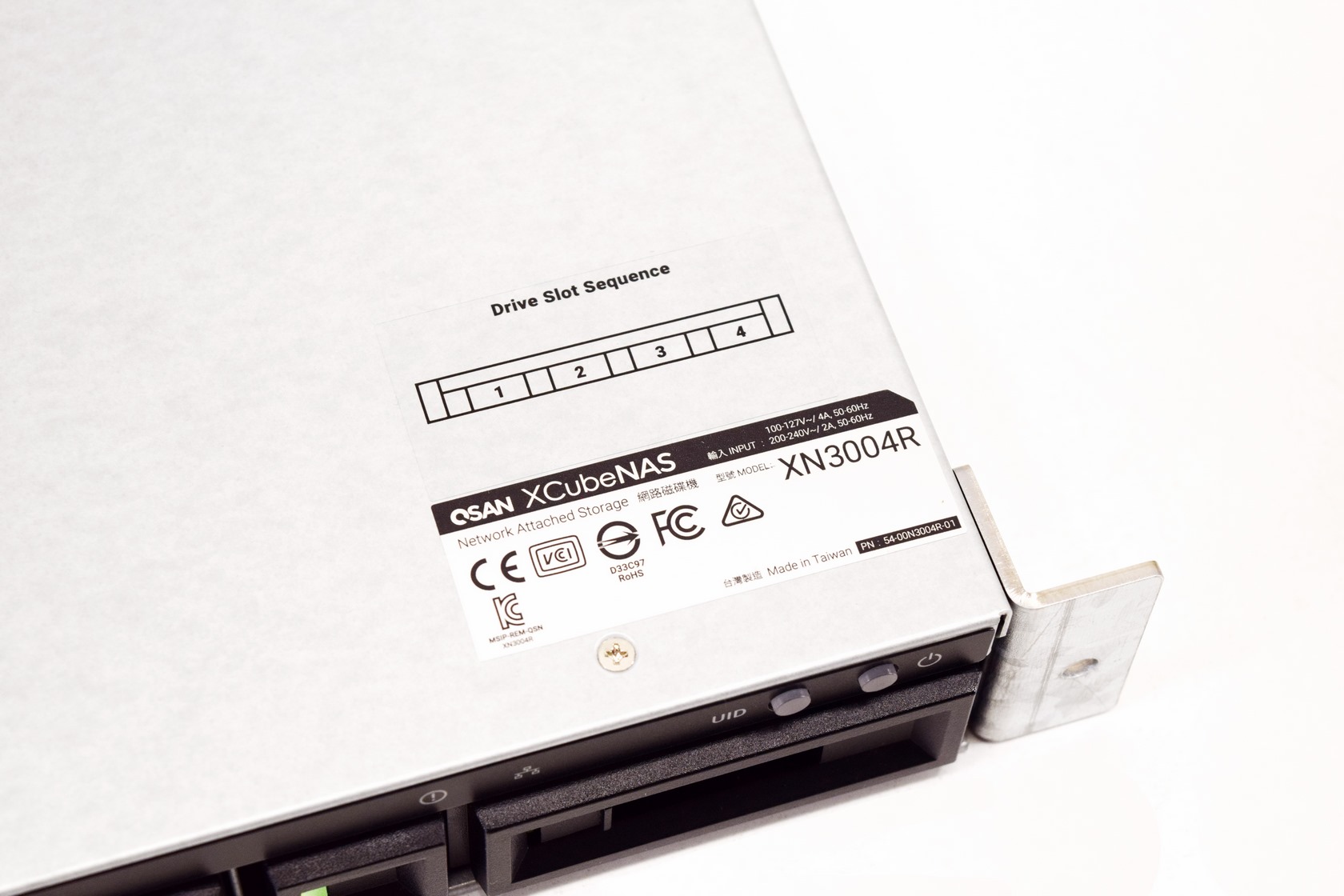

A sticker showcasing the drive bay/slot sequence is placed right over the on/off button.

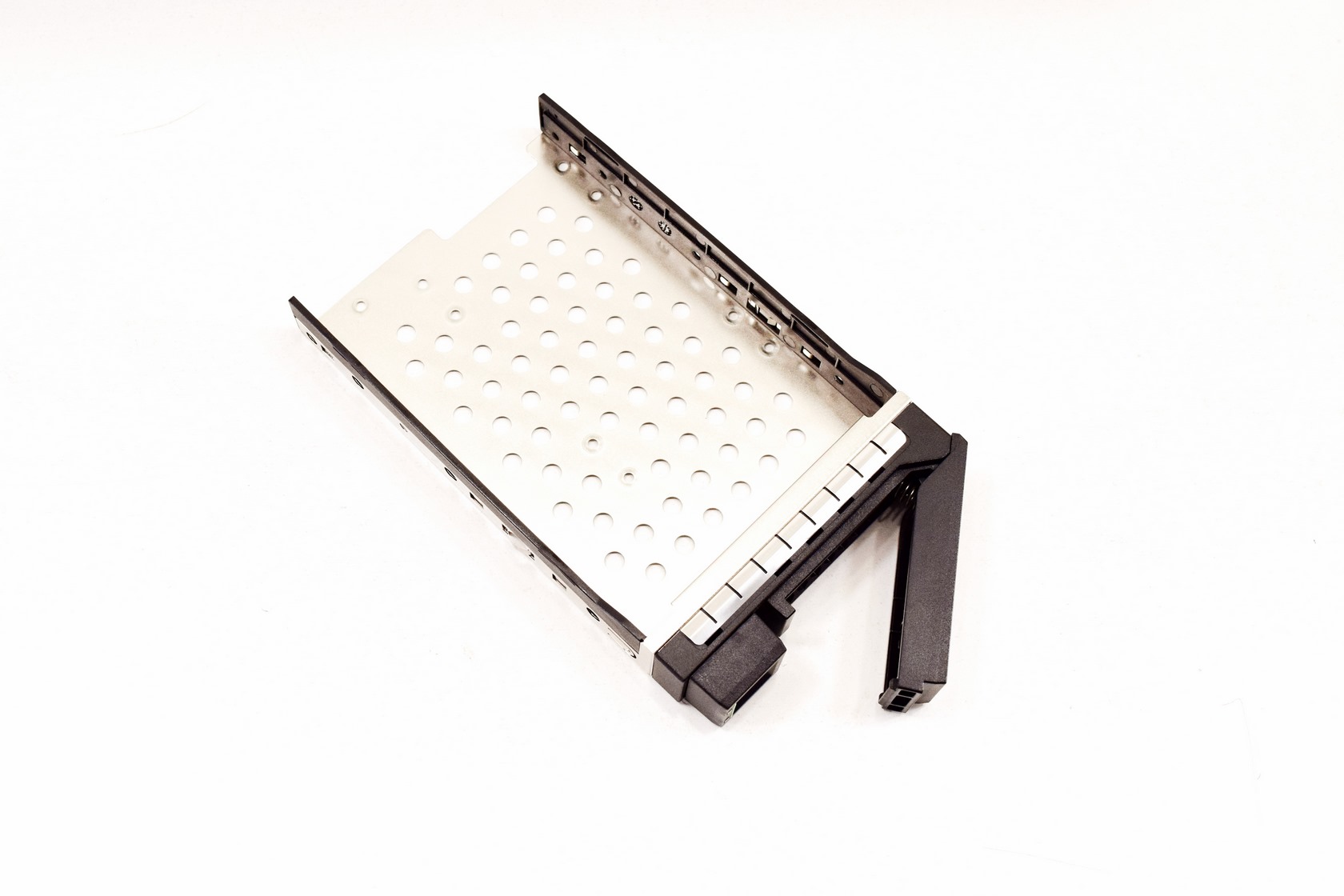

All 4 trays are made out of aluminum and plastic and can accommodate both 2.5" and 3.5" drives.

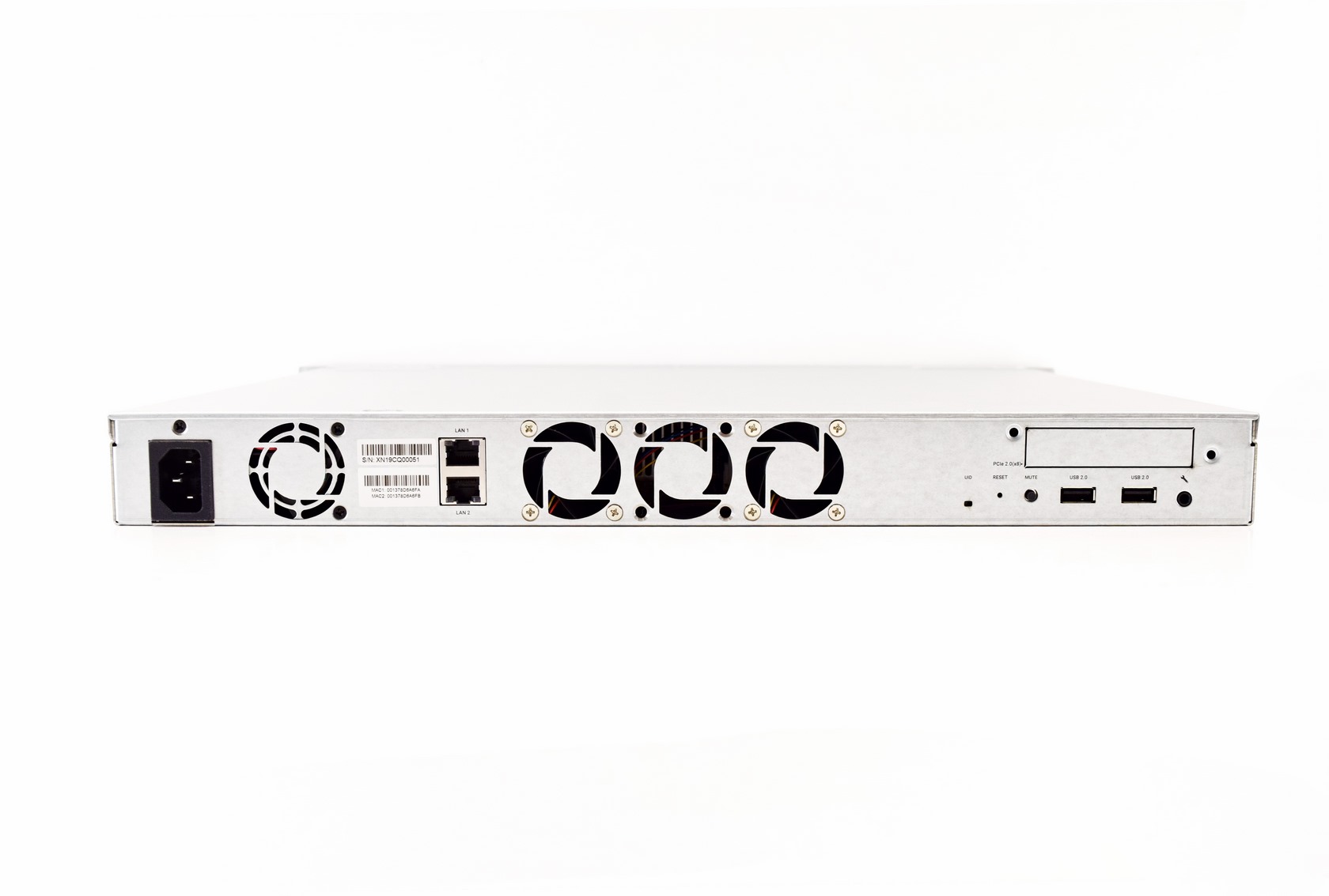

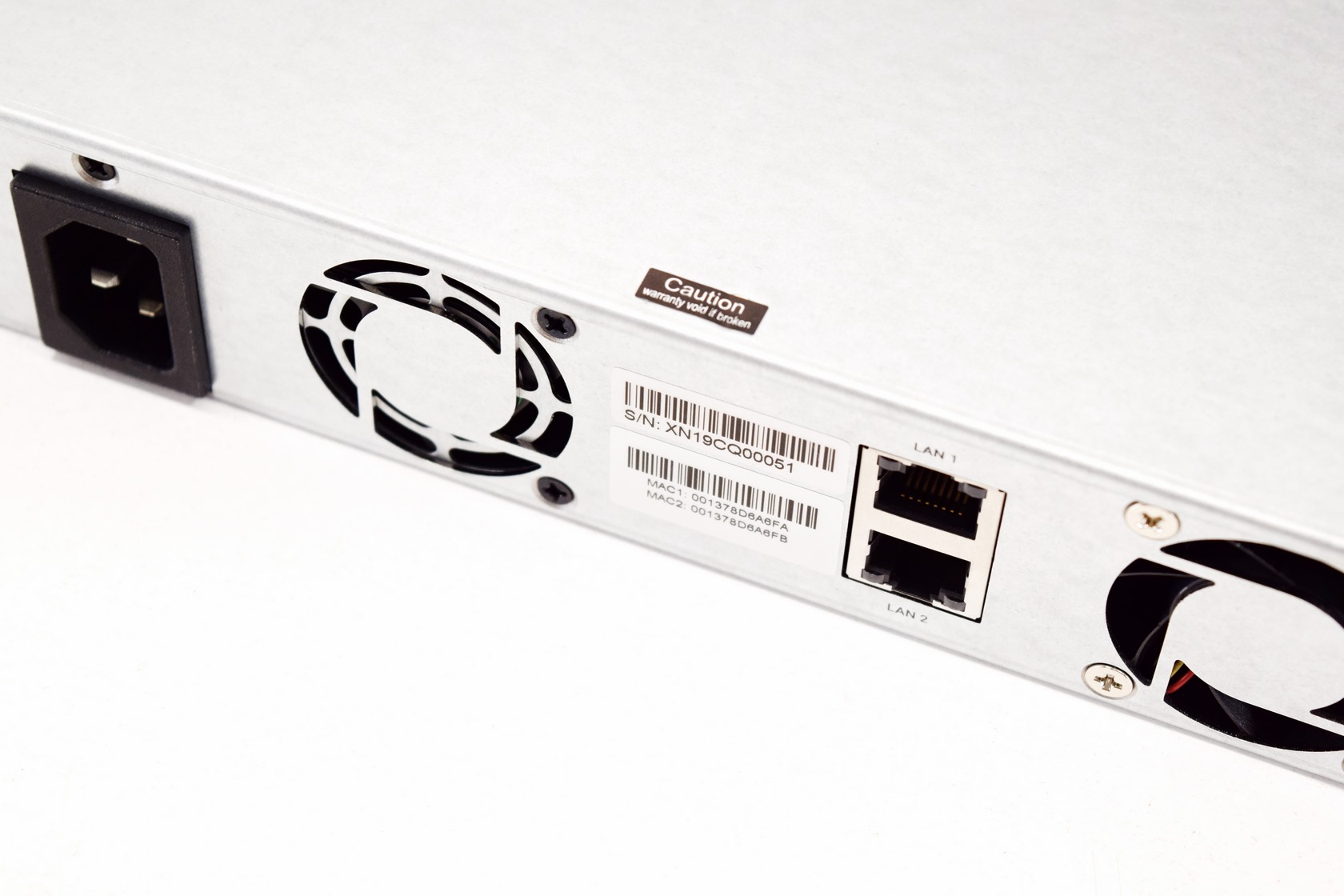

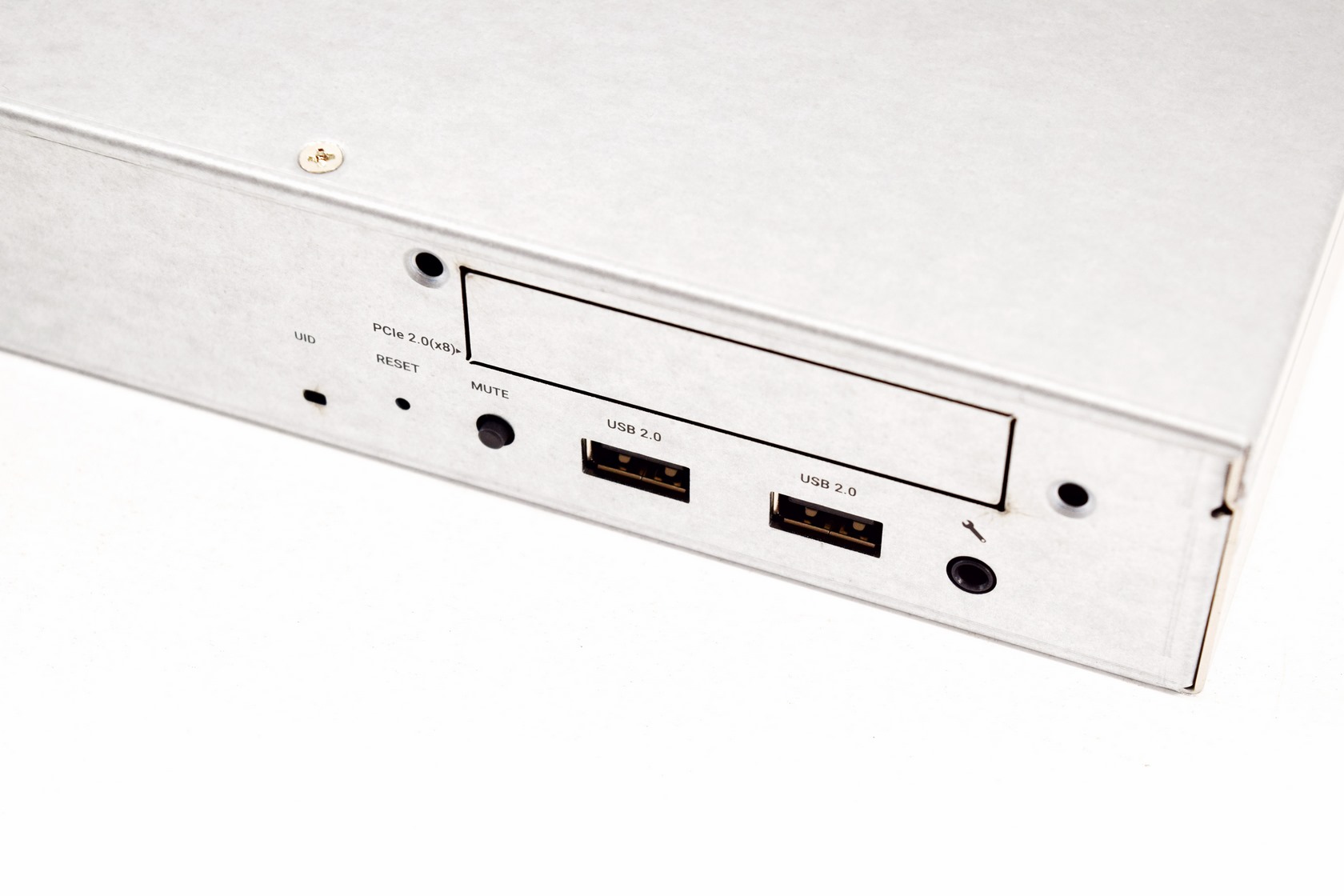

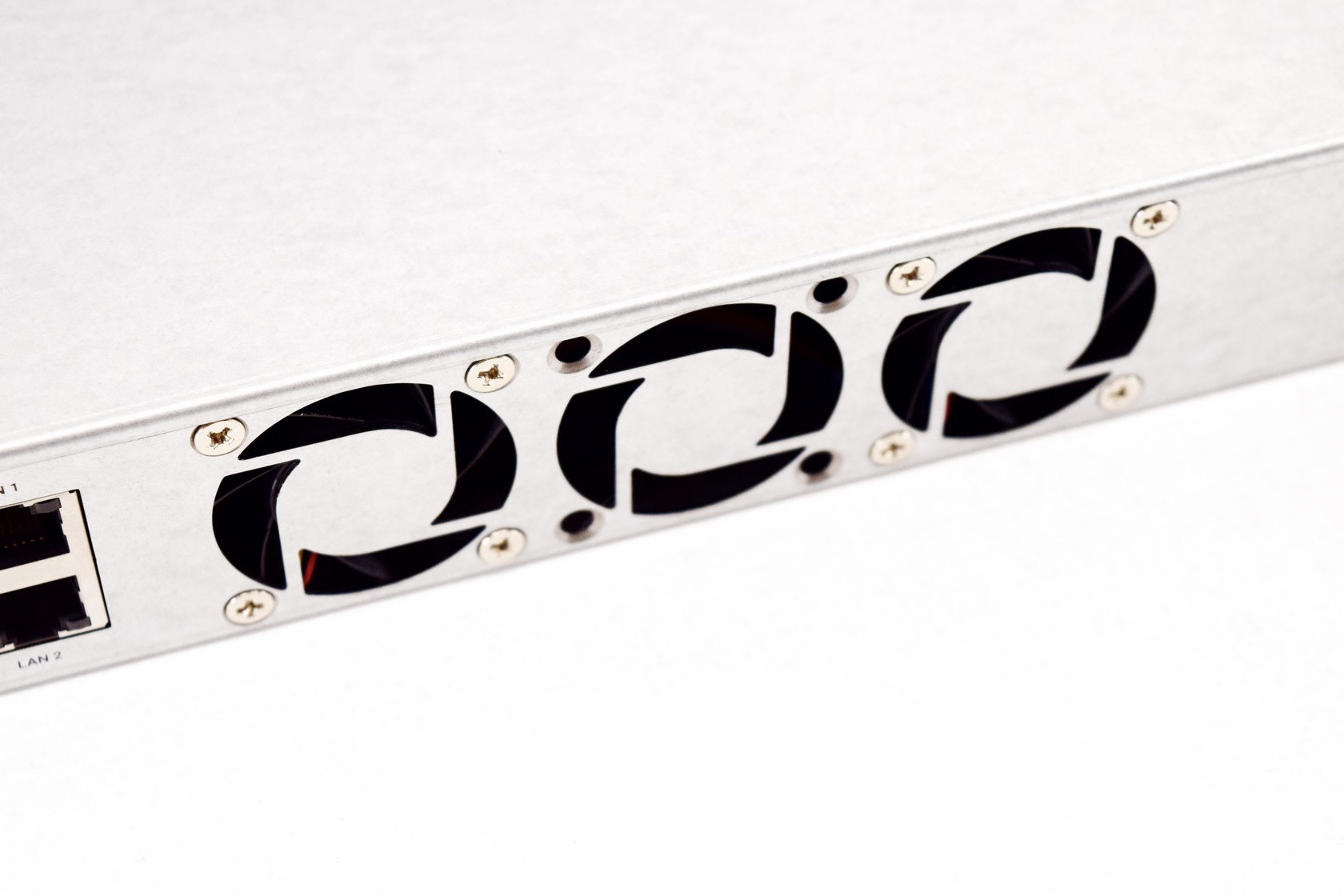

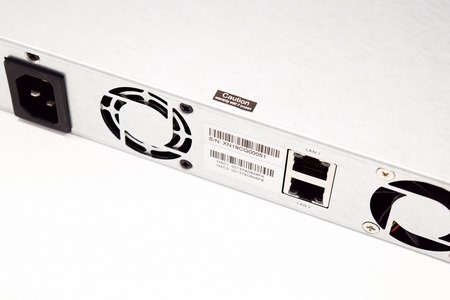

Moving at the rear we find the power port, PSU exhaust fan, two RJ45 ethernet gigabit ports, two 40mm exhaust fans (the middle one is empty), UID LED, reset switch, mute button, two USB 2.0 ports, PCIe Gen2x8 expansion slot and the console port (primarily used for service access).
