THE IGNITE 480GB

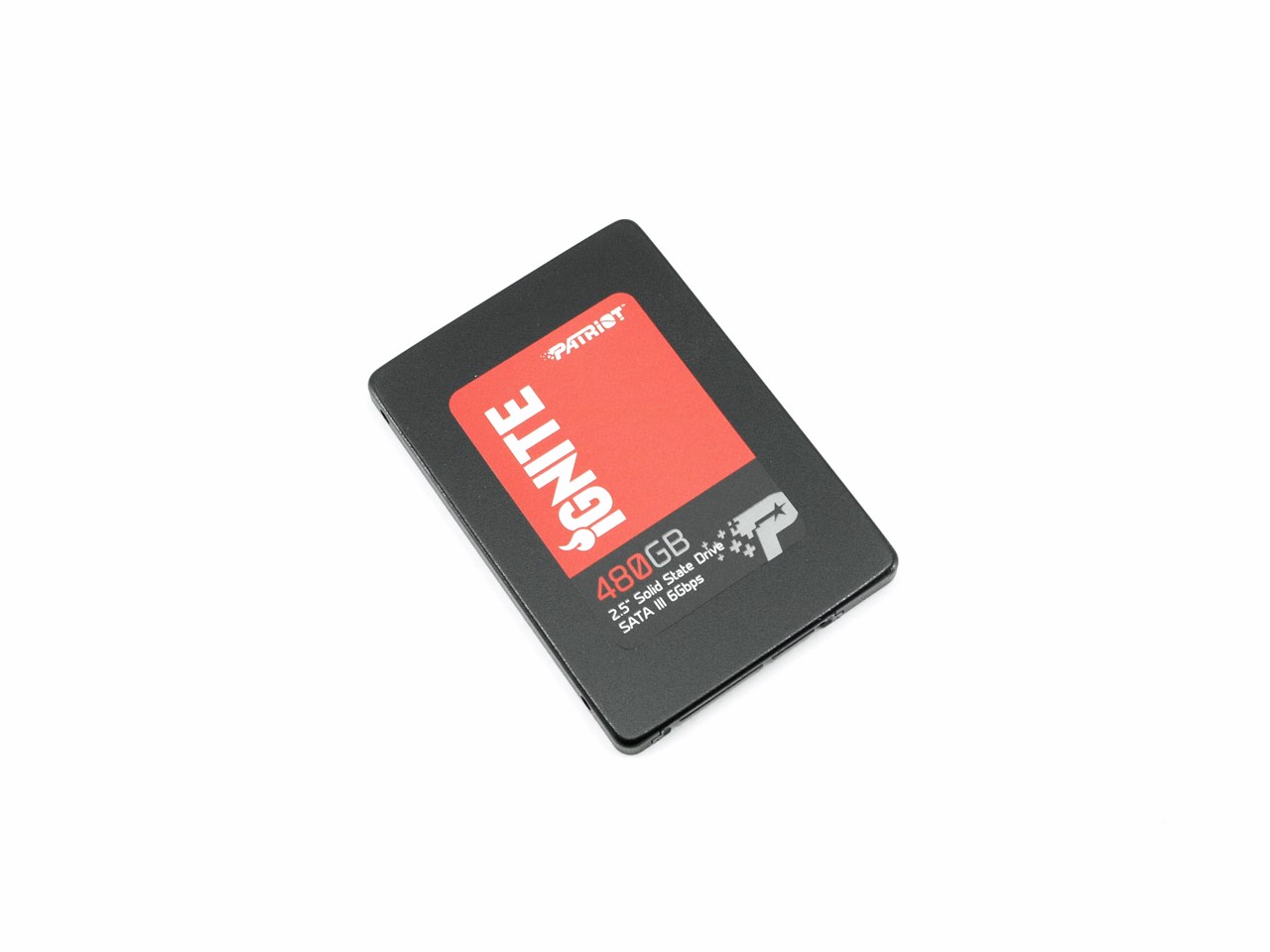

Once again we see a 7mm thick 2.5" aluminum enclosure with a sticker that has the product name, company logo and capacity printed on it.

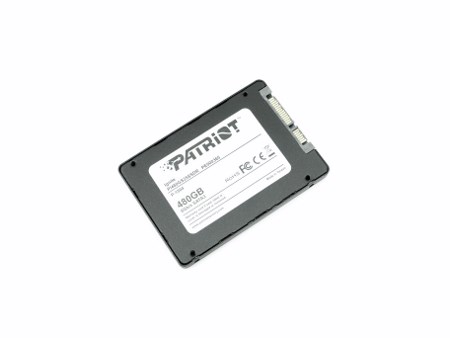

The part number, serial number and model capacity are placed on a second sticker at the bottom.

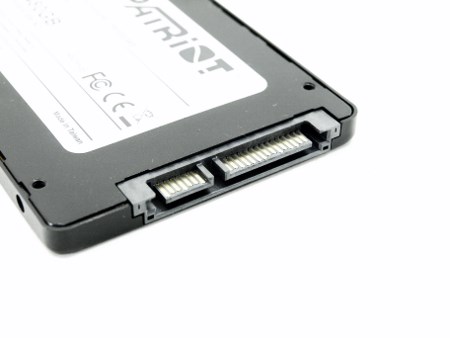

Moving at the rear we see the usual SATA III data and power connectors.

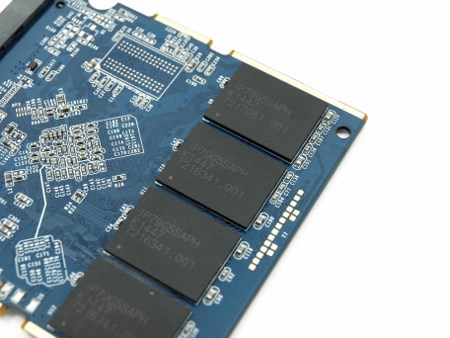

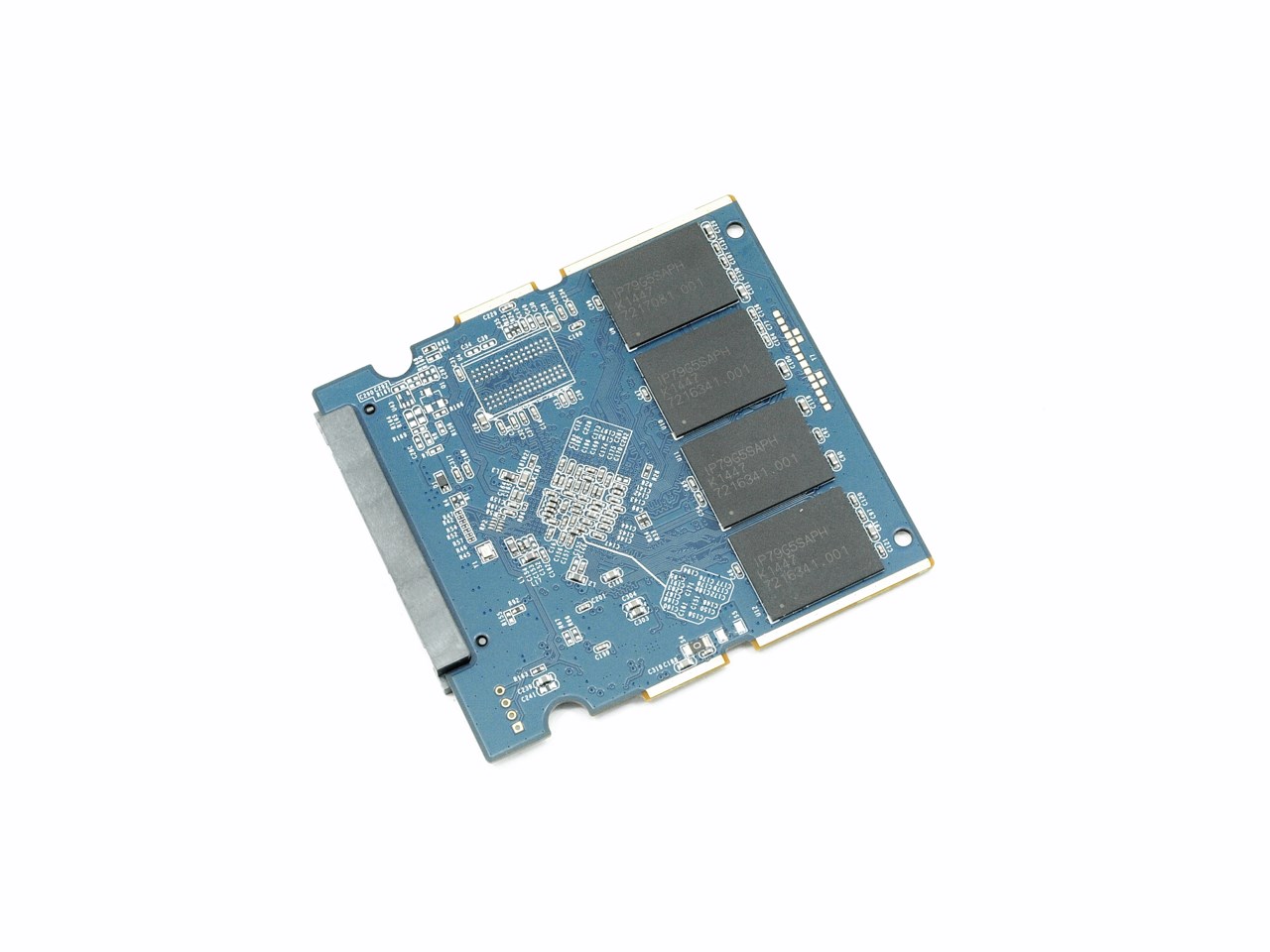

The drive has 4 NAND flash modules by Micron placed on one side of the PCB (each 64GB in capacity).

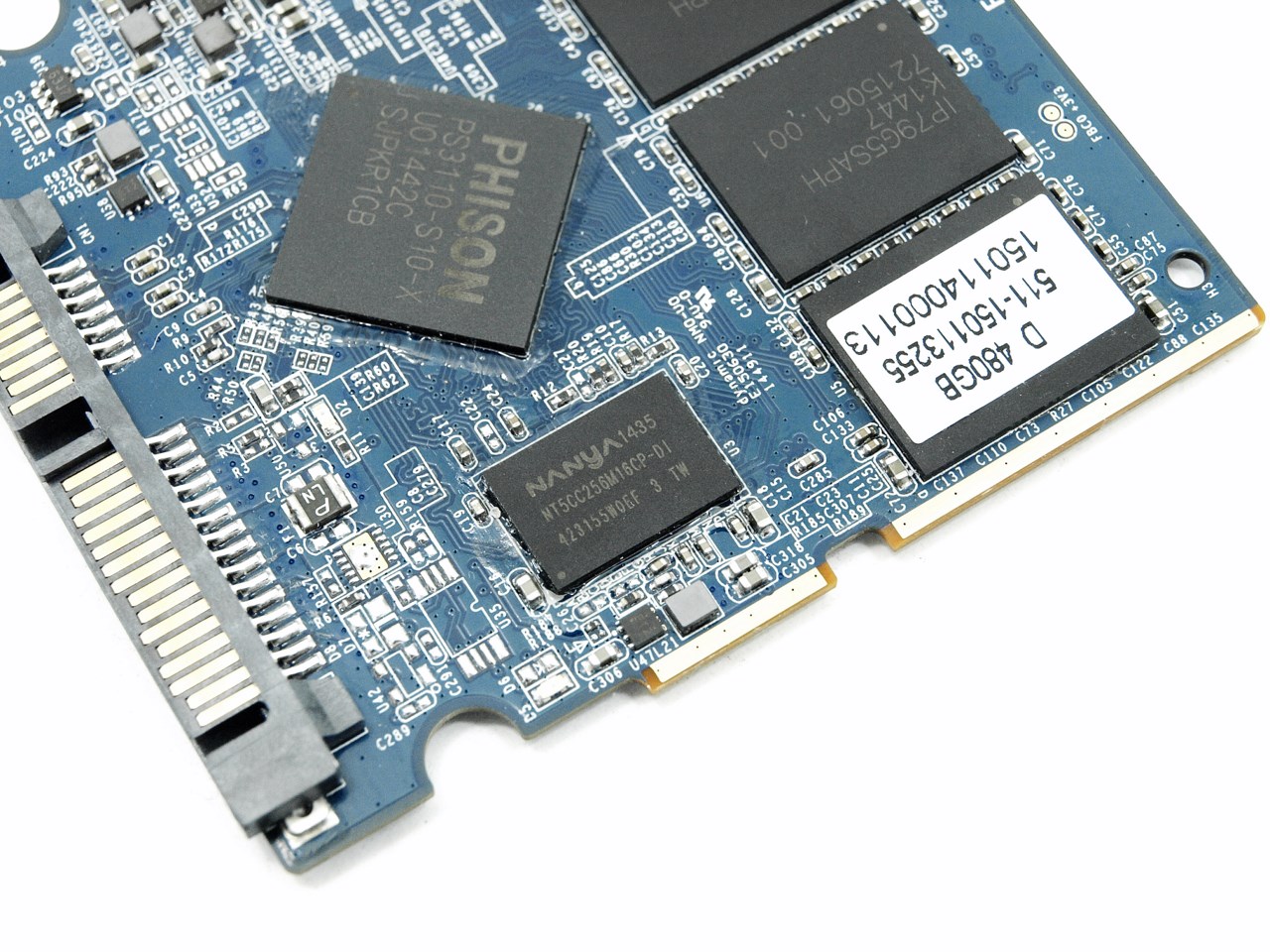

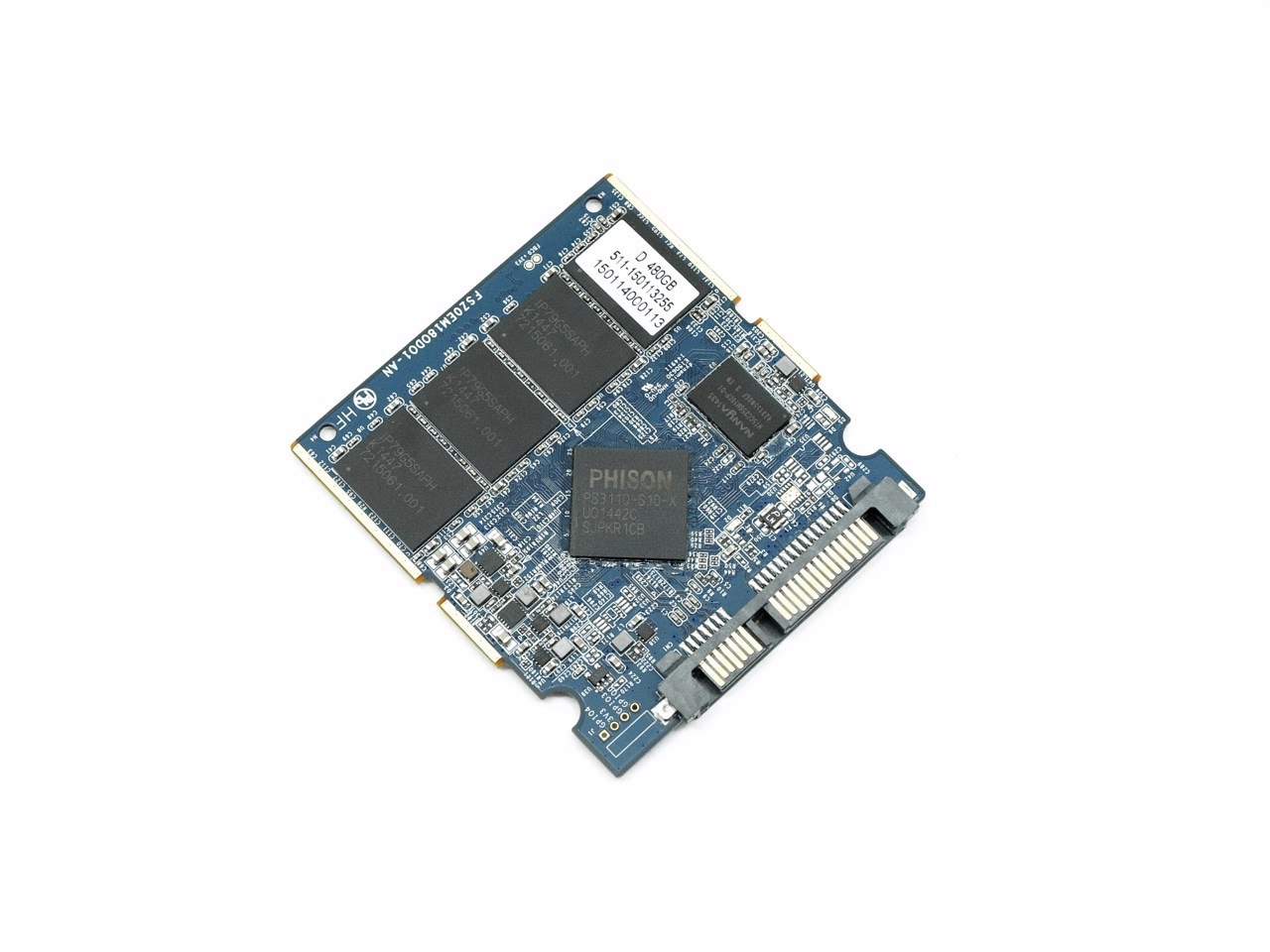

On the opposite side we see another 4 NAND flash modules by Micron and a 512MB DRAM cache IC by Nanya.

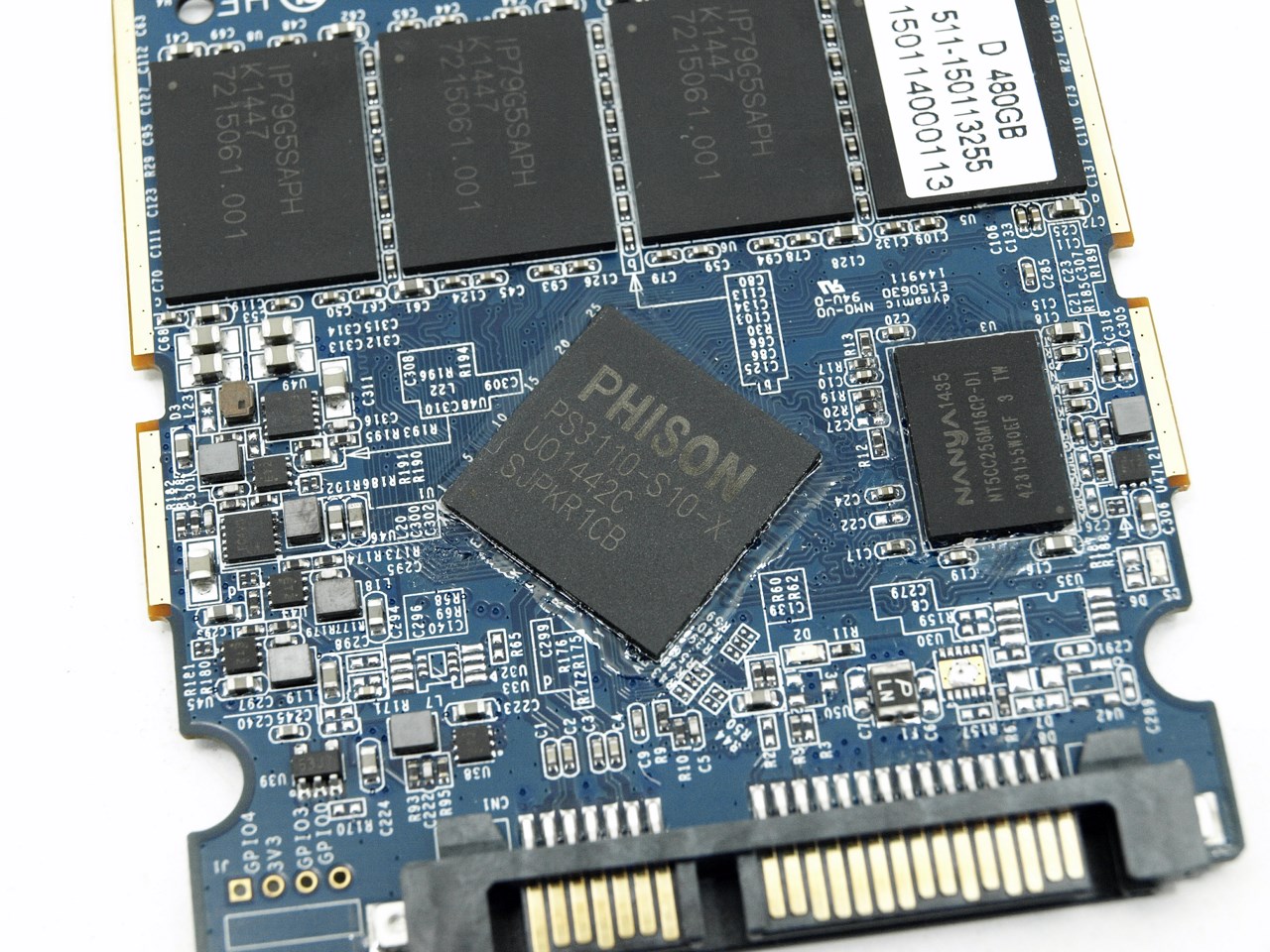

The PS3110-S10 controller by PHISON sits at the center of the PCB.
