THE ION+ 860P EXTERIOR

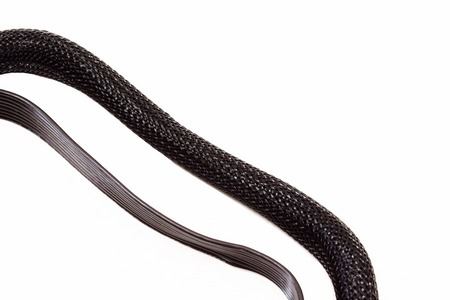

Even though for all secondary modular cables Fractal Design chose to go with slim ones the primary one (motherboard 24pin) is still thick (still thanks to the ultraflex technology it's more flexible than expected).

The chassis of the ION+ 860P measures 150mm in length, 150mm in width and 86mm in height.

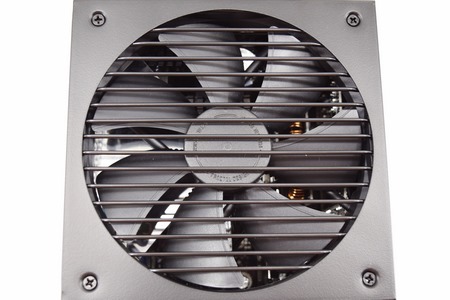

I was surprised to see that Fractal Design has used a no thrills grill over the 140mm fluid-dynamic bearing fan.

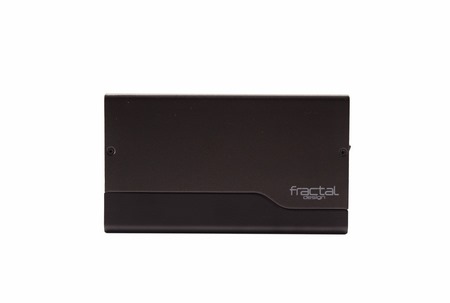

Just a small company logo is located on both sides of the enclosure.

At the front of the unit we find the zero RPM mode switch and the 11 modular ports which are not only different in configuration but are also tagged.

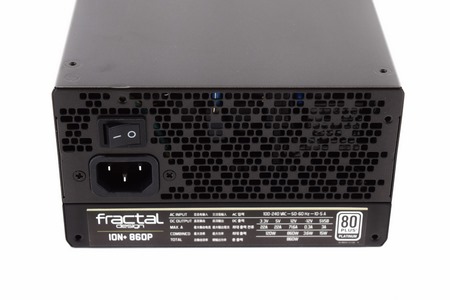

Moving at the rear we find the usual perforation right next to the power port, on/off power switch and a sticker with the units electrical table.
