THE 805 INTERIOR

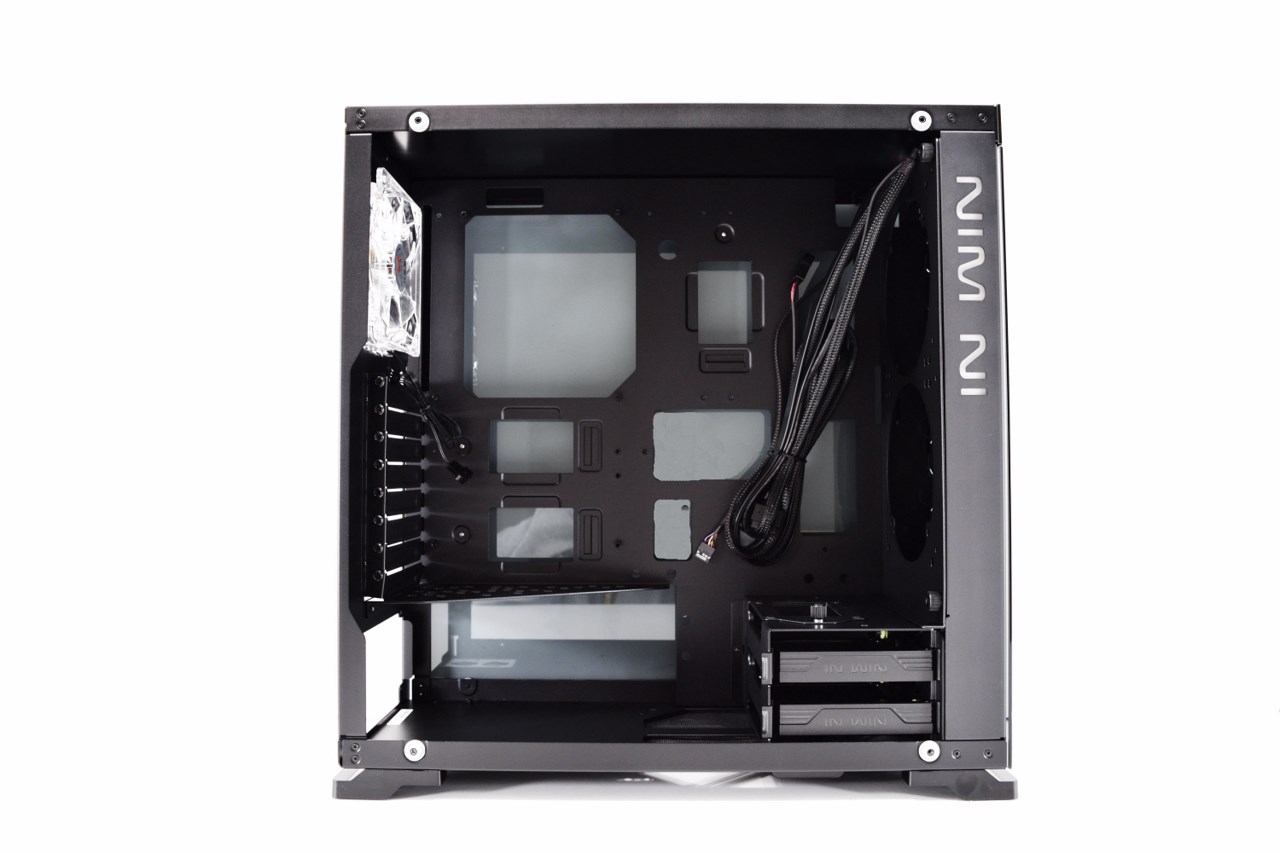

As you can see there's plenty of space inside the 805 mostly because it has no 5.25" optical drive bays.

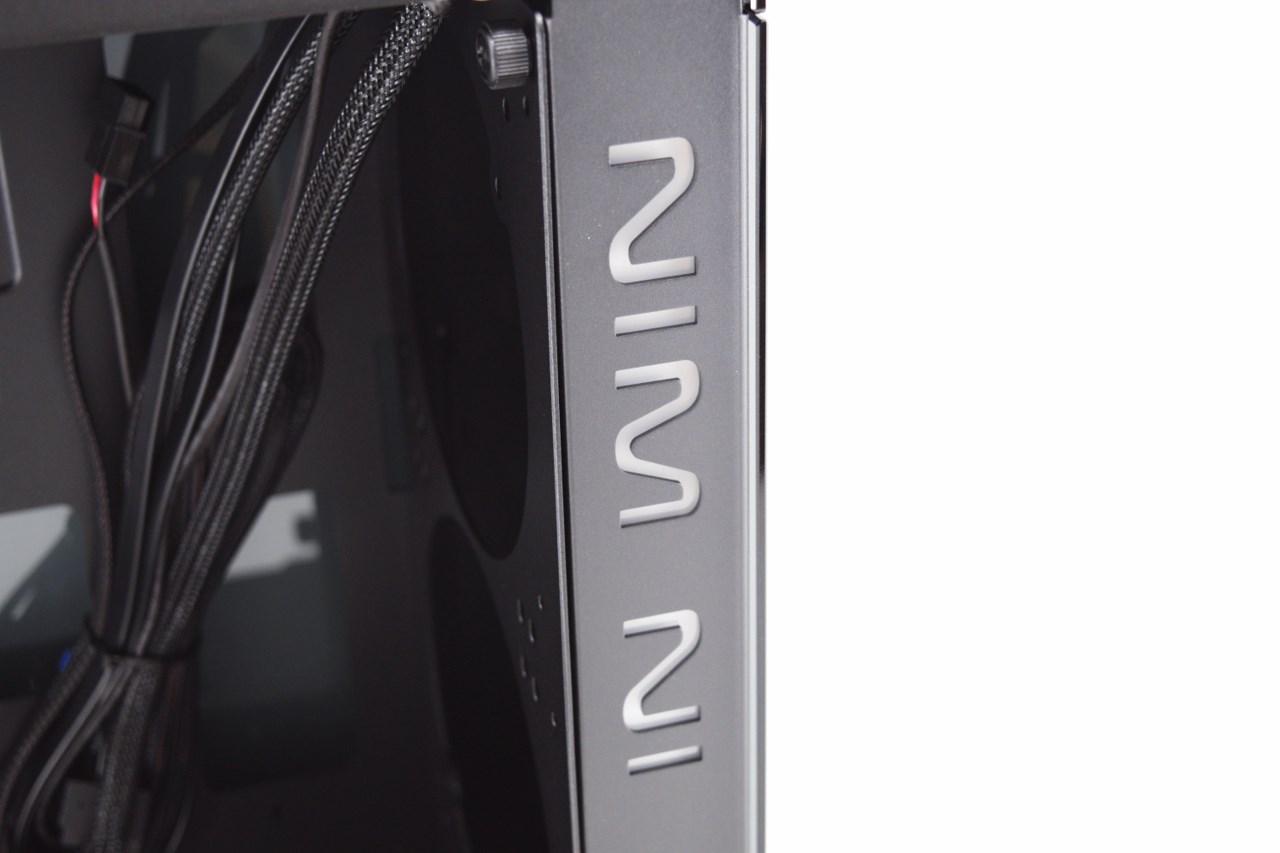

IN WIN has two versions of the 805 available, one that features two USB 3.0 and has no LED beneath their side logo (above picture) and the one we have that has one USB 3.0 and one USB 3.1 type-C ports and has a red LED beneath their logo.

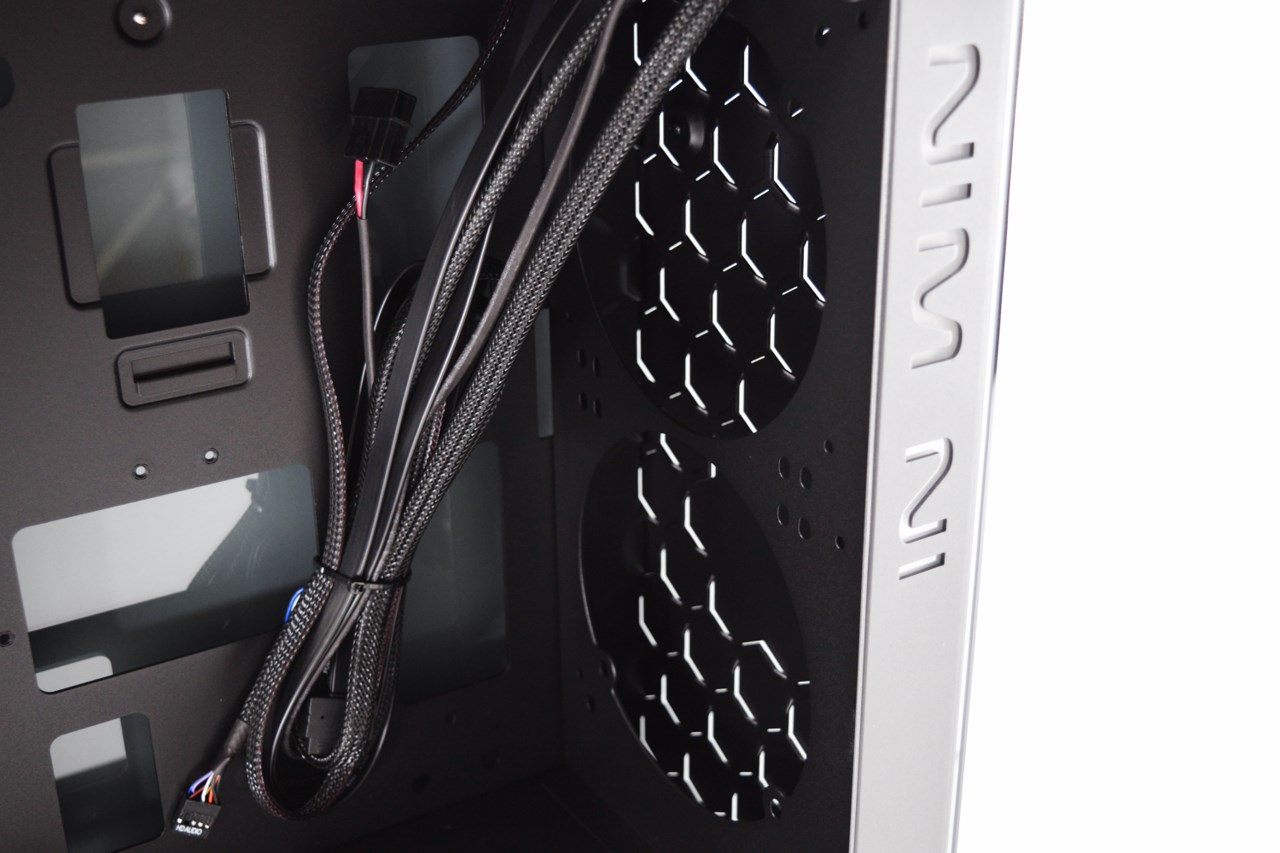

Behind the fascia there's room to install either two 140mm intake fans or a single 120/140/240/280mm radiator up to 60mm thick.

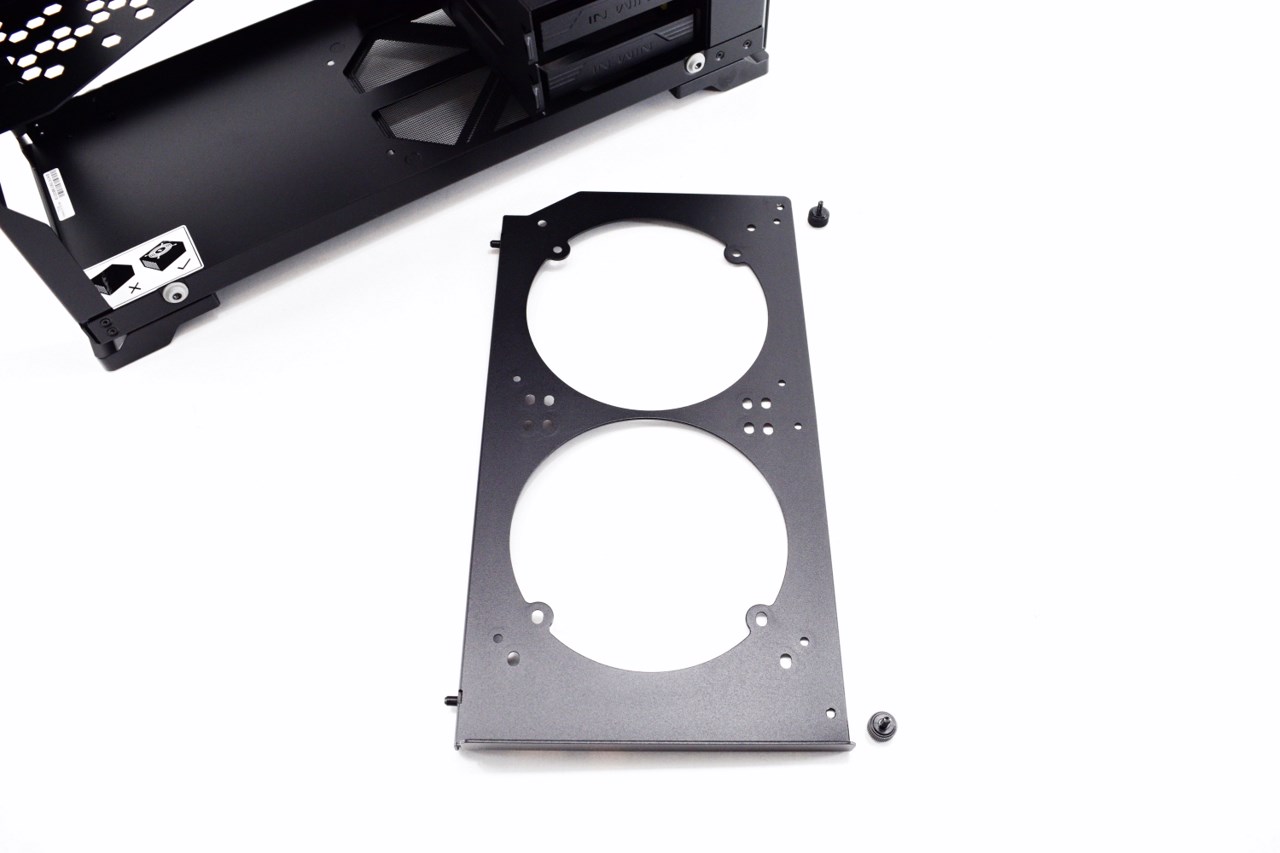

You just need to remove this aluminum piece (held by two thumbscrews) to do so.

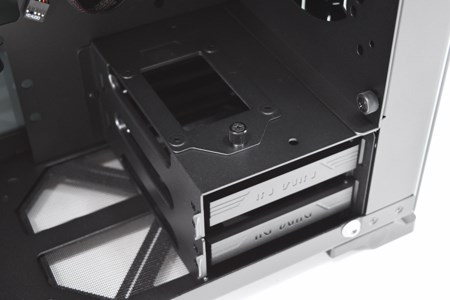

Next we have the drive cage which has a top aluminum tray for 2.5" drives and two trays inside.

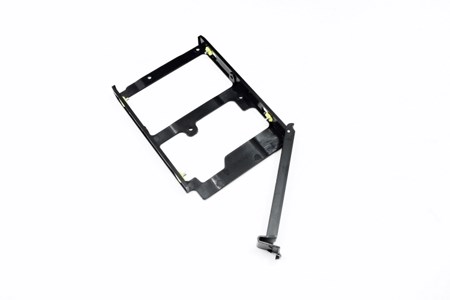

These trays are made out of plastic and can accommodate 3.5" and 2.5" drives.

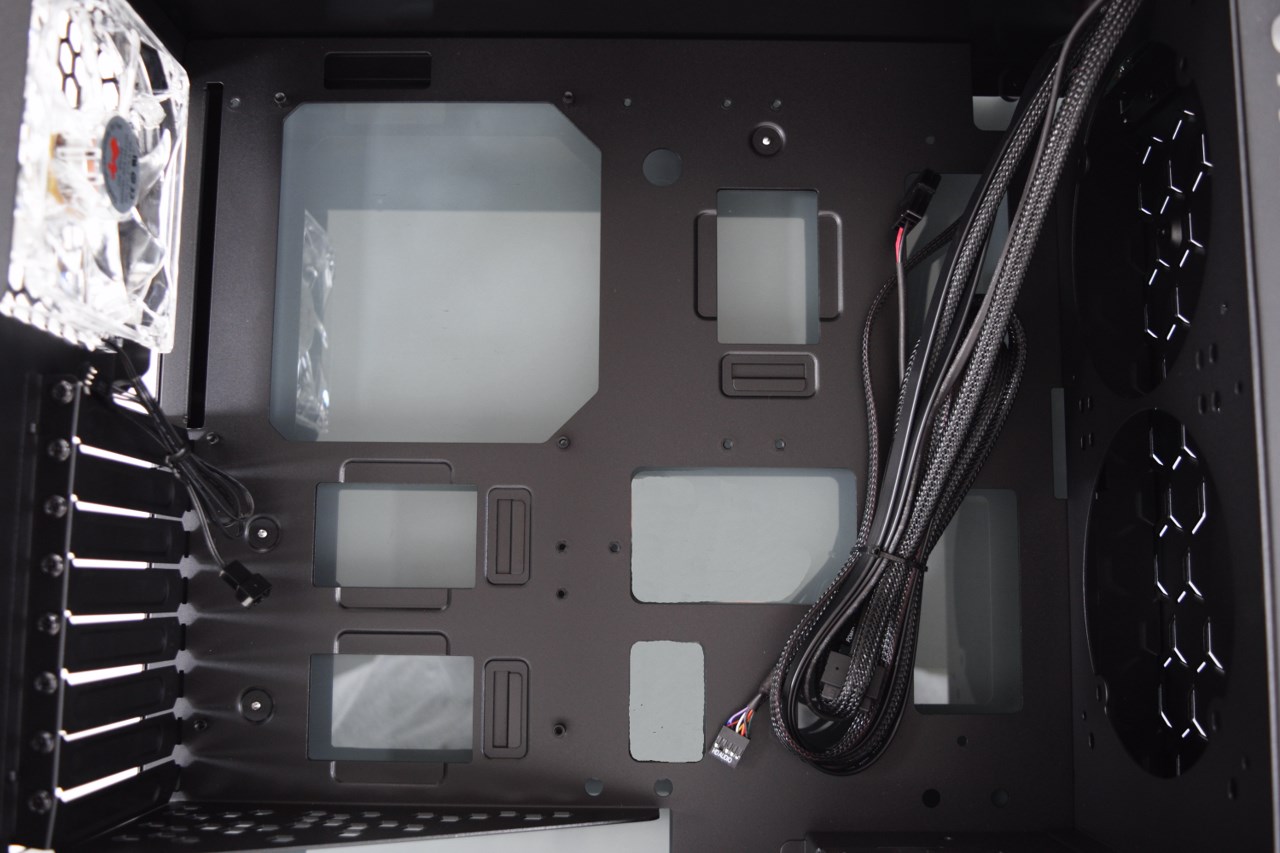

The mainboard tray has several holes for cable management but only three small ones are rubber coated.

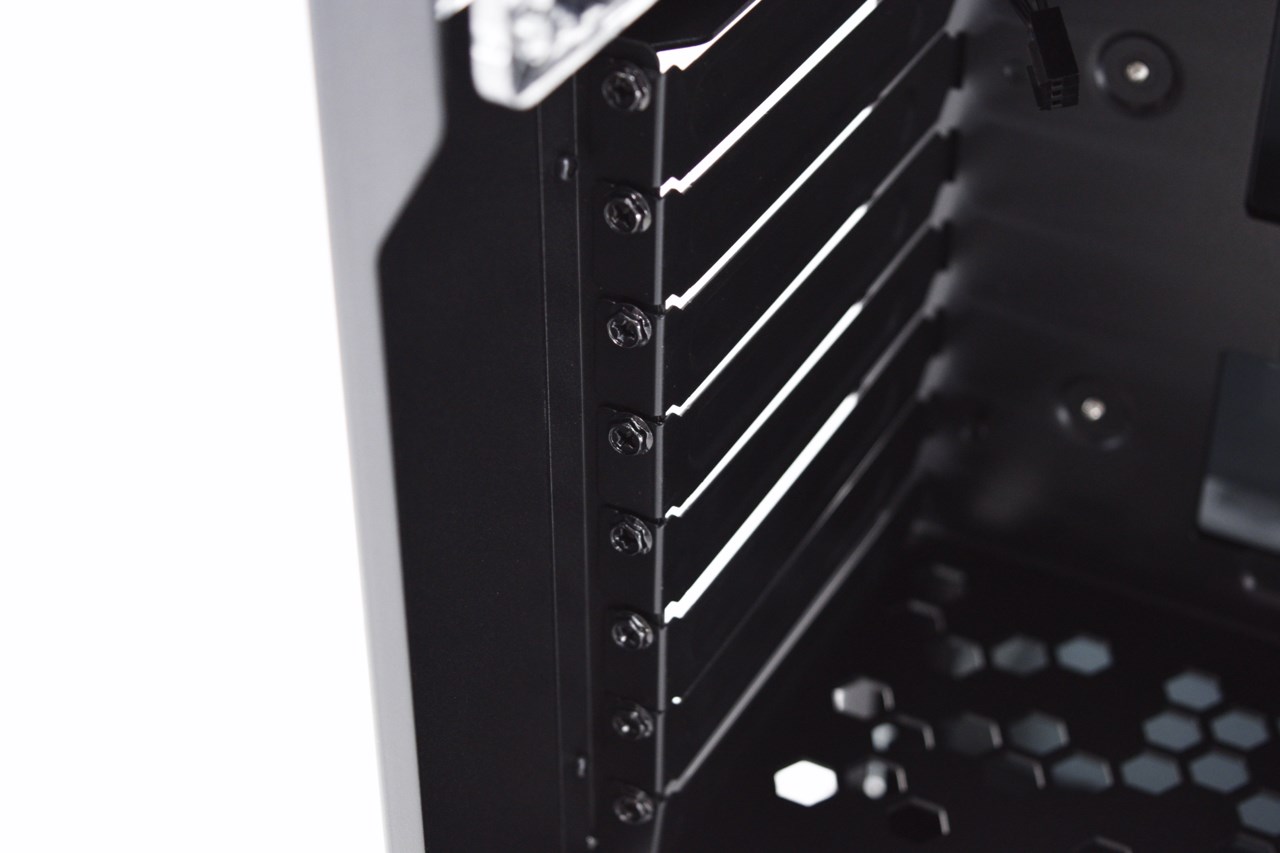

Strangely enough IN WIN has used regular screws for the 8 PCI expansion slots (rubber coated thumbscrews are our favorite).

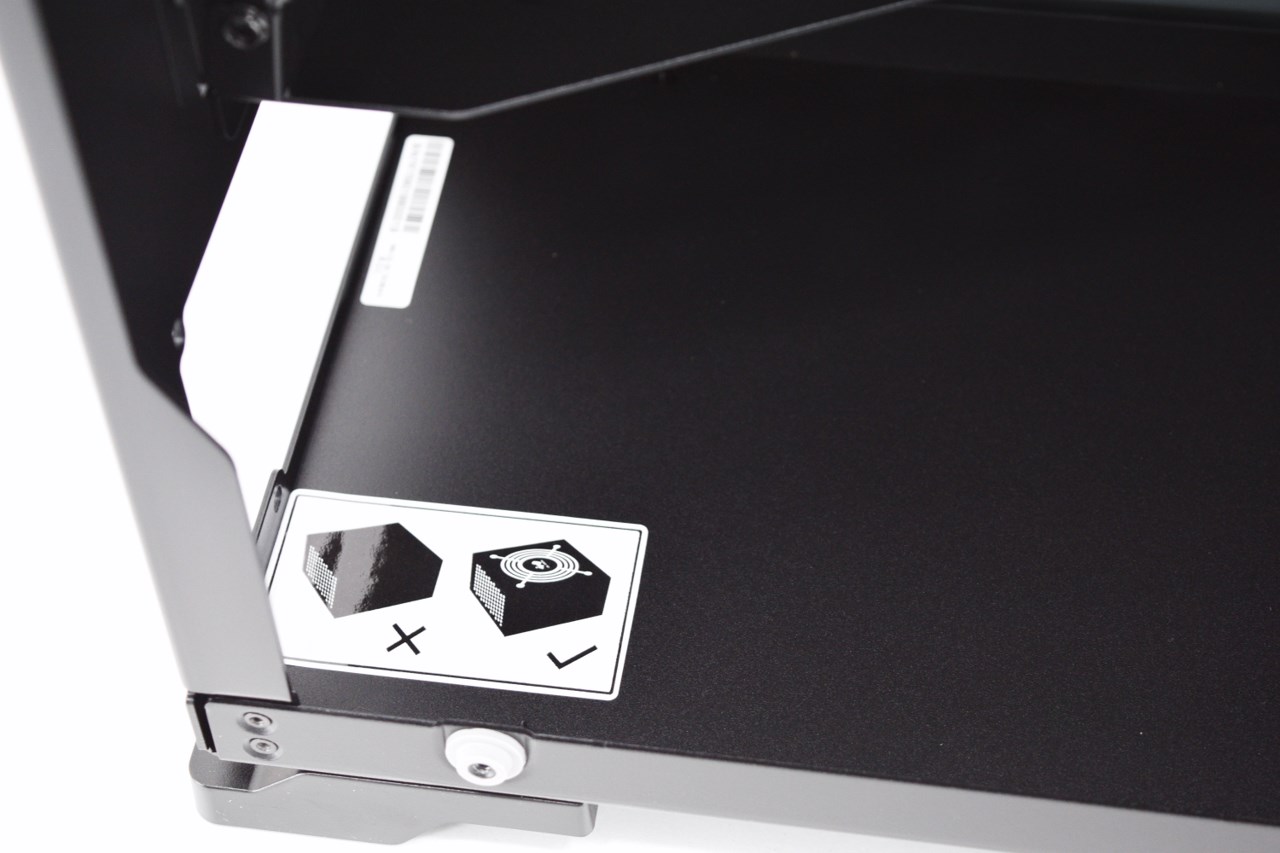

Since for some strange reason there's no perforated section underneath the PSU area a sticker warns you that the intake fan should look upwards.

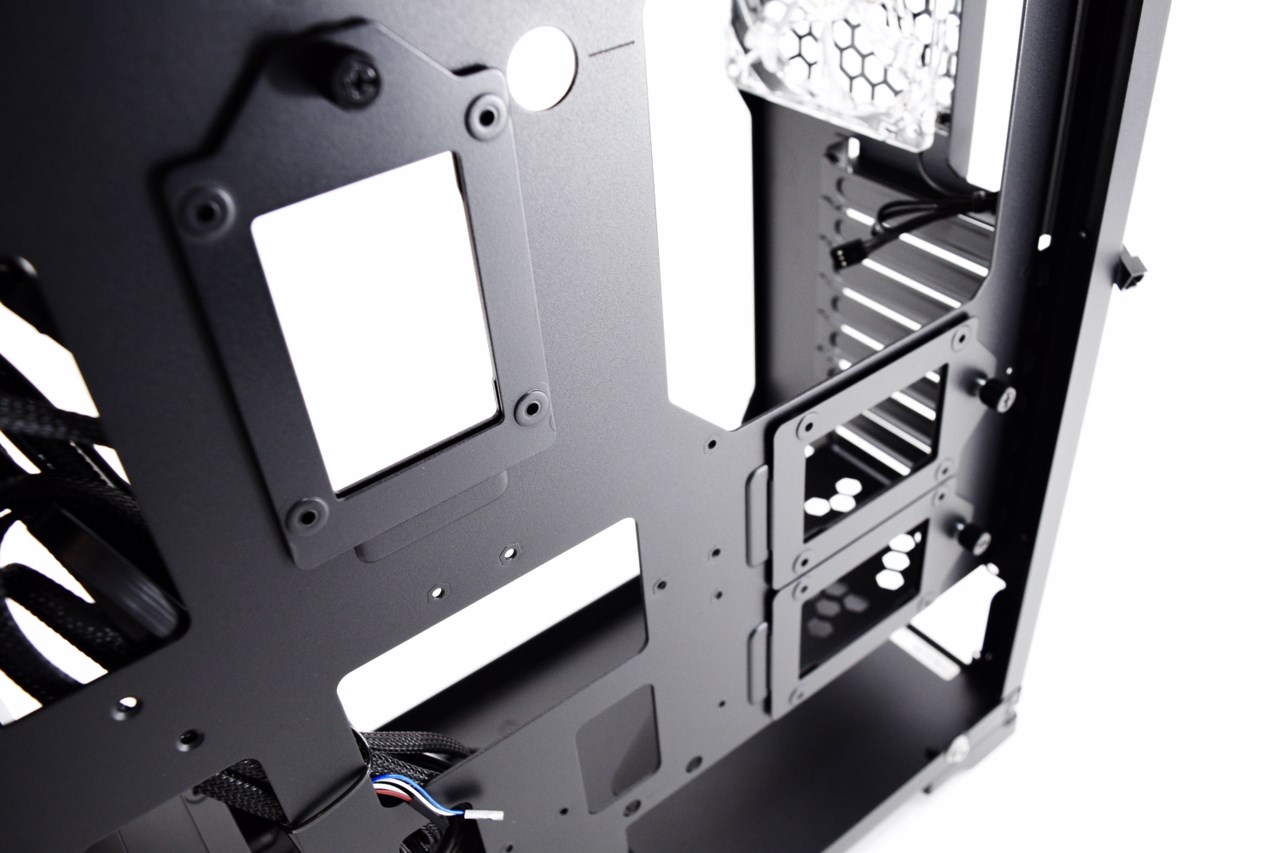

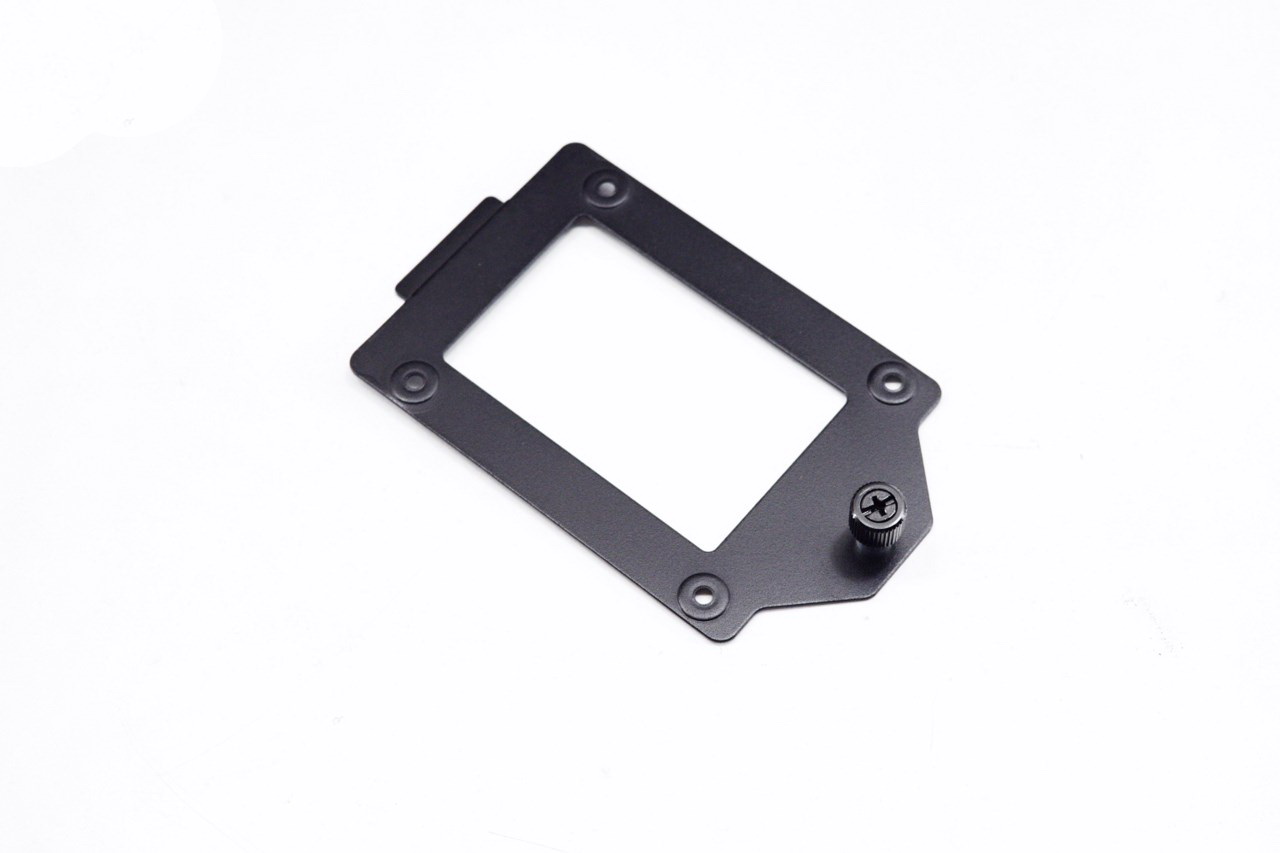

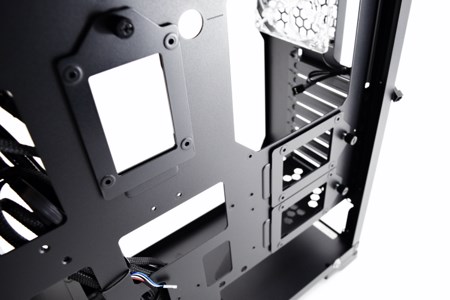

Beneath the mainboard tray there are 3 extra 2.5" aluminum drive trays.

These trays feature build-in thumbscrews and are very sturdy.

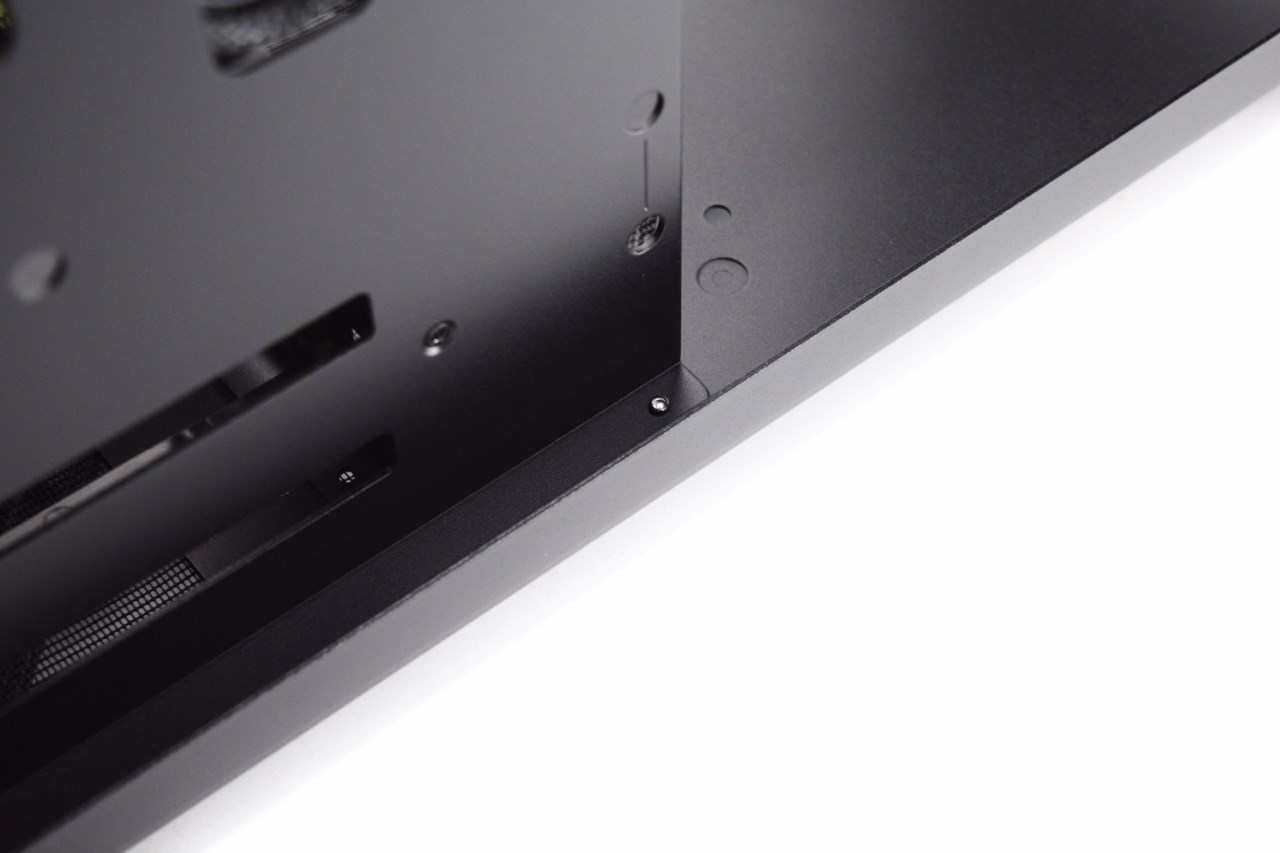

Cable management should be very easy in the 805 since there's quite a bit of space behind the mainboard tray (little over 2cm).
