THE DARK ROCK TF 2

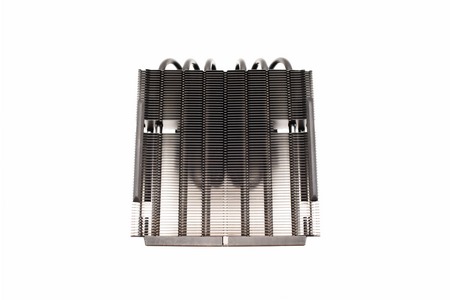

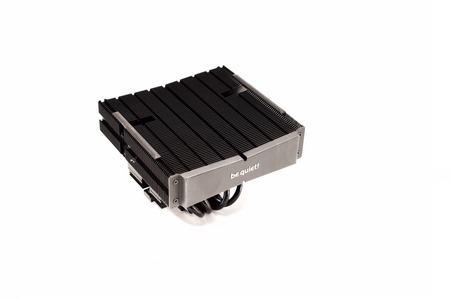

Standing 107mm tall, 164mm long and 140mm wide just the black coated heatsink of the Dark Rock TF 2 is larger than most top-flow CPU coolers in the market today.

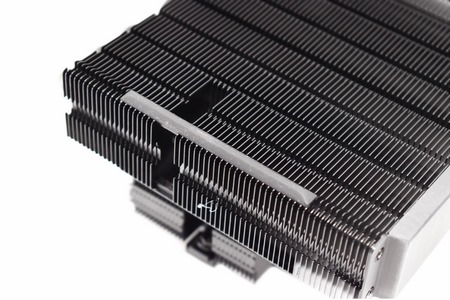

The top heatsink has anti-vibration rubber inserts on both the top and bottom.

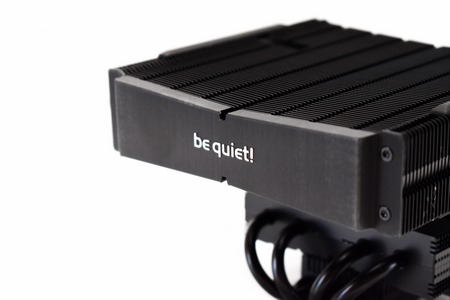

Be quiet has placed their logo at the front of the cooler.

The top heatsink has a total of 63 aluminum fins and two holes used to mount it onto your motherboard.

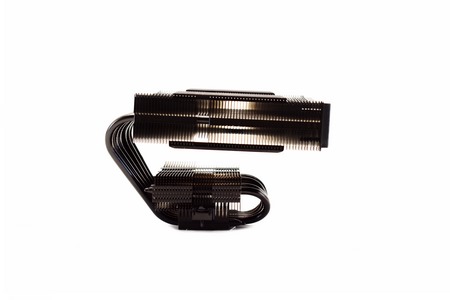

Here you can see both the top and bottom heatsinks (the bottom heatsink is actually 2 heatsinks).

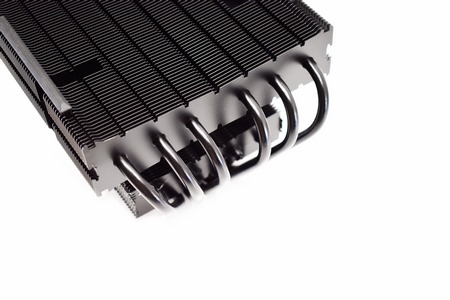

Here you can see the six 6mm nickel plated copper heatpipes.

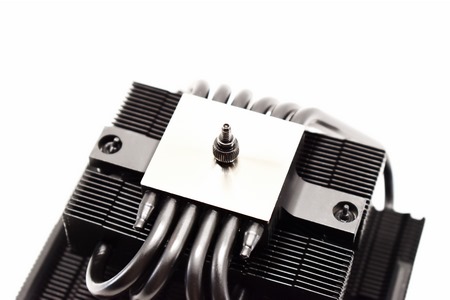

The nickel plated copper base is polished and has almost no machine marks on it.

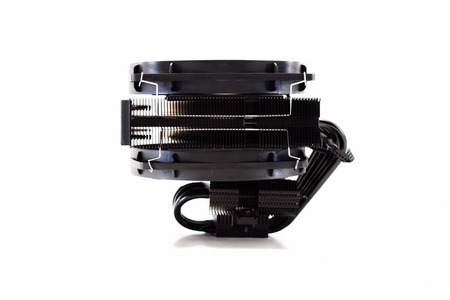

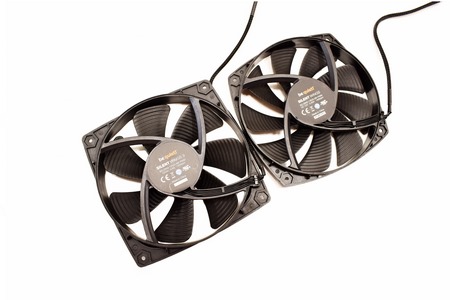

Here you can see both Silent Wings fans bundled with the Dark Rock TF 2 (the 1300RPM model is placed over the heatsink whereas the 1400RPM model is placed beneath it.

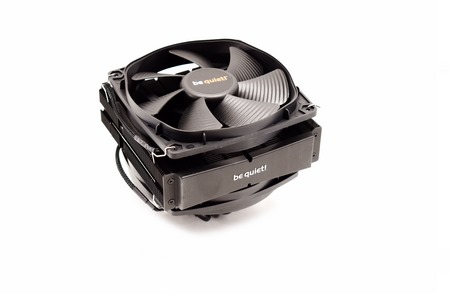

With both of the fans installed the Dark Rock TF 2 now weighs 945g and stands 134mm tall.
