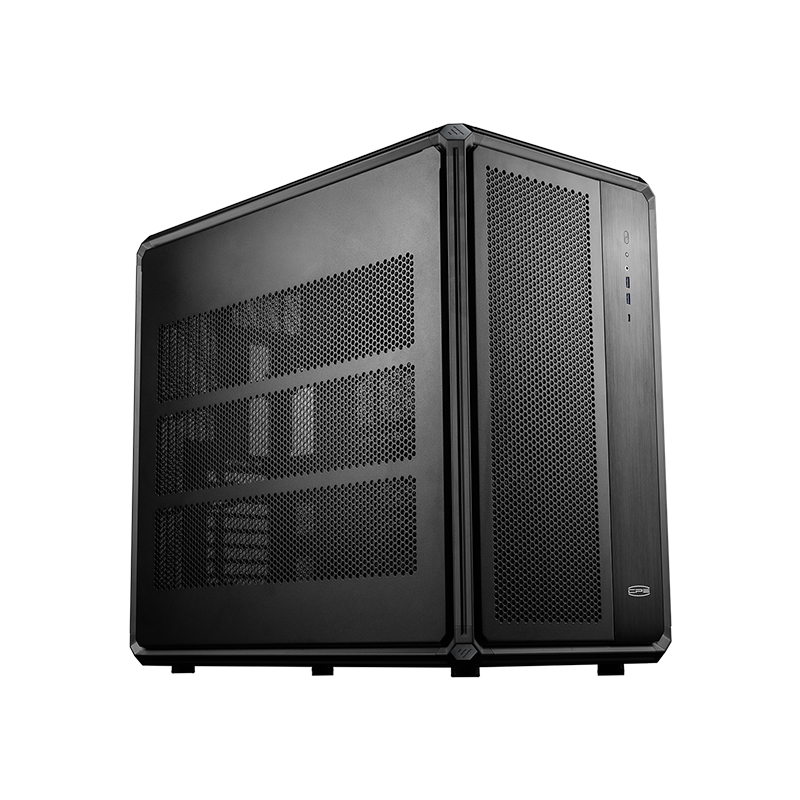

PCCOOLER has launched the Nanyue SR700 full aluminum professional workstation chassis. Designed as an aluminum super full-tower chassis for professional multi-GPU deployment, it features full-size motherboard compatibility, abundant cooling mounting positions, dual-PSU architecture and high-strength all-aluminum frame. It is tailor-made for deep learning, scientific computing, data centers and other professional computing scenarios.
1. Structure & Materials
The SR700 measures 625×338×575mm, classified as an extra-large super full-tower chassis. Its main frame adopts a 2.2mm aluminum alloy frame paired with 1.2mm thickened galvanized steel sheets. The front panel is crafted with CNC brushed anodized aluminum finish. The overall structural strength meets automotive-grade standards, delivering outstanding load-bearing and anti-deformation performance. It can stably hold multiple flagship computing GPUs, heavy-duty liquid cooling assemblies and high-capacity hard drive arrays, maintaining robust structural stability under high-load operating conditions.
2. Hardware Expandability

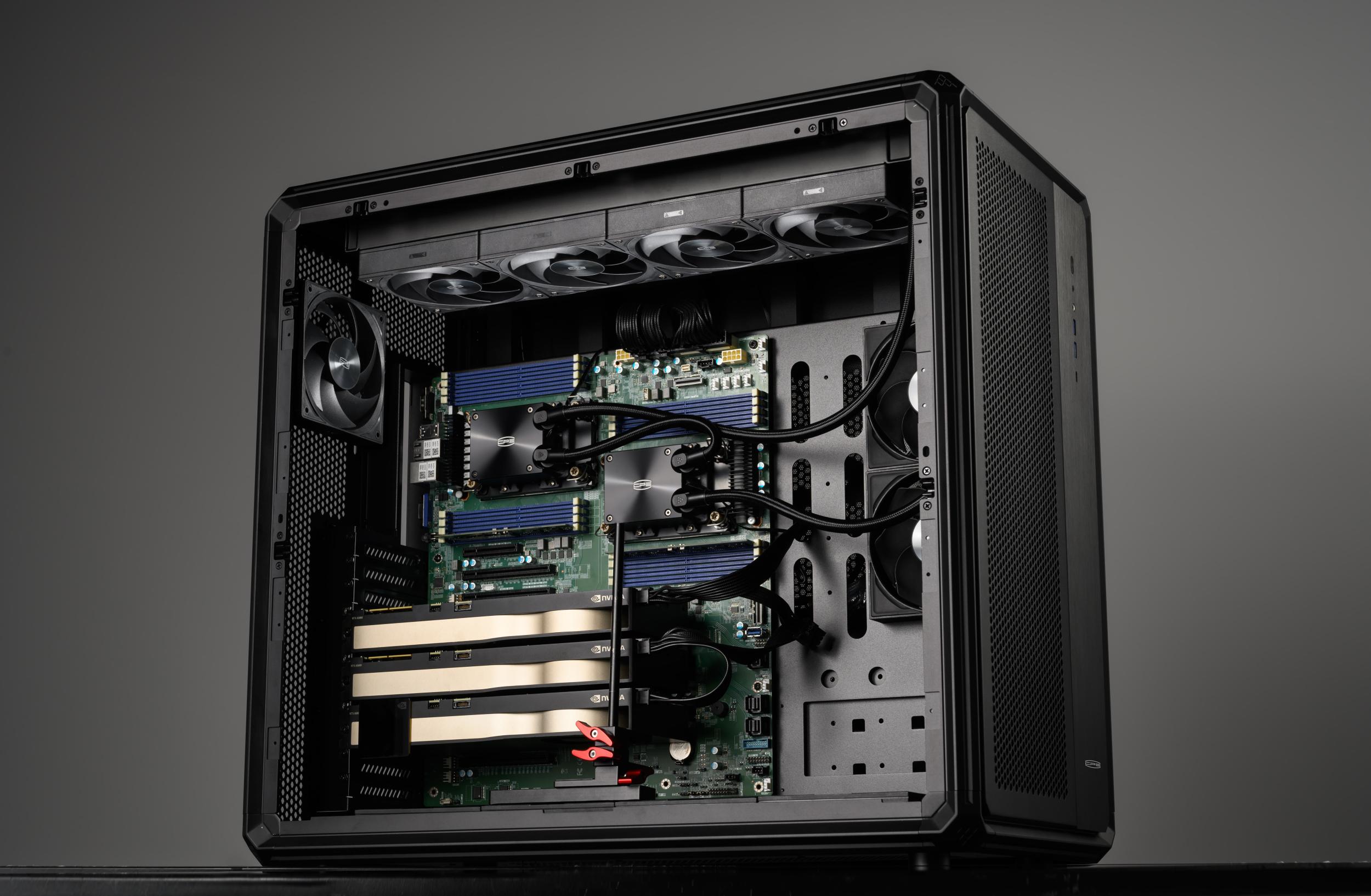

Motherboard compatibility covers HPTX, SSI-EEB server standards, plus full-size consumer-grade boards including E-ATX, ATX, M-ATX and Mini-ITX.It natively supports dual-CPU motherboards, enabling dual-processor collaborative operation to fully unlock multi-core parallel computing performance and drastically boost efficiency for professional computing tasks.Whether consumer-grade platforms or enterprise server builds, the SR700 delivers a perfect hardware installation solution.
Equipped with 11 PCIe expansion slots, it accommodates graphics cards of varying thicknesses and motherboard slot layouts, offering ample installation space for multi-GPU parallel setups and professional expansion cards.
3. Thermal Architecture

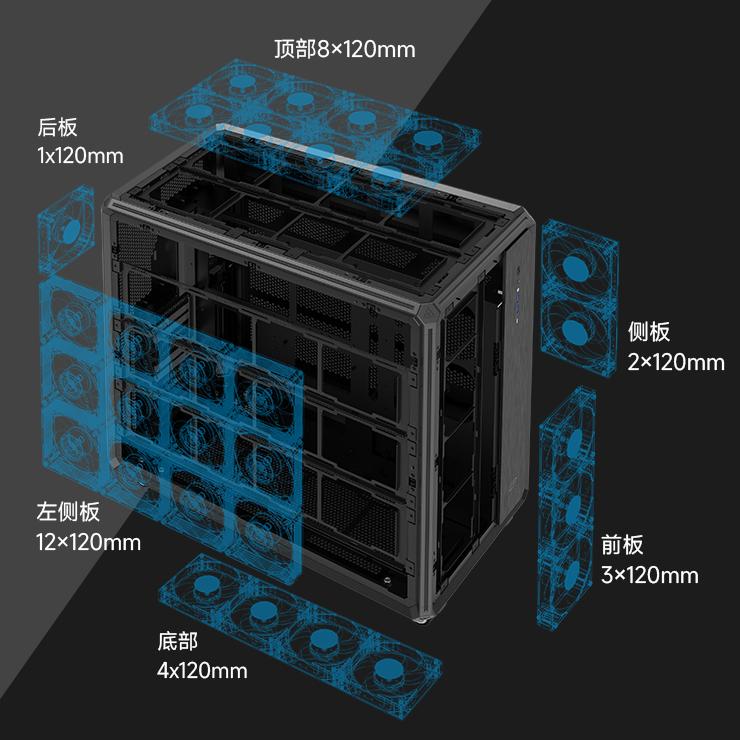

The SR700 features a full-range high-efficiency thermal matrix with 30 mounting positions for 120mm fans, including a dedicated matrix area on the side panel supporting up to 12 additional fans.For liquid cooling radiators, it accommodates dual 480mm top radiators and a 360mm front radiator, supporting three independent liquid cooling loops to deploy split liquid cooling for CPUs and multiple GPUs separately.The maximum CPU air cooler height reaches 195mm, compatible with PCCOOLER’s full lineup of TR/TS series workstation air coolers and LR series all-in-one liquid coolers.
Perforated mesh panels across the chassis work with a 3D layered airflow design. Combined with multi-position fans, AIO liquid coolers and air coolers, it forms a multi-dimensional stereo airflow system that rapidly expels internal heat buildup, drastically improving overall thermal efficiency to effortlessly handle extreme high-load heat dissipation demands.
4. Power Supply & Storage

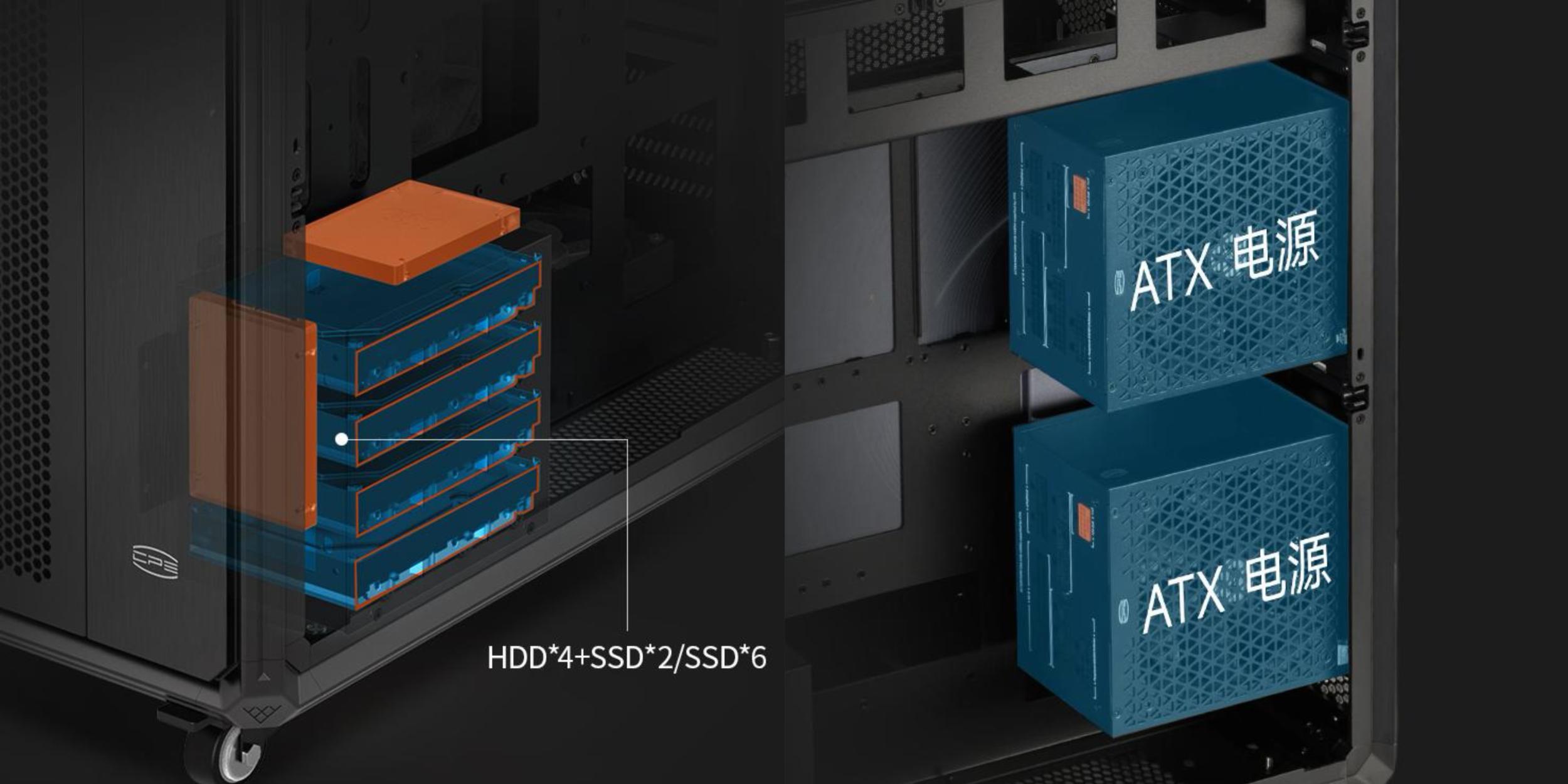

The Nanyue SR700 comes with dual ATX PSU bays, supporting power supplies up to 300mm in length. Users can flexibly configure power solutions according to hardware power draw, delivering stable power output for multi-GPU setups and high-power motherboards. It enhances overall power supply reliability to meet the 24/7 non-stop operation requirements of servers and workstations.
It integrates a versatile hard drive cage for flexible storage configurations: up to 6×2.5” SSDs, or a hybrid layout of 4×3.5” HDDs + 2×2.5” SSDs, fully satisfying the large-capacity and high-speed storage demands of professional workstations.
5. Recommended Matching Hardware
- SU Series ATX3.1 Titanium Premium Power Supplies
- LR Series Server & Workstation Liquid Cooling Radiators
- TS700D / TR620M X Server & Workstation Air Coolers
- Beast F9 R120 Industrial-Grade LCP Cooling Fans
- Curved Blade F5 T120 Dual Ball Bearing Performance Fans
