EK® Water Blocks, the leading premium liquid cooling manufacturer, is releasing a new Quantum Line series EK-Velocity sTR4 water block lineup specifically designed for HEDT AMD® Ryzen Threadripper processors. The cooling engine is utilizing a 3rd generation design with the cold plate covering the IHS of the AMD Ryzen Threadripper processor while the fin structure is covering the entire multi-die CPU layout. This brings further improvements to the cooling performance and heat transfer compared to previous generations.

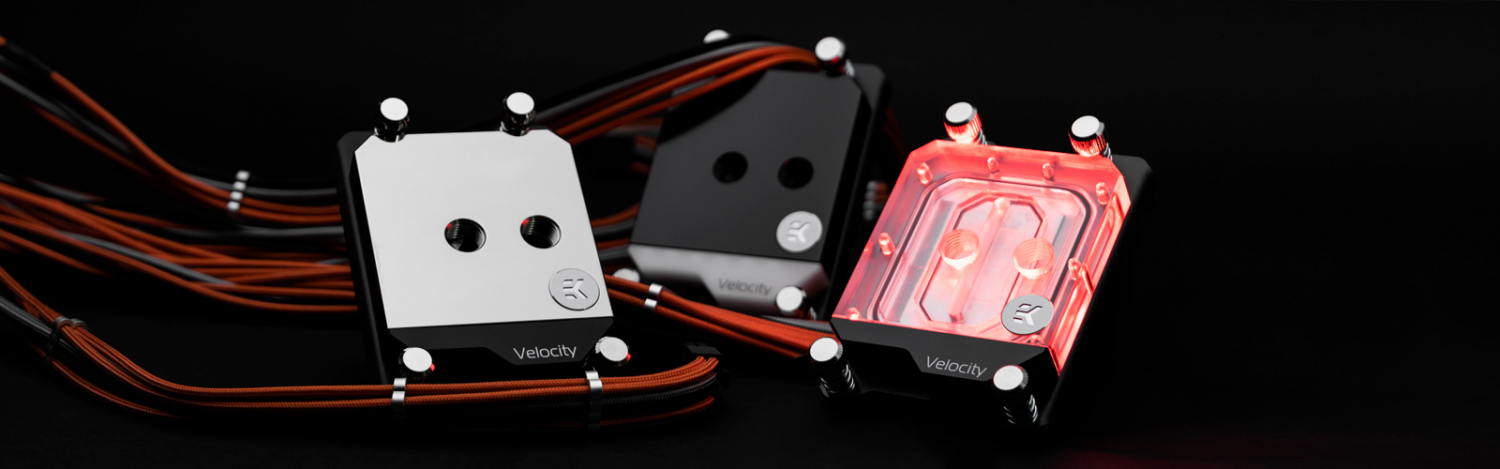

EK-Velocity sTR4

The release of higher core count HEDT processors opened new opportunities and challenges for cooling solutions. The primary goal in designing the new EK-Velocity sTR4 water block was to completely redesign the cooling engine to achieve even better performance than the previous generations. A dense micro-fin structure counts 91 wide grooves to enable superb heat transfer.

Five different versions of the EK-Velocity sTR4 water block are now available:

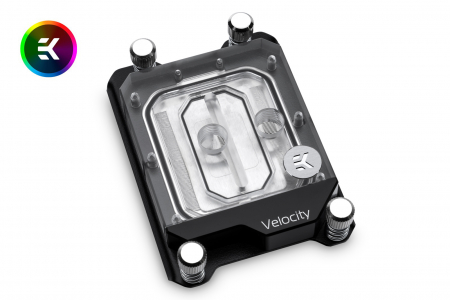

• EK-Velocity sTR4 D-RGB – Nickel + Plexi

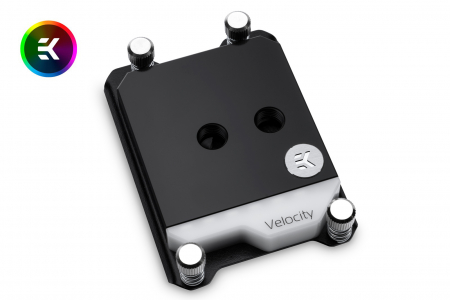

• EK-Velocity sTR4 D-RGB – Nickel + Acetal

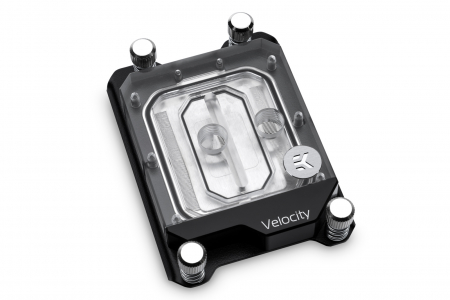

• EK-Velocity sTR4 – Nickel + Plexi

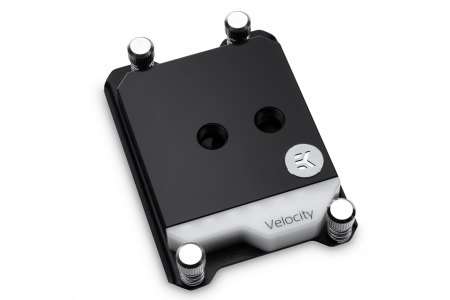

• EK-Velocity sTR4 – Nickel + Acetal

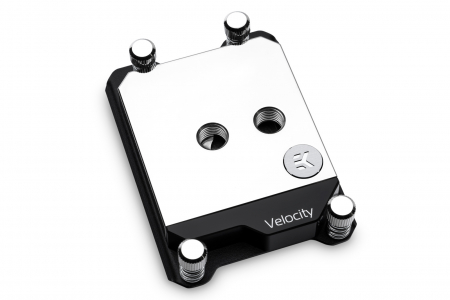

• EK-Velocity sTR4 RGB – Full Nickel

Every EK-Velocity sTR4 water block comes with a precisely machined copper base (sometimes referred to as ‘cold plate’) which is made from purest copper available on the market and is treated with nickel electroplating. Unlike some other CPU blocks, the sTR4 comes with a polished cold plate to achieve the best possible heat transfer with the IHS of the AMD® Ryzen Threadripper processor. The top of the water block is made from CNC machined POM Acetal, acrylic glass or nickel-plated brass (depending on the variant).

EK-Velocity sTR4 comes with a pre-assembled error-preventing mounting mechanism that is installed directly onto the SocketTR4 mounting holes. The result is a perfect installation which results in optimal performance every time. This also means the water block is out of the box compatible with AMD’s server type Socket SP3 motherboards. With such a mounting solution, the user does not need to remove the motherboard from the case and so has a hassle-free installation procedure of the new CPU. It’s recommended that users follow the EK-Velocity sTR4 water block installation manual for the suggested method of thermal grease application for the best-expected results.

The base plate is covering 100% of the AMD Ryzen Threadripper processors Integrated Heat Spreader (IHS). The EK-Velocity sTR4 cooling engine implemented into the water block is the key to a high-flow design with low hydraulic restriction combined with high-performance cooling. The newly engineered cooling engine consists of 91 micro fins spanning over a large surface area ensuring superb heat transfer of all dies within the AMD Ryzen Threadripper CPUs.

The D-RGB versions of the EK-Velocity sTR4 water block are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB(A_RGB) header. You can easily remove the LED strip cover which is mounted with two screws to replace the LED strip with some other type LED strip.

The EK-Velocity sTR4 – Full Nickel is lit with standard 12V RGB LEDs and is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 4-pin LED connector is to be aligned with the +12V marking on the RGB header. You can easily remove the LED strip cover which is mounted with two screws to replace the LED strip with some other type LED strip.

You can always check for compatibility for the EK-Velocity sTR4 water blocks by using EK Cooling Configurator database where compatible motherboards are being added to the list on a daily basis:

Availability and Pricing

EK-Velocity sTR4 water blocks are made in Slovenia and are available for purchase through EK Webshop and Partner Reseller Network. In the table below you can see manufacturer suggested retail price (MSRP) with VAT included.
